Dimensions: 80x32x23mm
Brand:
S4AItem NO.:

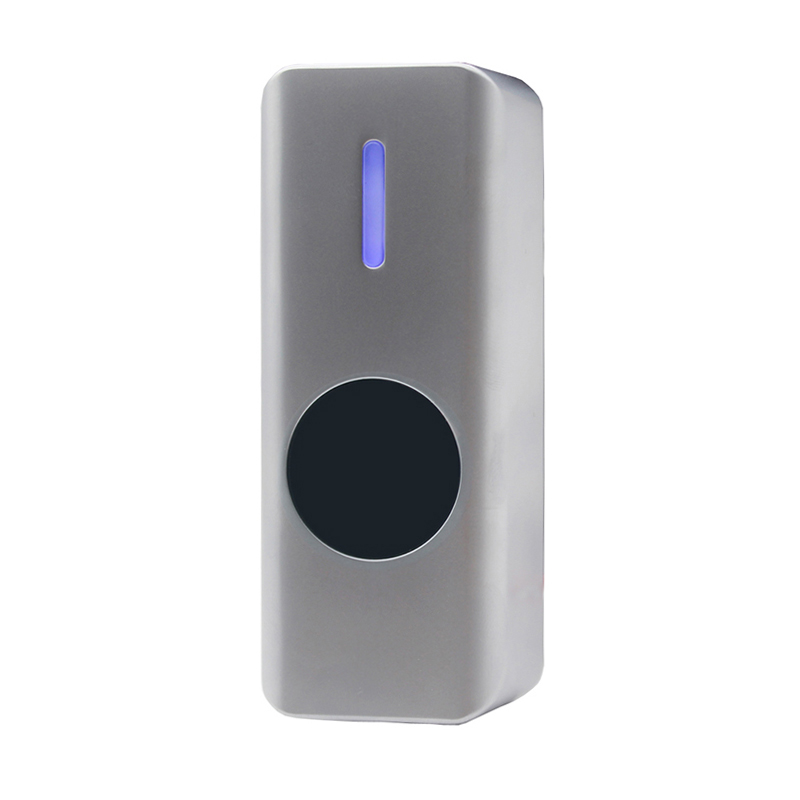

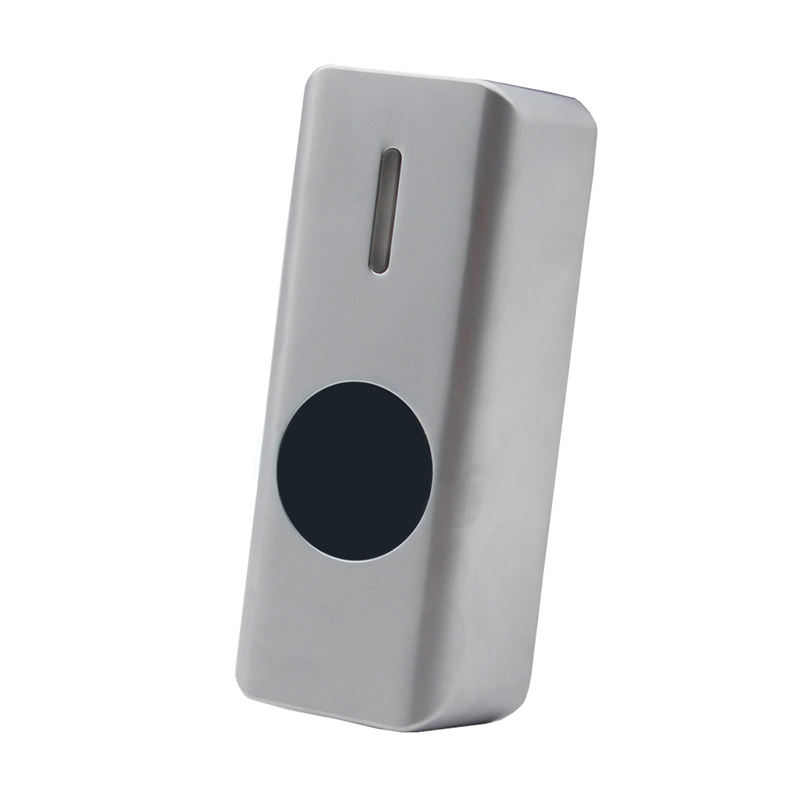

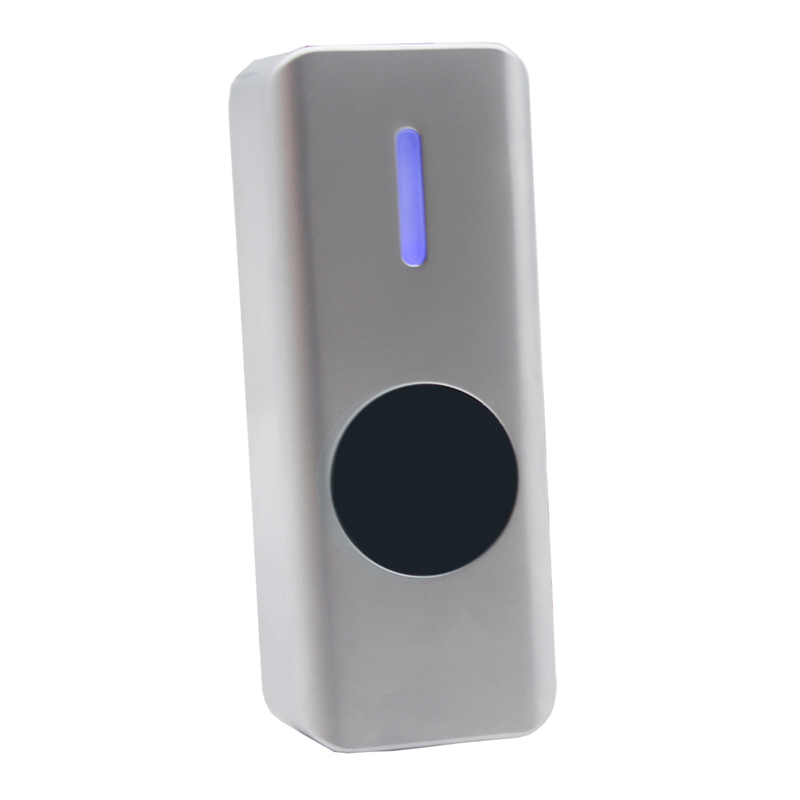

EB-1406New Released-touchless Infrared Sensor Exit Push Button
Model No: EB-1406
What is Infrared Sensor Button?
Infrared Sensor Button unlike traditional door release buttons, an Infrared switch does not require any form of physical pressure to operate. Simply placing a hand in front of the unit will activate the sensor.
Dimensions | 80x32x23mm |
Surface mount | Zinc alloy metal case |
Input | DC12V |
Contact Rating | 1A@36VDC |
Output Contact | NO/NC/COM |
Mechanical Life | 1,00,000 tested |
Suitable for | Door Hollow Door |
Operating temp | -20℃～55℃(14°F-131°F) |
Suitable Humidity | 0-95% (relative humidity) |
Detection range | 3-15cm(Adjustable) |
LED Indicator | Blue LED indicator: Power ON(standby) |
Green LED indicator: Power ON(sensation) |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
