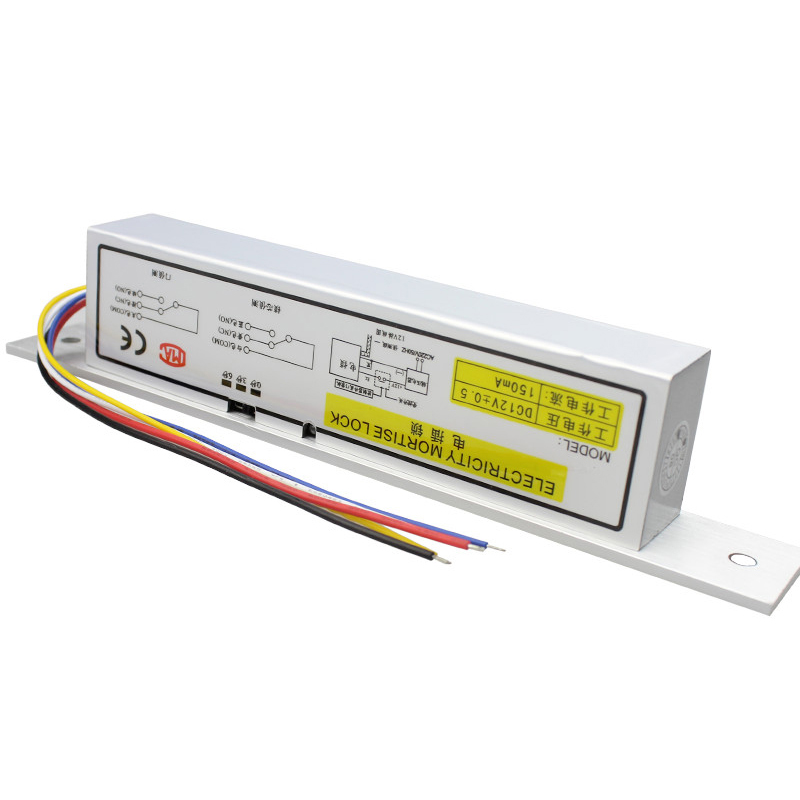

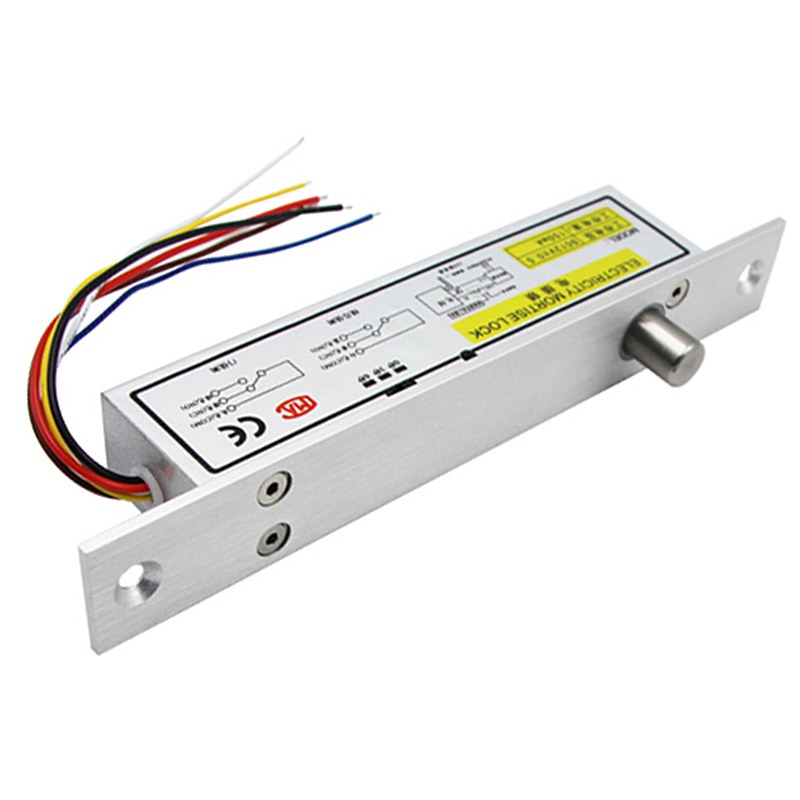

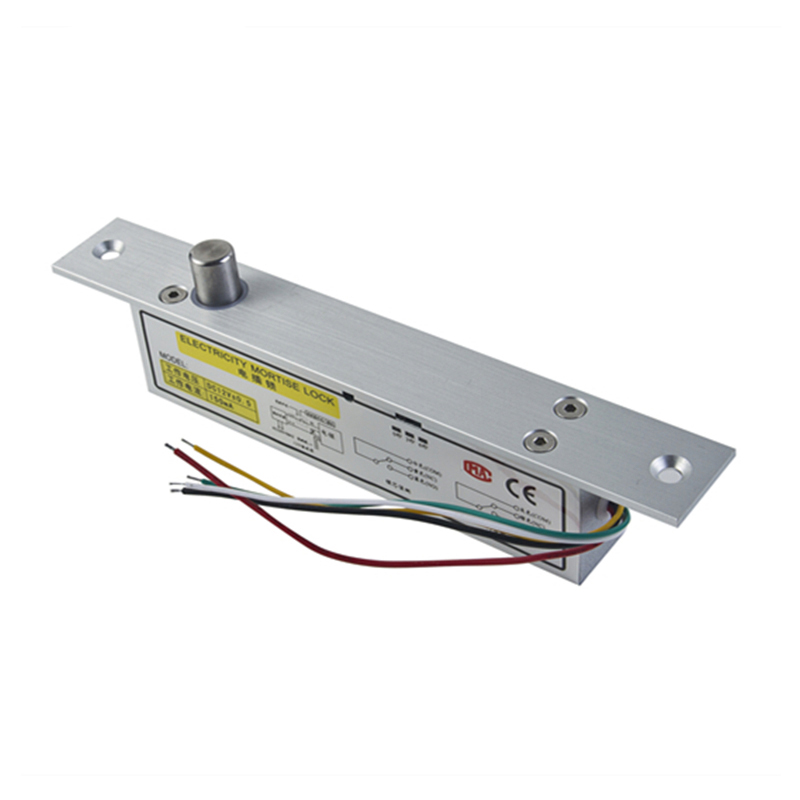

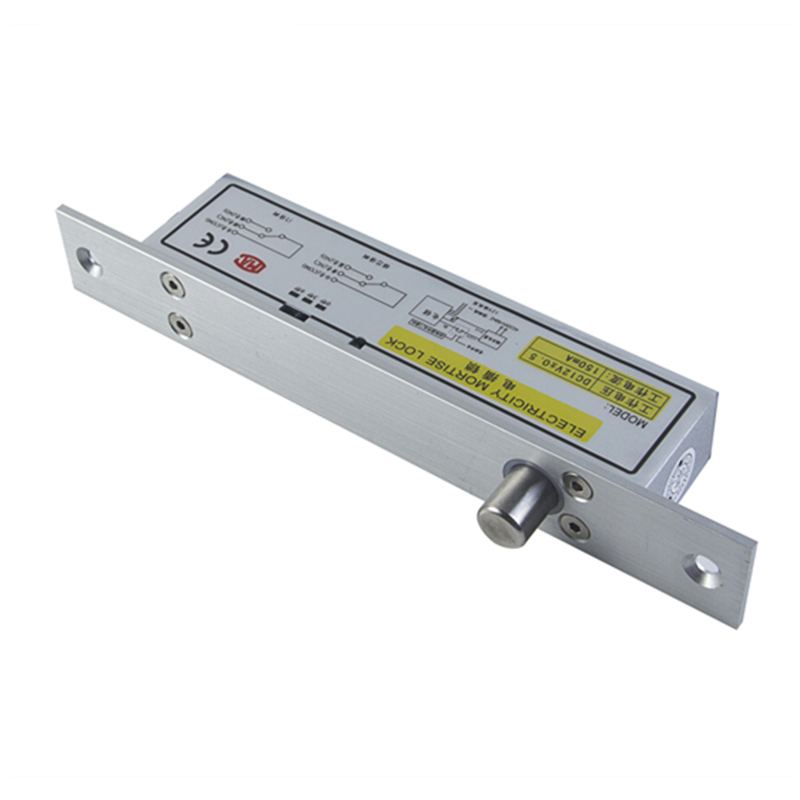

Narrow Electric Bolt Lock with 5wires

Fail-Secure (power off, the door is locked)

> Low Temperature, safe & Durable

> Low Power, Environmental Protection

> MOV Provides Reverse Current Protection

> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt

> Autolock Time Delay: 0,3,6,9sec.

> Double protection for loading current

> Auto-relock if no Action within 5 secs.

  • Brand:

    S4A
  • Item NO.:

    BL-2300B Fail-Secure
  • Specifications
  • Wiring Diagram

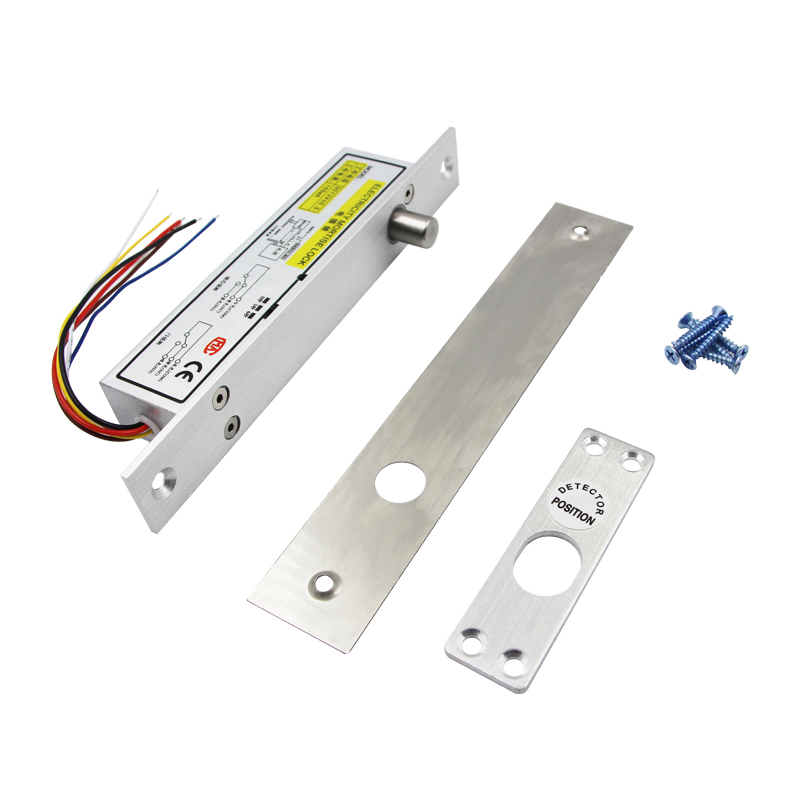

  • Package

Narrow Electric bolt lock with 5wires

Model No.: BL-2300B Fail-Secure


Narrow Electric bolt lock with 5wires


> Low Temperature, safe & Durable

> Low Power, Environmental Protection

> Special photoelectricity control, three steps current application

> Long Life  with 500000 Operations

> MOV Provides Reverse Current Protection

> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt

> Autolock Time Delay: 0,3,6,9sec.

> Door statue signal output contact (NC.COM)

> Double protection for loading current

> Auto-relock if no Action within 5 secs.


Voltage

DC12V(DC24V need order )

Start Current

960mA

Standby Current

180mA

Solid Bolt

polishing housing, 1000Kg Holding Force

Suitable For

Wooden Door, Glass Door, Metal Door, PVC Door

Signal Output

Door Status Output, NO/NC/COM

Surface Temp

Low Temperature

Induction Distance

8mm

Operating temp

-10~+55 degree (14-131F)

Operating Humidity

0~90%(non-condensing)

Special Designed

Tested to 500000 operations

Face place material

Stainless Steel

Weight

0.676kg

Narrow Electric bolt lock with 5wires

Narrow Electric bolt lock with 5wires

Narrow Electric bolt lock with 5wires
