> Card type: 125KHz or 13.56MHz Card
> Size: 110 x 48 x 20 mm
Brand:
S4AItem NO.:

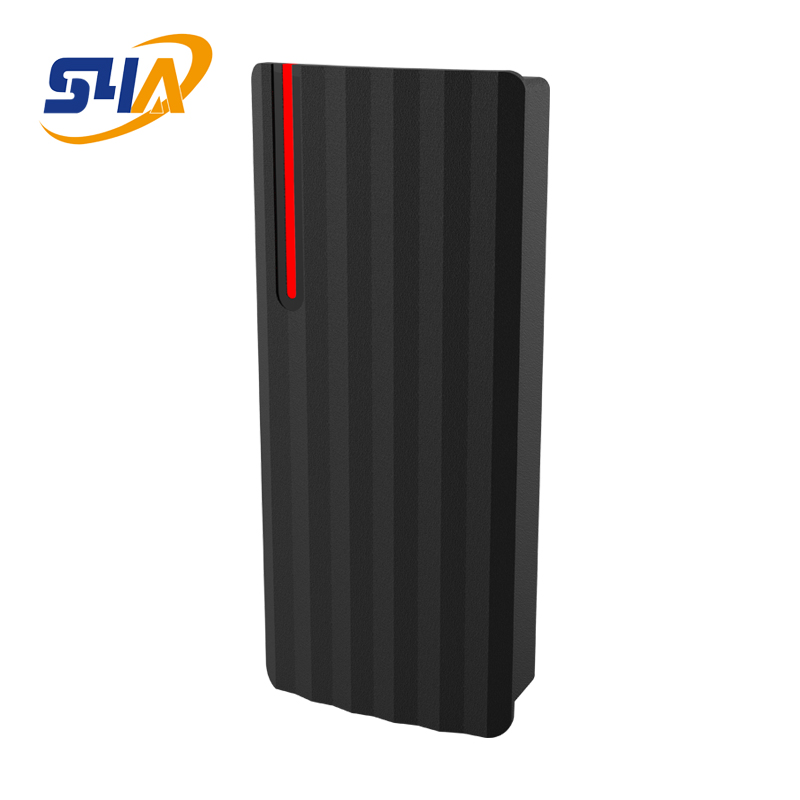

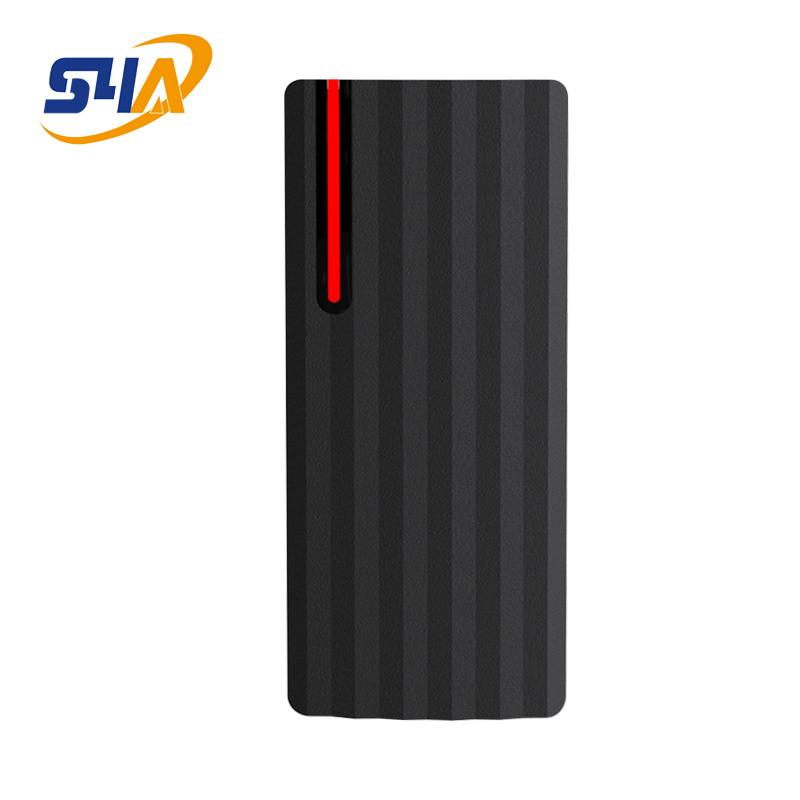

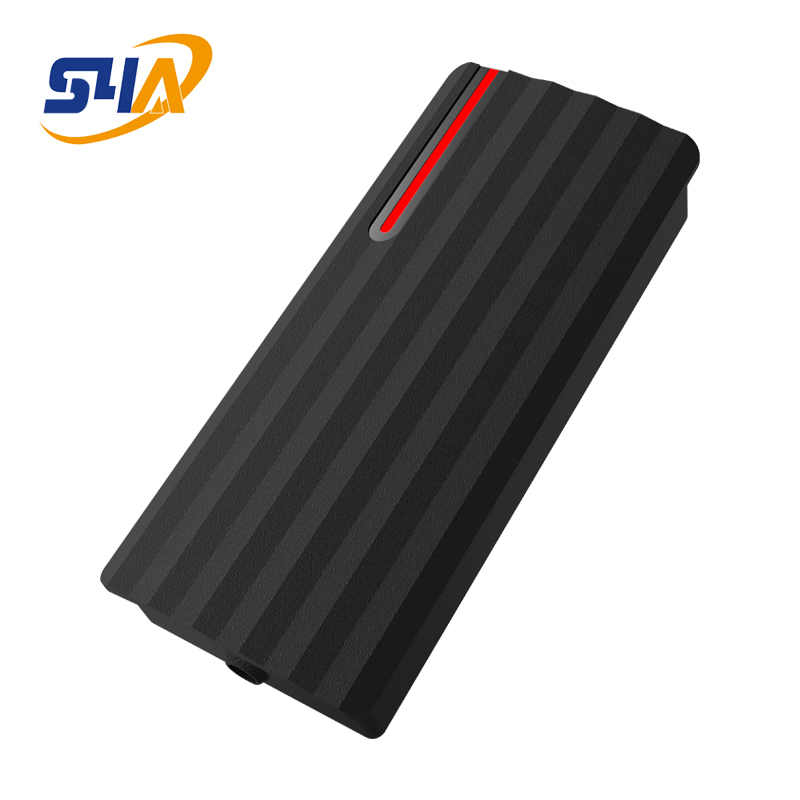

U-P003Item Name: Manufacturer Rfid Tags Reader
Model No.: U-P003 EM, MF
Features

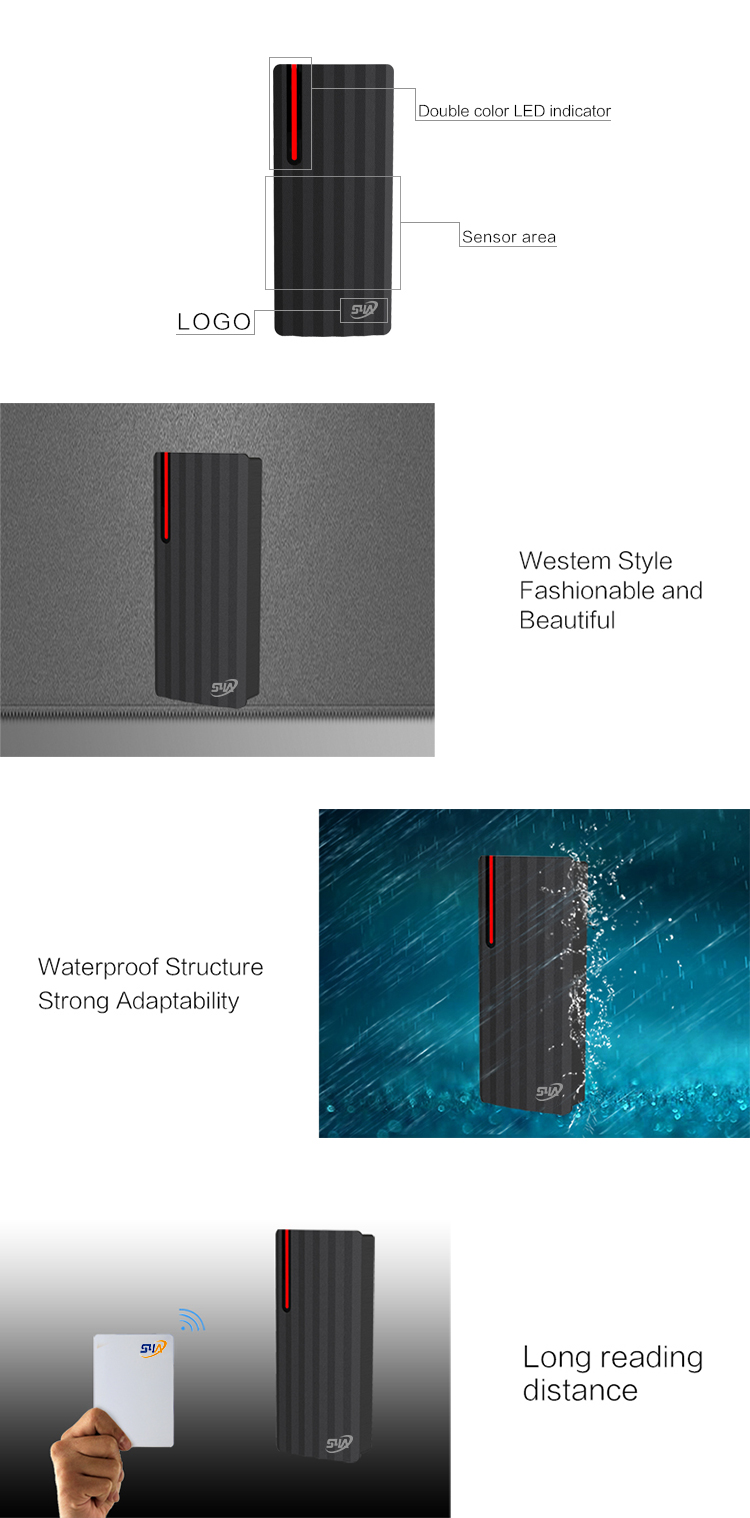

> Metal shell, anti-vandal
> Very low power consumption, standby current less than 30mA

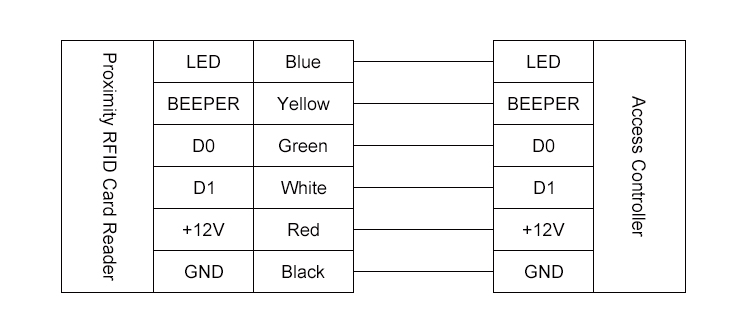

> WG 26 output
> Fast Search speed: time between reading card and opening the door is less than 0.1S
Operating Voltage | 9-12V DC |
Card type | EM/Mifare |
Reading Distance | 3-6 cm |
Quiescent Current | ≤30mA |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Dimension | 110*48*20 MM |
Multi Rfid Tags Reader | |||||
Model No. | Dimension | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
U-P003EM | 110x48x20mm | 100pcs | 15KG | 21.2KG | 57.5x47.5x23.7cm |
U-P003MF | 15KG | 21.2KG | |||
S4A Datesheet_Multi Rfid Tags Reader
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
