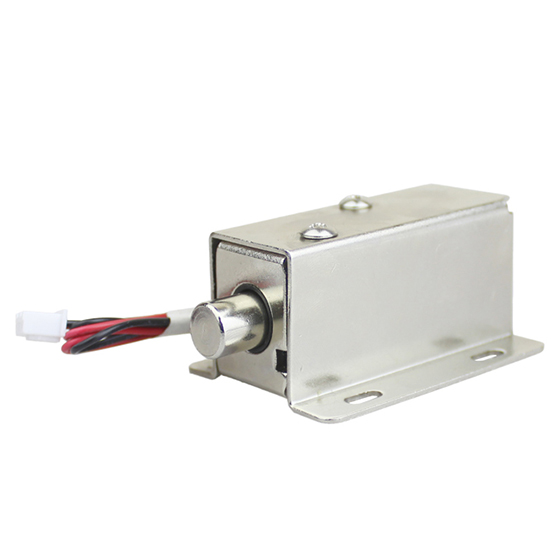

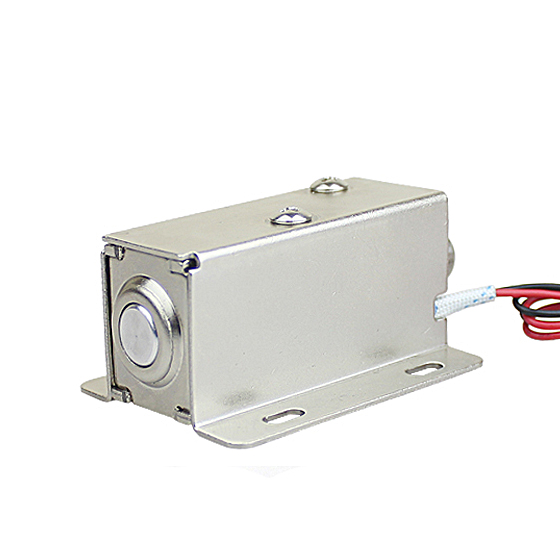

Mini Electric Bolt Lock for Cabinet Small Locking Cabinet Solenoid Door Lock

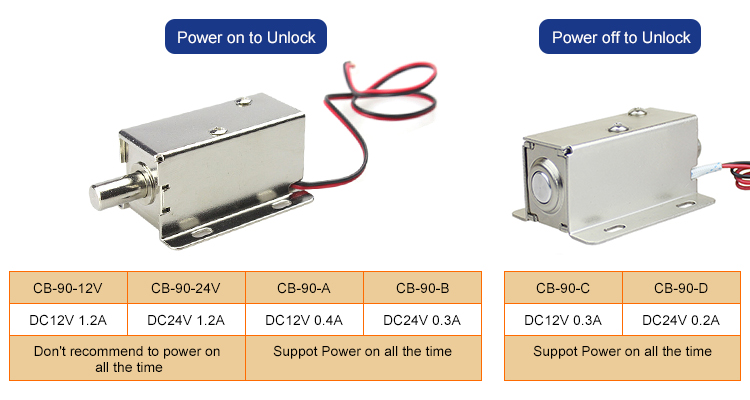

> CB-90-C: DC12V 0.3A

> CB-90-D: DC24V 0.2A

> Lock size: 54 x 22 x 28mm

> Working Mode: Power on to Lock

                              Power off to Unlock

> Suppot Power on all the time

  • Brand:

    S4A
  • Item NO.:

    CB-90-C, CB-90-D
  • Specifications
  • Package

Mini Electric Bolt Lock for Cabinet Small Locking Cabinet Solenoid Door Lock

Model No: CB-90-C, CB-90-D


Model No.

CB-90-C

CB-90-D

Voltage

DC12V 0.3A

DC24V 0.2A

Tongue Holding Force

≤0.5N(50G)

Power On

Support Power on all the time

Working Mode

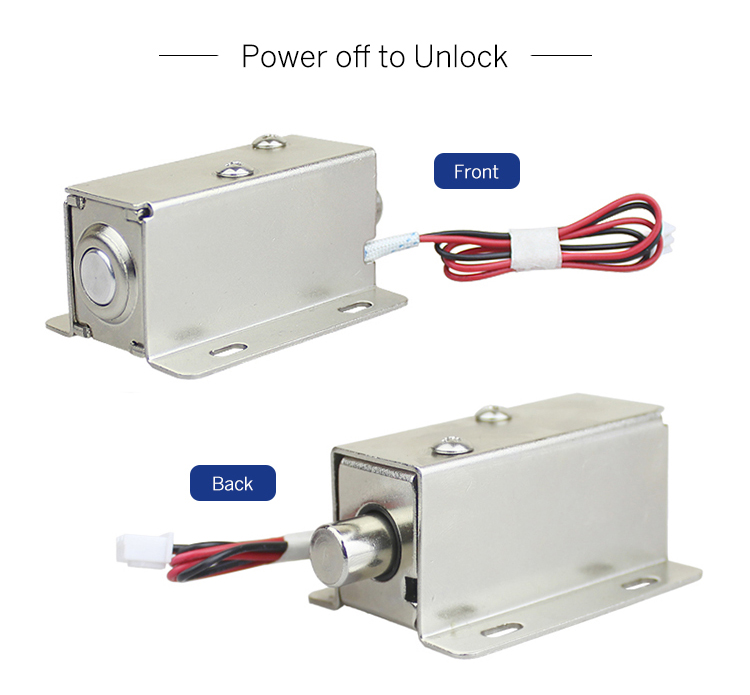

Power on to Lock   Power off to Unlock

Total Tongue Length

10mm

Dimension

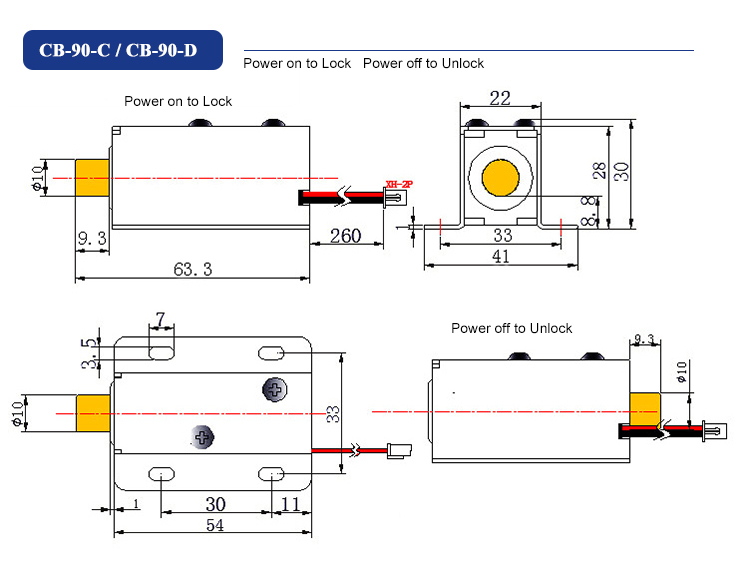

54 x 22 x 28mm

Small Locking Cabinet

Small Locking Cabinet

Small Locking Cabinet


Small Locking Cabinet
