Categories
> CB-90-12V: DC12V 1.2A
> CB-90-24V: DC24V 1.2A
> CB-90-A: DC12V 0.4A
> CB-90-B: DC24V 0.3A
> Lock size: 54 x 23 x 28mm
> Working Mode: Power on- Open
Power off- Lock
Brand:
S4AItem NO.:
CB-90, CB-90-A/BElectromagnetic Electric Control Cabinet Drawer Locker Lock Latch DC 12V 2A
Model No: CB-90-12V, CB-90-24V, CB-90-A, CB-90-B

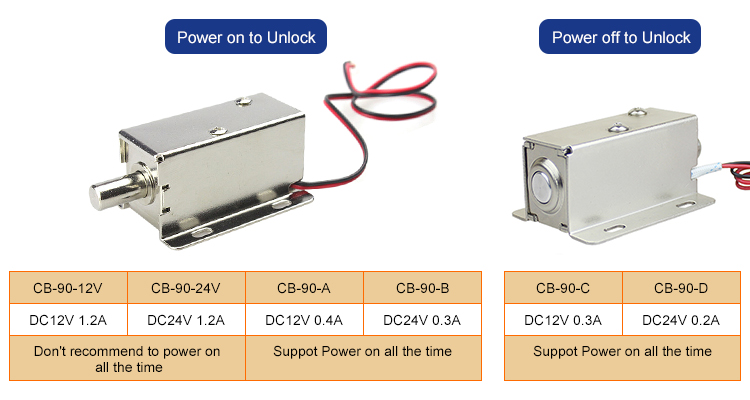

Model No. | CB-90-12V | CB-90-24V | CB-90-A | CB-90-B |
Voltage | DC12V 1.2A | DC24V 1.2A | DC12V 0.4A | DC24V 0.3A |
Tongue Holding Force | ≤1N(100G) | ≤0.5N(50G) | ||
Power On | ＜10S (Don't recommend to power on all the time) | Support Power on all the time | ||
Working Mode | Power on- Open / Power off- Lock | |||
Total Tongue Length | 7mm | |||

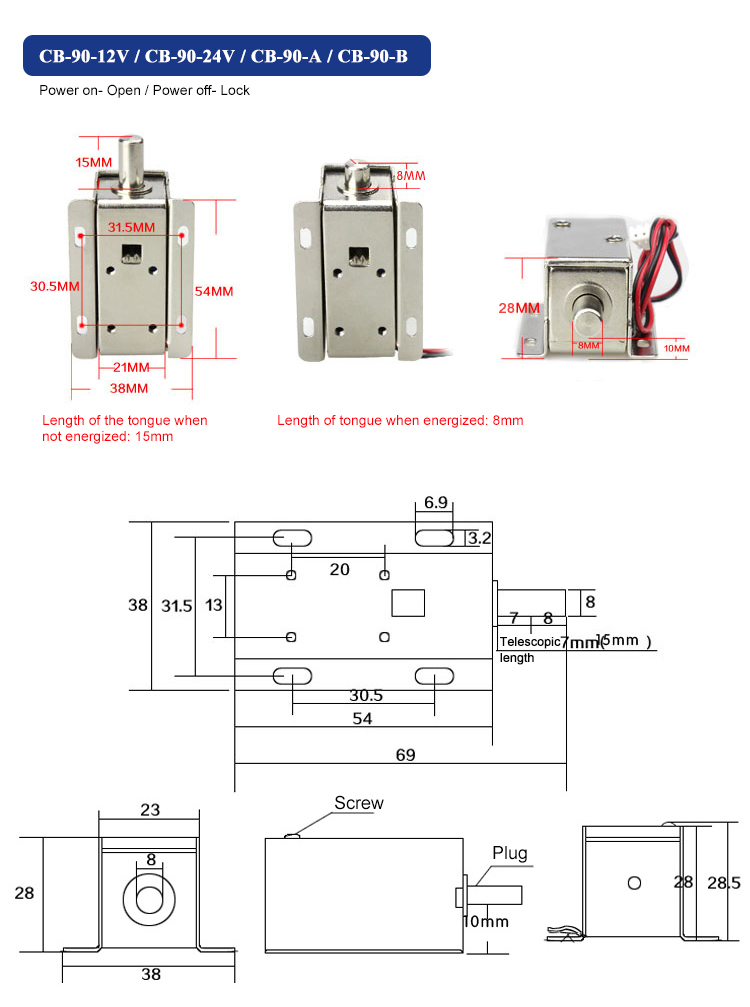

Dimension | 54 x 23 x 28mm | |||
S4A Datesheet_Electromagnetic Electric Control Cabinet Drawer Locker Lock Latch DC 12V 2A
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output: No
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output with 4 wires
> Voltage: DC12V 1.8A> Lock size: 73 x 58 x 13.3mm> Signal output: No
> Voltage: DC12V 1.8A DC24V 1.5A> Lock size: 73 x 58 x 13.3mm> With Signal Output
> Voltage: DC12V 1.8A> Lock size: 72 x 65 x 13mm> With Signal Output
> Voltage: DC12V 2A> Lock size: 61 x 48 x 13mm> With Signal Output
Work with 4pcs 7 alkaline batteries> Static current ≤5uA> Transient current (Turn on lock) ≤250mA> Work current for operating keypad: ≤20mA> Use time: More than 100 thousand
> Voltage: DC12V 0.8A DC24V 1.2A> Lock size: 55 x 23 x 28mm> Working Mode: Power on- Open Power off- Lock
