> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 13.56MHz Mifare card
> Wiegand output: 26 bits or 34 bits
Brand:
S4AItem NO.:

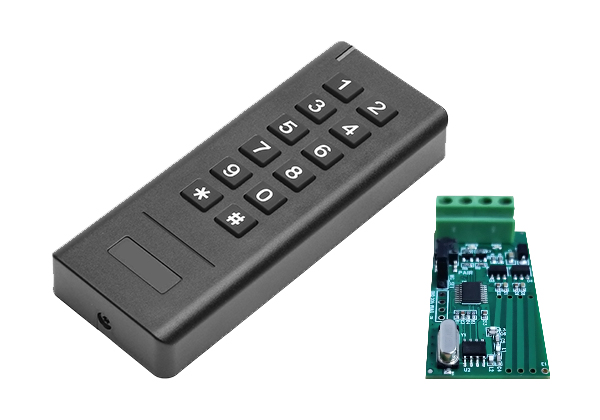

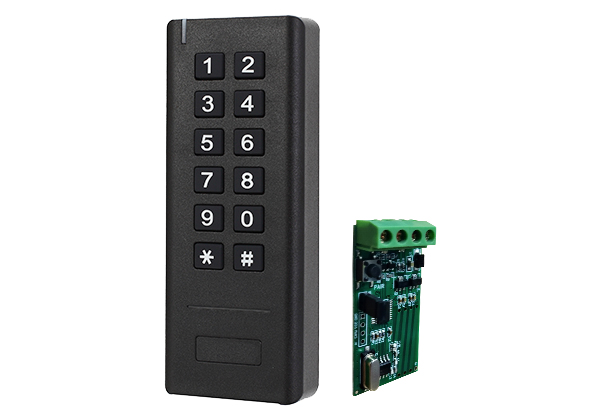

WK1-MFMifare Wireless Access Control Keypad RFID Reader with WG26/34
Model No.: WK1-MF
Wireless Keypad Reader | PIN Length | 1-6 digits |
Card Type | 13.56MHz Mifare card | |
Operating Voltage | 3 units of AAA batteries | |
Idle Current | ≤5uA | |
Working Current | ≤45mA | |
Reading Distance | ≤3cm | |
Communication Frequency | 433MHz | |
Communication Distance | 30m Maximum | |
Operating Temperature | -20°C～60°C (-4°F～+140°F) | |
Operating Humidity | 0%～86% | |
Physical | ABS | |

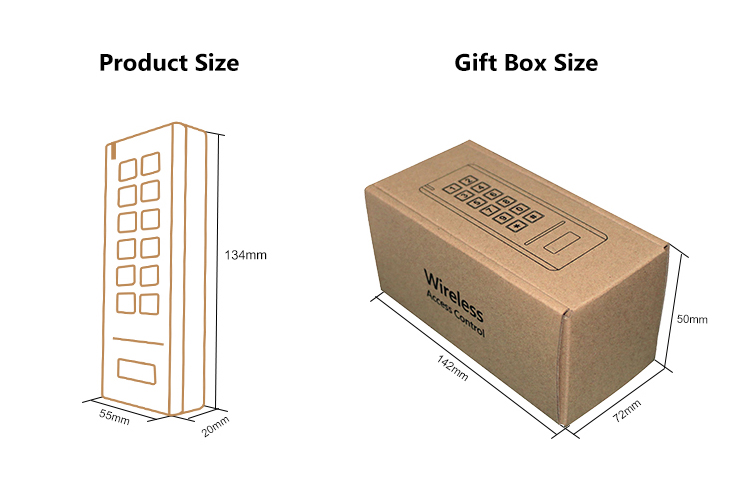

Dimensions | L134 x W55 x H20 (mm) | |
Net Weight | 100g | |
Receiver | Operating Voltage | 12V DC |
Working Current | ≤15mA | |
Communication Frequency | 433MHz | |
Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
Operating Temperature | -20°C～60°C (-4°F～140°F) | |
Operating Humidity | 0%～86% | |
Dimensions | L25 x W50 (mm) | |
Net Weight | 10g | |
Wireless Button | Operating Voltage | 1unit of 2023 Lithium battery |
Idle Current | ≤2uA | |
Working Current | ≤20mA | |
Communication Frequency | 433MHz | |
Communication Distance | 20m Maximum |
S4A Datasheet_Mifare Wireless Access Control Keypad RFID Reader with WG26/34
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
