> 860~868MHz, 902~928MHz frequency band(frequency customization optional)
> Built-in antenna with effect distance up to 200mm*
> Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode
Brand:
S4AItem NO.:

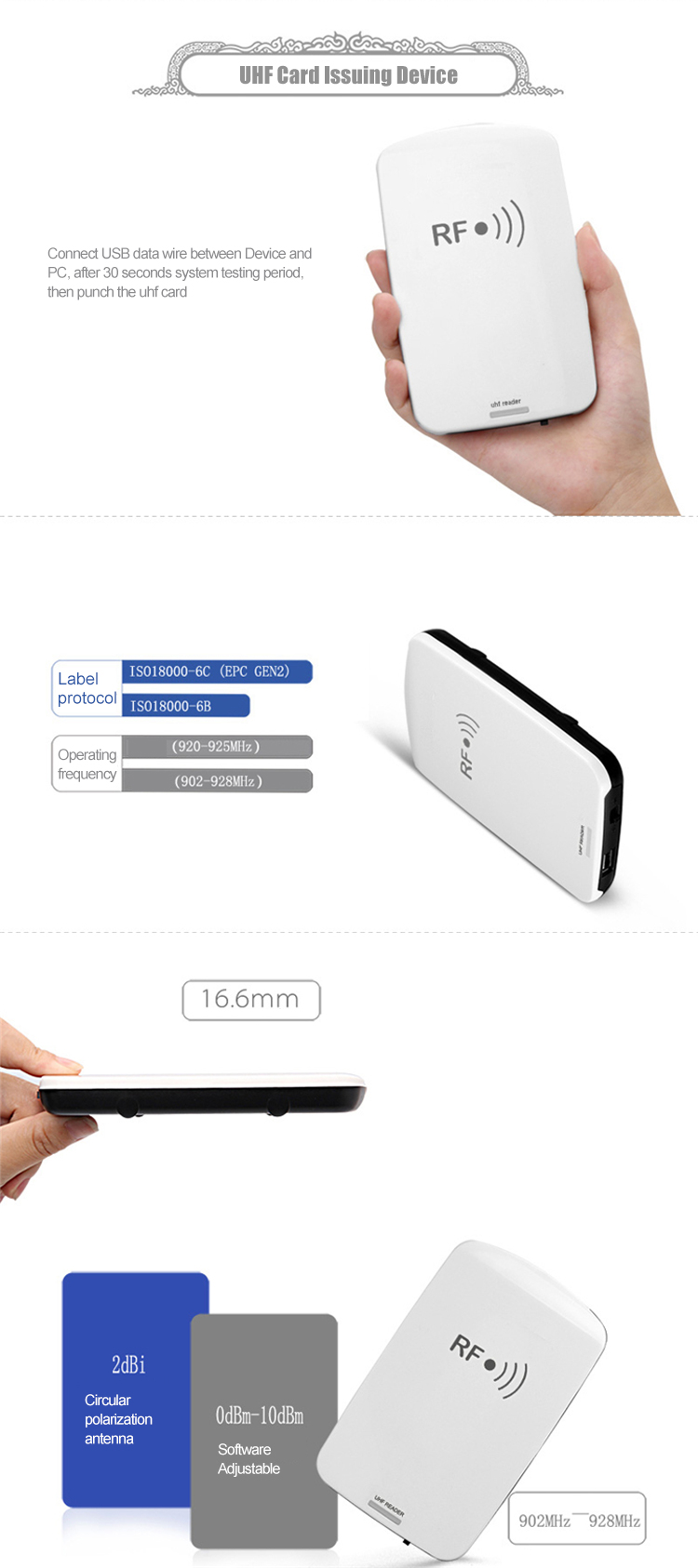

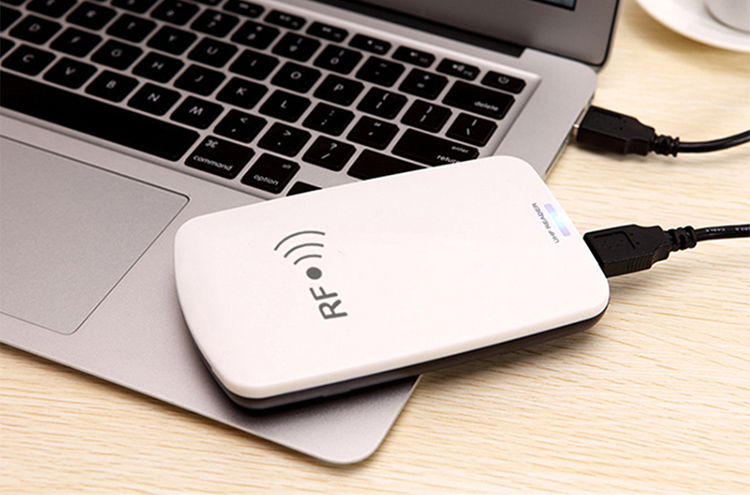

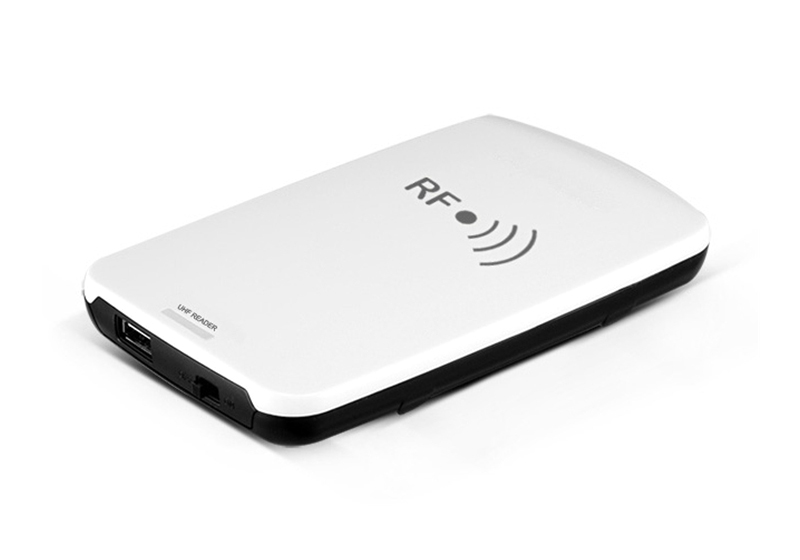

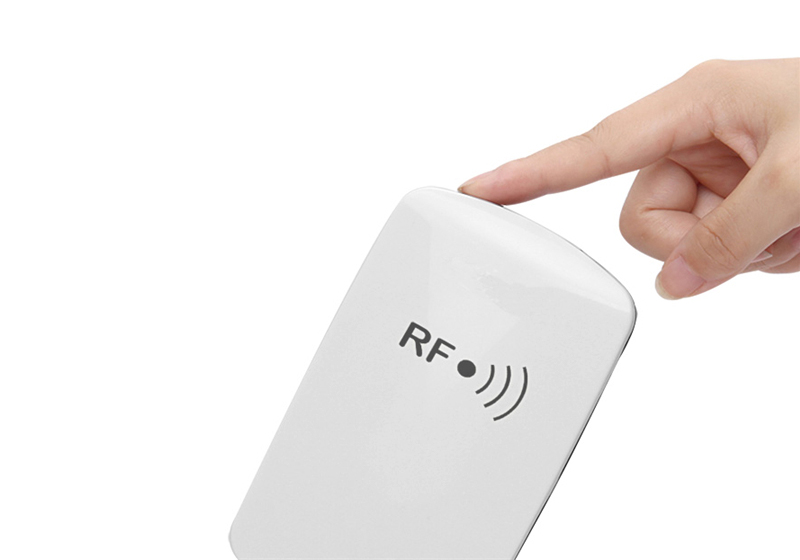

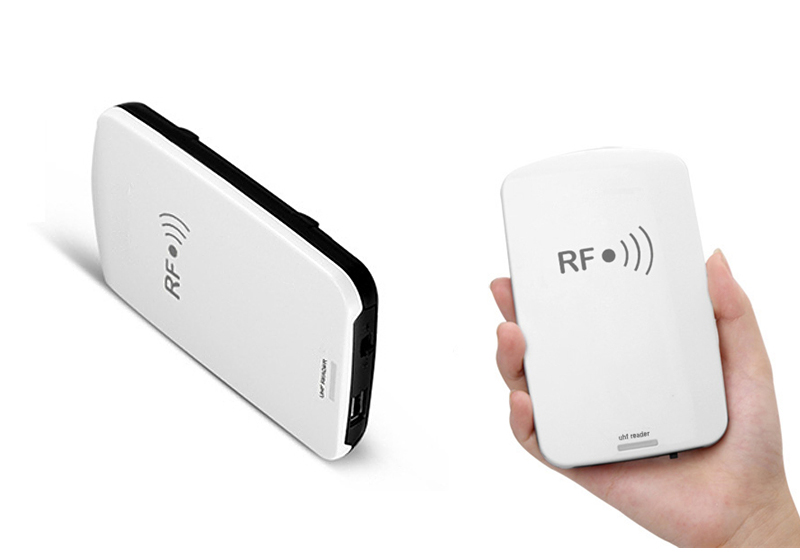

UHF-05UHF RFID USB Desktop Reader Only with Keyboard Emulation Output
Model No.: UHF-05 Black
Description:
UHF-05 is a high-performance UHF RFID Desktop Reader. It is designed upon the fully self-intellectual property. Based on a proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with a high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit, and industrial production process control system.
Features:
> Self-intellectual property
> Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag
> 860~868MHz, 902~928MHz frequency band(frequency customization optional)
> FHSS or Fix Frequency transmission
> RF output power up to 13dbm(adjustable)
> No external power source is needed
> Built-in antenna with effect distance up to 200mm*
> Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode
> Slim outline
> Provide SDK and demo software to facilitate further development
* Effective distance depends on protocol, tag, and environment
S4A Datesheet_UHF RFID USB Desktop Reader Only With Keyboard Emulation Output
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
