> Card type: EM or MF Card
> Keypad Characteristic: Infrared remote controller operation.
> Admin Card: admin card, admin fingerprint (add/delete)
> User Capacity: 10,000 card users, 1000 facial users and 600 fingerprint users
Brand:
S4AItem NO.:

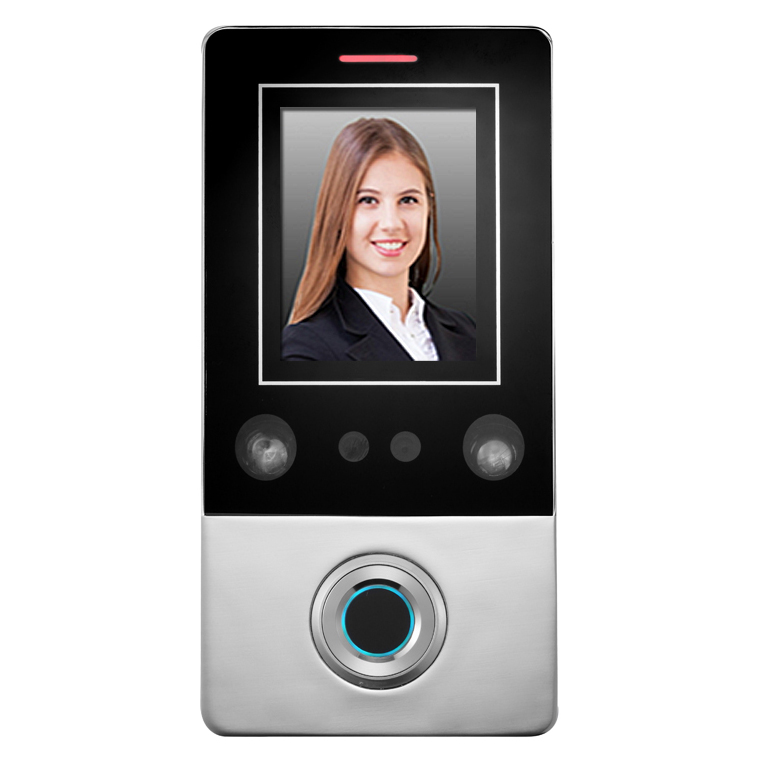

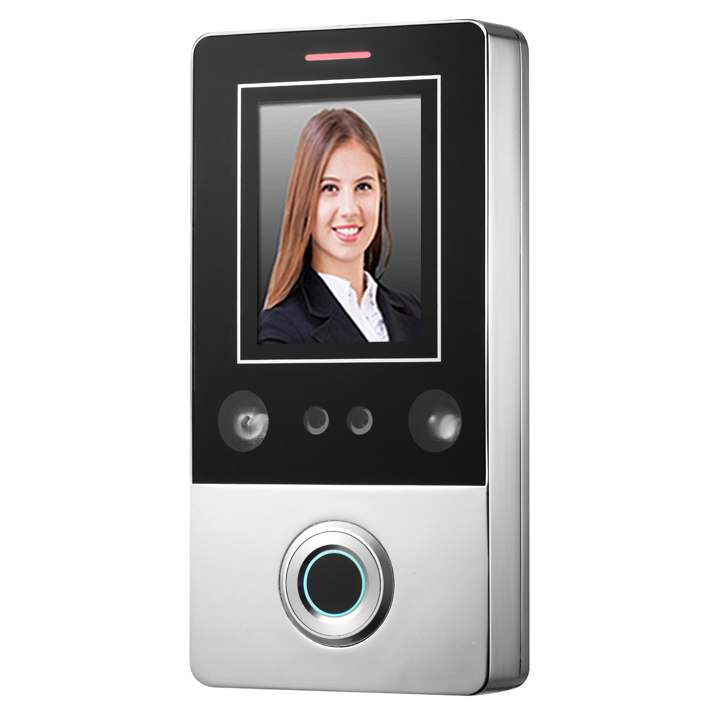

CF1Metal Face Recognition Access Control System Fingerprint Controller
Model No: CF1 EM, MF
The product is a new generation of multi-function facial recognition Standalone Access Controller and Reader, which utilizes the new powerful, stable, and reliable ARM core 32-bit microprocessor design. It can be used as a Weigand reader, or as a Standalone Access Controller/Reader. And is suitable for access control applications in offices, residential communities, villa, banks, and prisons.
Features:
> Read 125KHz EM Card (Factory Default )
> Read 13.56MHz Mifare Card (Optional)
> Keypad Characteristic: Infrared remote controller operation.
> Output Protocol: Can operate as a reader. The transmission format could be adjusted by users.
> Access Mode: card, facial recognition , fingerprint, card + fingerprint, card + facial recognition
> Admin Card: admin card, admin fingerprint (add/delete)

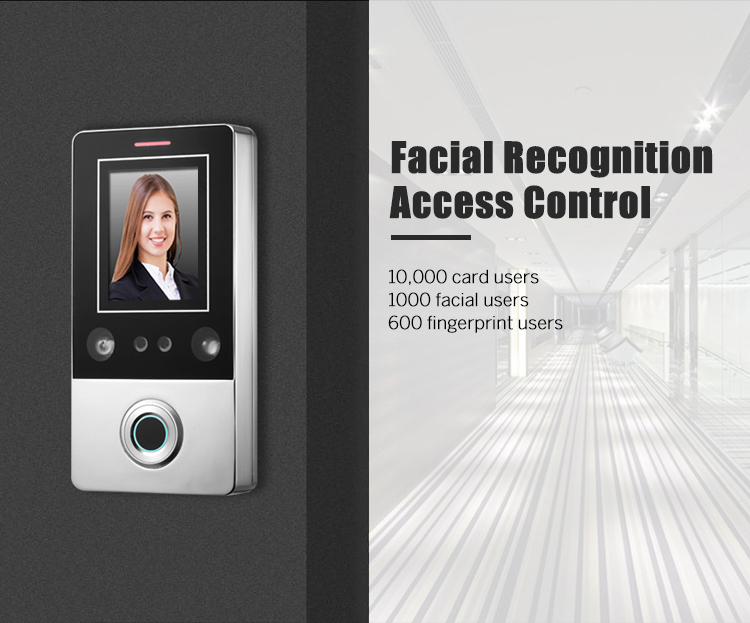

> User Capacity: 10,000 card users, 1000 facial users, and 600 fingerprint users
Card type | EM or MF |
User Capacity | 10,000 card users |
Facial Capacity | 1000 facial users |
Fingerprint Capacity | 600 fingerprint users |
Operating Voltage | DC 12V |
Standby Current | ≤180mA |
Operation Current | ≤300mA |
Operating Temperature | -40℃～60℃ |
Operating Humidity | 0%～95% |
Dimensions | 139x70x22mm |
Access mode | Fingerprint, card, facial recognition, or multiple combinations |
Face Recognition at a Distance for a Stand-Alone Access Control System | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CF1 | 54pcs | 28KG | 55.5x39.9x40cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
