Magnetic and Automatic Door Holders

Door Holders Work with all Kind of  Single & Double Smokeproof Doors

> Dimensions: 115x79x83mm

> Holding Force: 120kg

  • Brand:

    S4A
  • Item NO.:

    DH-006
  • Specifications

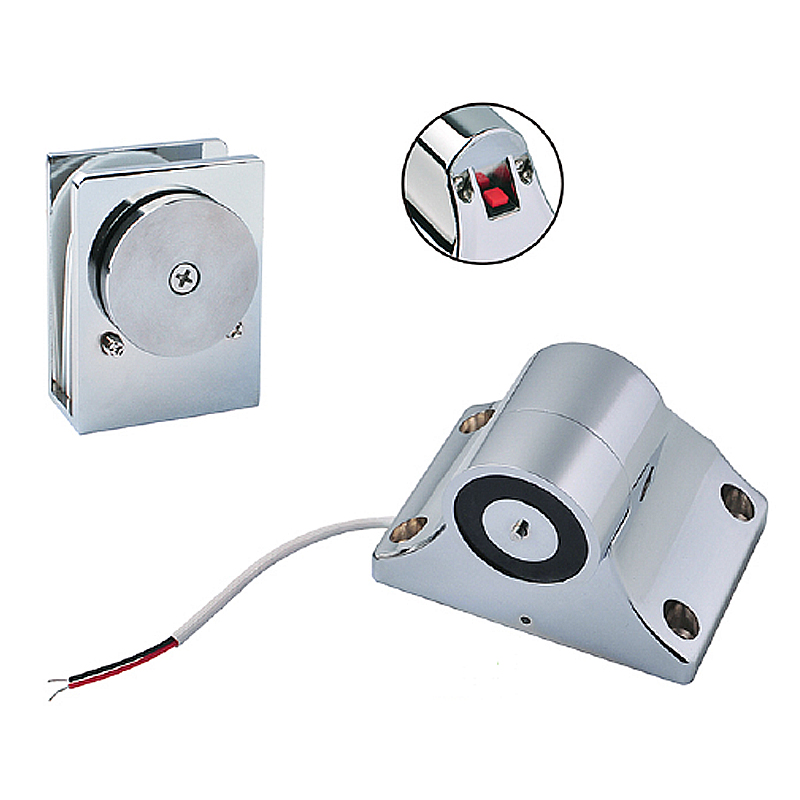

Magnetic and Automatic Door Holders

Model No.: DH-006


Magnetic door holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.


Work with all Kind of  Single & Double Smokeproof Doors


Dimensions

115x79x83mm

Holding Force

120kg

Voltage

12V (24V customized)

Current Draw

60mA

Suitable for

All Kind of  Single & Double Smokeproof Doors

Surface Temp

≤20℃

Operating Temp

-10℃~55℃(14°F-131°F)

Suitable Humidity

0~90%(relative humidity)


1. How to Install Magnetic Door Holder?


There are several types of magnetic door holders. You can place most door holders near the bottom or top of a door. Some models can be mounted on the floor. Door stops can be used in office or retail buildings and warehouses where a door needs to be kept open so traffic can pass in and out.

Many are designed to hold self-closing doors and have powerful magnets.

What you need is: door holder kit, a drill, and a pencil to complete this simple task.


2. how to test the Magnetic door holder?


Swing the door back until the door piece and the wall piece connect. Let go of the door handle.

The magnets should hold the door in place if they are lined up correctly.

The low power consumption,Highlights it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security.

It will release automatically the fire door when fire alarms.It also contains build-out release button for testing and build-in MOV which reverse current protection.

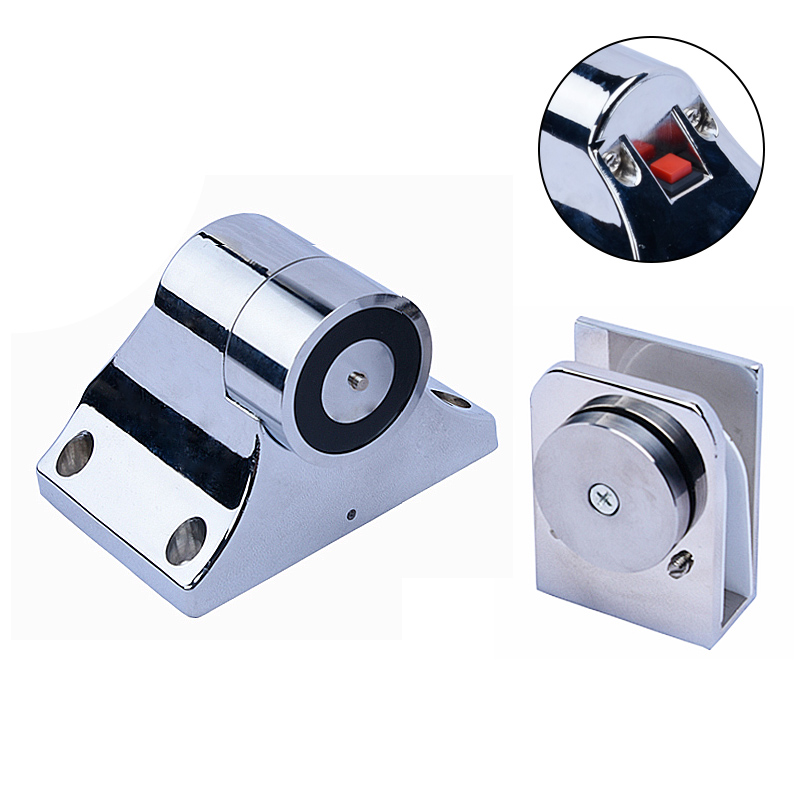

Magnetic Door Holder
