Work with all Kind of Single & Double Smokeproof Doors
> Dimensions: 80x80x110mm
> Holding Force: 60kg(120Lbs)
Brand:
S4AItem NO.:

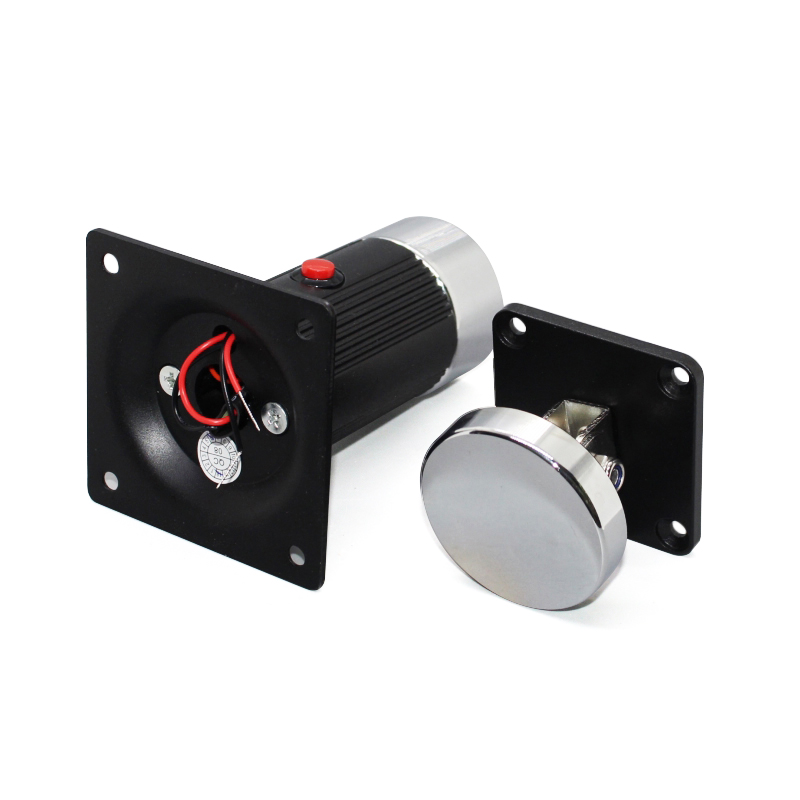

DH-110Extra Long Modern Heavy Duty Brushed Door Stopper
Model No.: DH-110
Work with all Kind of Single & Double Smokeproof Doors.
if its Glass door, pls order DH-60U

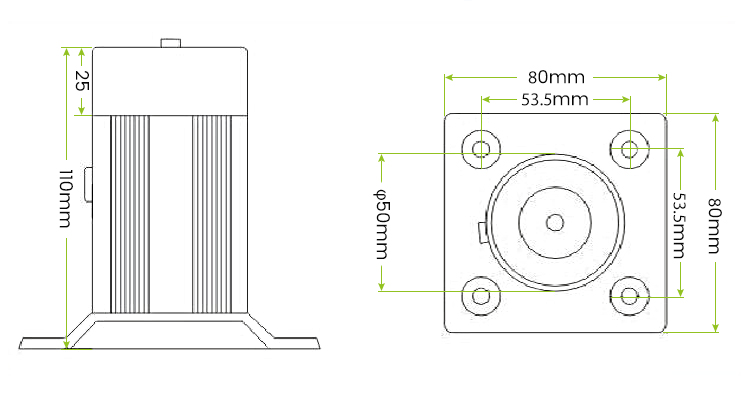

Dimensions | L80xW80xH110(mm) |
Holding Force | 60kg(120Lbs) |

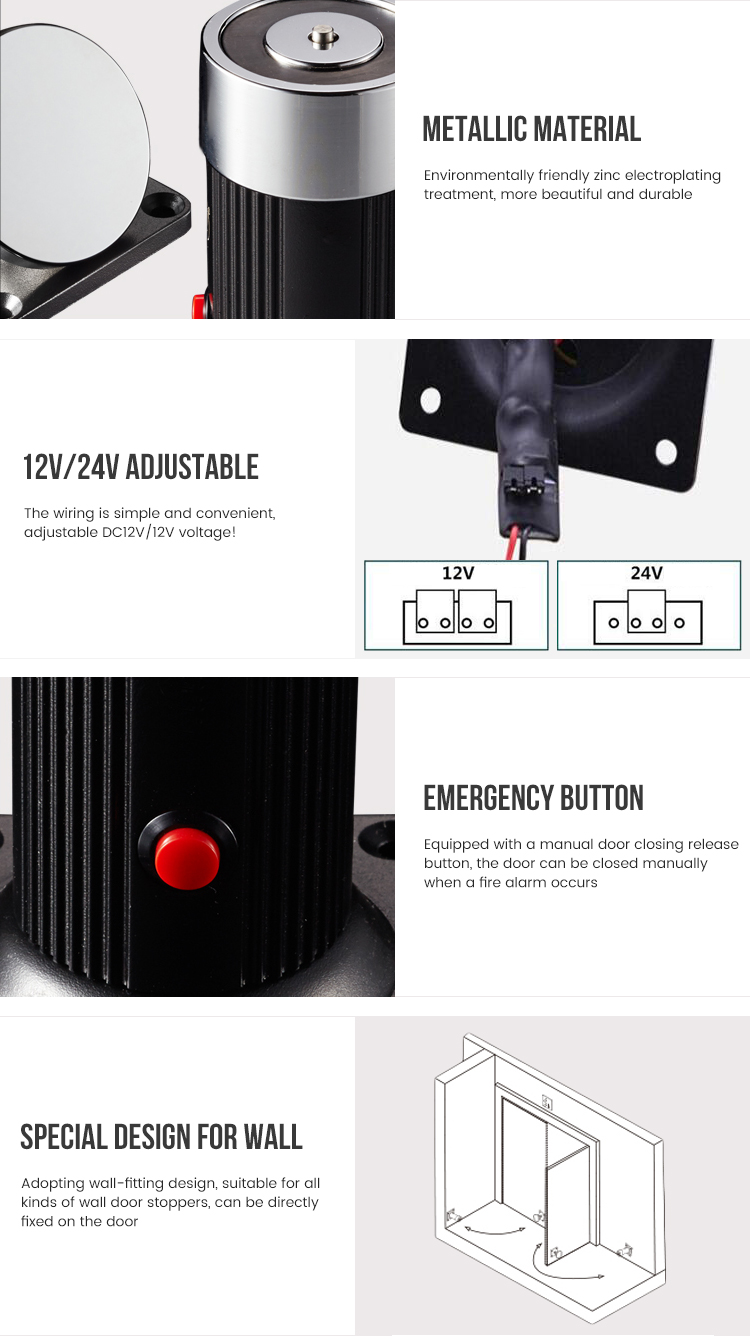

Voltage | 12V (24V customized) |
Current Draw | 12V/170mA 24V/85mA |
Suitable for | All Kind of Single & Double Smokeproof Doors |
Surface Temp | ≤20℃ |
Operating Temp | -10℃~55℃(14°F-131°F) |
Suitable Humidity | 0~90%(relative humidity) |
Finishes for Shell | High Temperature Paint and Environmental Protection Zinc |
Finishes for Armature | Zinc |
Weight | 1.1kg |
Extra Long Modern Heavy Duty Brushed Door Stopper | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
DH-110 | 25 PC | 25.5 KG | 30x53x32 CM |
S4A Datesheet_Extra Long Modern Heavy Duty Brushed Door Stopper
Work with all Kind of Single & Double Smokeproof Doors> Holding Force: 60kg
Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 88x88x80mm> Holding Force: 50kg
Magnetic door holders are used in fire protection doors, These holders keep the doors open during dap to dap operations When smoke is detected the fire alarm transmits a signal which cuts off the power feed and the mechanism releases the door. This avoids fire and smoke expansion
Magnetic Door Holder for Glass doorWork with all Kind of Single & Double Smokeproof Doors> Dimensions: 118x80x55mm> Holding Force: 60kg(110Lbs)
Glass door Electromagnetic Door Holders/ReleasesWork with all Kind of Single & Double Smokeproof Doors> Dimensions: 118x80x55mm> Holding Force: 60kg(110Lbs)
Door Holders Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 115x79x83mm> Holding Force: 120kg
Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 50x65x90mm> Holding Force: 60kg(110Lbs)
Door Stops Work with all Kind of Single & Double Smokeproof Doors
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
