Long Strip Non-Contact 12V 24V Door Release Switch

NO/NC/COM;150Lx40Wx14H(mm)

  • Brand:

    S4A
  • Item NO.:

    T9C
  • Specifications

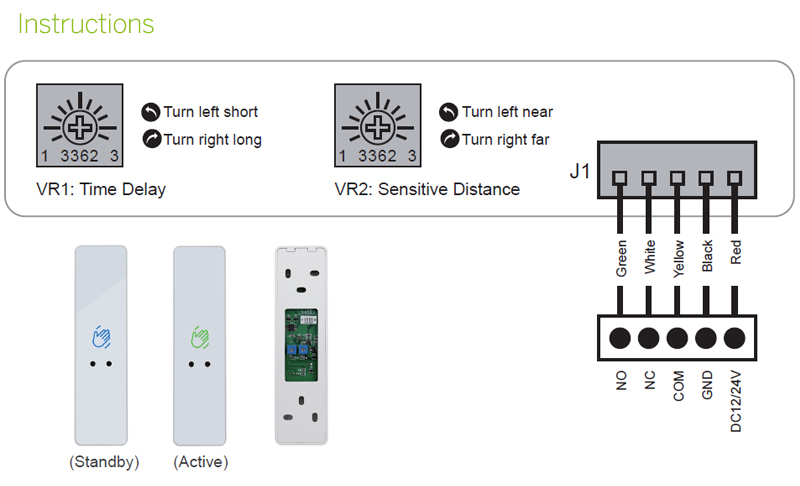

  • Wiring Diagram
  • Package

Long Strip Non-Contact 12V 24V Door Release Switch

Model No: T9C


Product ParameterParameter Description
S4A ModelT9C
Product NameTouchless Exit Button

Dimensions150Lx40Wx14H(mm)
PowerDC12V-24V
Output ContactNO/NC/COM
Mounting WaySurface Mount
MaterialABS
Mechanical Life500,000 Tested
LED IndicatorBlue LED (Standby)
Green LED (Active)
Time delay0~30s(Adjustable)
Operating temp-20℃~+55℃(14-131F)
Suitable Humidity0-95% (relative humidity)

Unit Weight0.071KG
Standard Package100PCS/carton
Carton Weight7.5KG
Carton Size51*43*33(cm)



Door release switch


Door release switch
