LC2 Elevator Access Control Controller

Up to 64 Floors Support: Scalable elevator control handling from 8 floors up to a maximum of 64 floors.

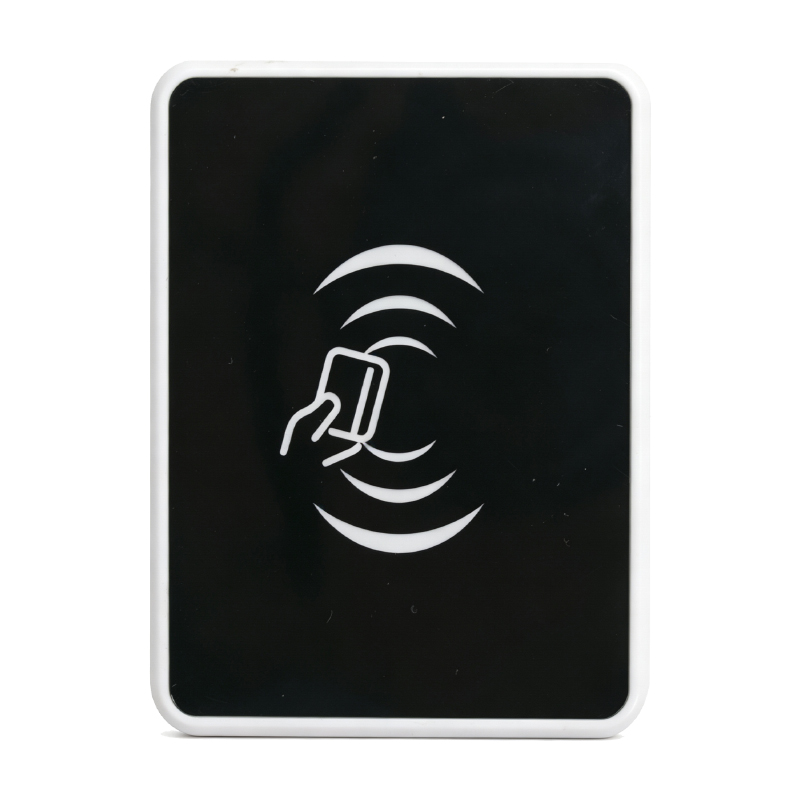

Dual Control Modes: Flexible operation via Mobile App and MIFARE M1 S50 IC Cards.
High Storage Capacity: Supports up to 1,000 IC cards and retains 2,000 local offline storage logs.
Wide Operating Voltage: Compatible with DC 9~16V power input with low standby power consumption (18 mA).

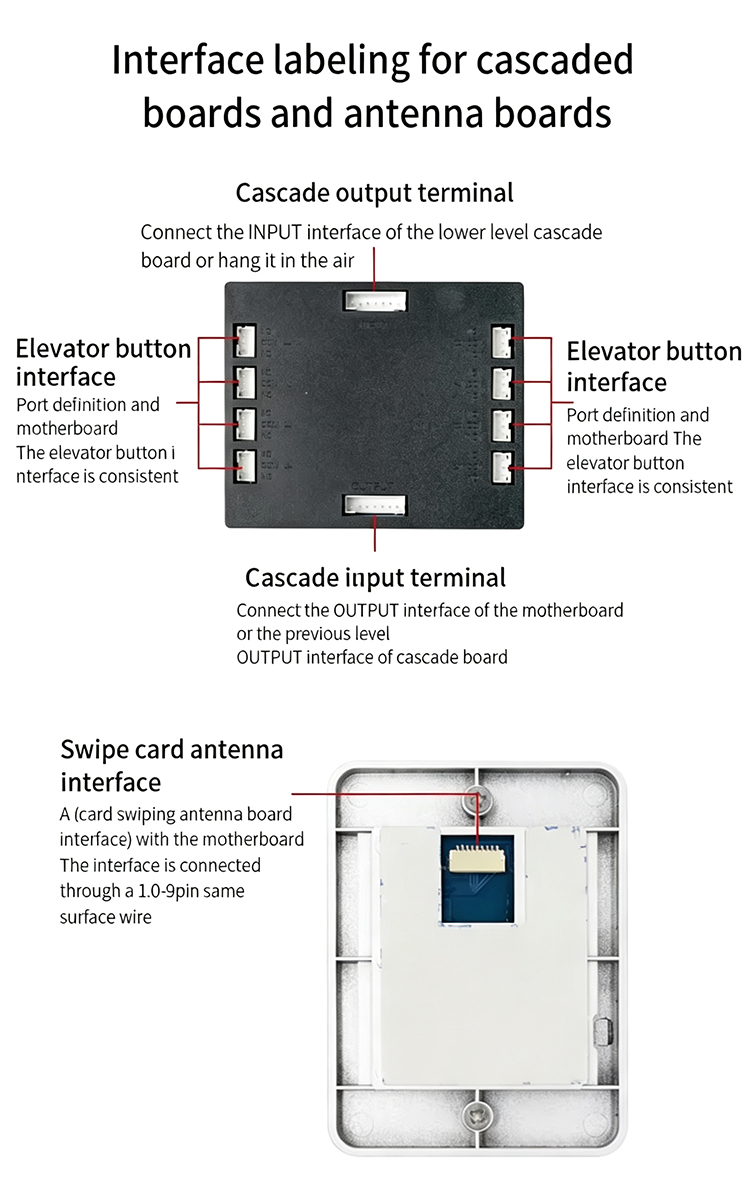

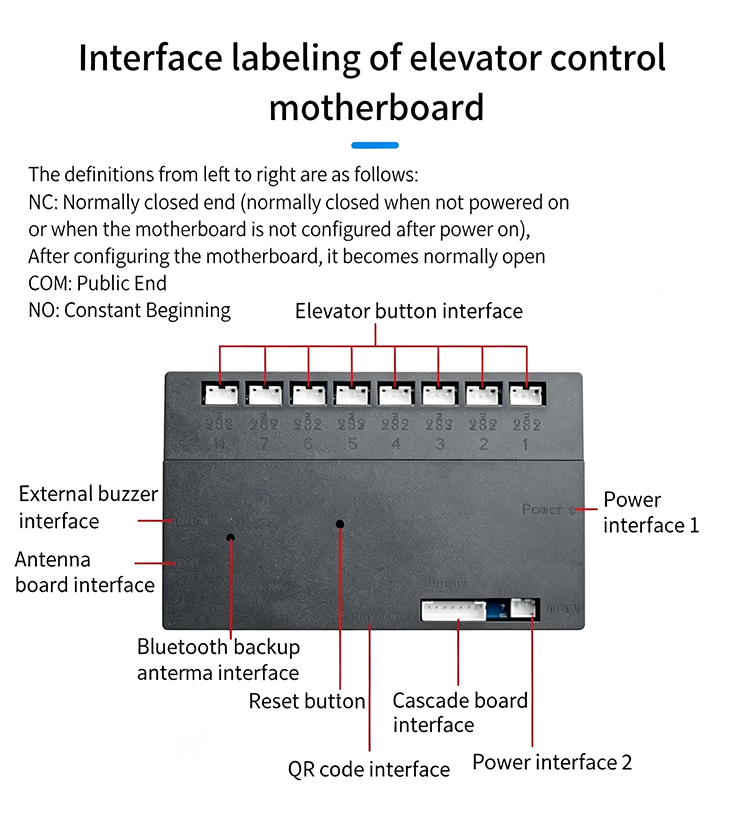

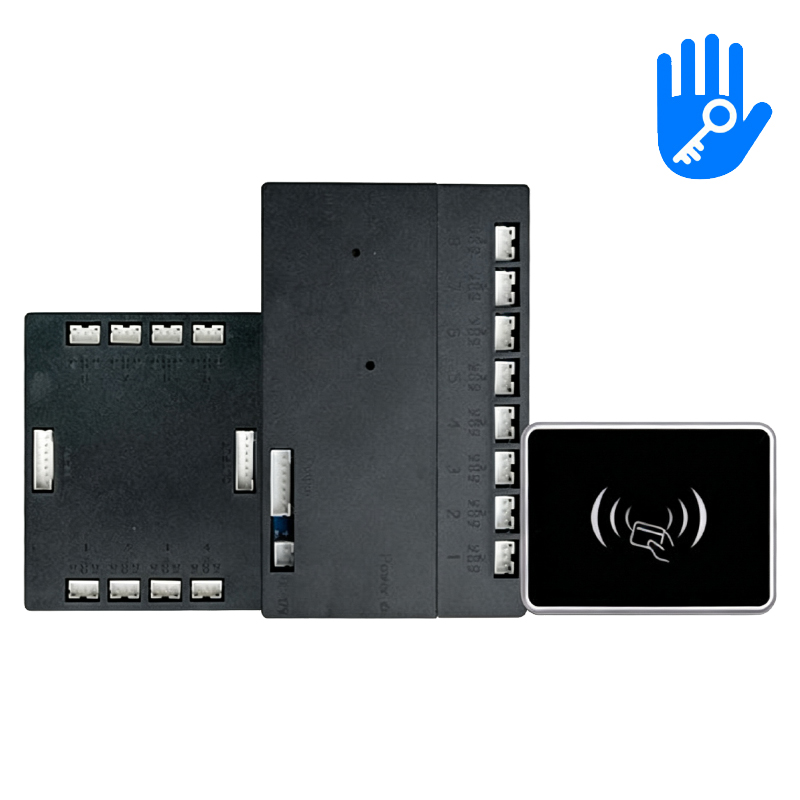

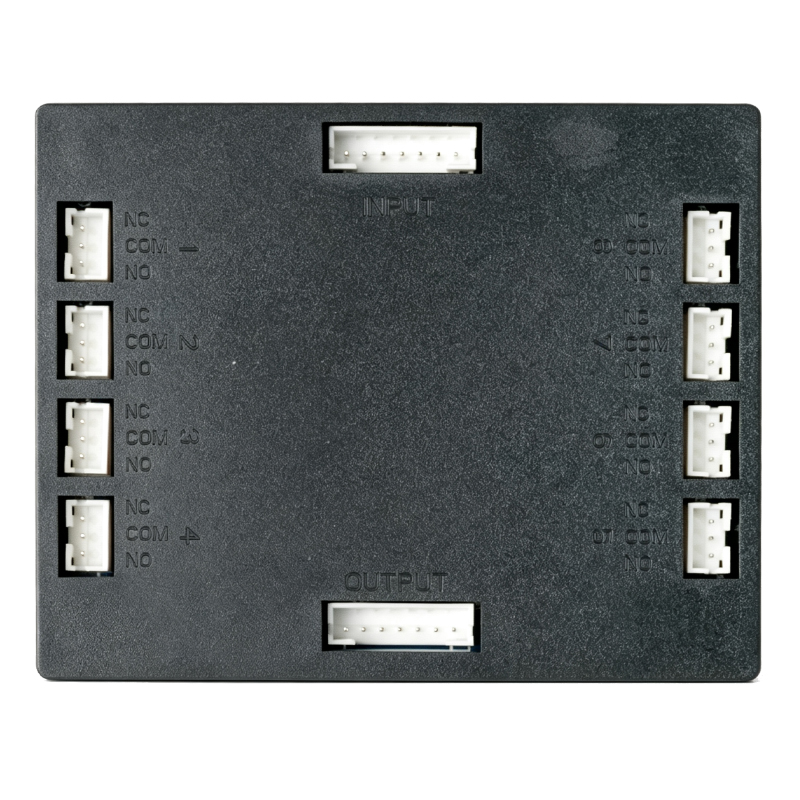

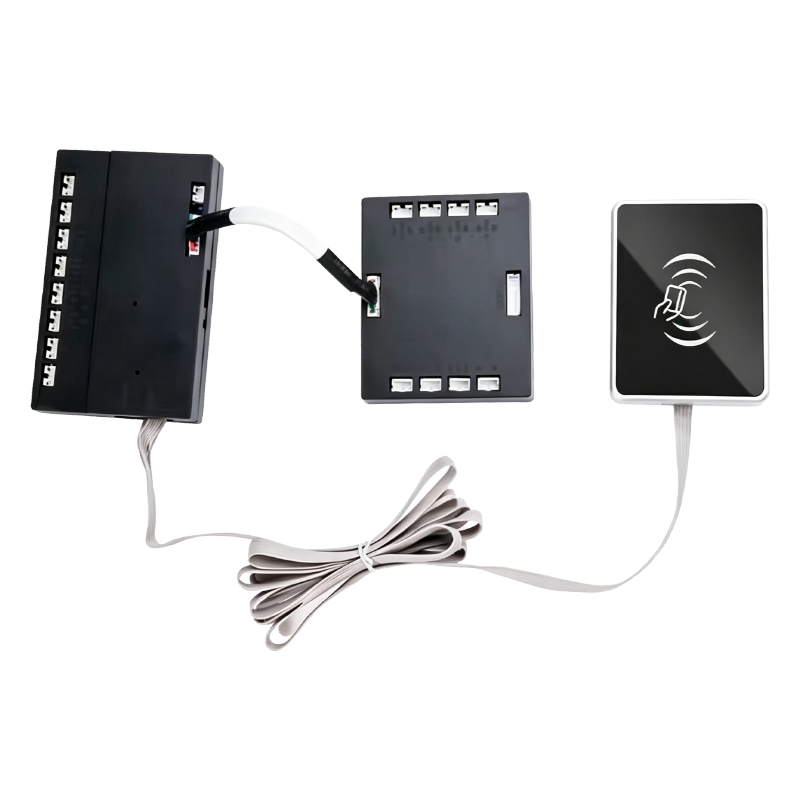

Modular Board Design: Includes compact mainboard, expansion board, and swipe card board for clean, versatile wiring.

• Brand:

  S4A

• Item NO.:

  LC2
