Brand:
S4AItem NO.:

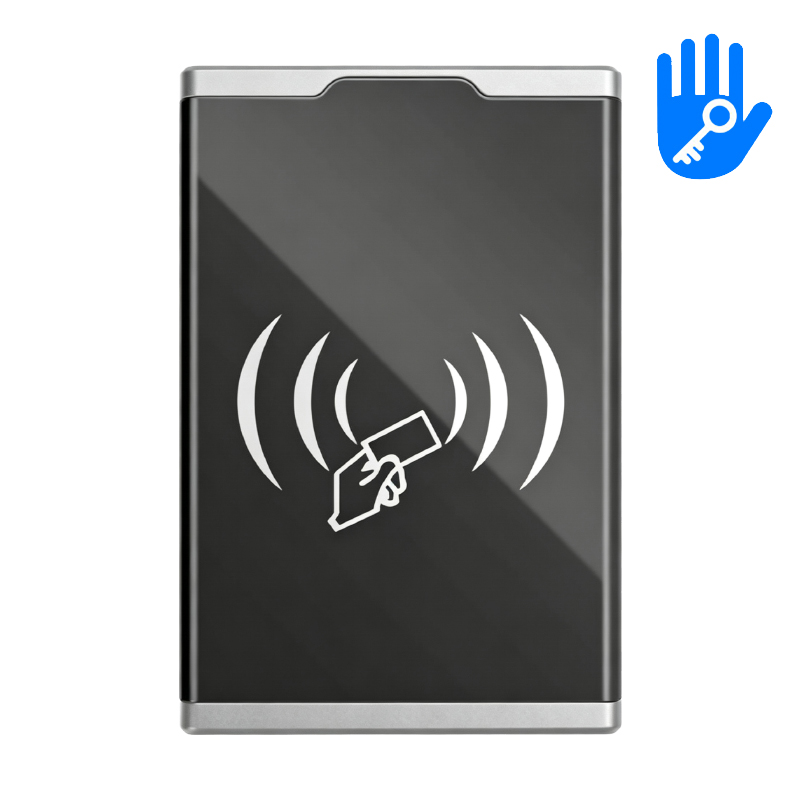

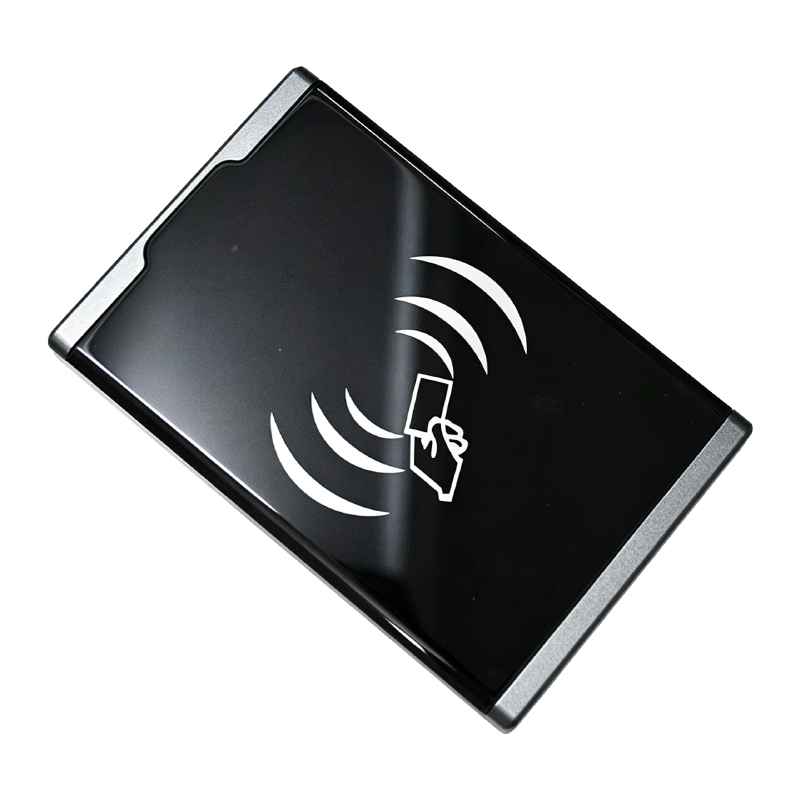

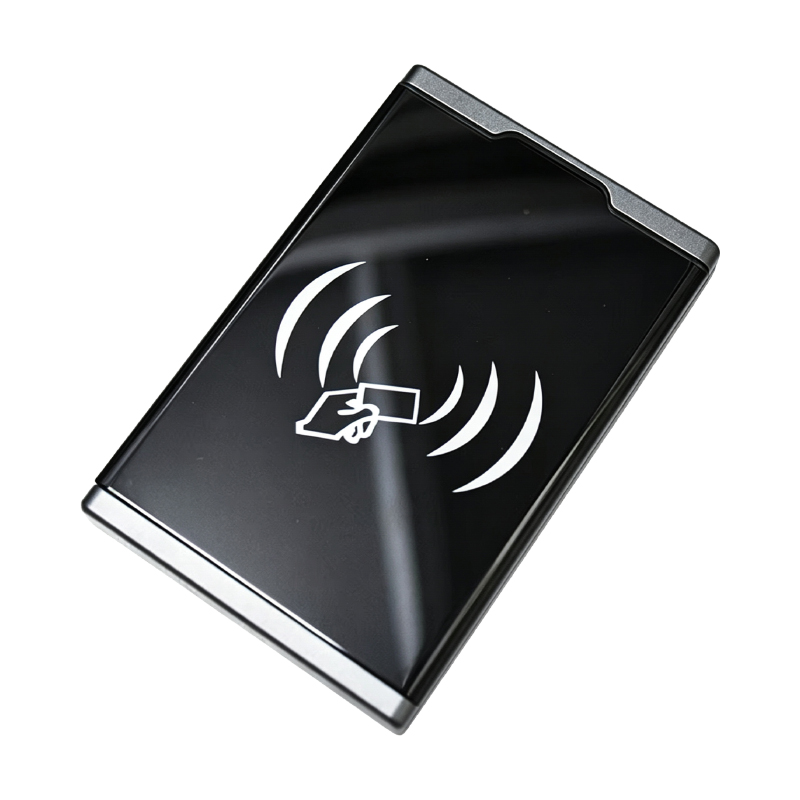

E4E4 TTLock Card Reader & Encoder
The E4 TTLock Card Reader & Encoder is a dedicated IC card issuing and management device designed for TTLock APP smart electronic locks and TTLock hotel management systems. Operating at 13.56MHz frequency and compatible with Mi-Fare S50 IC cards, it enables seamless card programming for hotels, apartments, and commercial facilities. Powered by a standard DC5V/500mA Type-C USB interface, the E4 features an ultra-slim plastic enclosure (67 x 103 x 11 mm) and CE certification for reliable plug-and-play performance.
Parameter
Specification
Model Number
E4
Product Name
Card Reader / Encoder
Application System
TTLock APP / TTLock Hotel System
Supported Card Type
Mi-Fare S50 IC Card
Operating Frequency
13.56 MHz
Power Interface
Type-C USB
Power Input
DC 5V / 500mA
Housing Material
Plastic
Dimensions

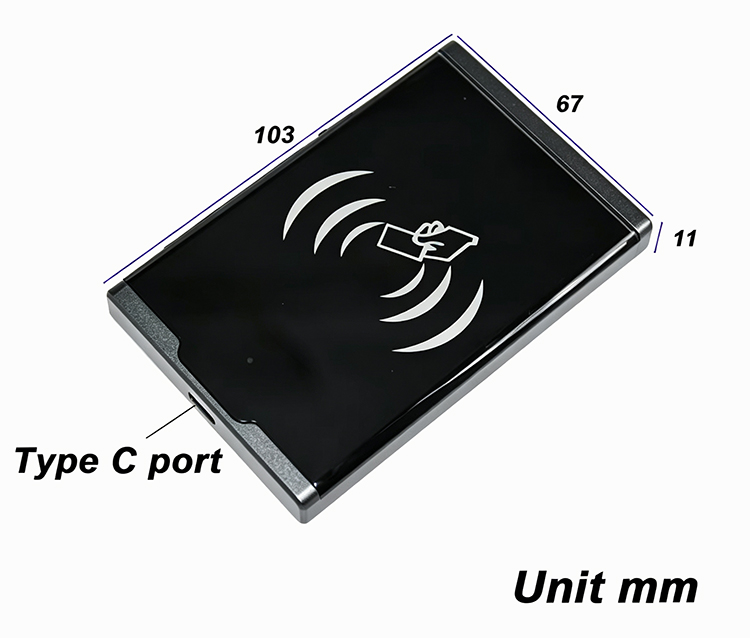

67 x 103 x 11 mm
Certification
CE
Type: Smartphone Storage: Cloud Function 01: TTlock app wifi gateway Function 02: Bluetooth to wifi gateway
>Material:ABS plastic >Battery model:CR2032 button battery >Sensing distance:Maximum 22mm
>Size: 110x110x35mm >Network: 4G (TD-LTE) >Power input: 5V/500mA
> Network: WiFi 2.4G > IEEE standard: 802.11 b/g/n > Power interface: Type-C > USB Power input: DC 5V/500mA
>Compliant with Bluetooth 4.0 BLE standard >Support smart door lock App to open the door >Built-in RTC clock chip
>Power Input:5V/500mA >RF Frequency:13.56Mhz >Size:70x70x26mm
>Network port interface:RJ45 >Network port rate:10M/100M >IEEE standard:802.3
Application: TTLOCK App locks Material: ABS Plastic Battery: CR2032 Voltage:3V
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
