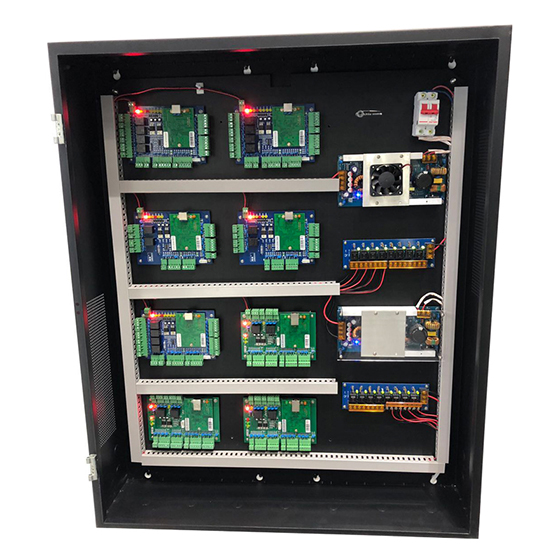

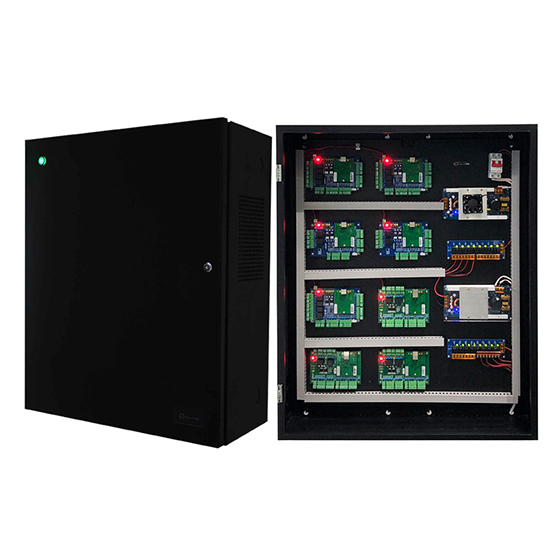

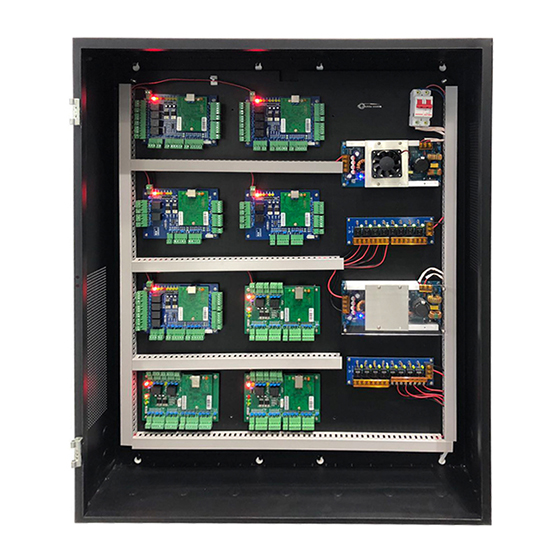

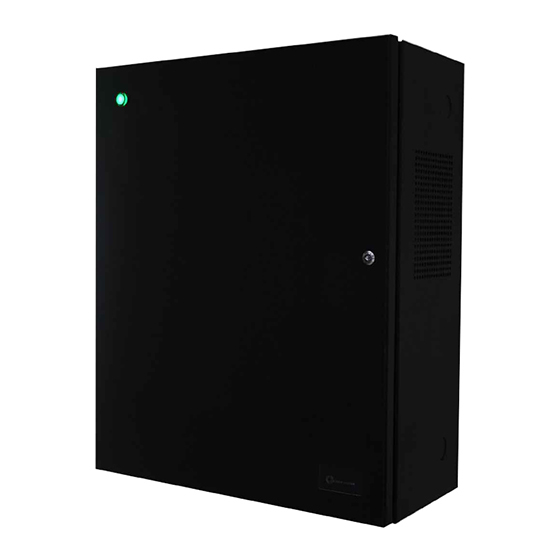

12V 1600W Access Power Supply, Maximum support 24pcs ACB board
> Input Voltage: 85V-265V
> Frequency Range: 47-65Hz
> Rated power: 1600W
> Dimension: 770 x 920 x 170mm
Brand:
S4AItem NO.:
12V 1600WLarge Access Power supply 85V-265V with 1600W
Model No.: 12V 1600W
12V 1600W Access Power Supply, Maximum support 24pcs ACB board
Input | Input Voltage | 85V-265V |
Frequency Range | 47-65Hz | |
Efficiency | 85% (VIN=220V AC) | |
Alternating current | 1.15A-1.4A (180V-240V) | |
Output | Output voltage | DC12V(Factory default) |
Optional with AC24V DC24V | ||
Output Channel | 24 | |
Rated power | 1600W | |
Feature | Function | Manage all ACB board |
Installation | Hanging mode | |

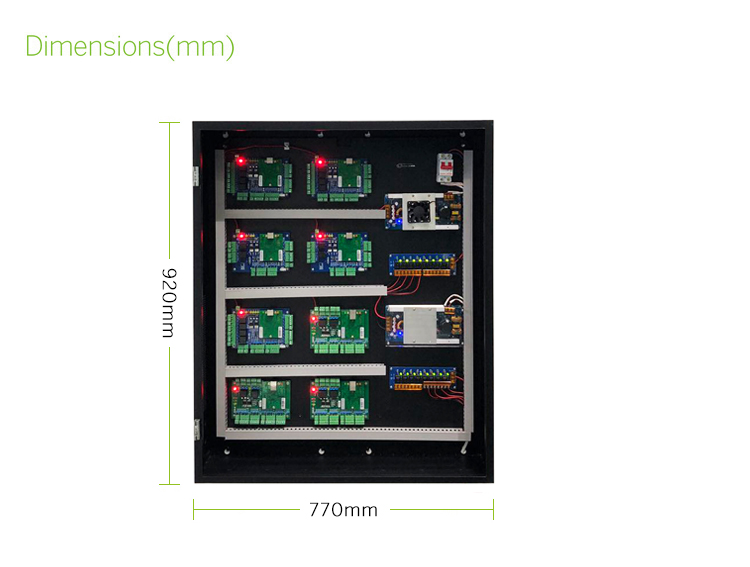

Dimension | 770 x 920 x 170mm | |
Weight | 33.7KG | |
Protection | Over Load, Short Circuit, Over Voltage, Overheat Protection | |
Guarantee | 2years quality | |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
