> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output/input
Brand:
S4AItem NO.:

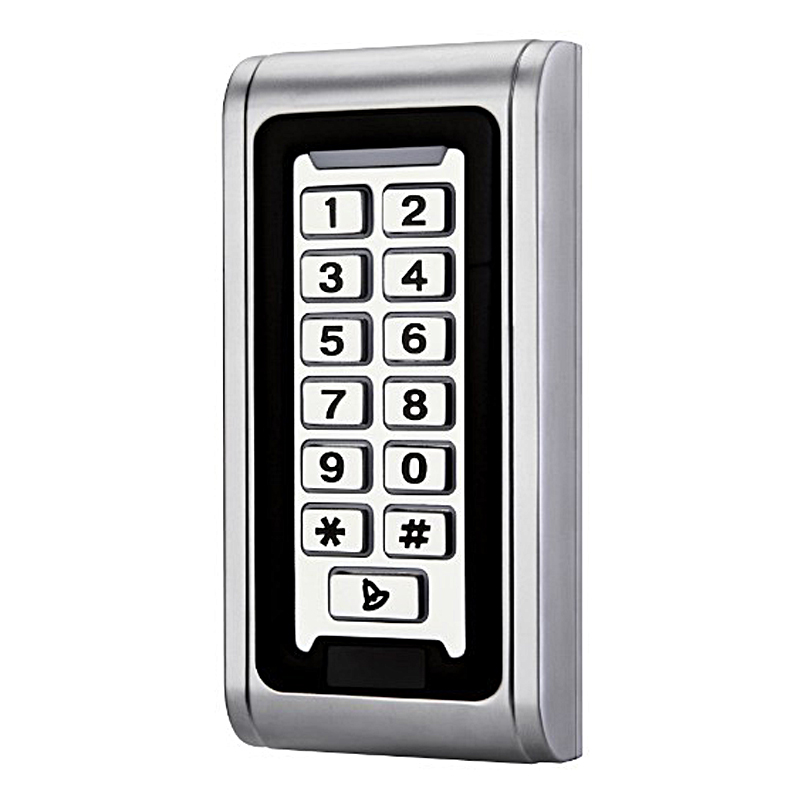

S600IP68 Standalone Metal Access Controller Waterproof Keypad Access Control System
Model No.: S600-W EM, MF
Card type | EM or MF |
Waterproof degree | Non-Waterproof(S600) / IP68(S600-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

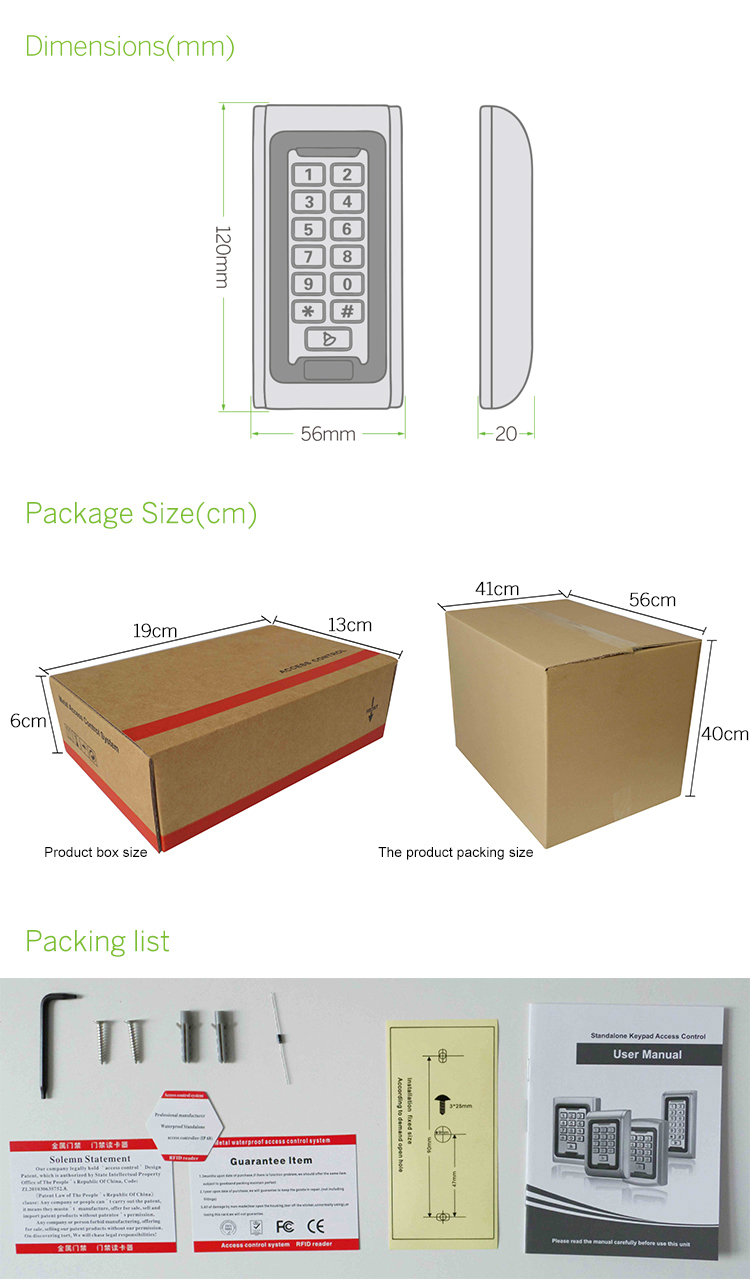

Dimension | 120*56*20mm |
Perfect design, with backlight and fashion silver finish.

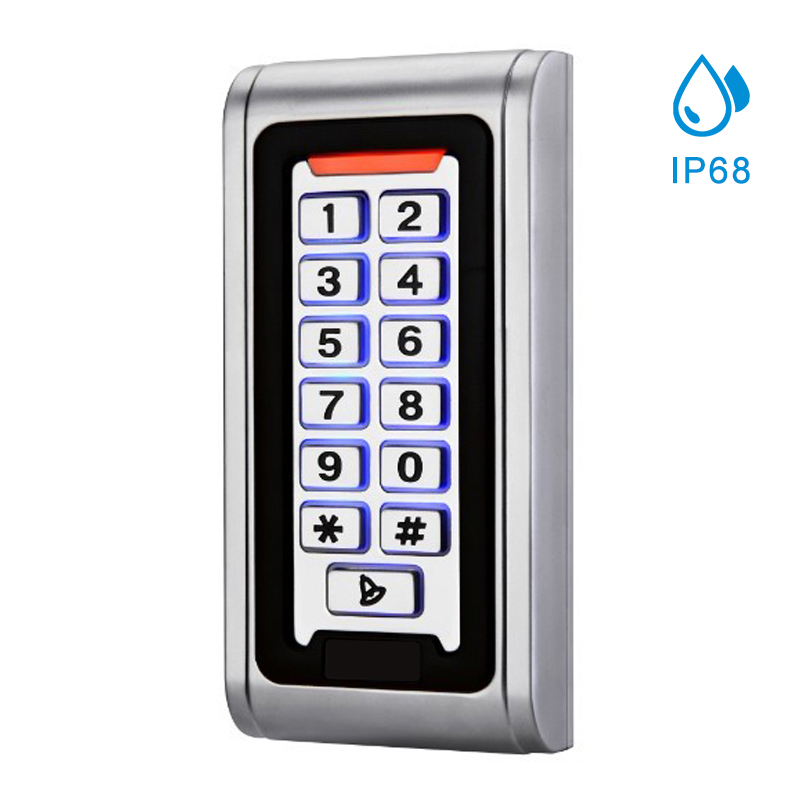

Waterproof design for outdoor use.
A strong standalone function device can be used as a WG26 reader alone.
Capacity: 2000 user's cards, 2000 codes.
Access ways: cards, code, card+code.
Low power: static current less than 30mA
Support the only keypad.
Users can reset private passwords.
Search fast less than 0.1S.
Wiegand output W26 for card and w4 for codes.
Use the keypad to delete lost cards for safety.
Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
S4A Datasheet_IP68 Standalone Metal Access Controller Waterproof Keypad Access Control System
