IP66 Waterproof with Wiegand 26/34bits Access Control Systems

> Card type: EM Card

> Metal case, embedded design

> Waterproof lP66

> User capacity: 100 fingerprints + 890 cards + 10 Visitor.

> One programmable relay operation

> Multi-color LED Status Display

> Wiegand 26/34 bits input automatic identification

  • Brand:

    S4A
  • Item NO.:

    EF2
  • Specifications

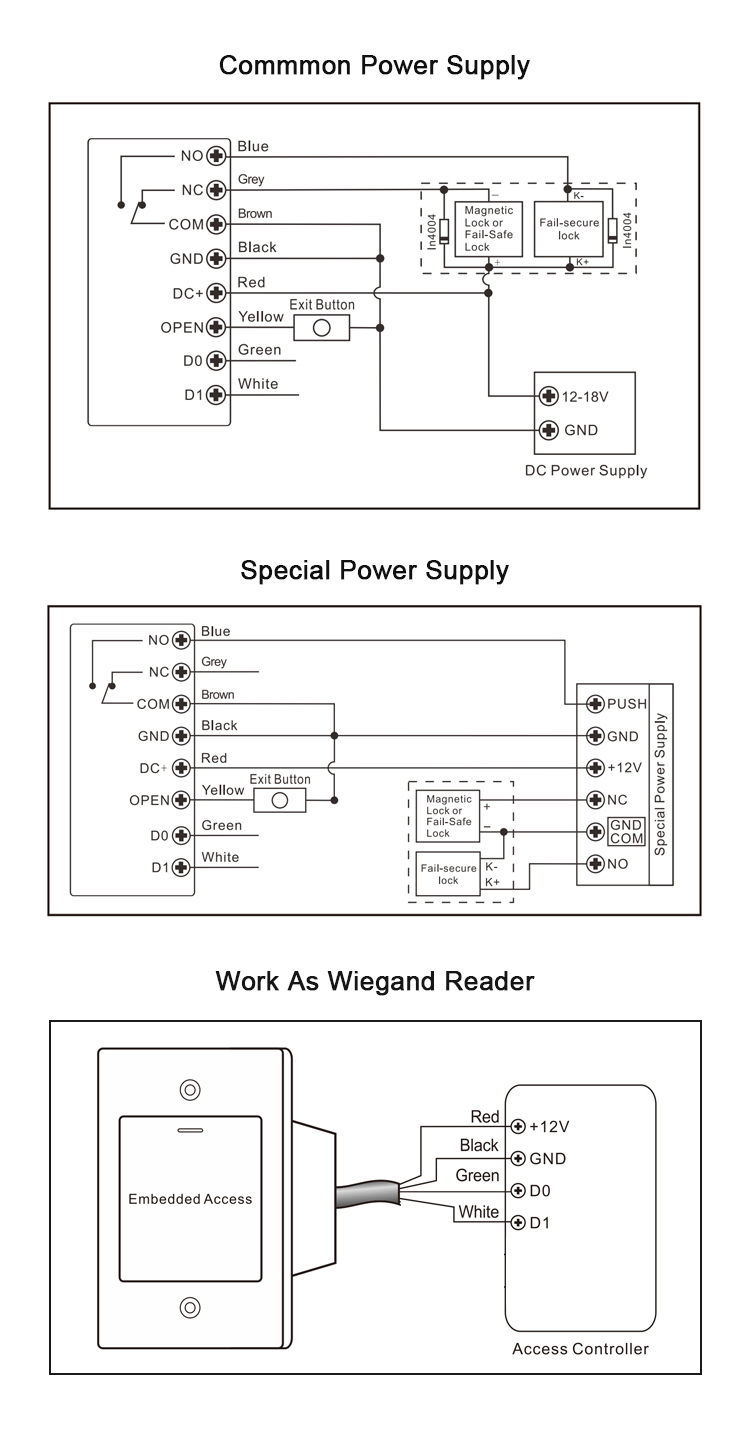

  • Wiring Diagram
  • Package

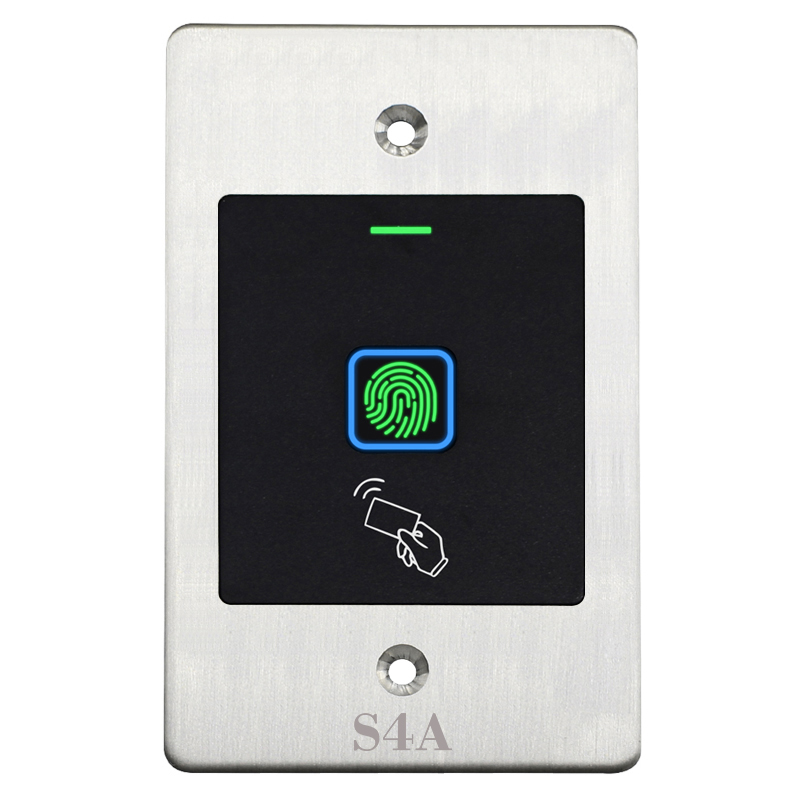

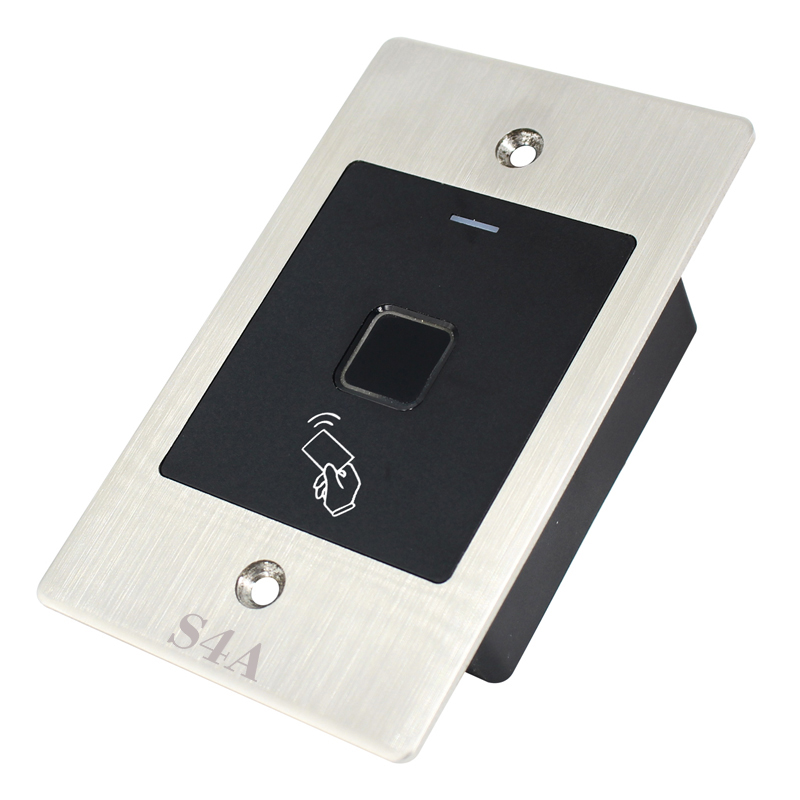

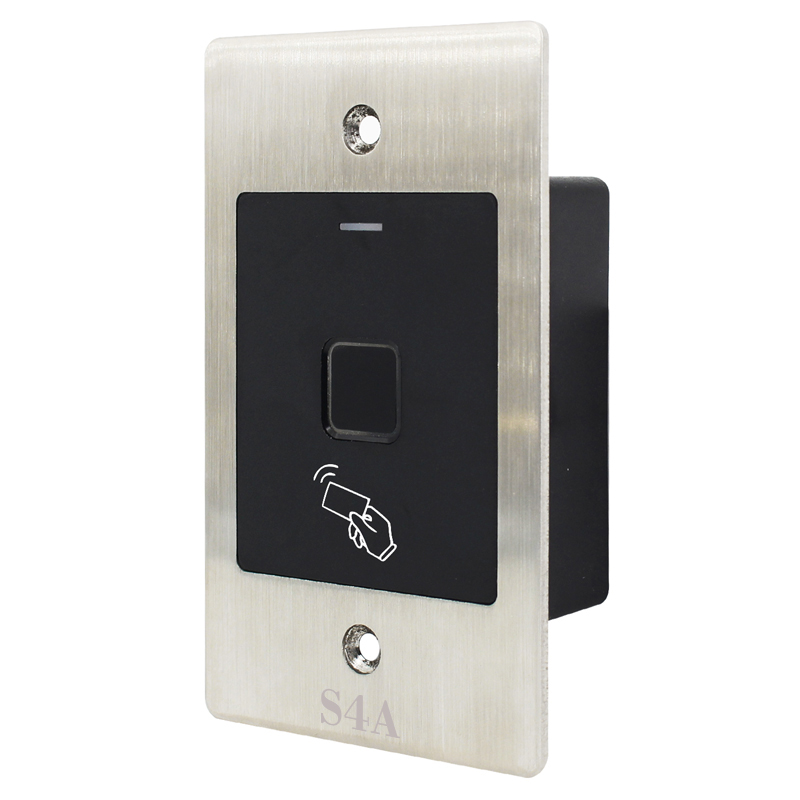

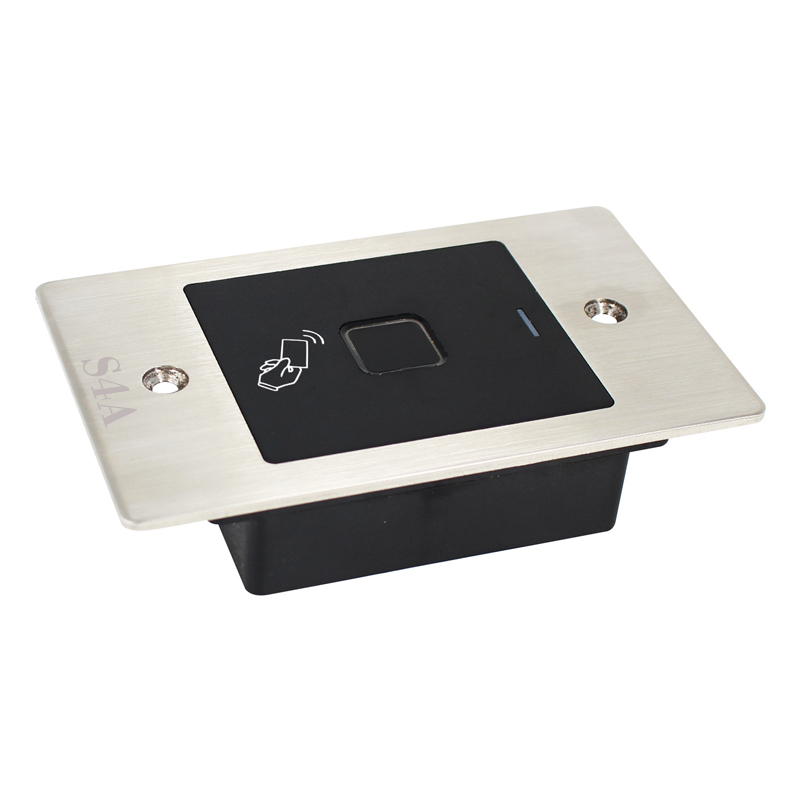

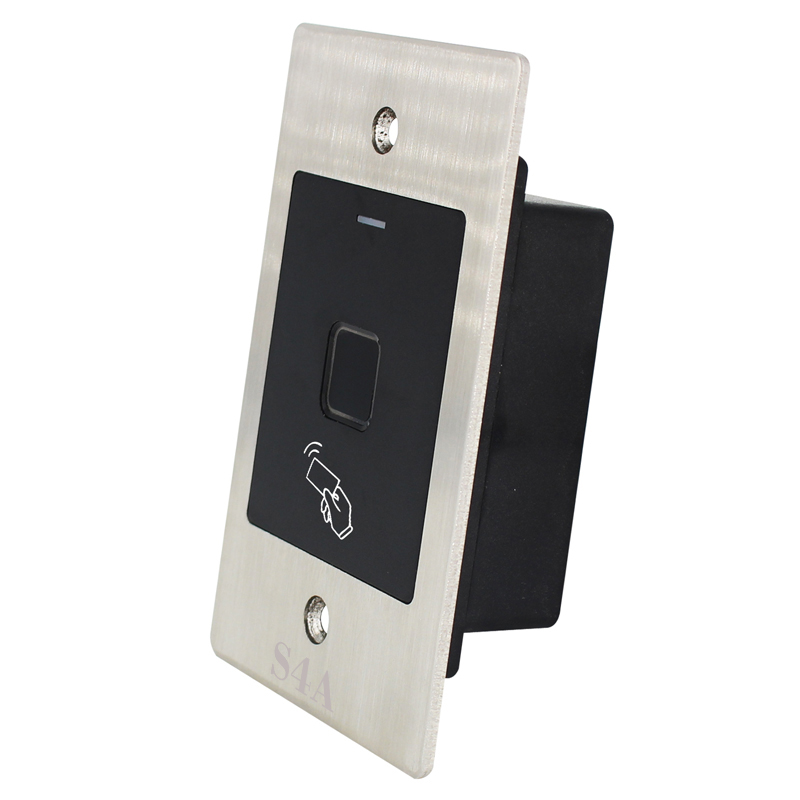

IP66 Waterproof with Wiegand 26/34bits Access Control Systems

Model No.: EF2 EM

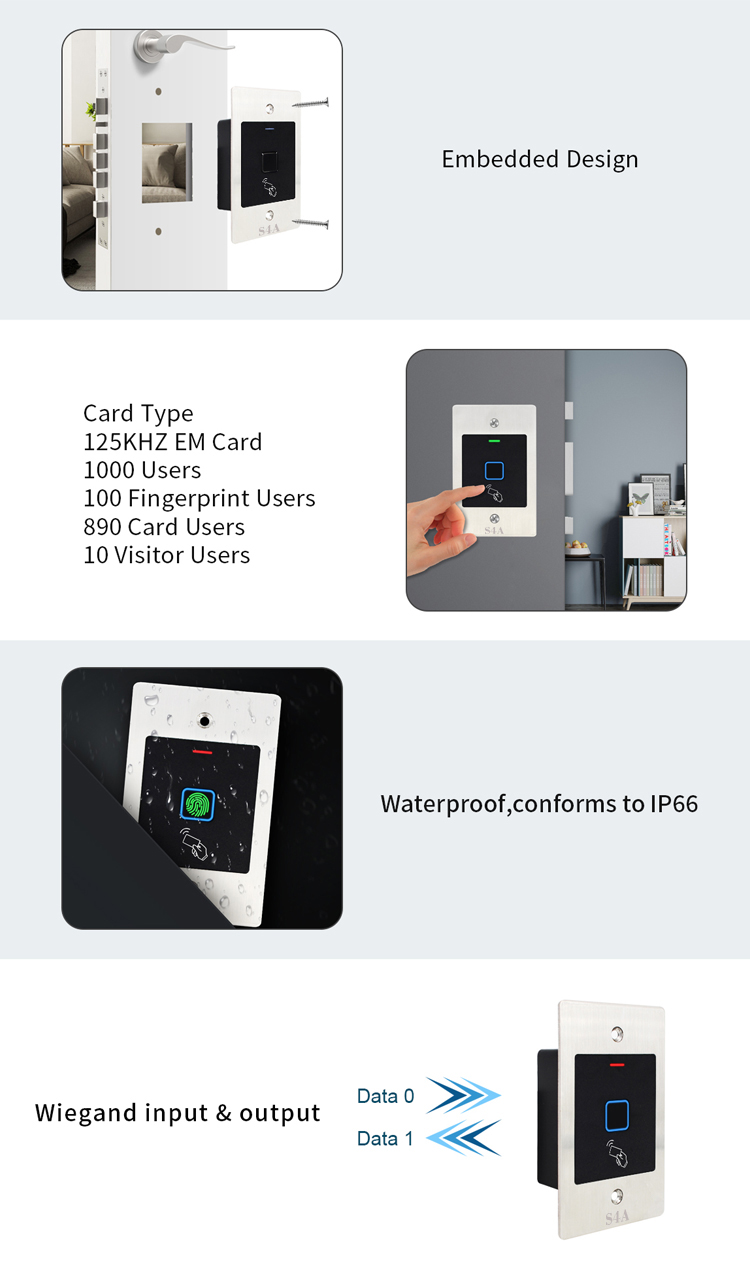

The device is a metal case standalone fingerprint access control with embedded design, the wiegand input&output make it also could be a controller or wiegand reader.


> Metal case, embedded design

> One Programming relay output

> Multi-color LED Status Display

> 1000 Users(100 Fingerprint Users + 890 Card Users + 10 Visitor User)

> Card type: 125KHz EM card

> Capacitive Fingerprint Sensor

> Wiegand 26 bits output

> Wiegand 26/34 bits input automatic identification


User Capacity

1000

Fingerprint

100

Card

890

Visitor

10

Operating Voltage

12~18V DC

Idle Current

< 30mA

Active Current

< 150mA

Proximity Card Reader

EM

Radio Technology

125KHz Proximity Card

Read Range

0~6 cm

Fingerprint Reader

Capacitive Fingerprint Module

Resolution

500DPI

Identification time

<1S

FAR

<1%

FRR

<0.001%

Wiring Connections

Relay output, exit button, wiegand(in&out)

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-25°C ~ 60°C (-13°F ~ 140°F)

Operating Humidity

10%RH ~ 99%RH

Physical

Stainless Steel Plate

Color

Silver & Black

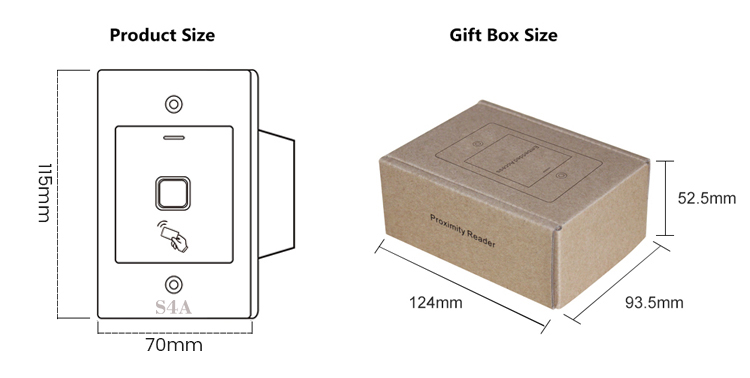

Dimensions

115x70x25mm

Unit Weight

245g

Shipping Weight

285g


Fingerprint Access Control

Fingerprint Access Control

Fingerprint Access Control
