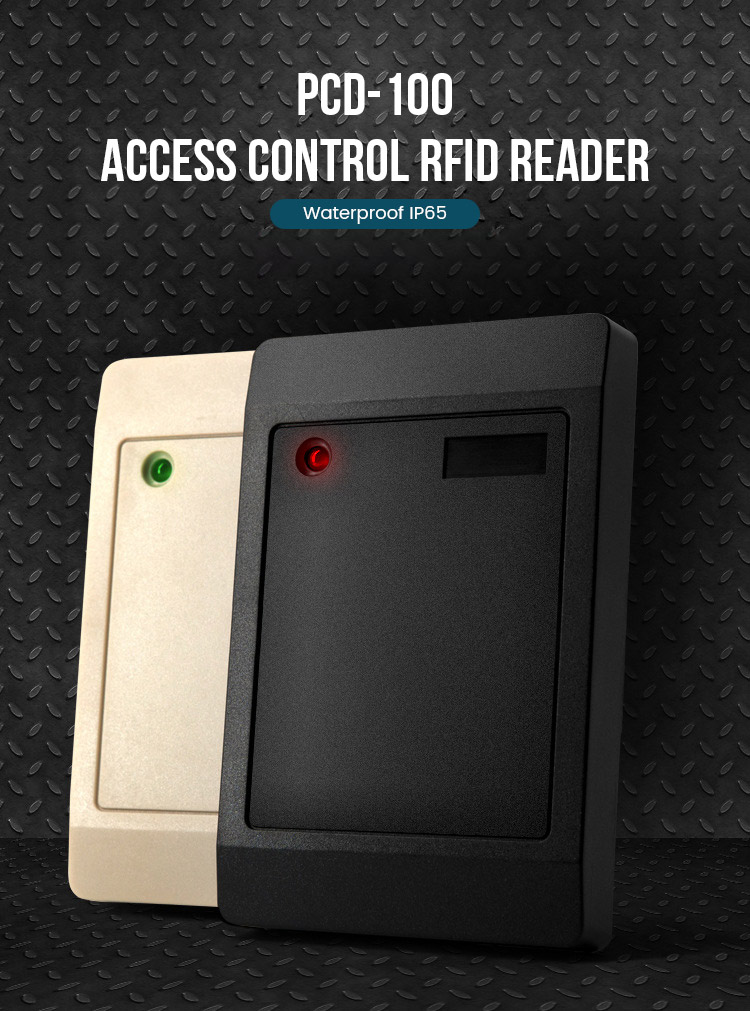

IP65 Waterproof Access Control RFID Reader 125kHz Smart Card Reader

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)


  • Brand:

    S4A
  • Item NO.:

    PCD-100A
  • Specifications

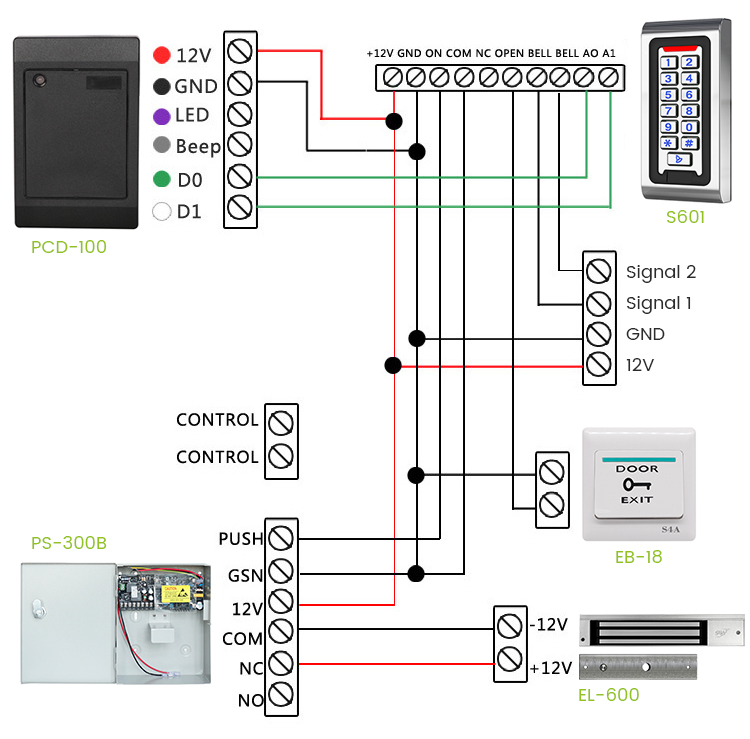

  • Wiring Diagram
  • Package

IP65 Waterproof Access Control RFID Reader 125kHz Smart Card Reader

Model No.: PCD-100A EM. MF


Introduction:

PCD-100AE: 125KHz Proximity card reader

PCD-100AM: 13.56MHz Mifare card reader


What Is RFID Reader?

The RFID reader is a network-connected device that can be portable or permanently attached. It uses radio waves to transmit signals that activate the tag. Once activated, the tag sends a wave back to the antenna, where it is translated into data. The transponder is in the RFID tag itself.


Model

PCD-100AEM and PCD-100AMF

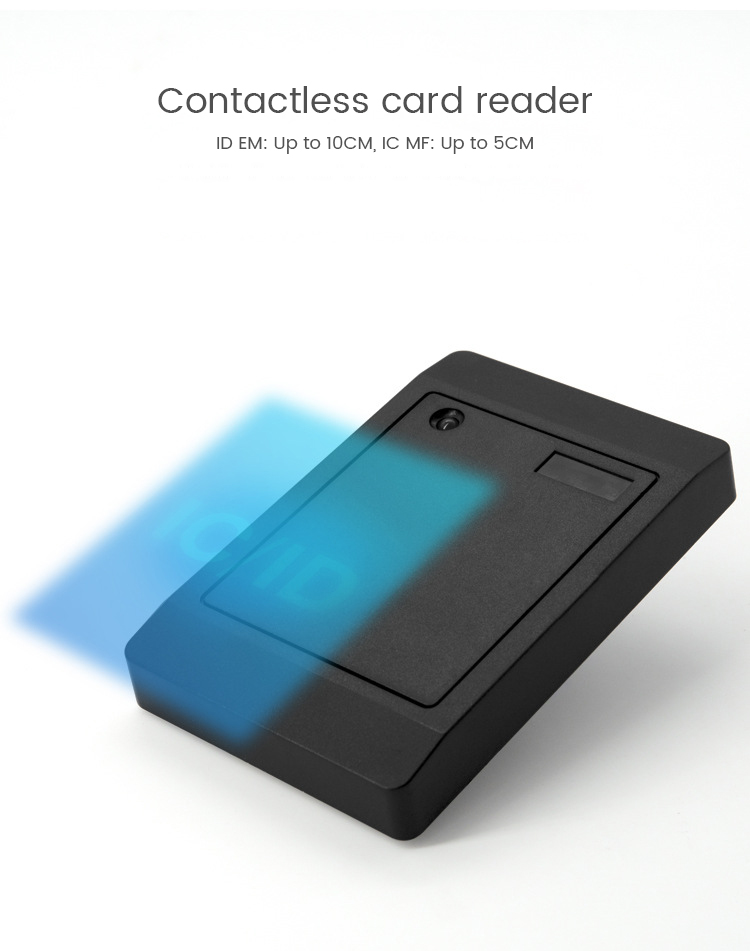

Read Range

PCD-100AEM: Up to 10CM, PCD-100AMF:Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

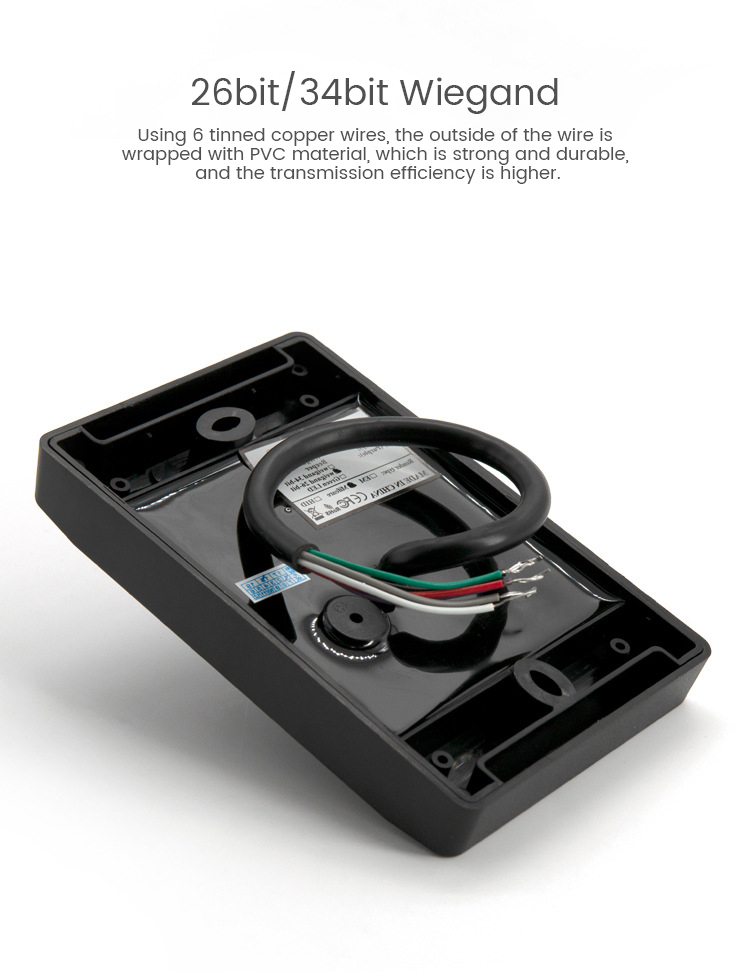

Output Format

26bit/34bit Wiegand (default)

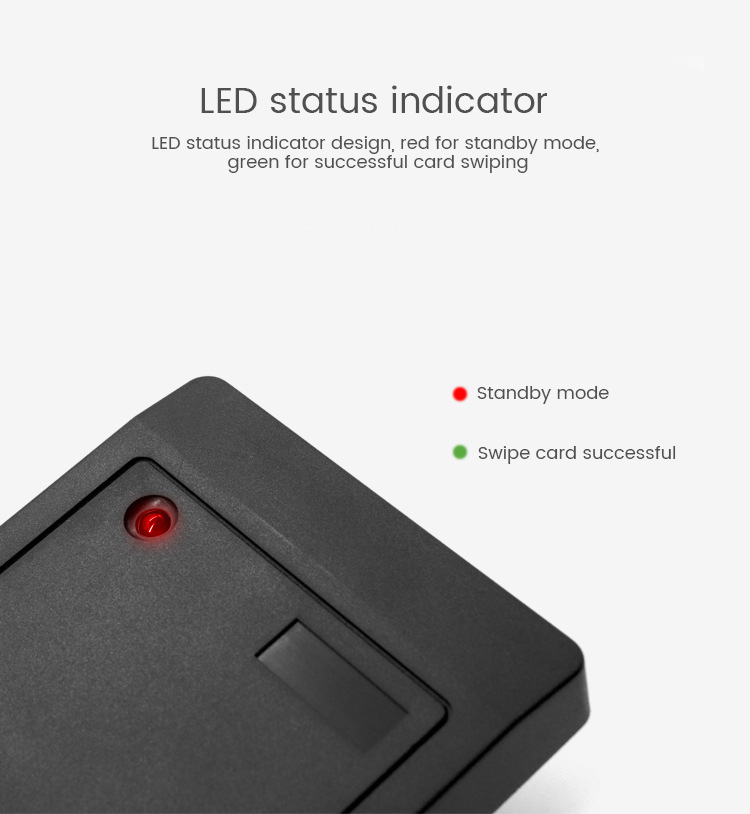

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

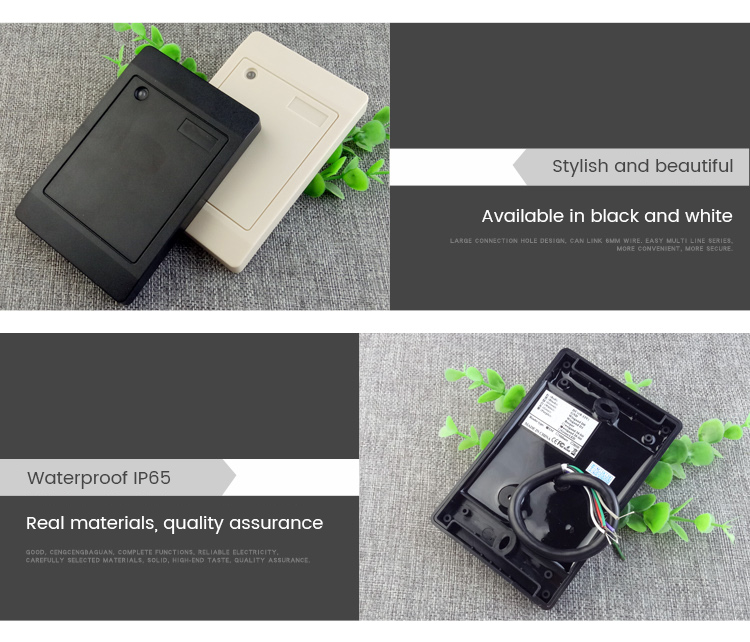

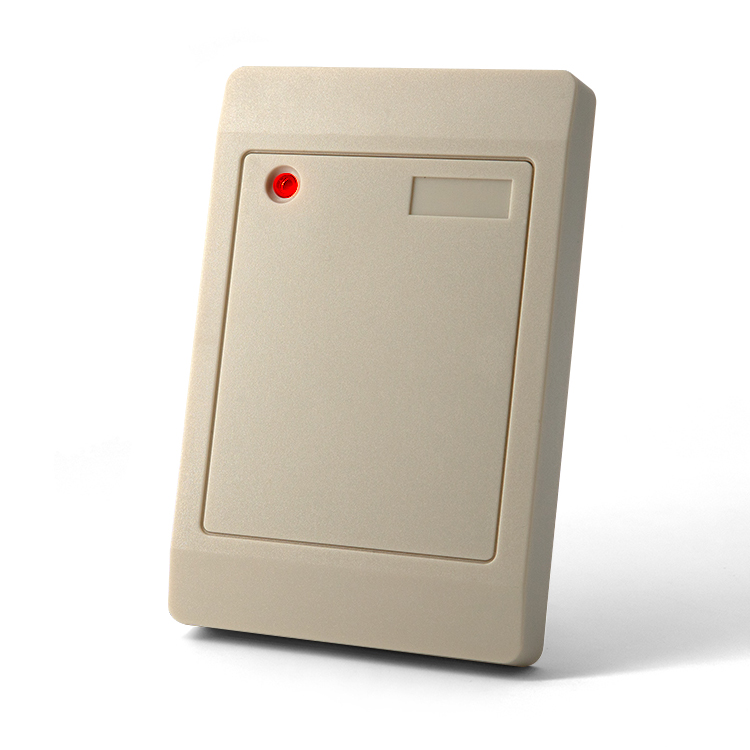

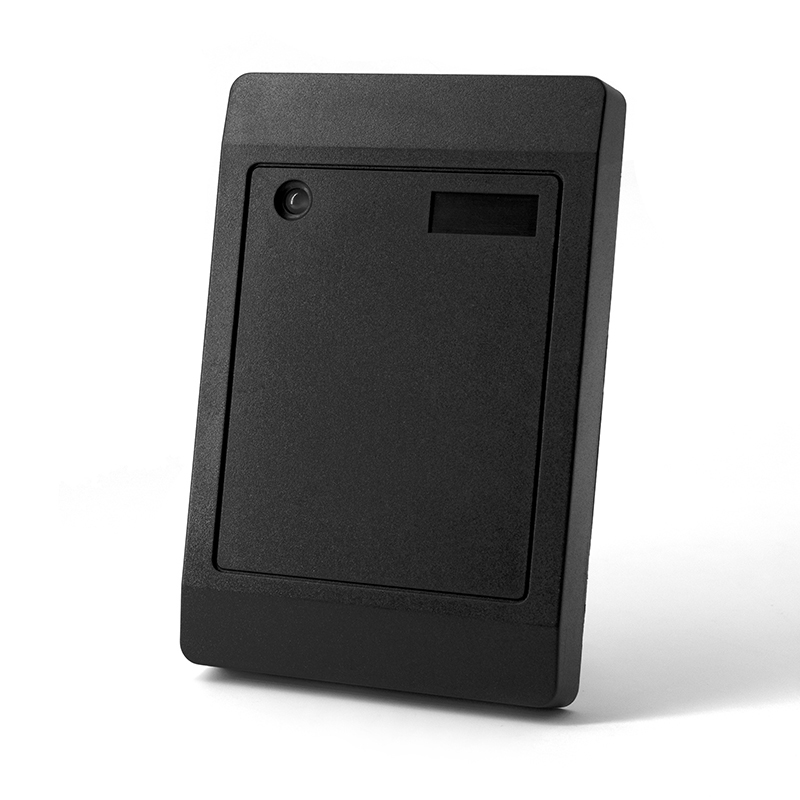

Colour

Black, White

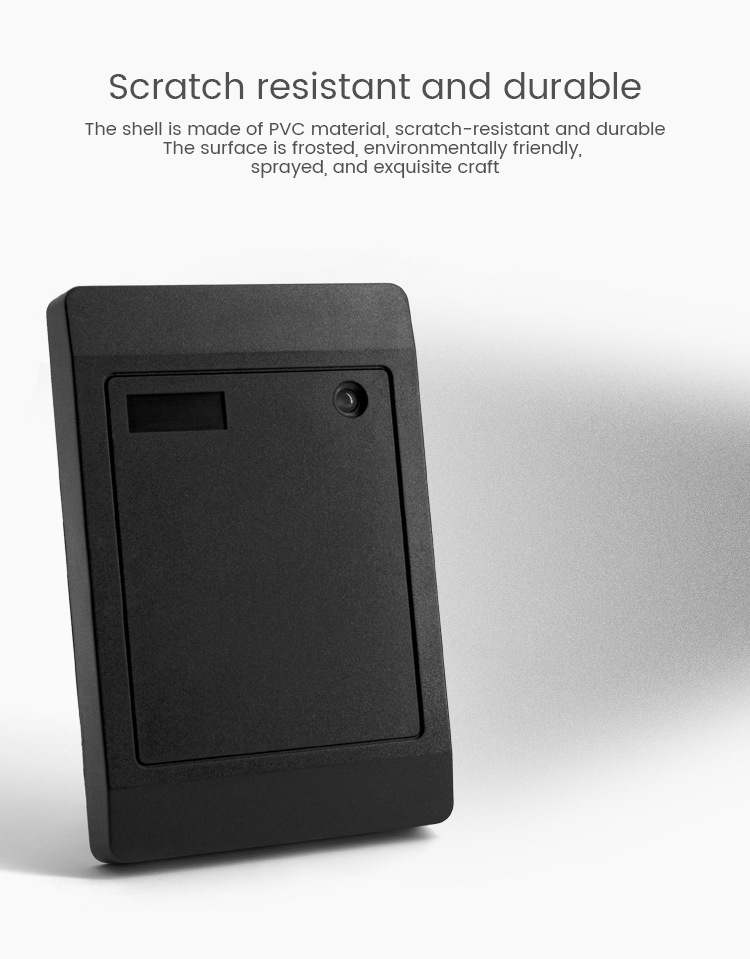

Material

ABS+PC with texture

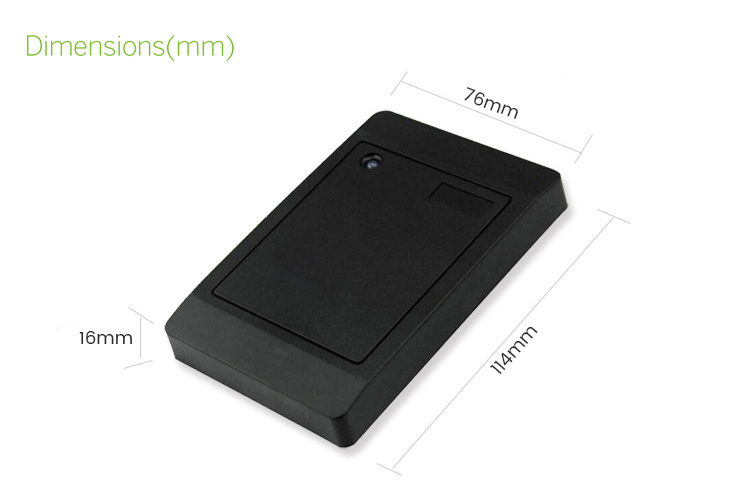

Dimension(W x H x T)mm

76X114X16mm

Weight

50g

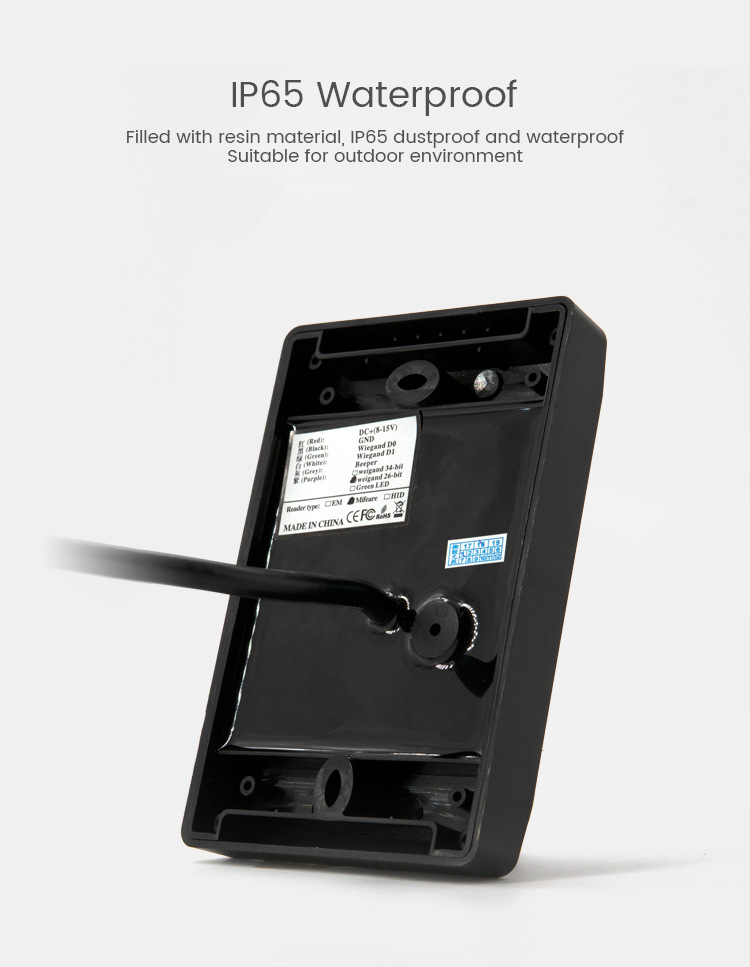

Index of Protection

IP65


Smart Card ReaderSmart Card Reader

Smart Card Reader

Smart Card Reader

Smart Card Reader

Smart Card Reader

Smart Card Reader

Smart Card Reader

Smart Card Reader
