Intelligent Electric Motor Freezer Lock Keyless Hidden Mini Cabinet Lock for Logistics Locker

> Voltage: DC12V 0.4A

                  DC24V 0.3A

> Lock size: 55 x 23 x 28mm

> Working Mode: Power on- Open

                              Power off- Lock

> Suppot Power on all the time

  • Brand:

    S4A
  • Item NO.:

    CB-91-12V, CB-91-24V
  • Specifications
  • Wiring Diagram
  • Package

Intelligent Electric Motor Freezer Lock Keyless Hidden Mini Cabinet Lock for Logistics  Locker

Model No:CB-91-12V, CB-91-24V


Model No.

CB-91-12V

CB-91-24V

Voltage

DC12V 0.4A

DC24V 0.3A

Power On

Support Power on all the time

Tongue length

10mm

Tongue holding force

≤0.5N(50G)

Working Mode

Power on- Open / Power off- Lock

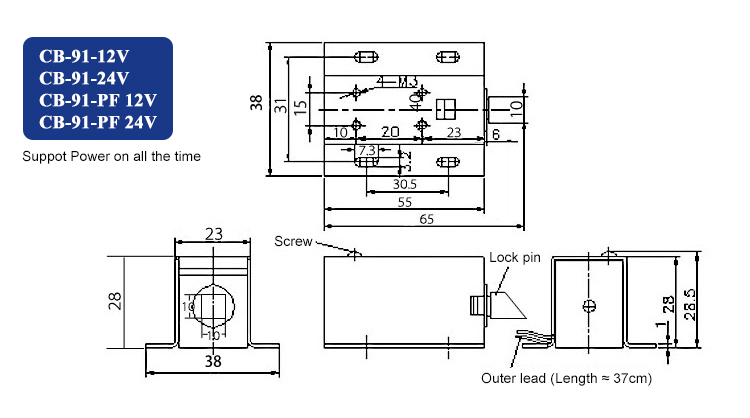

Dimension

55 x 23 x 28mm

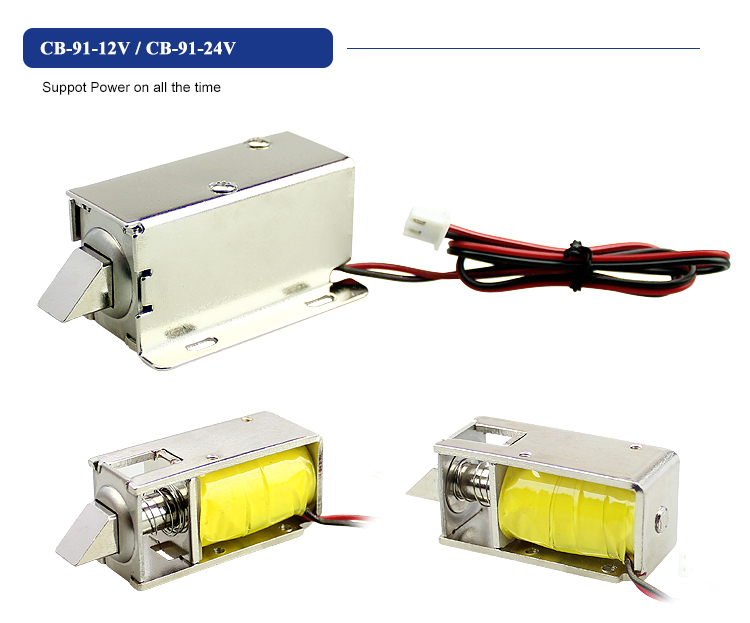

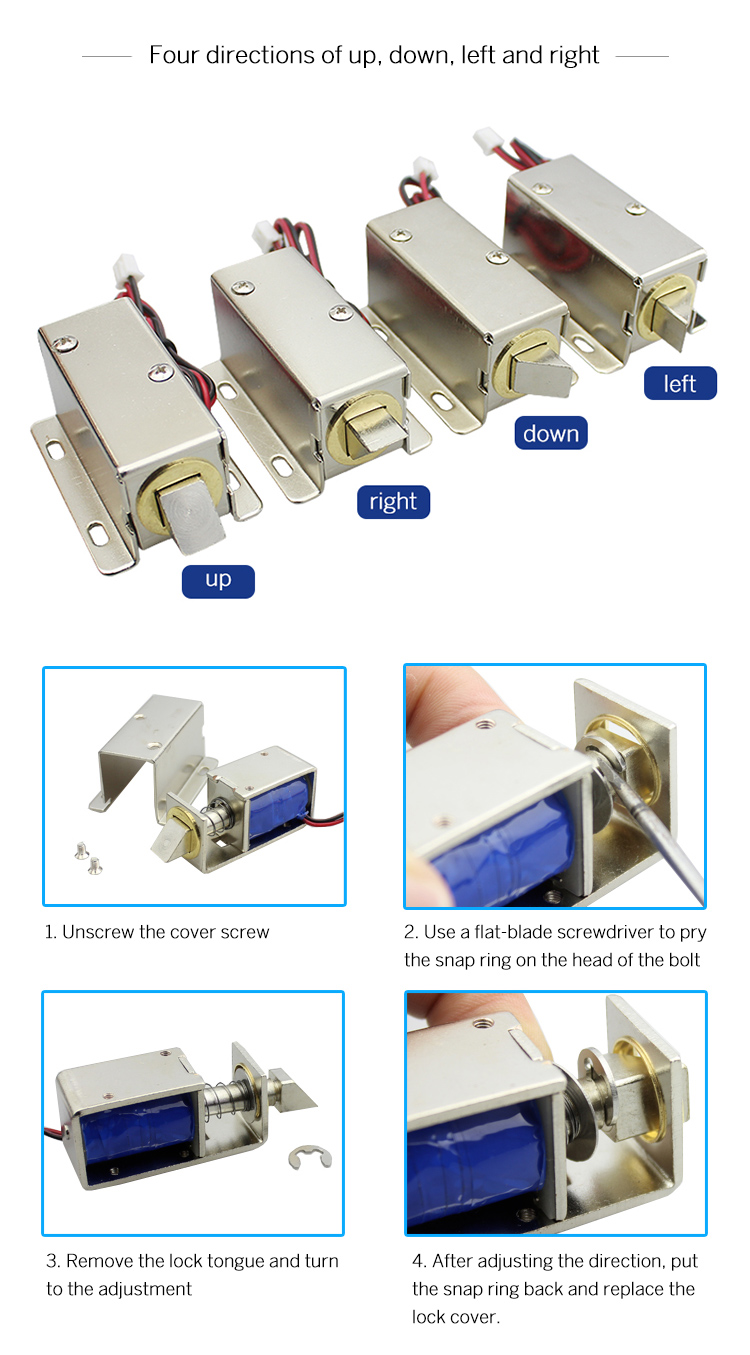

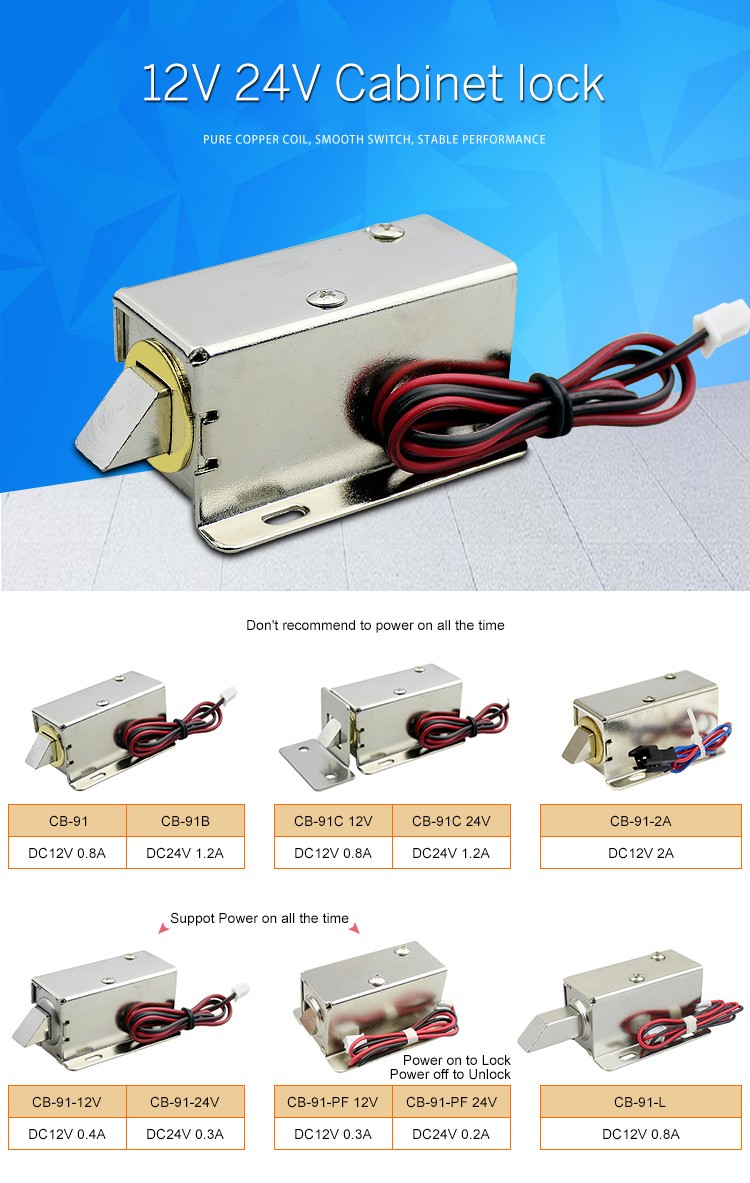

Mini Cabinet LockMini Cabinet Lock




Mini Cabinet Lock

Mini Cabinet Lock
