DC12V Drawer Small Electric Lock Electric Mortise Lock

> Voltage: DC12V 0.3A

                  DC24V 0.2A

> Lock size: 55 x 23 x 28mm

> Working Mode: Power on to Lock

                              Power off to Unlock

> Support Power on all the time

  • Brand:

    S4A
  • Item NO.:

    CB-91-PF
  • Specifications
  • Wiring Diagram
  • Package

DC12V Drawer Small Electric Lock Electric Mortise Lock

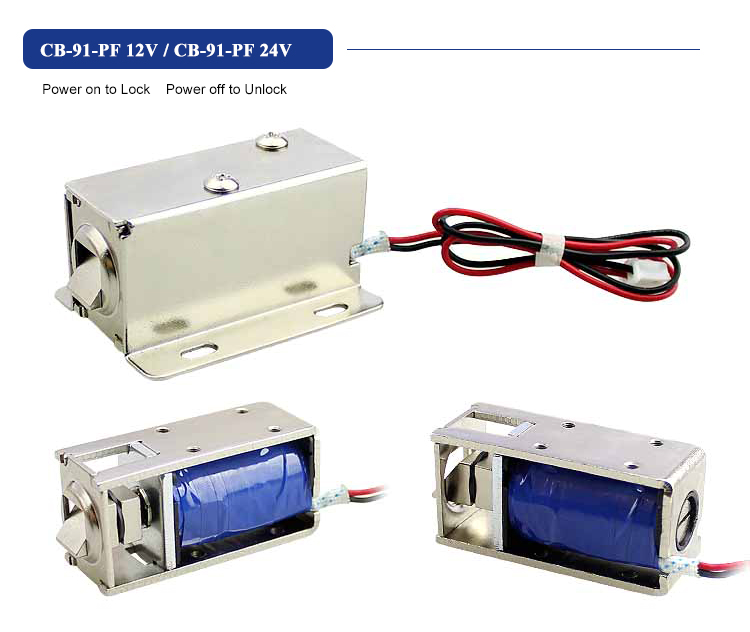

Model No: CB-91-PF 12V&24V


Model No.

CB-91-PF 12V

CB-91-PF 24V

Voltage

DC12V 0.3A

DC24V 0.2A

Power On

Support Power on all the time

Tongue length

10mm

Tongue holding force

≤0.5N(50G)

Working Mode

Power on to Lock   Power off to Unlock

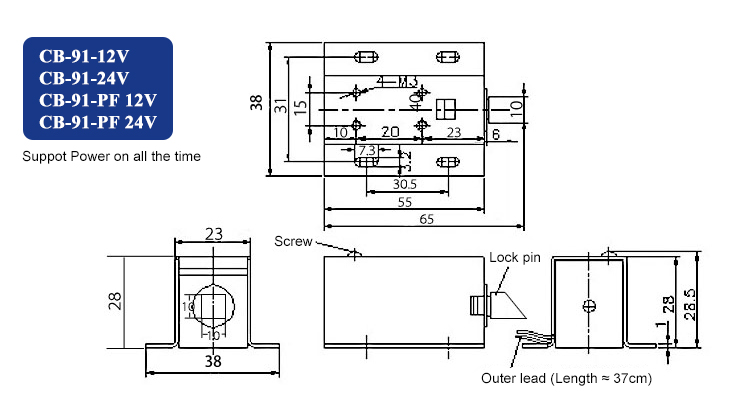

Dimension

55 x 23 x 28mm

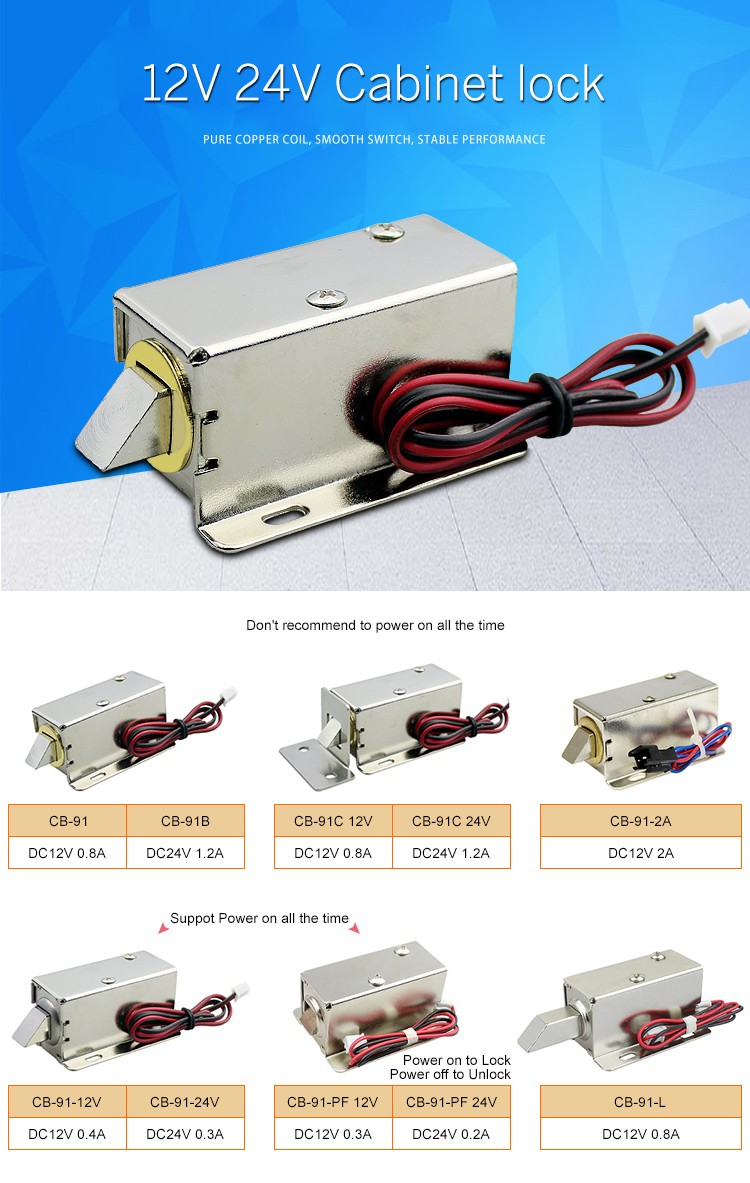

drawer small electric lock

drawer small electric lock

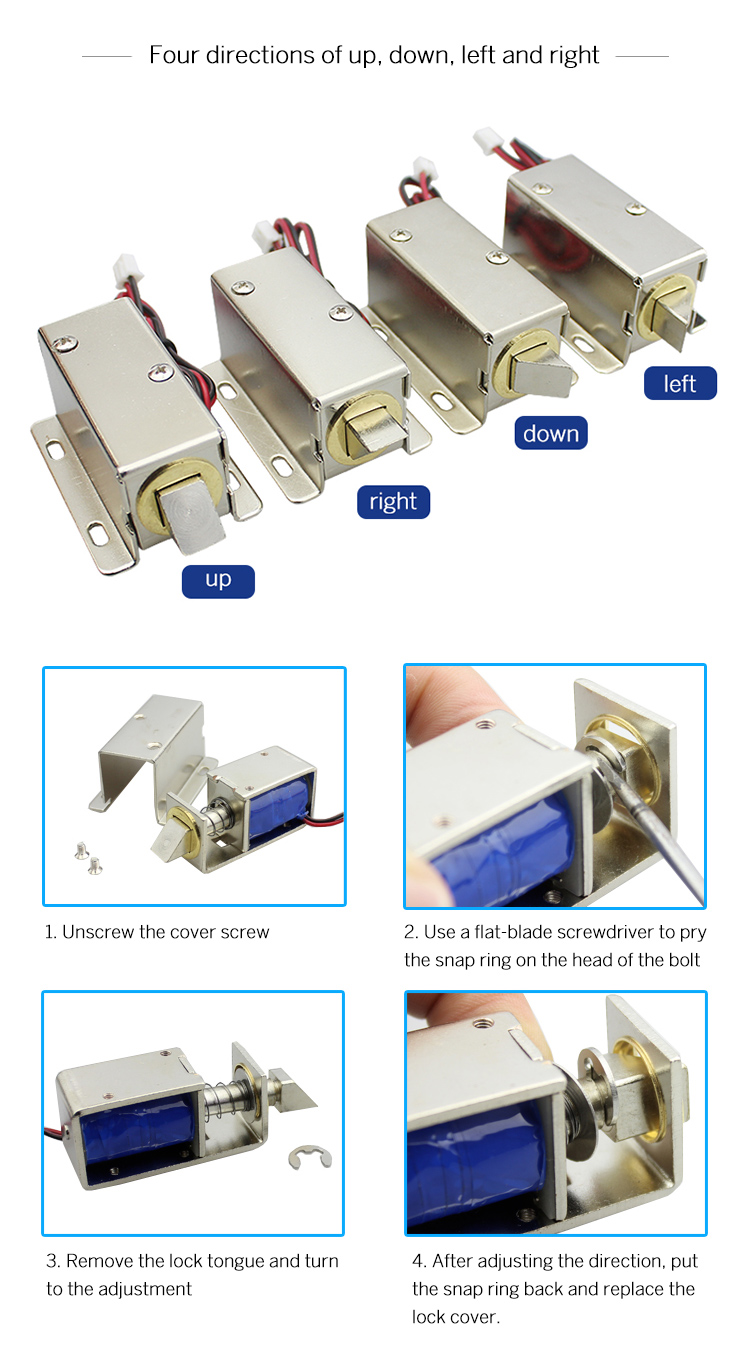

drawer small electric lock


drawer small electric lock

drawer small electric lock
