> EL-W1200SD 7Wires
> Size: 222Lx62Wx38H(mm)
> Armature plate: 195Lx61Wx15H(mm)
> Holding Force: 500kg (1200Lbs)
> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
Brand:
S4AItem NO.:
EL-W1200SD 4WiresWaterproof Electromagnetic Lock with 4Wires
Model No.: EL-W1200SD 4Wires
Specification
L-W1200S 4Wires | 12V & 24V adjustable |
EL-W1200SD 7Wires | 12V & 24V adjustable and door sensor function, NO/NC/COM |

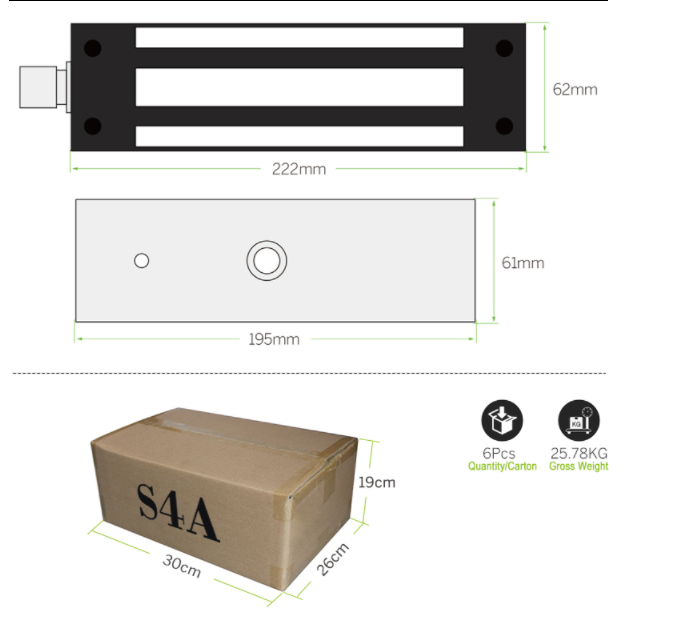

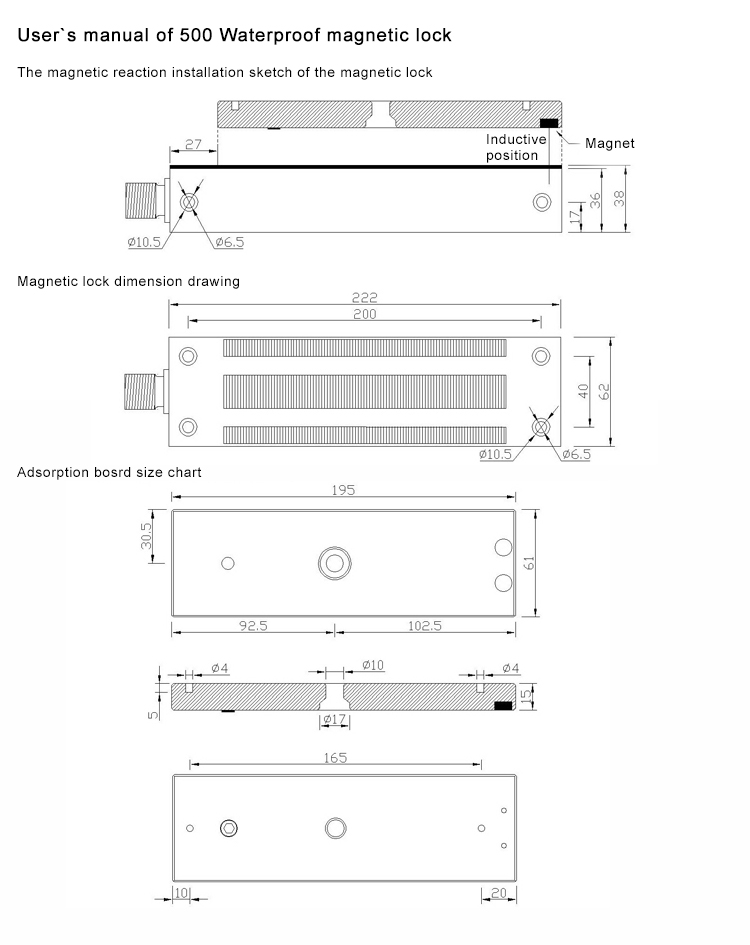

Lock Size | 222Lx62Wx38H(mm) |
Armature plate | 195Lx61Wx15H(mm) |
Holding Force | 500kg(1200Lbs) |
Voltage | DC12V or DC24V(adjustable) |
Current Draw | 12V/420mA 24V/210mA |
Optional Bracket | LZ-W1200 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5kg |
Good Quality Stainless Steel 1200lbs 500kgs Ip65 Waterproof Electromagnetic Lock Full Holding Force, Magnetic Lock | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EL-W1200SD 4Wires | 6pcs | 25.78KG | 30x26x19cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
