> Maximum door weight: 180kg
> Maximum door width: 1200mm
> Power supply: AC220V ±10% 50/60Hz
> Rated power: 55W
Brand:
S4AItem NO.:

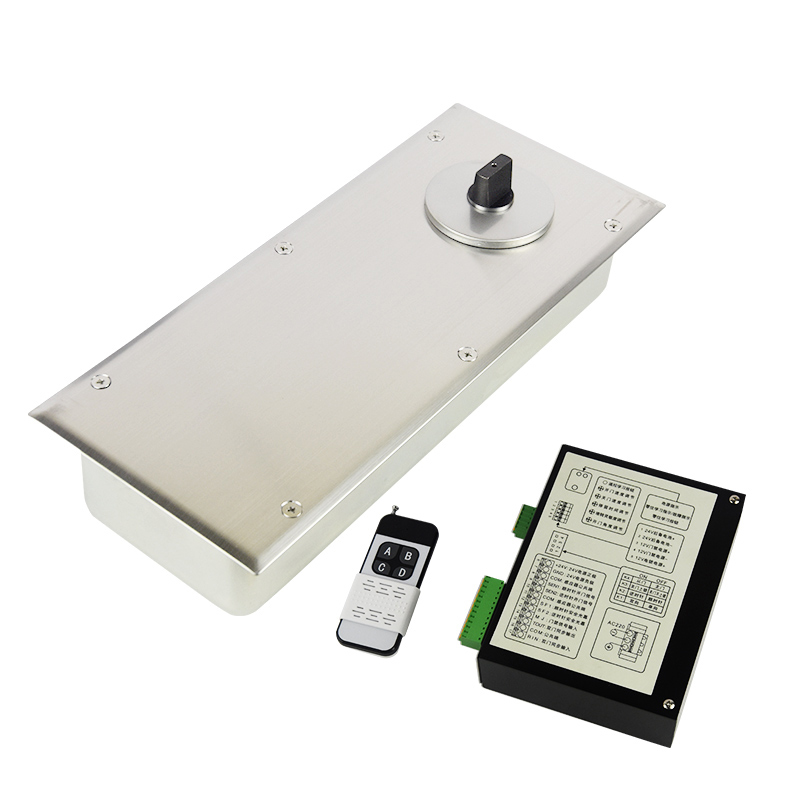

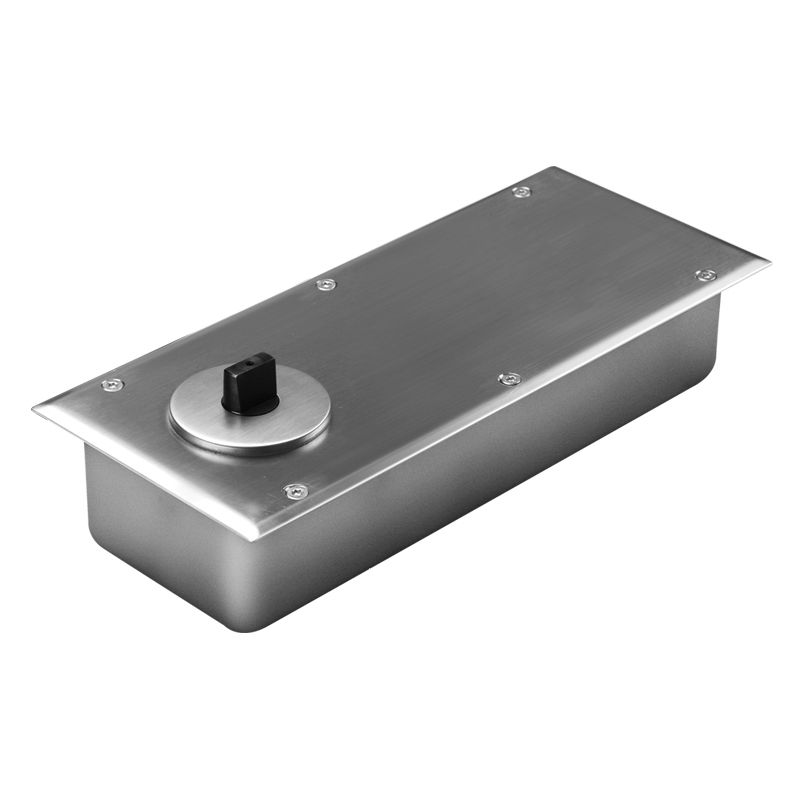

D180SFloor Mounted Concealed Door Closer for 180 kgs Entry Commercial Wooden Glass Gate Door
Model No.: D180S
What are Floor Concealed Door Closers?
The overhead or floor mounted concealed door closer is a very common type of door closer mechanism which is normally unseen and unnoticed. ... Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
Maximum door weight | 180kg |
Maximum door width | 1200mm |
Maximum torque | 165Nm |
Noise | <60dB |
Opening and closing time | 6-12S |
Open range | 86°~95° |
Power supply | AC220V ±10% 50/60Hz |
Rated power | 55W |
Special machine power | <2W |
Operating temperature | -20°C~55°C |
Protection level | IP68 |

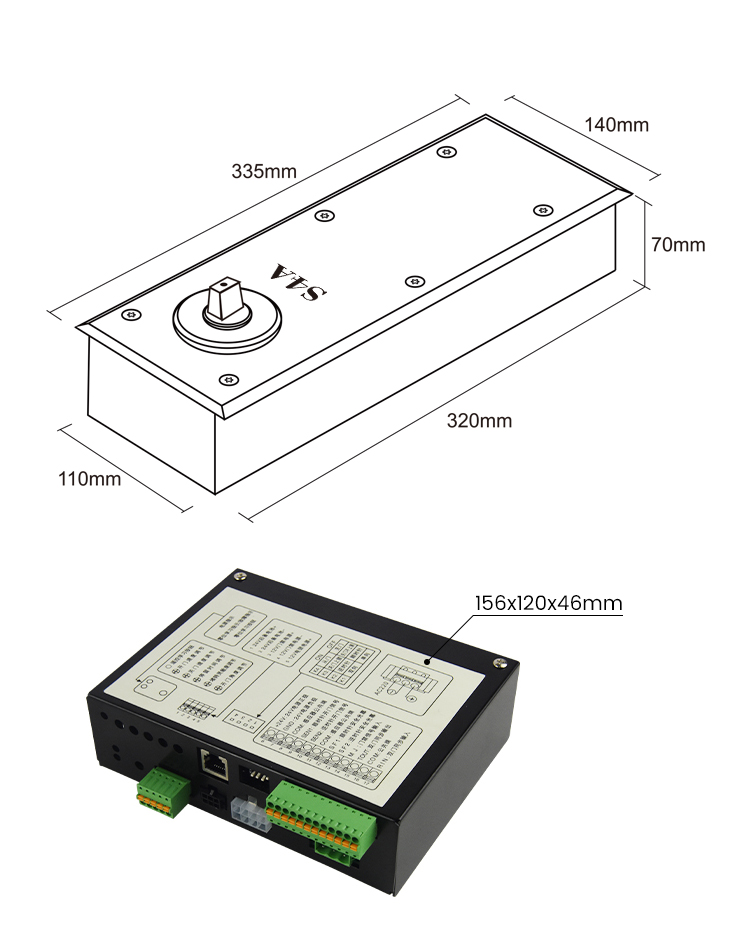

Control box size | 156x120x46mm |
Unit size | 320x110x70mm |
Unit weight | 9.25KG |
S4A Datasheet_Floor Mounted Concealed Door Closer for 180 kgs Entry Commercial Wooden Glass Gate Door
