power supply: DC:Voltage12V±10% electric current < 350mA
storage capacity: 200 fingerprints,3000 passwords and 3000 cards,80000Logs
Recognition speed: <=0.5S
Brand:
S4AItem NO.:
TF1-OLEDFingerprint waterproof access control all-in-one semiconductor fingerprint machine
Model No.: TF1-OLED
power supply | DC:Voltage12V±10% electric current < 350mA |
Weight | 0.21kg |
ambient temperature | -20℃—50℃ |
relative humidity | 10%—85% |

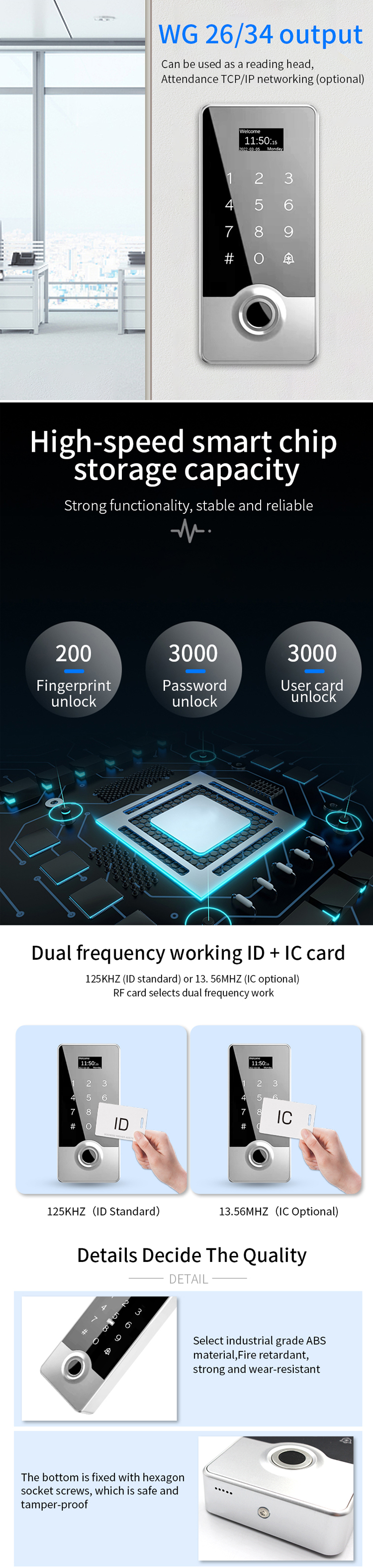

storage capacity | 200 fingerprints,3000 passwords and 3000 cards,80000Logs |
Recognition speed | <=0.5S |
FRR | <0.01% |
FAR | <0.001% |
Communic ation mode | No Support |

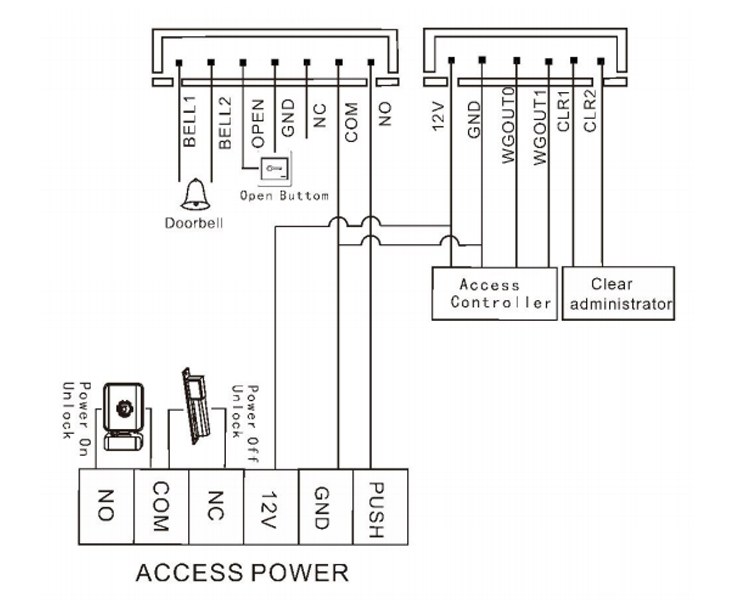

WG signal | Output WG26/34 |

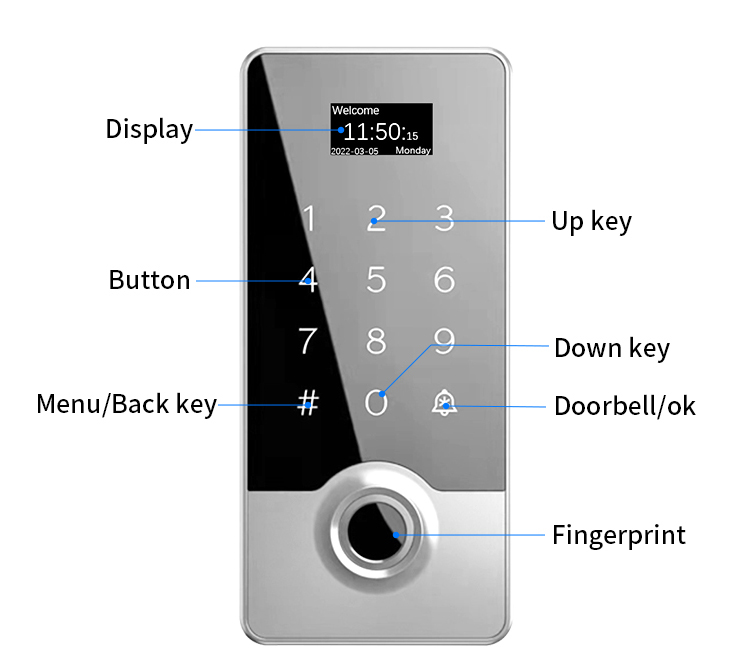

Keyboard distribution | 10 number keys plus 2 function keys |
Menu language | Chinese and English traditional and multilingual |

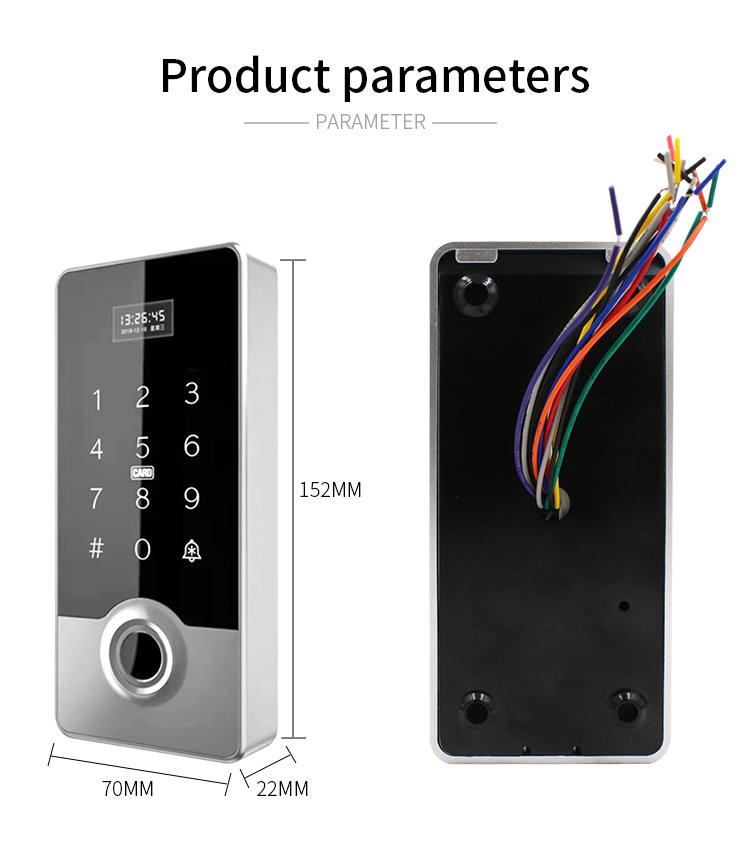

size | 70x22x152MM |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
