> Display: 2.4 inches
> Fingerprint Users: 1000
> Attendance Records: 100,000
> Communication: USB
> Dimension: 160*130*30mm
Brand:
S4AItem NO.:

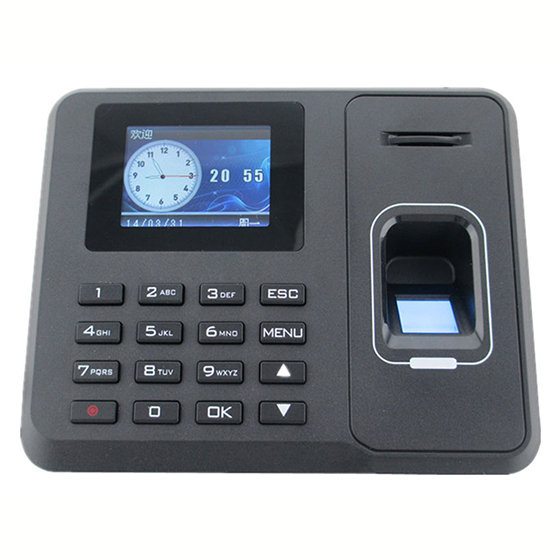

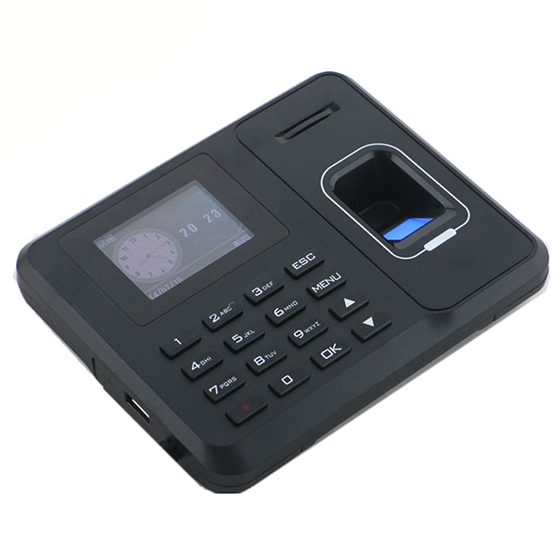

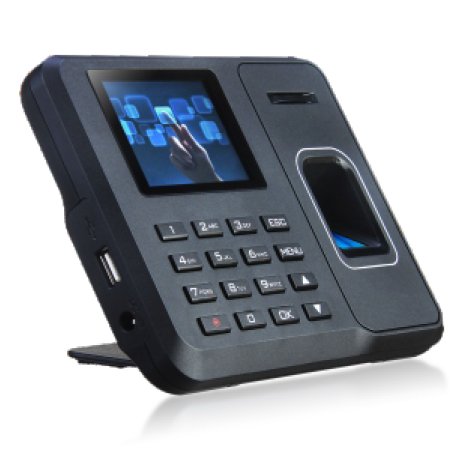

TM1800Fingerprint Time Attendance Access Control Integrated Machine
Model No: TM1800
Product advantages:

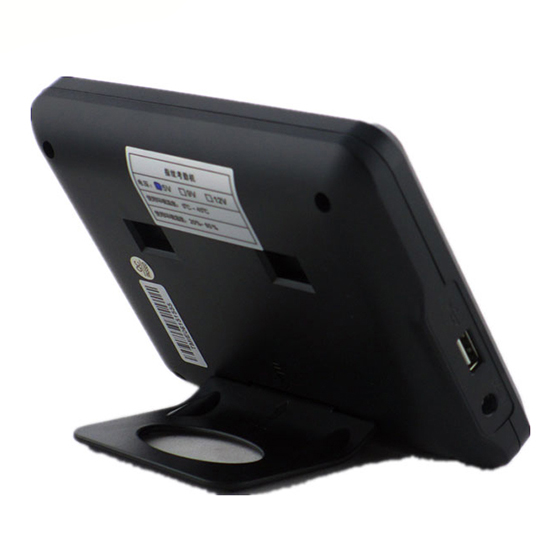

TM1800 voice the name and ID when put fingerprints, both Well-Hung and Desktop style, USB Pen driver download the reports from the device, easy use, and operation without software.
Product Features:
Attendance Shift Setting
> As Days, weeks, Months to setting the Attendance
> Support work in&out, relay, overtime setting
> Support Holiday, weekend, Leaving the setting
> Support Retroactive setting

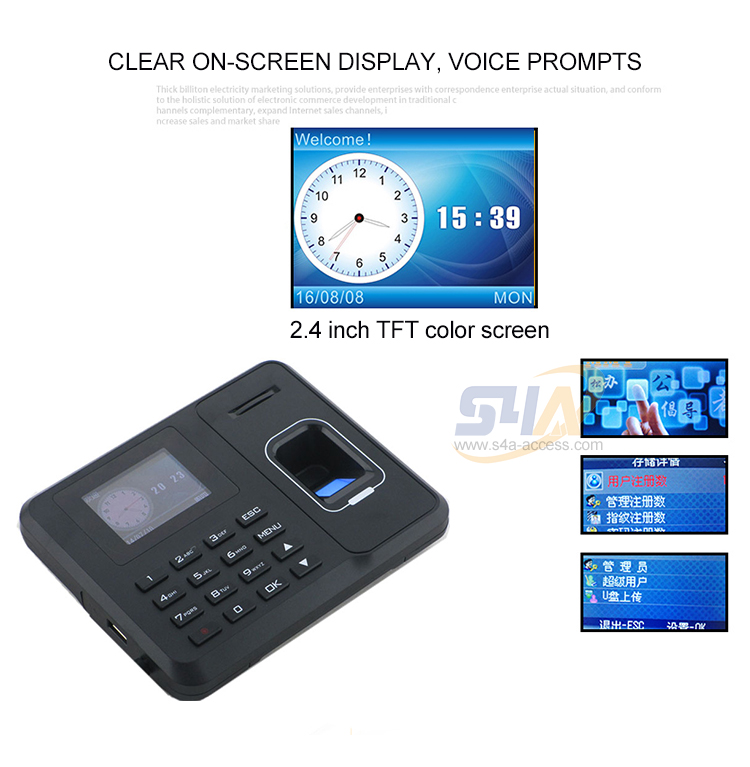

Colour LCD
> High-resolution ratio LCE shows employee name, fingerprint image.
Employee information register
> T9 input to register the employee name in the device
> USB pen driver to download or upload the employee details

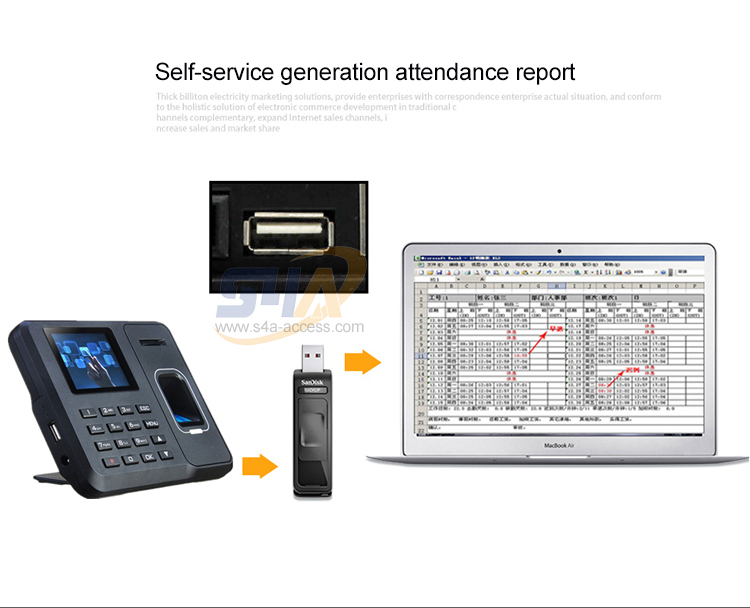

USB Pen Driver store data
> USB pen driver download or upload the exports in Excel, TXT File
> USB pen driver download or upload employee details for easy editing
> USB pen driver download upload attendance shift setting
Attendance exports
> Auto-generate exports in Excel TXT File
> Both Raw data and statistic data reports
Card | ID Optional |
Fingerprint Users | 1000 |
Password User | 1000 |
Attendance Records | 100,000 |
Display | 2.4 inches |
Operation | Offline |
Power Supply | DC5V 2A |
Authentication Methods | Fingerprint, Pincode, (ID Optional) |
Fingerprint Verification Mode | 1:1, 1:N |
Fingerprint Sensor | Optical Sensor |
Verification Speed | ≤0.6s |
False Rejection Rate | <0.01% |
False Acceptance Rate | <0.0001% |
Display Language | English, Arabic, Indonesian, German, Spanish, Thai, Persian |
Attendance Management | Yes (Built-in Automatic Reporting System) |
Interface | USB |
Attendance Record Check | Press the OK Button for Checking |
Reporting | Excel Report Output |
Operating Temperature | -10℃~60℃ |

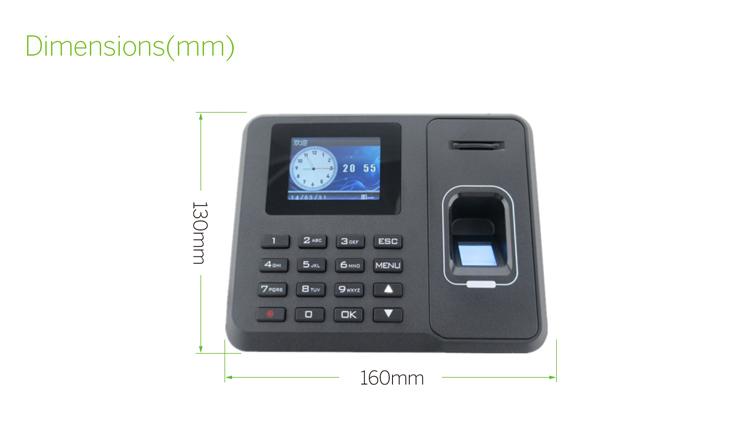

Dimension | 160*130*30mm |
S4A User Manual TM1800_Fingerprint Time Attendance Access Control Integrated Machine
