> Support Finger+RFID+Password
> 1 touch a-second user recognition
> Rugged and elegant design
Brand:
S4AItem NO.:

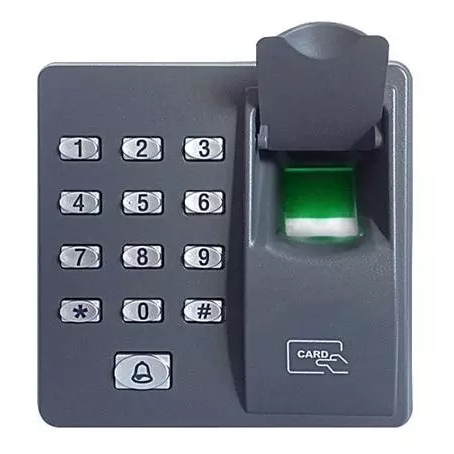

SA-X6Fingerprint Door Standalone Password Access Control System
Model No.: SA-X6 EM
Description
Using Finger 10.0 algorithm, compared to the speed, the false rate is low
Infrared film-free fingerprint head, not affected by sunlight
Through the button, the lights register
No network access control, no record
Wired doorbell, comes with doorbell big button

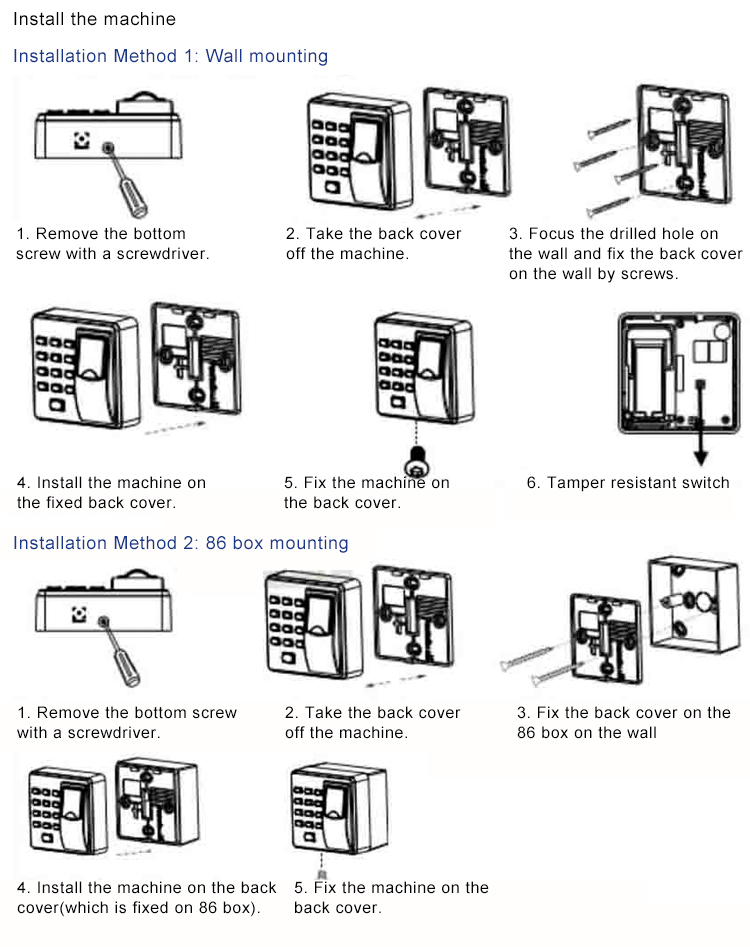

86 box installation, simple and convenient
Fingerprint Collector | Infrared fingerprint sens |
Card Module | ID Card (Standard) / MF Card (Optional) |
User Capacity | 500 |
Fingerprint Capacity | 500 |
Card Capacity | 500 |
Button Type | Mechanical keys |

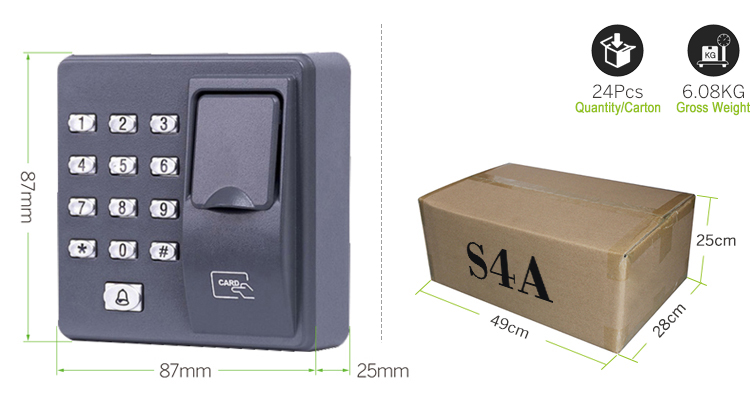

Dimensions | L87 x W87 x H25 (mm) |
Access Control Function | Unlock, exit switch |
Alarm Function | Tamper alarm, the door is not off the alarm, the wrong alarm |
Doorbell | An external wired doorbell |
S4A Datasheet_Fingerprint Door Standalone Password Access Control System
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
