Fail-Secure (power off, the door is locked)
Brand:
S4AItem NO.:

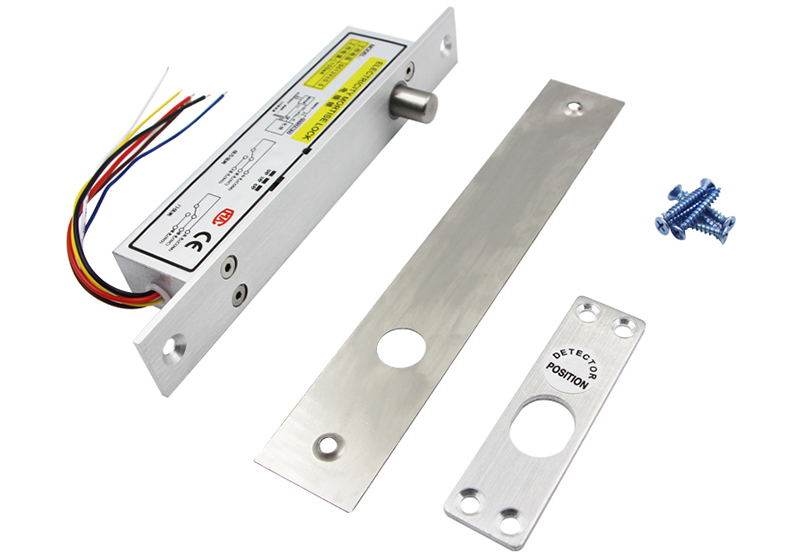

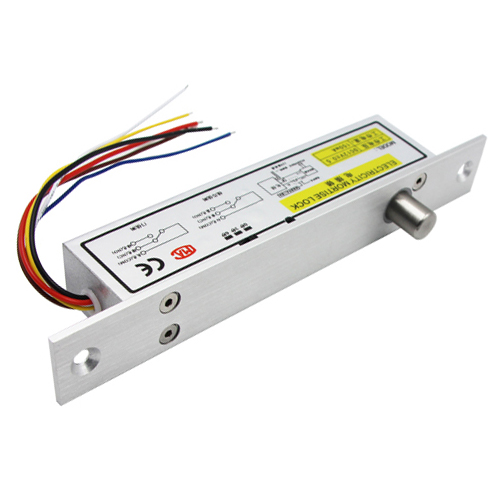

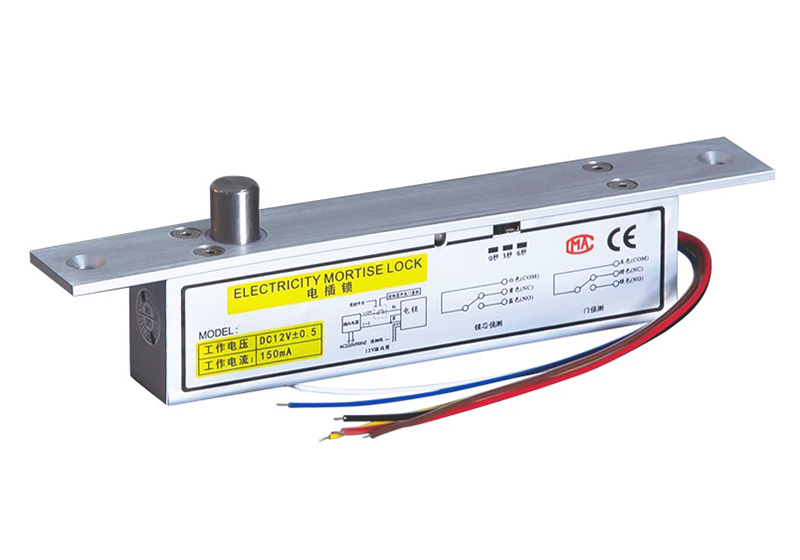

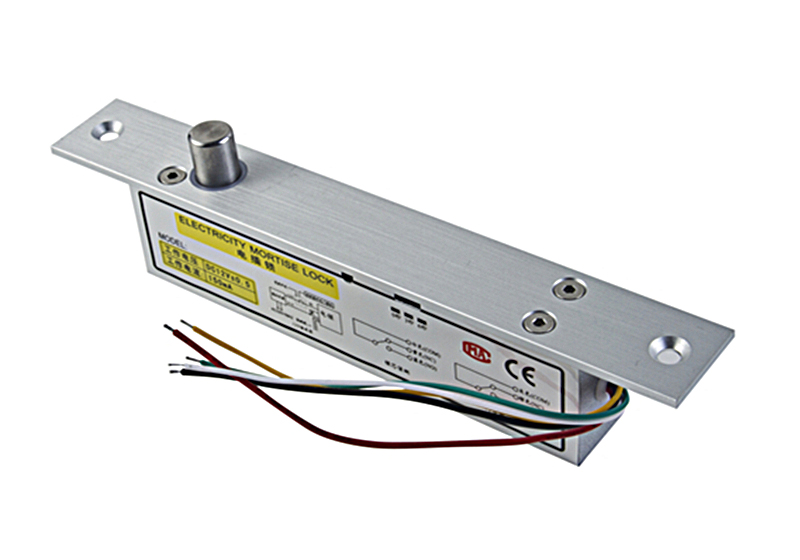

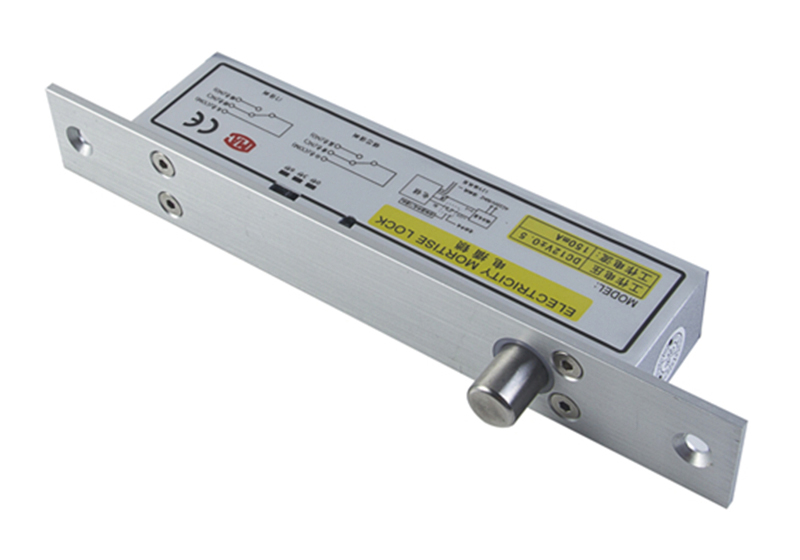

BL-2300BFail-Secure DC12V 5 wires Electric Drop Bolt Narrow Door Lock
Model No.: BL-2300B Fail-Secure
> Low Temperature, safe & Durable
> Low Power, Environmental Protection
> Special photoelectricity control, three steps current application
> Long Life with 500000 Operations
> MOV Provides Reverse Current Protection
> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt

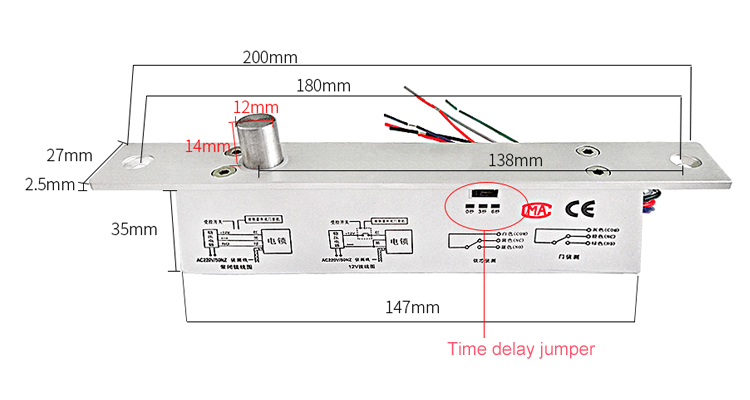

> Autolock Time Delay: 0,3,6,9sec.
> Door statue signal output contact (NC.COM)
> Double protection for loading current
> Auto-relock if no Action within 5 secs.
Voltage | DC12V(DC24V need order ) |
Start Current | 960mA |
Standby Current | 180mA |
Solid Bolt | polishing housing, 1000Kg Holding Force |
Suitable For | Wooden Door, Glass Door, Metal Door, PVC Door |
Signal Output | Door Status Output, NO/NC/COM |
Surface Temp | Low Temperature |
Induction Distance | 8mm |
Operating temp | -10~+55 degree (14-131F) |
Operating Humidity | 0~90%(non-condensing) |
Special Designed | Tested to 500000 operations |
Face place material | Stainless Steel |
Weight | 0.676kg |
S4A Datasheet_Fail-Secure DC12V 5 wires Electric Drop Bolt Narrow Door Lock
