Display screen: 5-inch IPS 480*854
CPU: ARM Cortex-A7 800M
User capacity: 5000
Facial database:5000
Brand:
S4AItem NO.:
AI520FPayment:
EXWProduct Origin:
ChinaShipping Port:

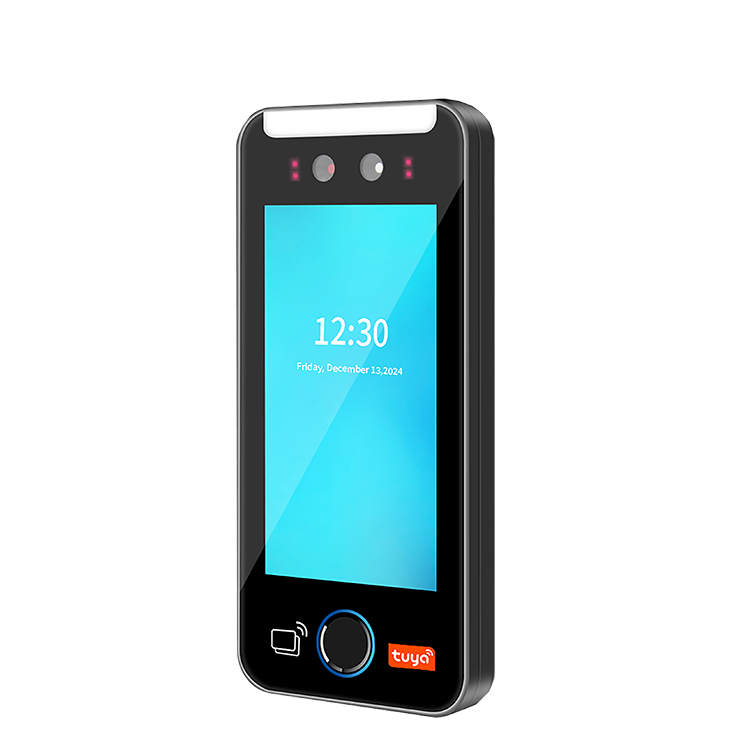

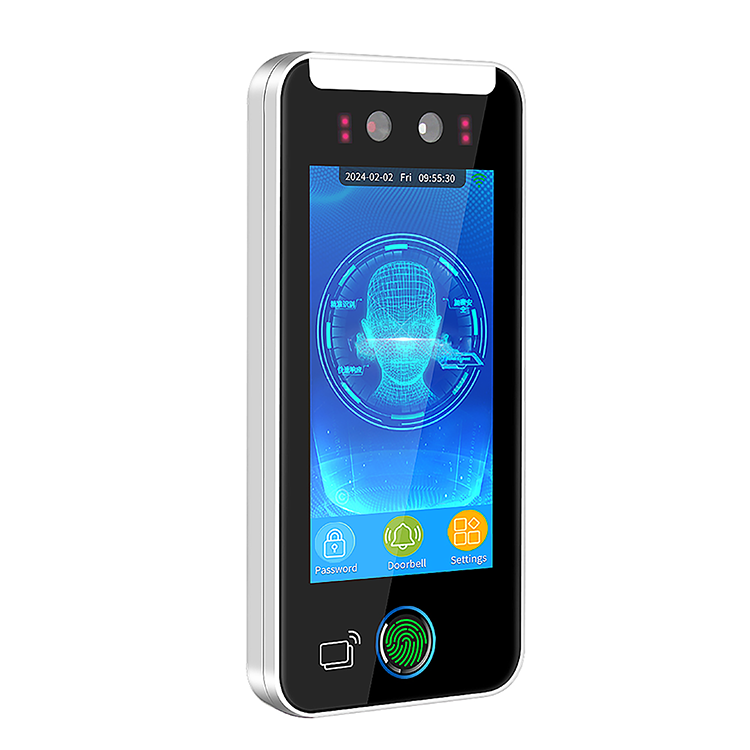

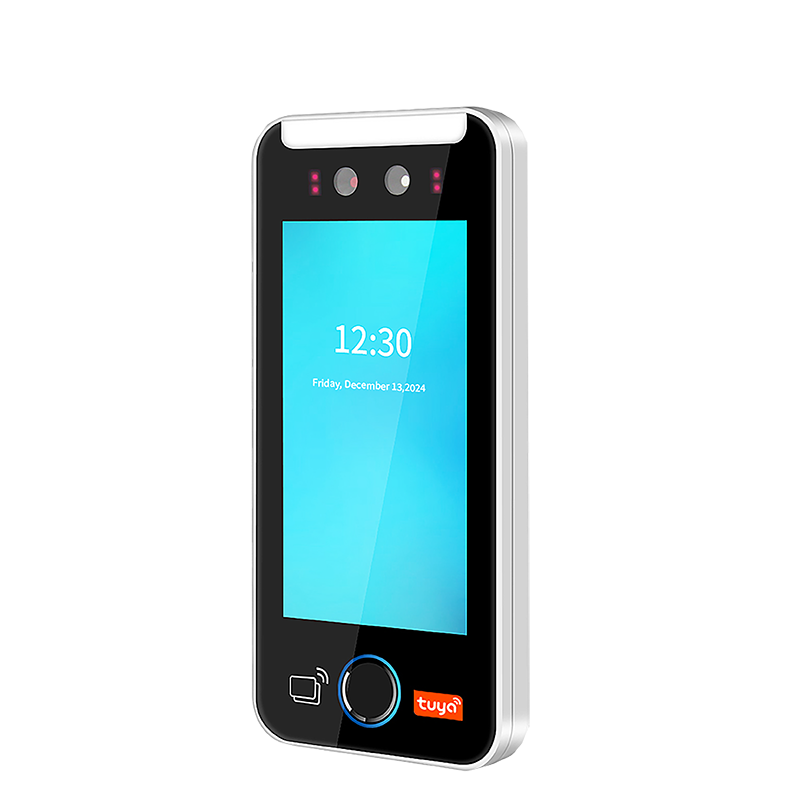

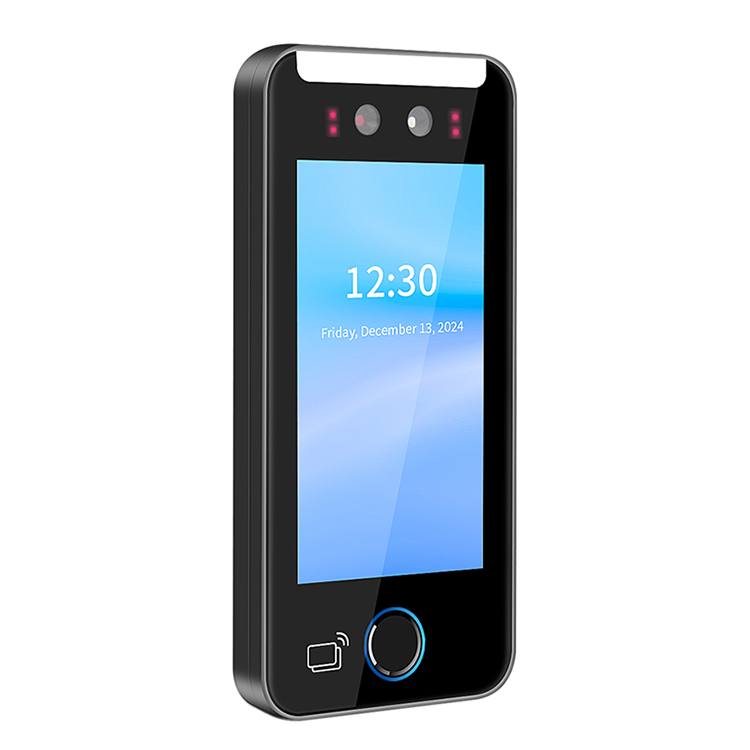

shenzhenTuya Dynamic Facial Access Control with TCP/IP
| Product Parameter | Parameter Descr1ption |

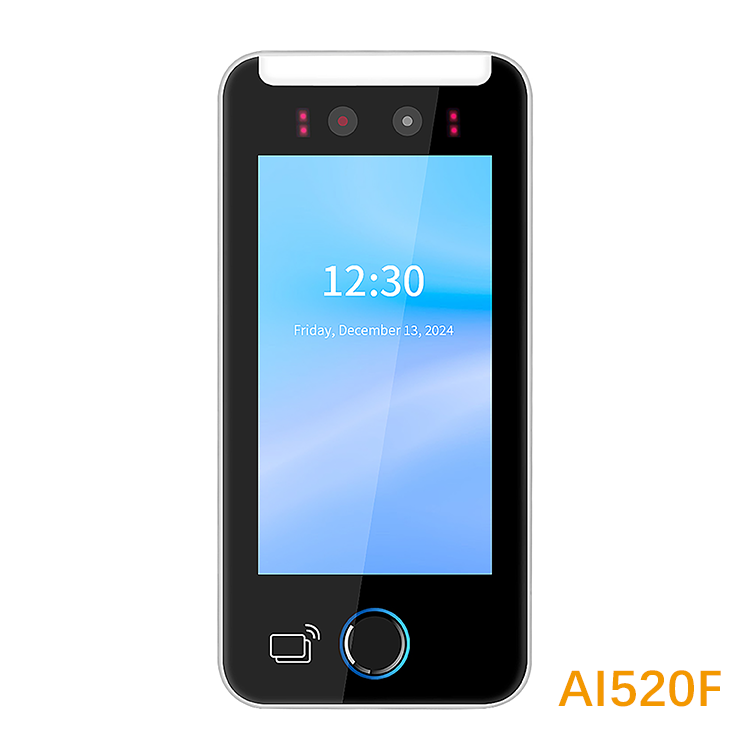

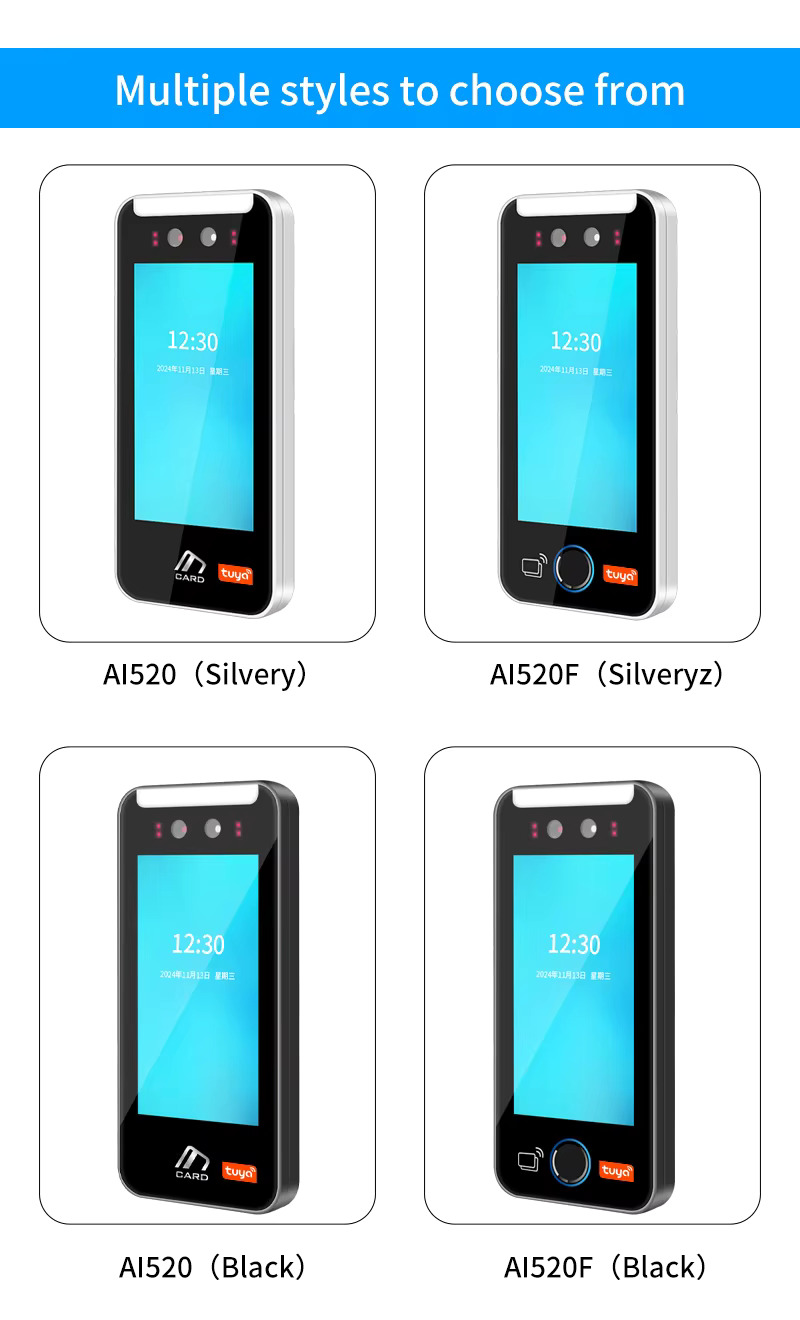

| S4A Model | Ai520F |
| Product Name | Dynamic Facial Recognition Terminal |
| Operating system | LINUX Intelligent OperatingSystem |
| Display screen | 5-inch IPs 480*854 |
| CPU | ARM Cortex-A7 800M |
| User capacity | 5000 |
| Facial database | 5000 |
| Card capacity | 5000 cards (default ID card) |
| Fingerprint capacity | 200,880,1760 optional(Fingerprint version only) |
| Code capacity | 5000 |
| User records | 100000 |
| Camera | Binocular 2 million pixels |
| Recognition distance | 0.5-2 meters |
| Rejection rate | <= 0.1% |
| Misidentification rate | <=0.001% |
| Power supply | DC 12V/2A |
| Communication methods | TCP、USB、WIF1、4G(0ptional) |
| Language display | English |

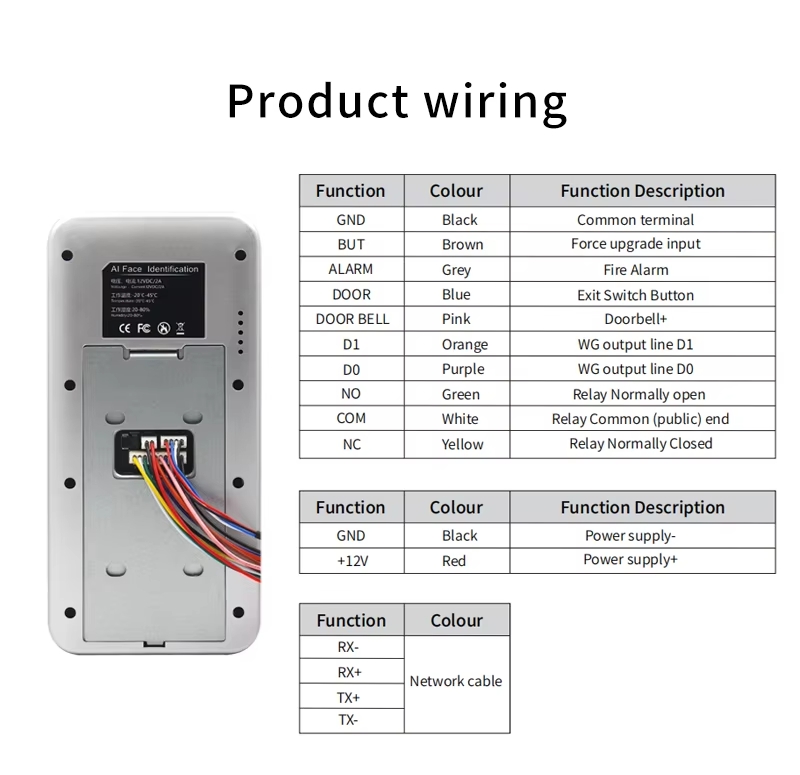

| Access control interface | One set of switch signals, one set of Wiegand |
| Verification method | Face, card, password, temporary password, visitor QR code, defingerprint (optional), card+Facial, and other combinations for verification |
| Working temperature | -20°C~60°C |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
