> Display: 4.3 inches
> Face Capacity: 1500
> Fingerprint Capacity: 5000
> Communication: USB, R485, TCP/IP, (Optional WIFI)
> Dimension: 170*140*35mm
Brand:
S4AItem NO.:

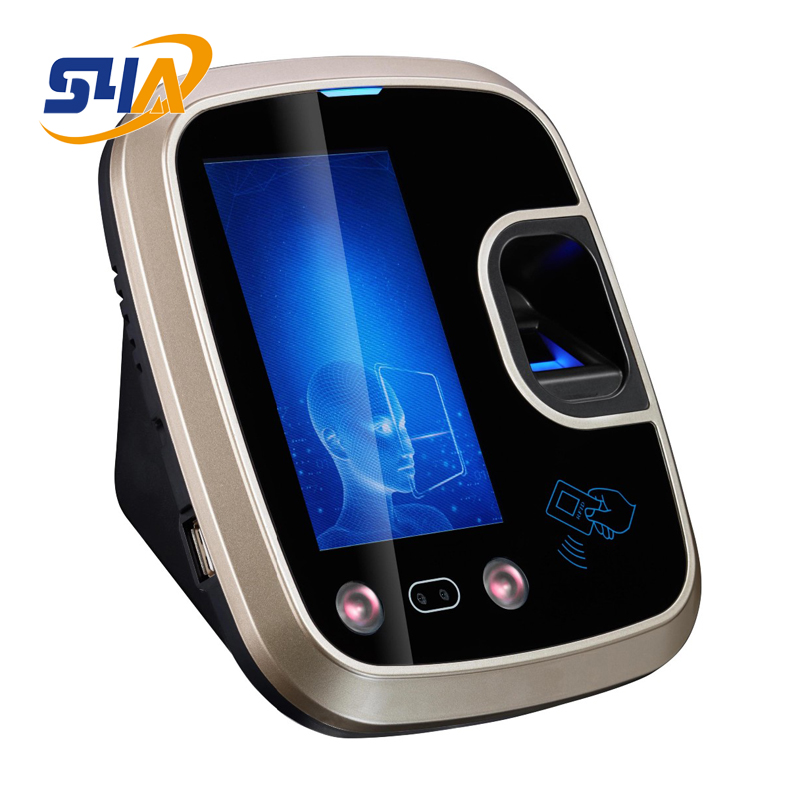

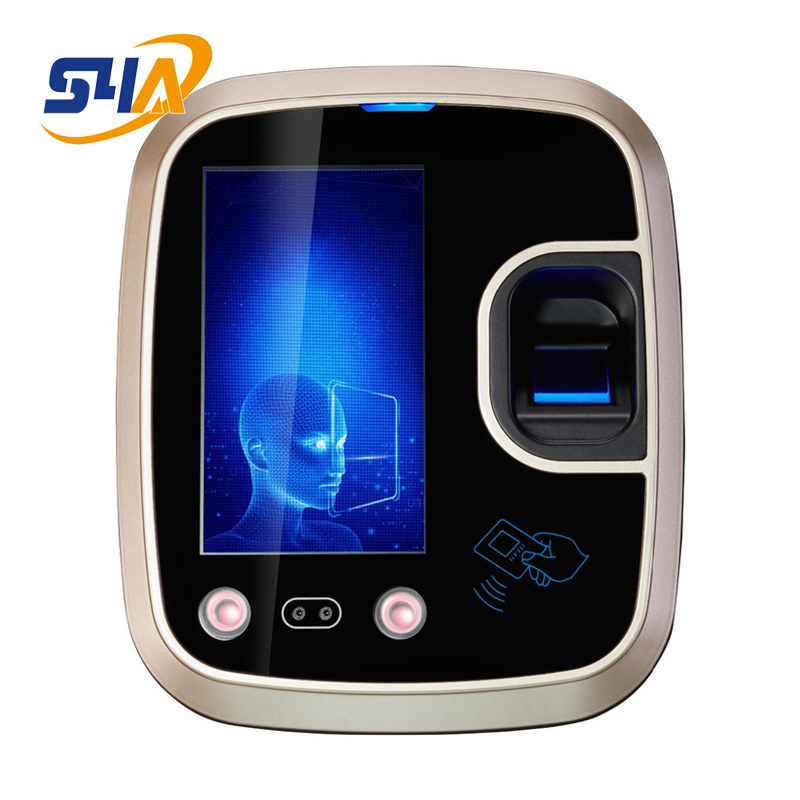

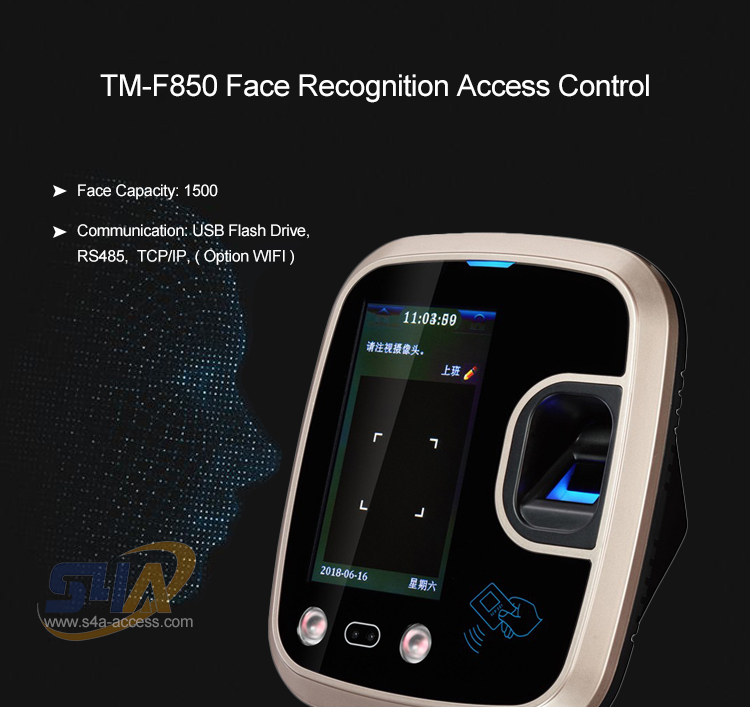

M-F850Biometric Facial Control Machine with Time Clock Support Face Fingerprint
Model No: TM-F850
Product Advantages:
The product features a 4.3-inch TFT capacitive color touchscreen, dual infrared, dual high-definition cameras, and a 1.5GHz quad-core processor. Using S4A's new real-time facial recognition algorithm, face capture is more accurate and faster through light balancing.
After years of improvement, our products are more cost-effective than ever. They are widely used in government agencies, intelligent buildings, office buildings, high-end residential properties, universities, enterprises, and much more.
Products Features:
> Our Face machines with developed face algorithms, and fast and accurate identification, achieved an advanced level of face recognition.
> Double-inflated light double HD cameras, can even do the identification at night time.
> T9 input, input user information directly.
> Reminder of on and off duty, and late in and early out.
> Optical Dark Backlight Sensor.
> WIFI optional.
Model | TM-F850 |
Face Capacity | 1500 |
Fingerprint Capacity | 5000 |
Card Capacity | 5000 |
Record Capacity | 100,000 |
Display | 4.3 Inch Touch Screen |
Identification Style | Face/Fingerprint/Password/card |
Identification Speed | <1 sec |
Communication | USB, R485, TCP/IP, (Optional WIFI) |

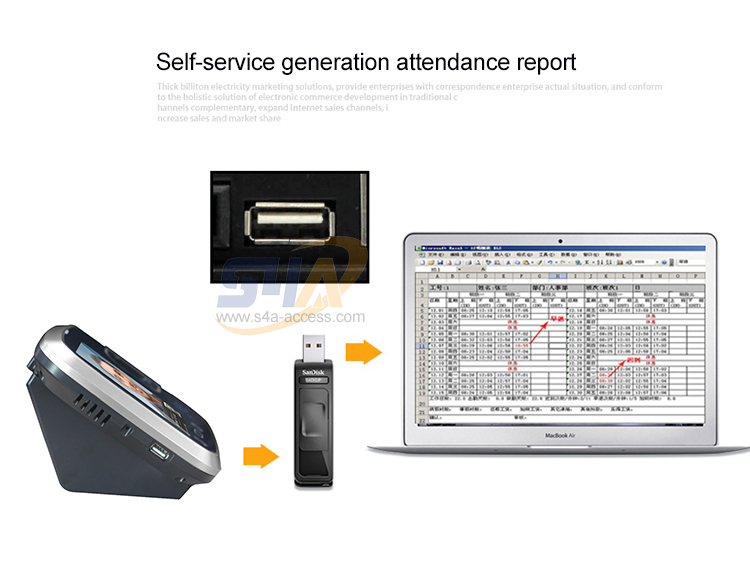

USB Functions | USB flash drive download/ upload, firmware upgrade |
Power Supply | DC12V |
Self-testing | Support |
Power Management | Sleep Mode |
Time Synchronization | Support |
Realtime Photo | Support |
Infrared Proximity Detection | Support |
Door Sensor | Support |
T9 Input | Support |
Door Lock Signal Output | 1 group relay signal output |
Wiegand | 1 set WG In & out |

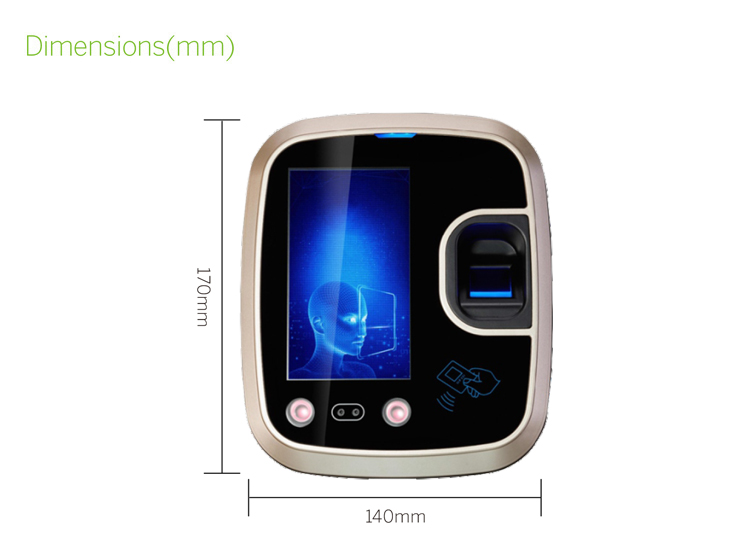

Dimension | 170*140*35mm |
S4A User Manual TM-850_Biometric Facial Control Machine with Time Clock Support Face Fingerprint
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
