Specifications
Package

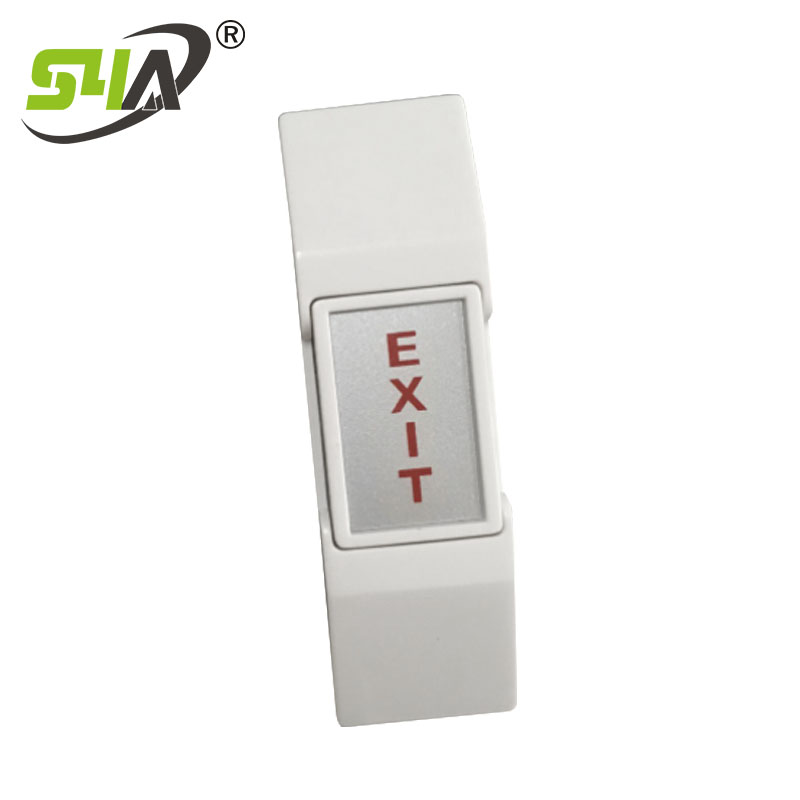

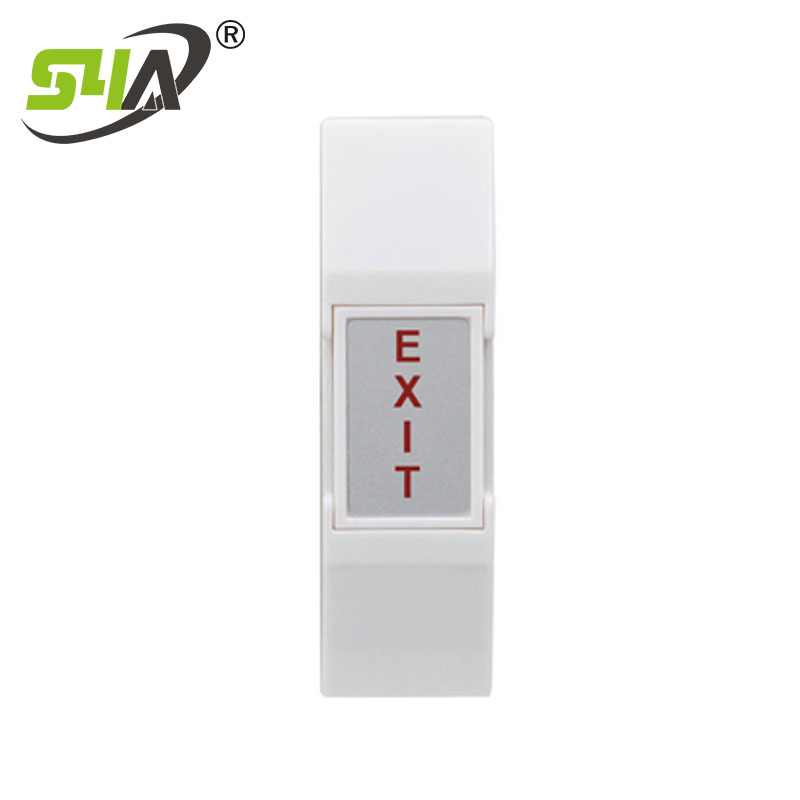

Push to Exit

Model No: EB-PV2

This is an emergency door release that is used with electrical locking devices (i.e. electromagnetic lock or electric panic bar). The Emergency Door Release is designed to override the electrical locking/release devices, in the case of a loss of power to the emergency exits.

The Emergency Door Release is designed to override the electrical locking/release devices, in the case of a loss of power to the emergency exits. It features a double pole that changes the contacts from normally closed (N/C) to normally open (N/O) so that the exits can function without power.

S4A Model	EB-PV2
Product Name	Mini Plastic Exit Button

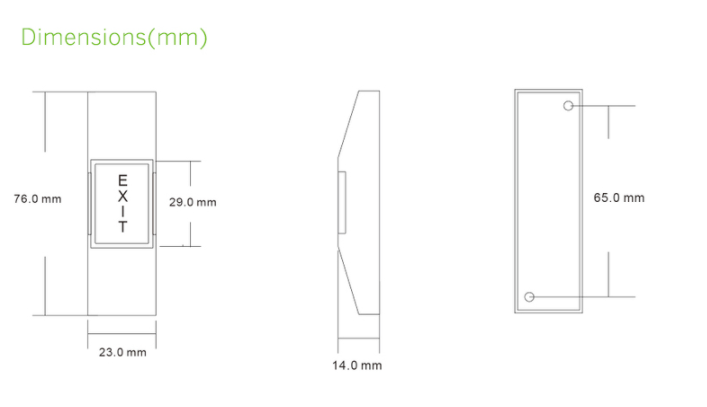

Dimensions	76Lx22Wx14H(mm)
Material	Fireproof
Installation Mode	Surface Mount
Input	DC12V
Contact Rating	3A/125-250VAC

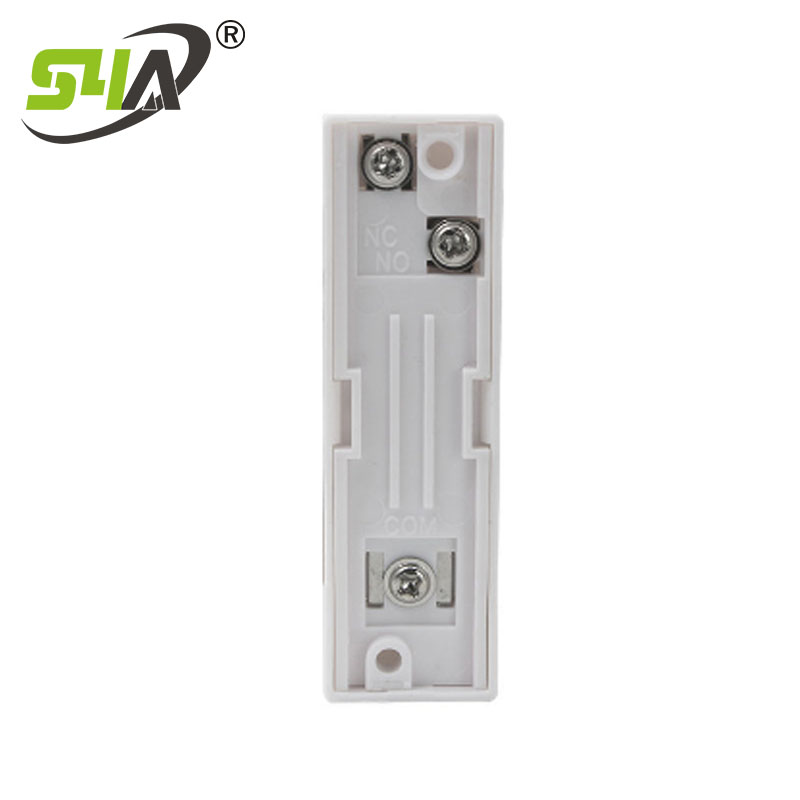

Output Contact	NO/COM
Mechanical Life	500000 tests
Suitable for Door	Hollow Door
Operating temp	-20℃～+55℃(14-131F)
Suitable Humidity	0-95% (relative humidity)
Unit Weight	0.016KG
Standard Package	10PCS/Bags
Carton Weight	0.2KG

Exit Button Release
