New Products

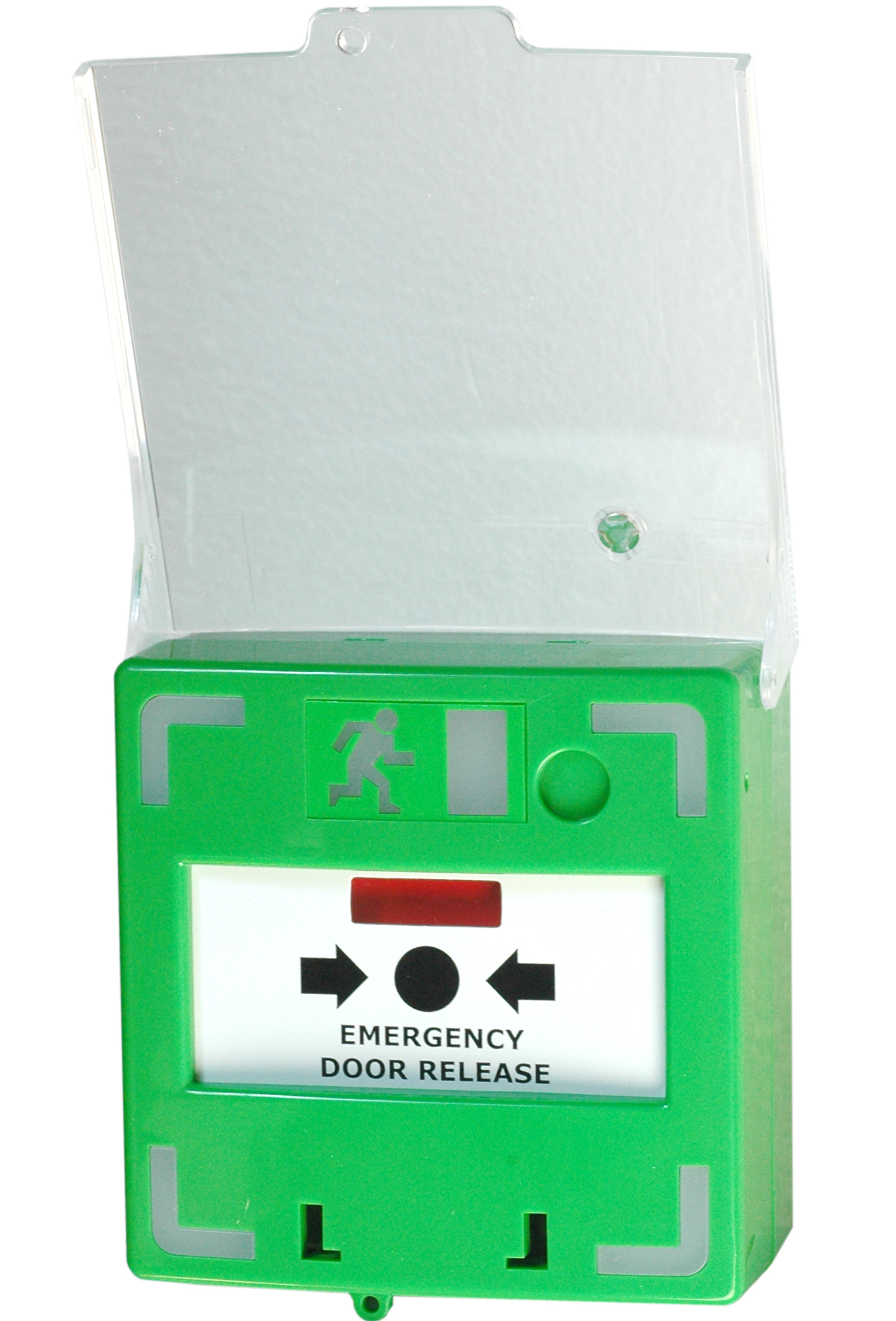

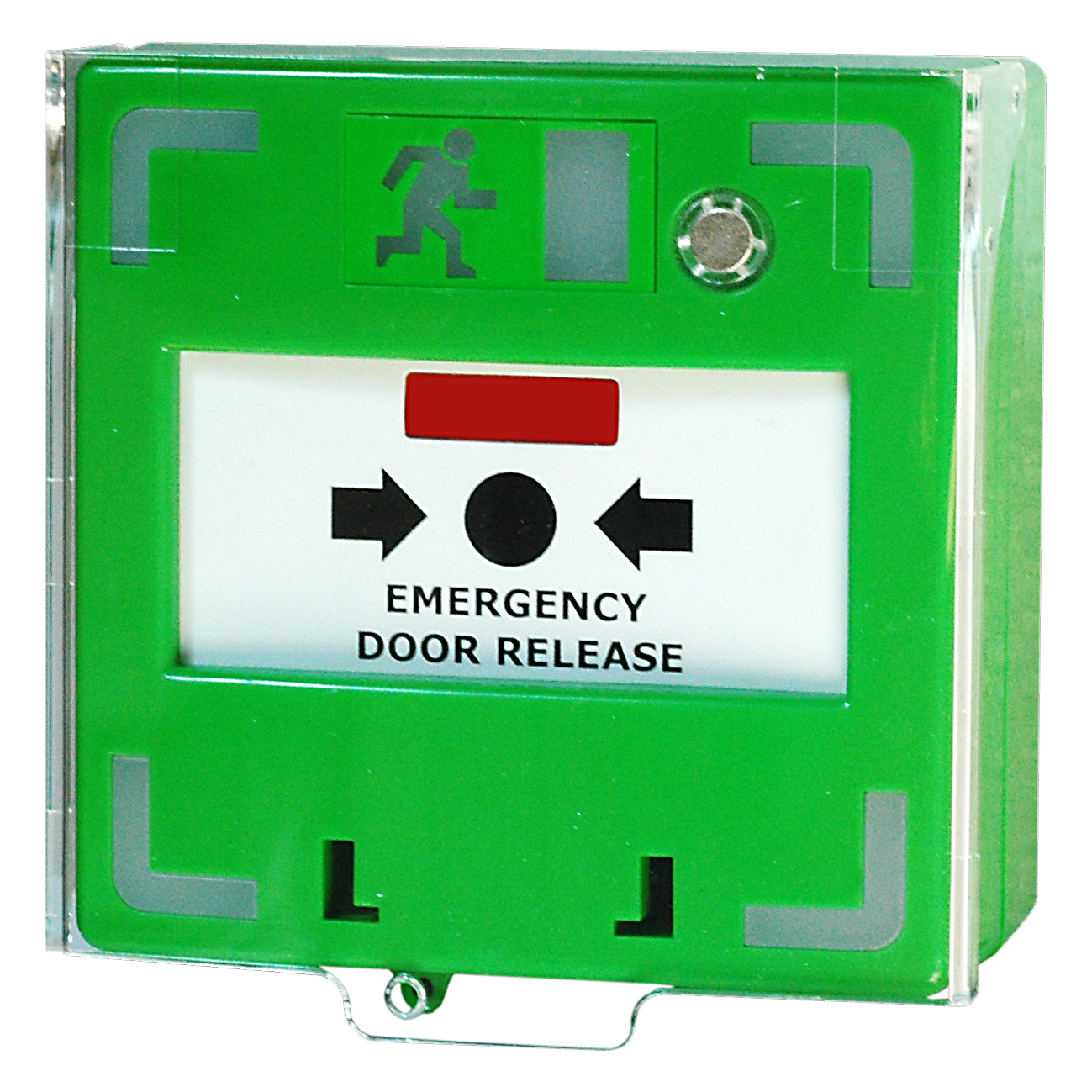

Exit Button Push Switch For the Door

>SPDT / NO/NC/COM
>Surface: Surface Mount
>Material: ABS, PC (transparent part)

Brand:
S4A
Item NO.:
EB-20C

Inquire Now

Specifications

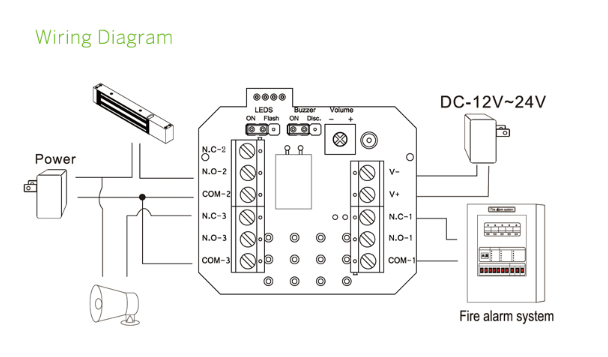

Wiring Diagram
Package

Exit Button Push Switch For The Door
Model: EB-20

Item	Parameter Description
Standard Structure	Fireproof Material, Easy to install
Material	ABS, PC ( transparent slipcase)
Surface	Surface Mount
Operation current	DC 12V/10mA(Standby)/50mA(Operation) (±5%)
	DC 24V/11mA(Standby)/64mA(Operation) (±5%)
Output	N.O.N.C.&COM, Output(Maximum load of 125V/3A)
Power Supply	DC12-DC 24V (±5%)
Buzzer	Set as silent, interval wailing, or continuous wailing
Indicator	Dual-color(red and green)
	Red indicator to set blinking, off, or on
Color	Red, White, Green, Orange, Yellow, Black, etc
Dimensions	90Lx93Wx45H(mm)
Weight	208g

what is the advantage of the resettable switch call point？

Reset is a unique fire alarm manual call point that mimics the feel of breaking glass whilst offering the user the benefits and safety advantages of a glass-free resettable operating element. Once activated a warning flag drops into view easily identifying the call point that has been operated.

Push Exit Button

Exit Button Push Switch For The Door
Model No.	Quantity/Carton	Net Weight	Gross Weight	Carton Size
EB-20C	100 PC	14.49 KG	18.45 KG	52x34x41 CM

Related Tags : Push Exit Button Push Button Exit Push To Exit Button
