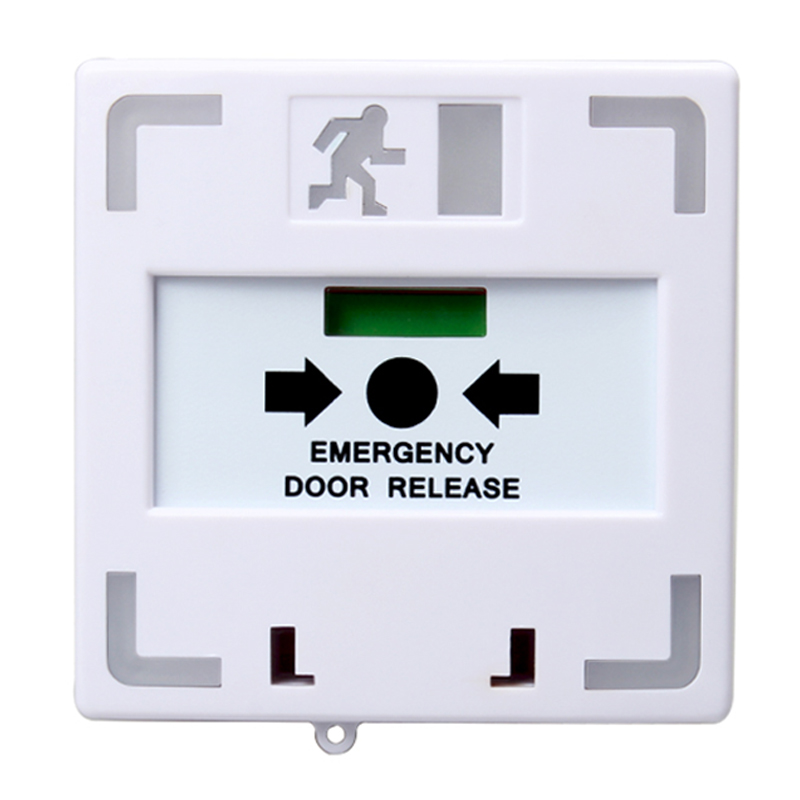

Emergency Exit Push Buttons and Switch buttons for Fire Alarm systems

Emergency Exit Push Buttons and Switch buttons for Fire Alarm systems
Dimensions: 90x93x45mm

Brand:
S4A
Item NO.:
EB-20G-White

Inquire Now

Specifications

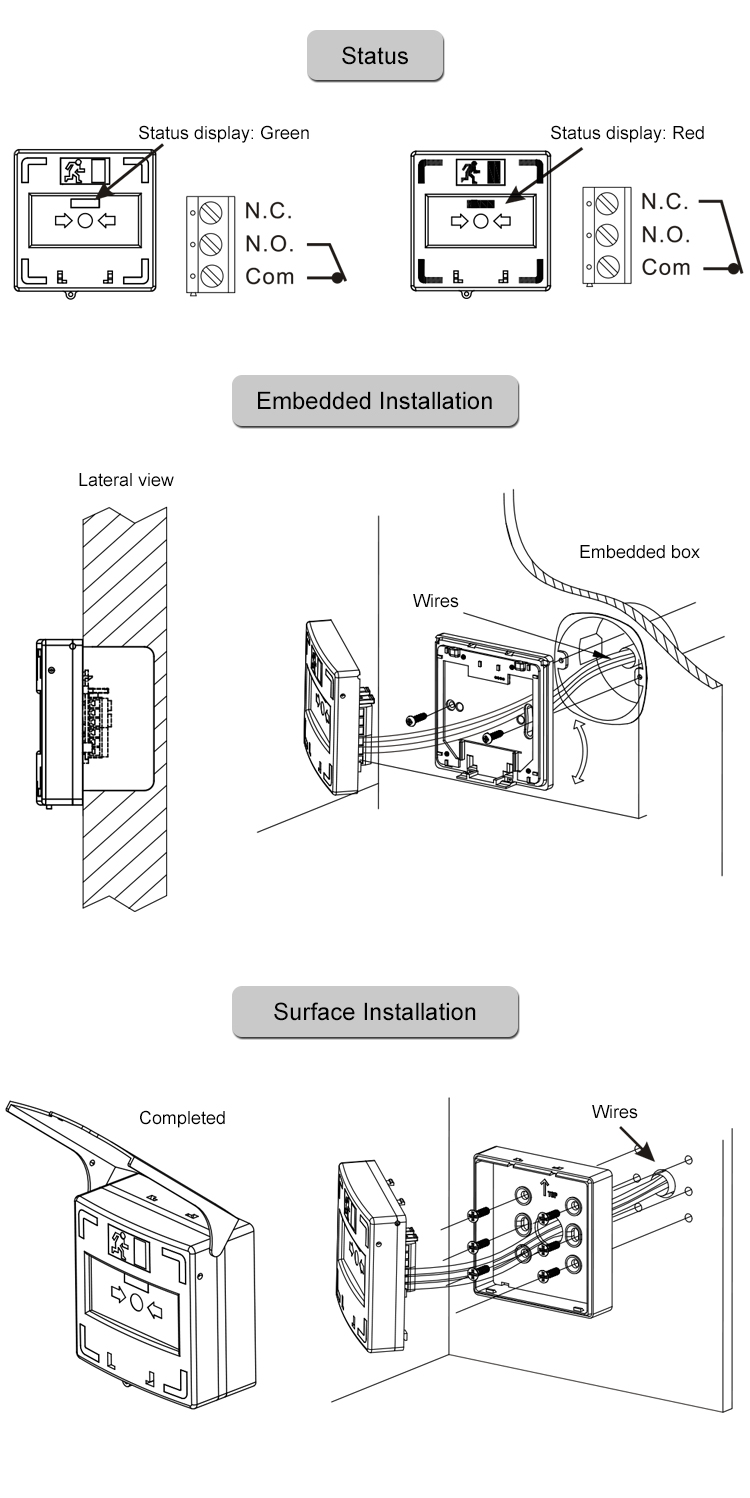

Wiring Diagram
Package
Download

Emergency Exit Push Buttons and Switch buttons for Fire Alarm systems

Model No: EB-20G-White

Model No.	EB-20G (LED/Buzzer)	EB-20G (Without LED)
Power Supply	DC 12V ~ DC 24V ±5%	X
Operation current	DC 12V: 18mA(standby) / 75mA(operation) ±5%	X
Operation current	DC 24V: 11mA(standby) / 41mA(operation) ±5%	X
Buzzer	Set as silent, interval buzzing, or continuous buzzing.	X
Indicator	Dual-color (red and green).	X
Indicator	Red indicator to set blinking, off or on.	X
Output	N.O. 、N.C & COM. Output (Maximum load of 125V/3A)
Material	ABS, PC
Dimensions	90L x 93W x 45H (mm)
Weight	208g	192g

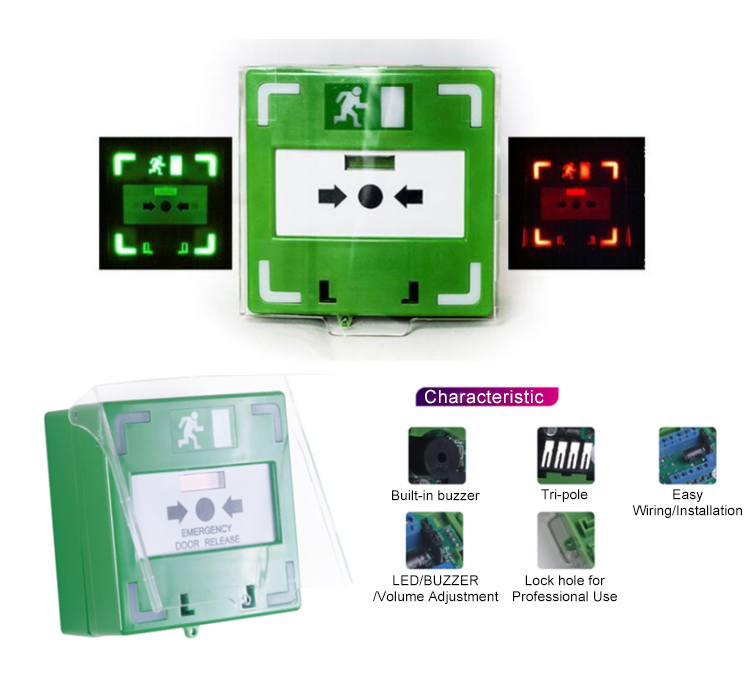

Features

> Red or green case to select (it is suggested to select a red case for the fire alarm system and the green case for access control system).

> Resettable design, EB-20G obvious indicators around the edges of the unit.

> Press the pressing plate to set the red indicator.

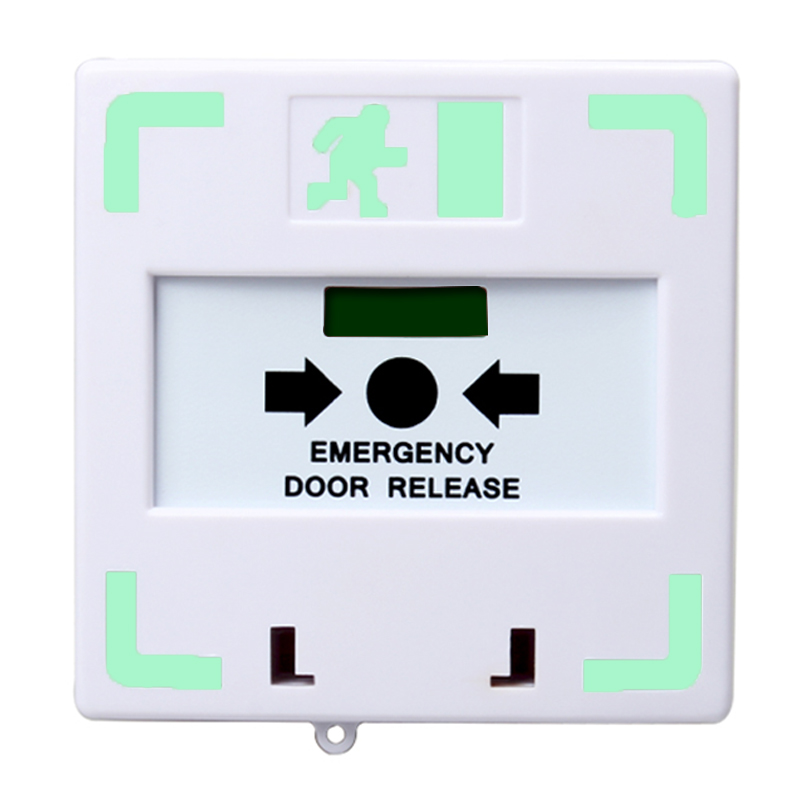

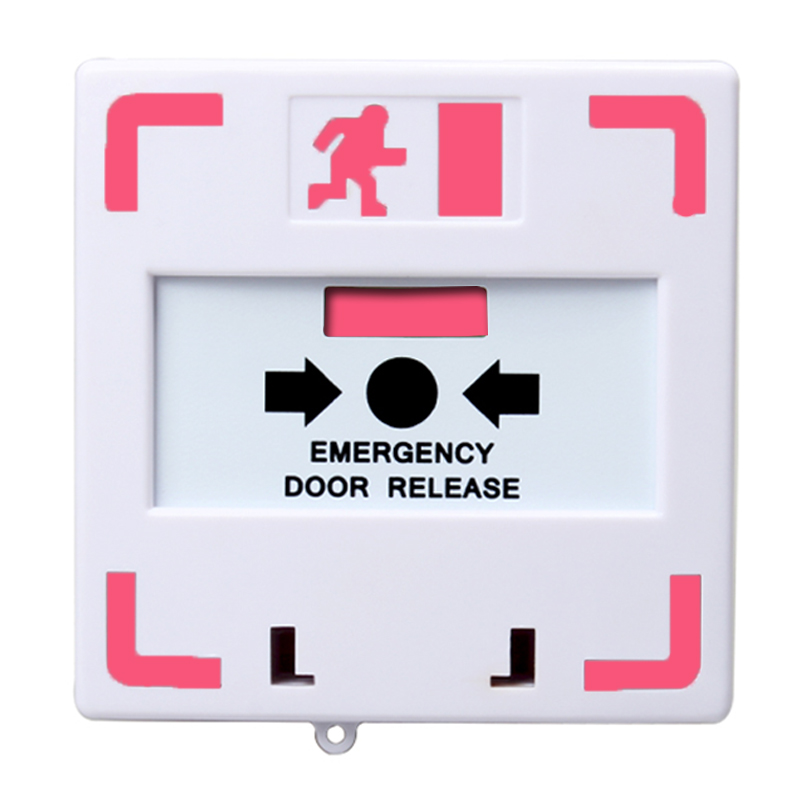

> Pressing plate with status (green and red) shown.

> Reversionary key with non-slip design.

> Input power range from DC12-24V to connect with all types of fire alarm systems.

> Built-in buzzer status to set as silent, interval wailing, or continuous wailing. The Volume is adjustable.

> Easy to assemble, the outer case without screws, 3 sets of output points to connect other equipment, embedded or surface installations to select.

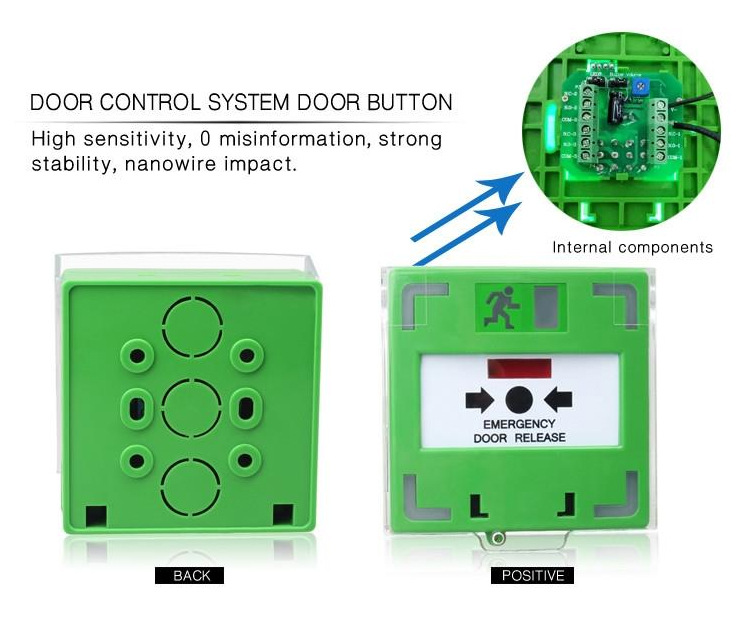

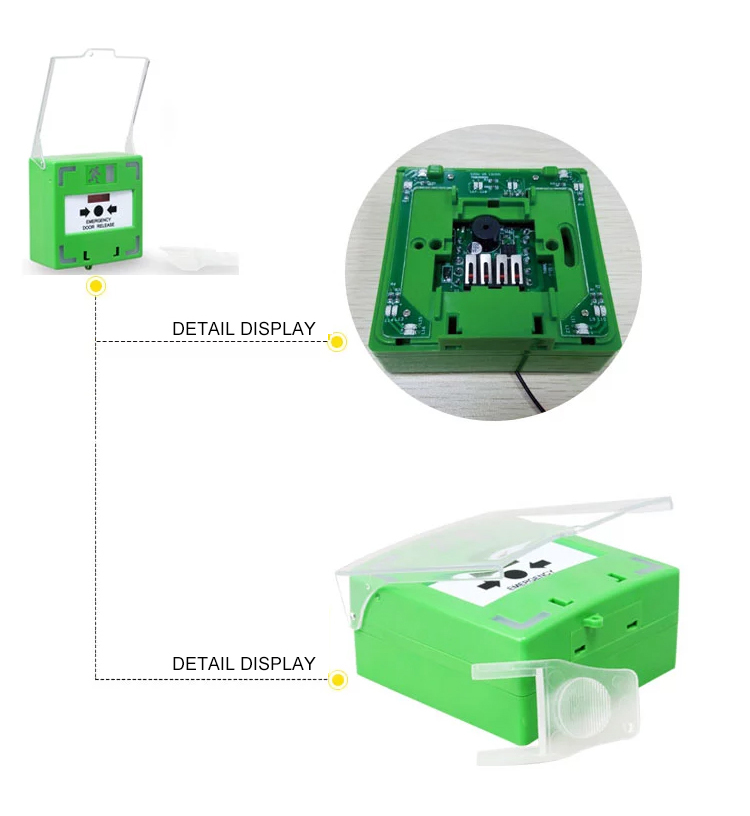

Emergency Exit Push Buttons

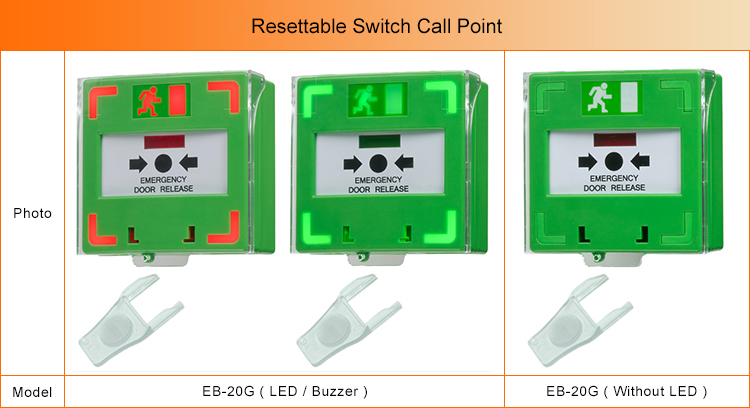

Resettable Switch Call Point
Model No.	Quantity/Carton	Gross Weight	Carton Size
EB-20G-White	48pcs	9.6KG	45x33x24cm

S4A User Manual EB-20G-White_Emergency Exit Push Buttons and Switch buttons for Fire Alarm systems

Download
