Electronic Lock Invisible Keyless Entry Door Lock 433MHz Controllers for Metal Or Wooden Door

> Wireless Lock

> With 4pcs Remote Transmitters

> The lock can pair Max.16 Remote Transmitters

> 433MHz Rolling Code technology

> Communication distance: 50m Max

> Wireless Lock operated by 2 units AA batteries

  • Brand:

    S4A
  • Item NO.:

    D5-S
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Electronic Lock Invisible Keyless Entry Door Lock 433MHz Controllers for Metal Or Wooden Door

Model No: D5-S

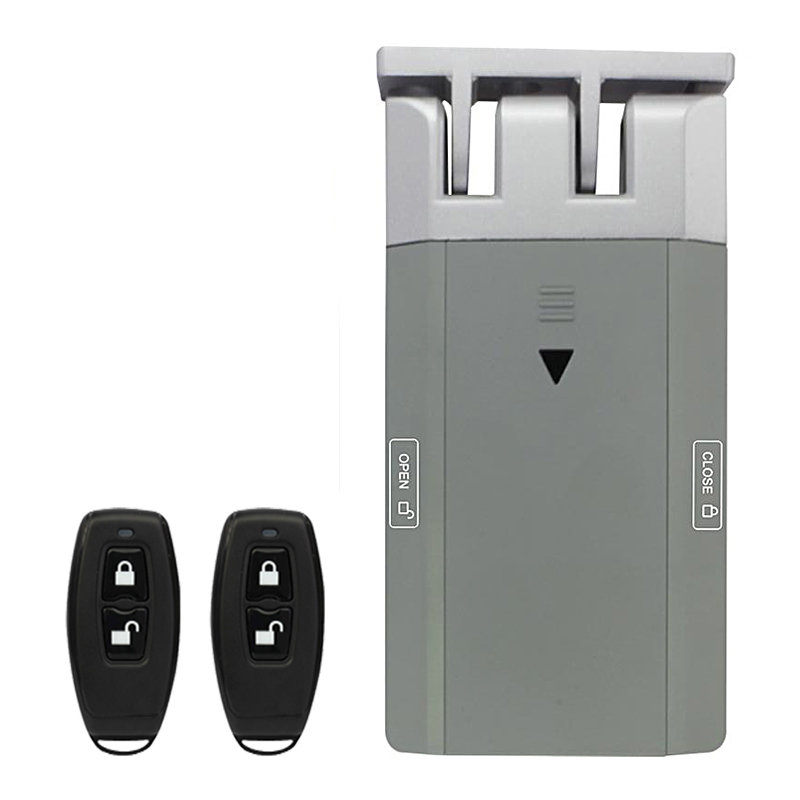

The D5-S is a wireless smart lock kit for home use, it includes Wireless Lock + 4pcs Remote Transmitters

433MHz Rolling Code of the encryption algorithm and the split design guarantee higher-secure.


> Wireless Lock

> With 4pcs Remote Transmitters

> The lock can pair Max.16 Remote Transmitters

> 433MHz Rolling Code technology

> Communication distance: 50m Max

> Wireless Lock operated by 2 units AA batteries


Operating Voltage

Wireless Lock

2 units of AA batteries

Remote Transmitter

1 unit of 2032 Lithium battery

Idle Current

All items < 10uA

Working Current

Wireless Lock

< 60mA

Remote Transmitter

< 3mA

Communication Frequency

433MHz

Communication Distance

50m Maximum

Operating Temperature

Wireless Lock

-20°C~+60°C (-4°F~+140°F)

Operating Humidity

0%~86%RH

Physical

Wireless Lock

Zinc-Alloy

Remote Transmitter

ABS Shell

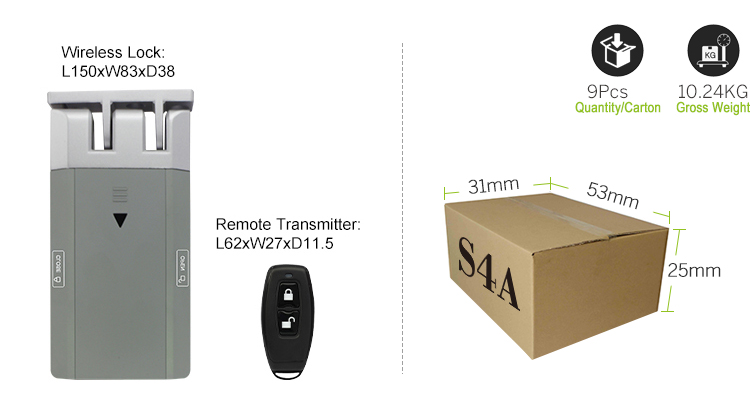

Dimensions

Wireless Lock

L150 x W80 x D35(mm)

Remote Transmitter

L62 x W30 x D11.5(mm)

Unit Weight

Wireless Lock

800g

Remote Transmitter

25g/pc


 Keyless Entry Door Lock

Wireless Lock with Remotes-D5-S

Electronic Lock Invisible Keyless Entry Door Lock 433mhz Controllers
for Metal or Wooden Door

Model No.

Quantity/Carton

Gross Weight

Carton Size

D5-S

9pcs

10.24KG

53x31x25cm

 Keyless Entry Door Lock

S4A User Manual D5-S_Electronic Lock Invisible Keyless Entry Door Lock 433MHz Controllers for Metal Or Wooden Door
