Work with 4pcs 7 alkaline batteries
> Static current ≤5uA
> Transient current (Turn on lock) ≤250mA
> Work current for operating keypad: ≤20mA
> Use time: More than 100 thousand
Brand:
S4AItem NO.:

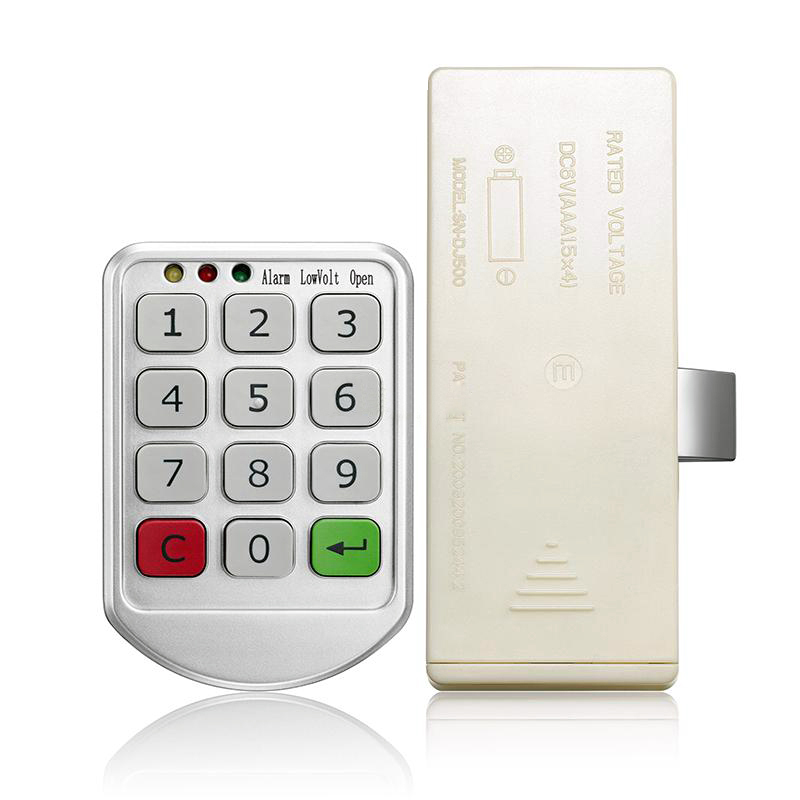

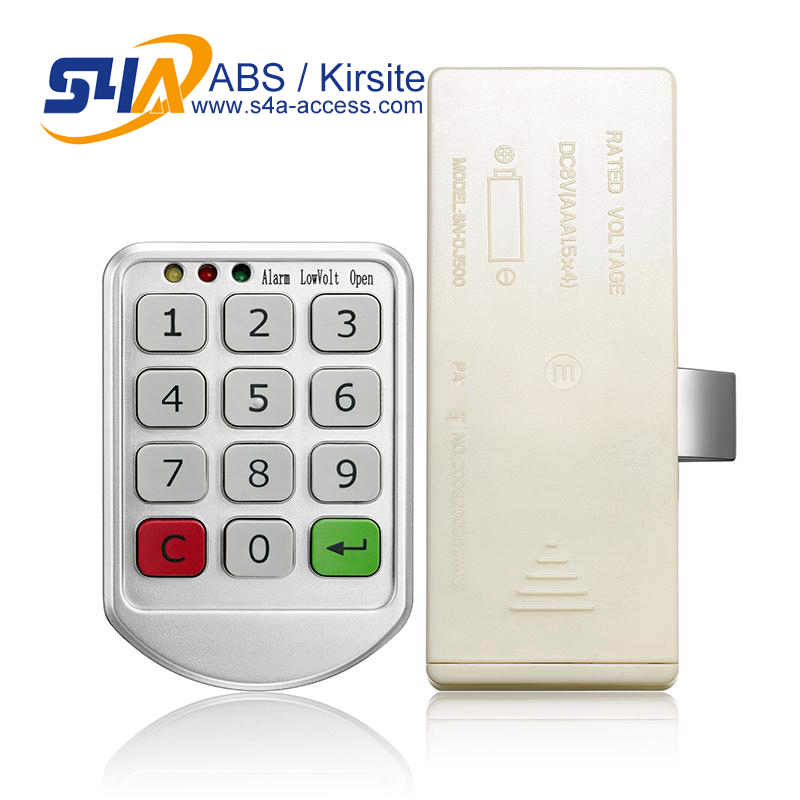

CB-94Keyless Digital Electronic Intelligent Password Door Locks Cabinet Door Code Lock
Model No: CB-94

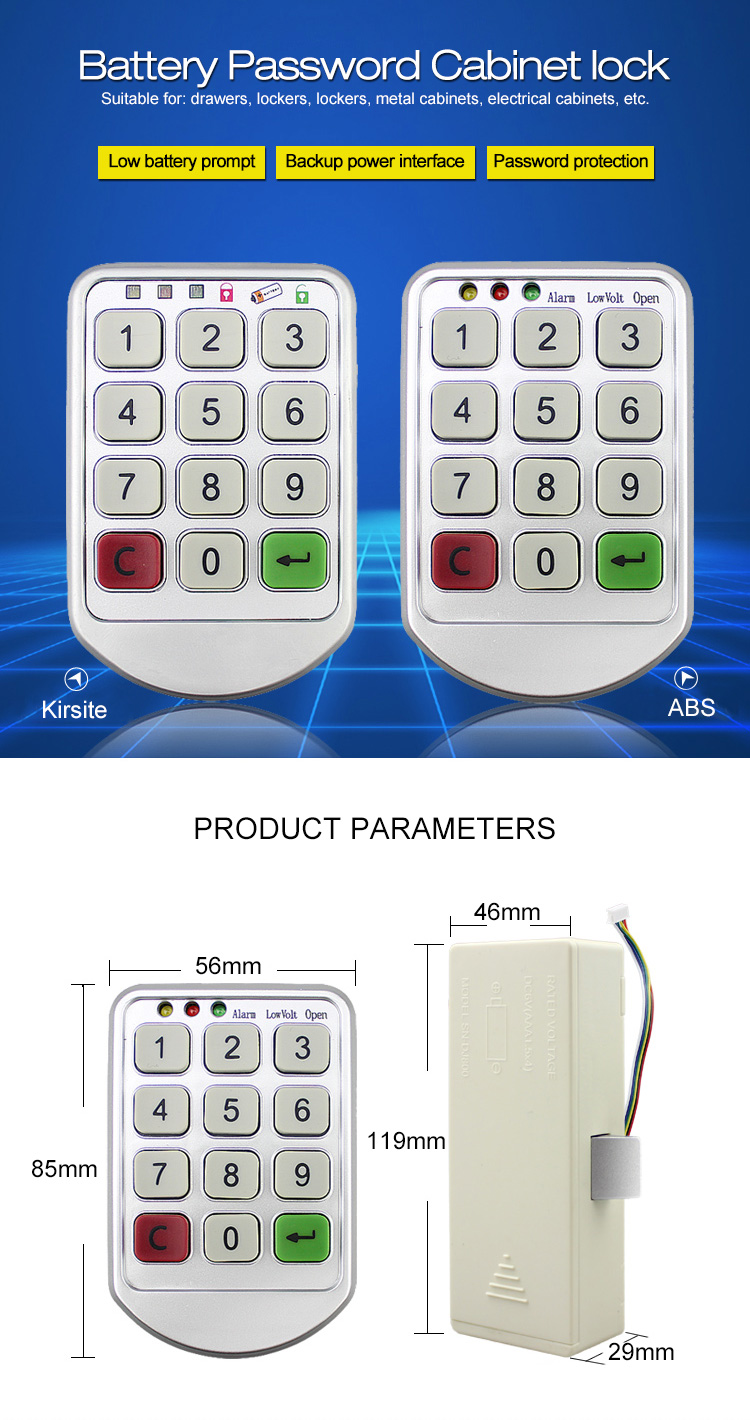

Front plate | 84.8 X 56mm |
Backplate | 118 X 46mm |
Use time | More than 100 thousand times |
Power supply | 4 pcs AAA alkaline batteries |
Static current | When indicating LED tum off, static current ≤5uA |
Transient current | ≤250mA |
Work current for operating keypad | ≤20mA |
Ant-static current | Anti-air discharge 15KV, contact discharge 8KV |
Working temperature | -25℃~65℃ |
Working humidity | 50%~95%RH |
Keyless Digital Electronic Intelligent Password Door Locks Cabinet | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CB-94 | 60pcs | 15.1KG | 40x31x29cm |
CB-94 | 120pcs | 30.14KG | 53x35x38cm |
S4A User Manual CB-94_keyless_digital_electronic_intelligent_password_door_locks_cabinet_door_code_lock
