> Lock Size: 230Lx40Wx30H(mm)
> Lock tongue structure: 304 Stainless Steel
> Holding Force: 1000kg
> Voltage: DC12V
> Current: 220mA
Brand:
S4AItem NO.:

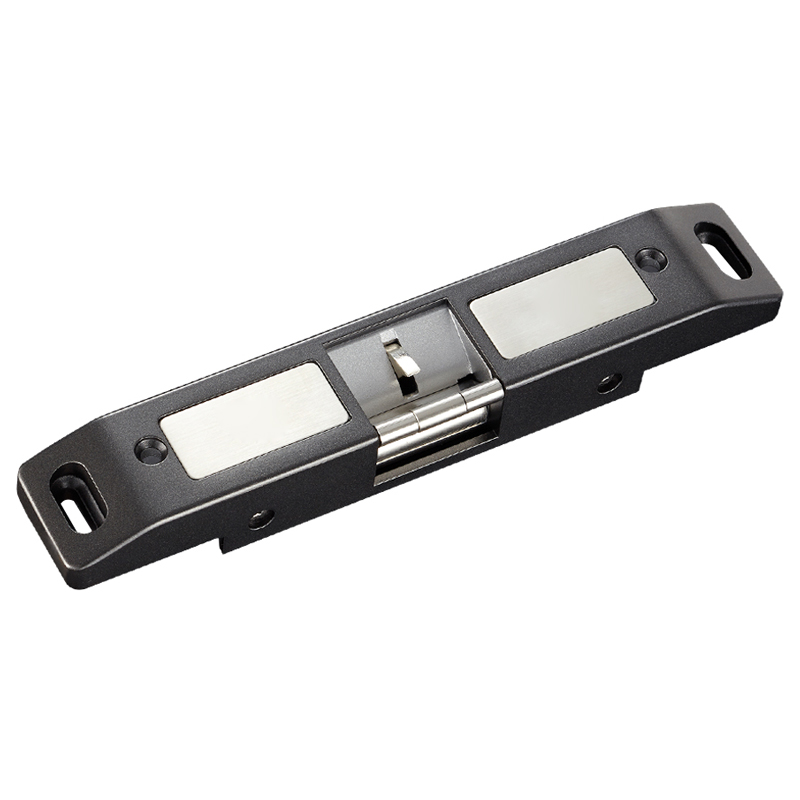

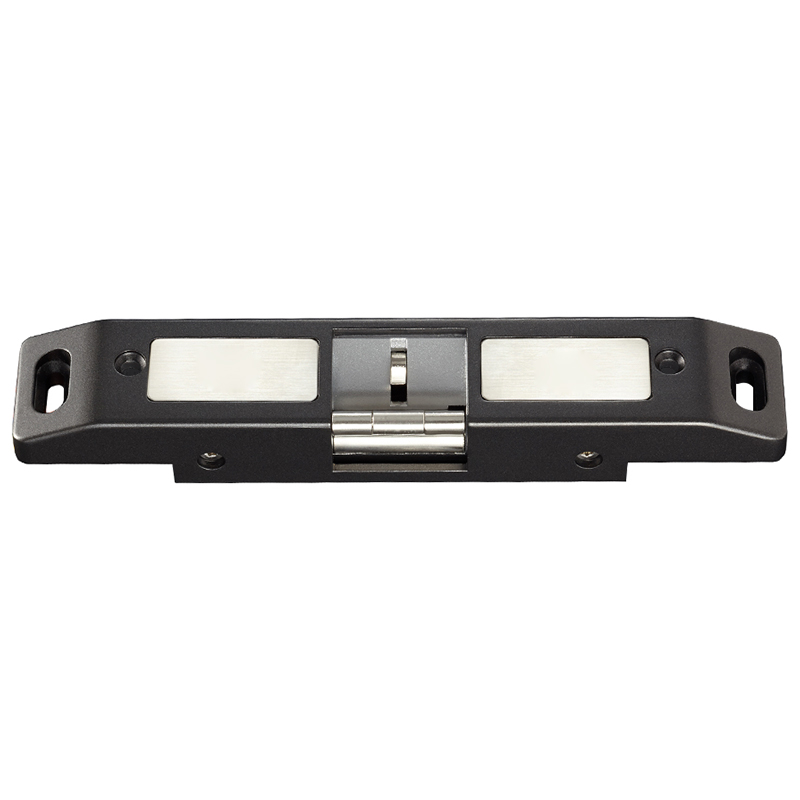

ES-170Electric Strike Push Rod Lock for Panic Bar Exit Open for Fire Emergency Door
Model No.: ES-170

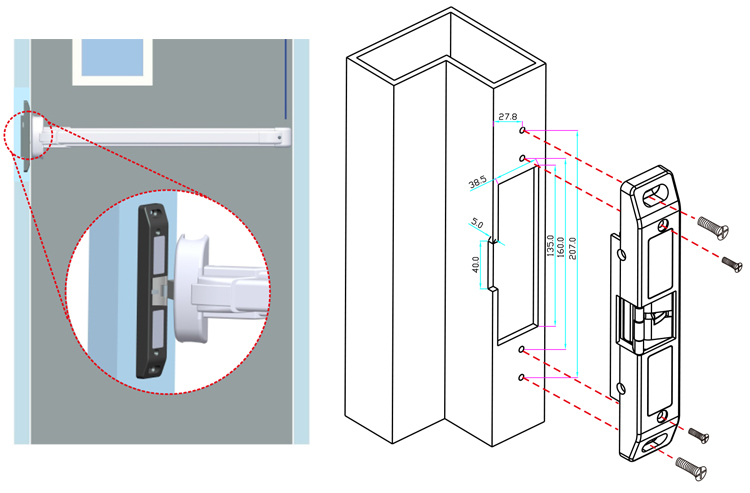

ES-170 is suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
Enhanced stress structure design.
100000 solenoid valve special design.
Power to open the door or door adjustable power supply.
12/24VDC/AC.

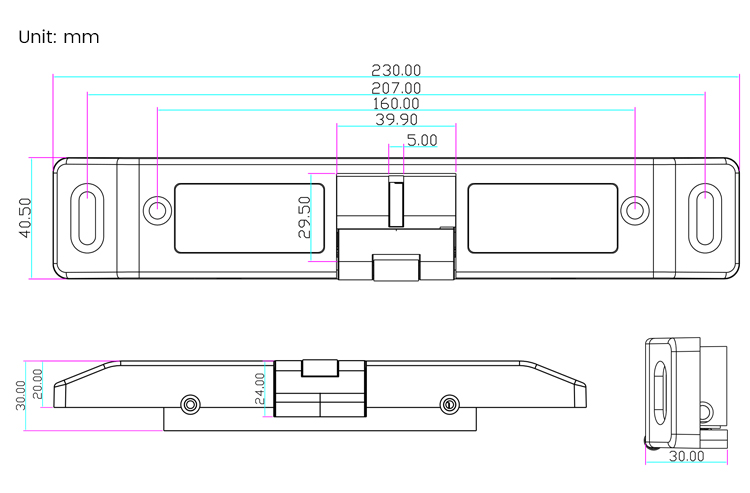

Lock Size | 230Lx40Wx30H(mm) |
Lock tongue structure | 304 Stainless Steel |
Holding Force | 1000kg |
Voltage | DC12V （24V need order） |
Current | 12V/220mA; 24V/110mA |

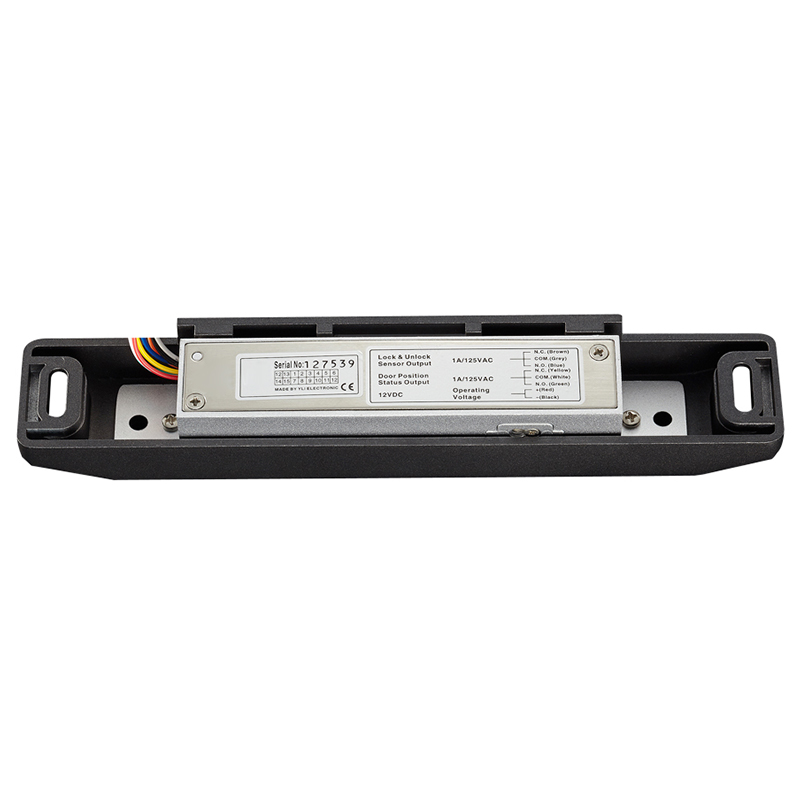

Signal Output | Lock Status Output NO/NC/COM |
Special design | Applies to all brands of fire push rod lock |
Suitable For | Supporting rod lock fire door |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0～95%(non-condensing) |
Face plate Housing | High temperature paint |
Lock tongue | Surface by coating nickel |
The door open | 90 degrees |
Weight | 0.75kg |
Packing Quantity | 12pcs/ctn |
Packing Size(L*W*H) | 54.3*13.5*19.3cm |
Gross Weight | 24.6kg |
S4A User Manual ES-170_Electric Strike Push Rod Lock for Panic Bar Exit Open for Fire Emergency Door
