≤ 1200mm and the weight ≤ 120Kg
> Open angle: 90°
> Power supply: DC24V 5A
> Open/Close speed: 1-9 gears, adjustable (corresponding opening time 10-3S)
Brand:
S4AItem NO.:

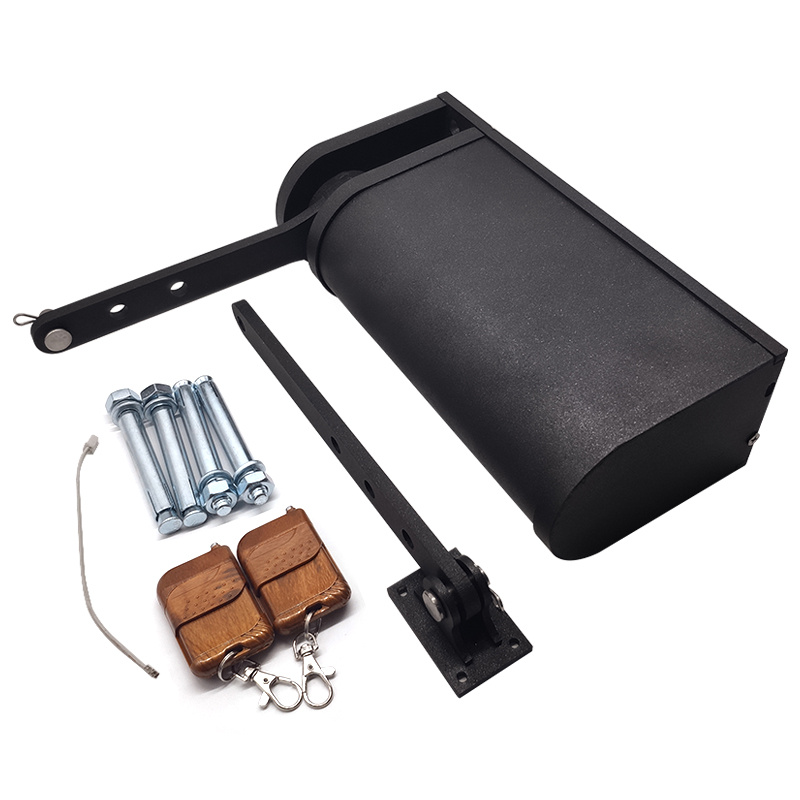

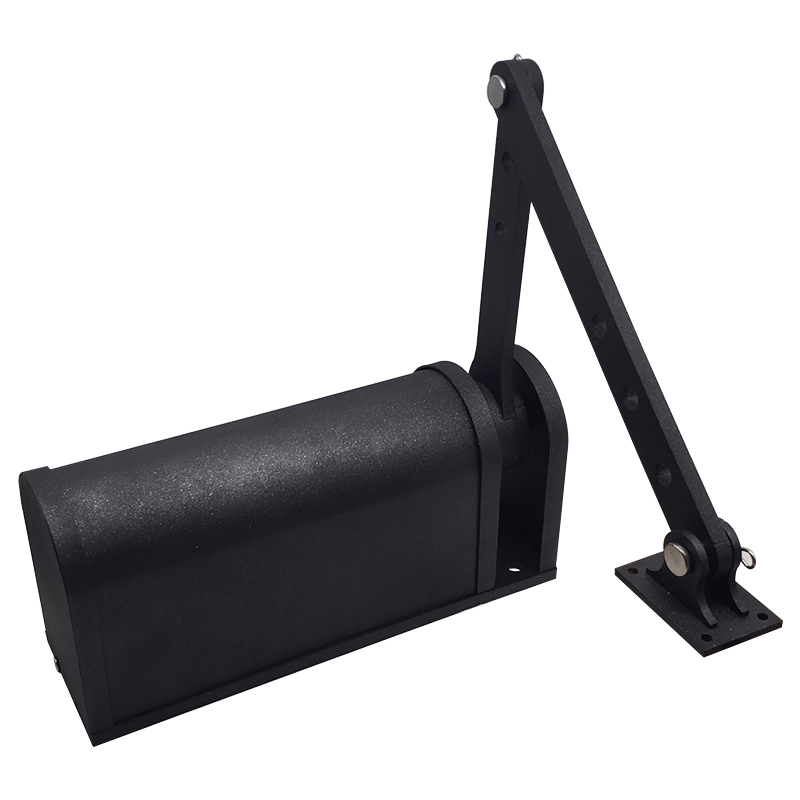

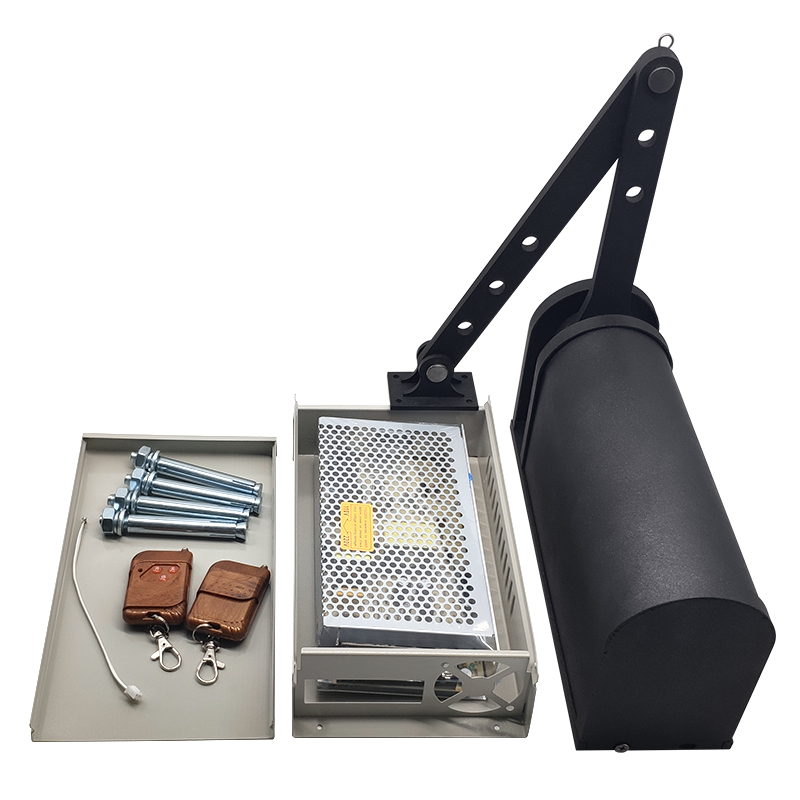

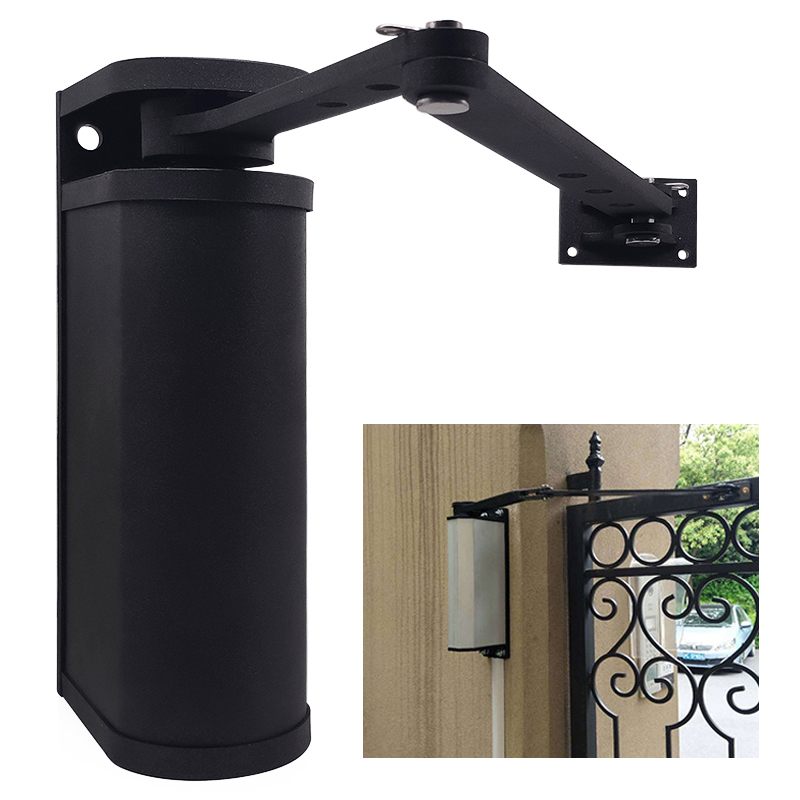

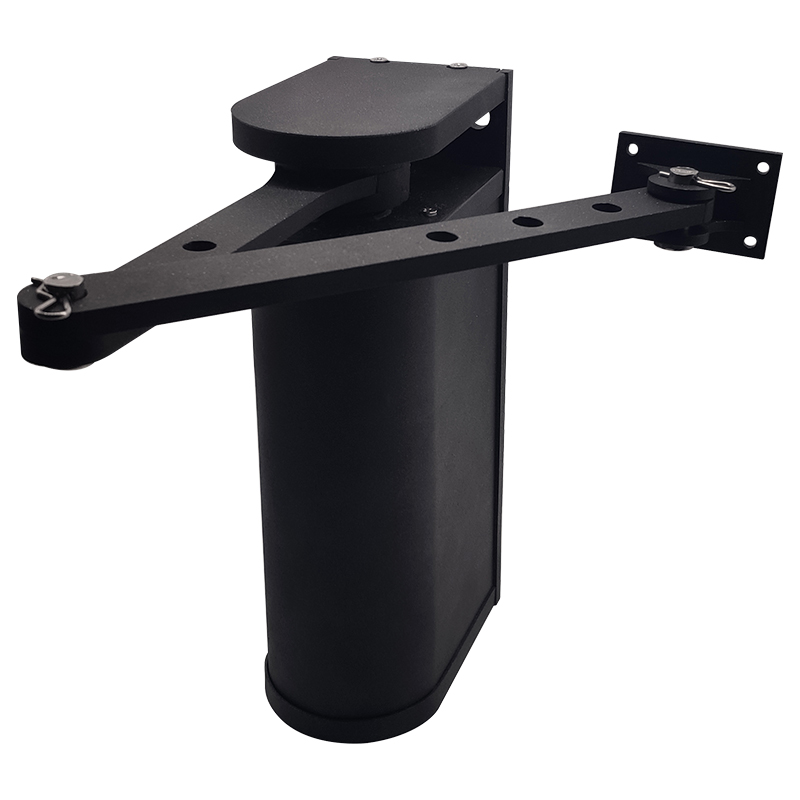

RS-140Electric Side Mount Garage Flat Automatic Door Opener with 90 Degree
Model No.: RS-140
Product Characteristics
> Low consumption, static power: 0.5W, maximum power: 25W.
> Super silence, working noise less than 50 dB.
> Small size, easy installation.
> Powerful, maximum push door weight 140kg.
> Support multiple signal input, relay signal, voltage signal (5-24V).
> Motor over-current, overload, short-circuit protection.
> Intelligent resistance, push-door reverse protection.
> Motor current (thrust), speed accurate regulation.
> Self-learning limitation, abandoning tedious limitation debugging.
> Enclosed shell, rain and dust proof.
Range of application | Various flat-open doors with the width ≤ 1200mm and the weight ≤ 120Kg |
Open angle | 90° |
Power supply | DC24V 5A |
Rated power | 25w |
Static power | 0.5W (no electromagnetic lock) |
Open/Close speed | 1-9 gears, adjustable (corresponding opening time 10-3S) |
Open hold time | 1~99 seconds |
Operating temperature | -20°C~60℃ |
Operating humidity | 30%~95%(no condensation) |
Atmospheric pressure | 700hPa ~1060hPa |

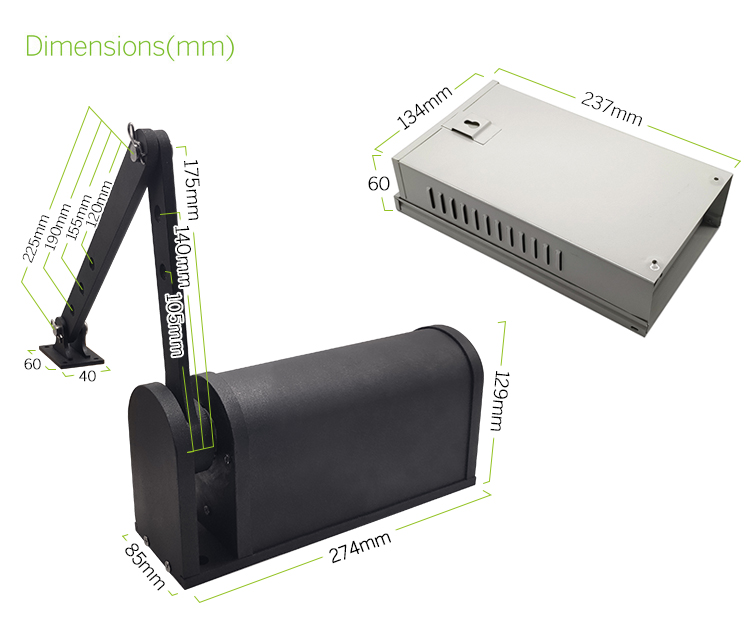

Dimensions | 274x85x129mm |
Power box size | 237x134x60mm |
Packing box size | 370x340x150mm |
Weight | 9kg |
S4A Datasheet_Electric Side Mount Garage Flat Automatic Door Opener with 90 Degree
