Electric mortise lock with positioning

>Working voltage: DC12V/24V

>Working current:<0.3A

>Lock body size: 200x28x50.5mm

Brand:
S4A
Item NO.:
BL-218

Inquire Now

Specifications
Wiring Diagram

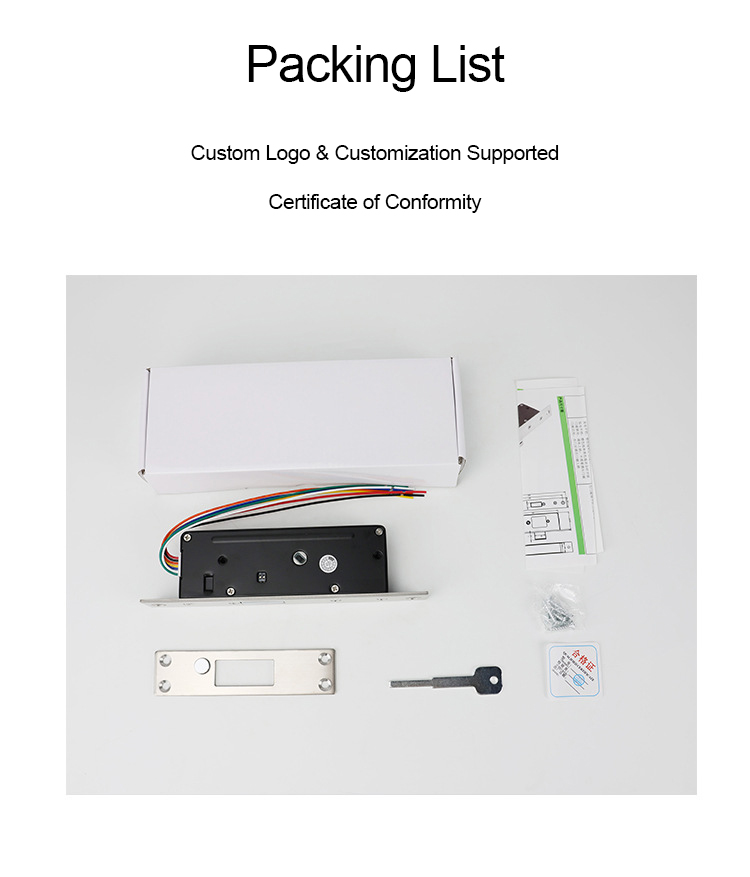

Package
Download

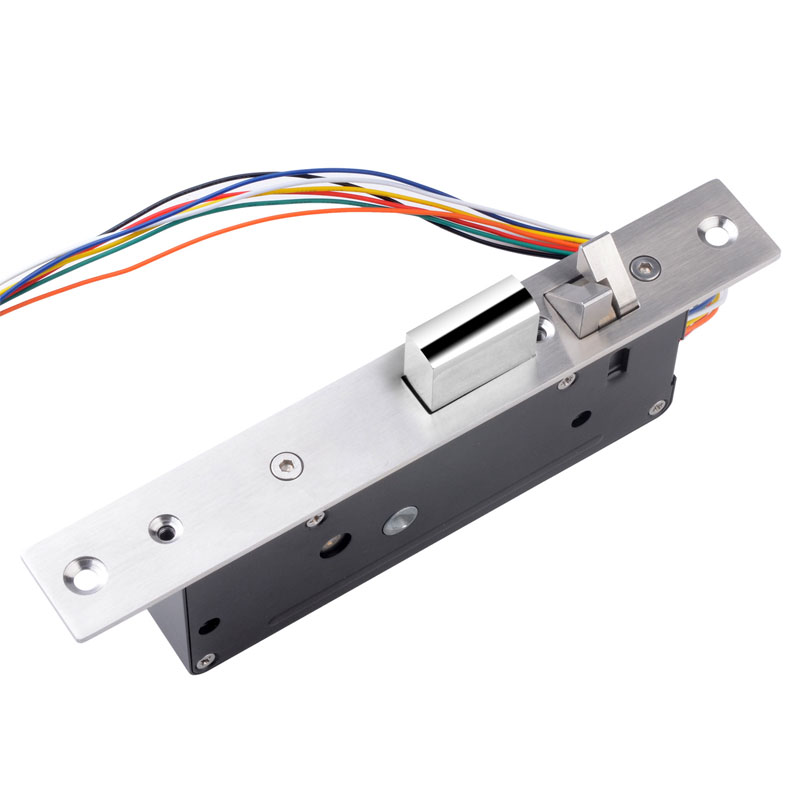

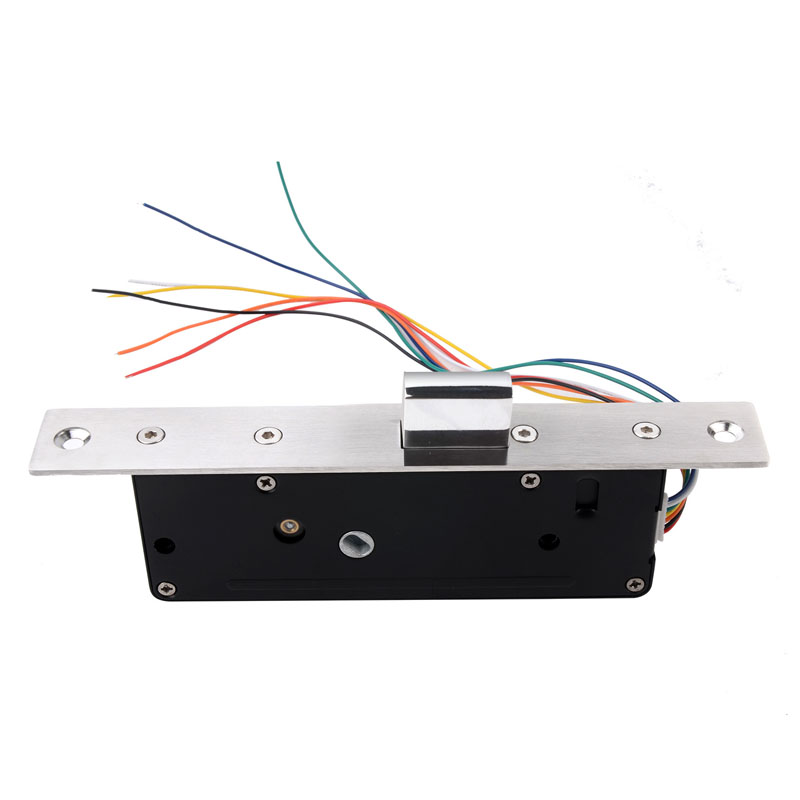

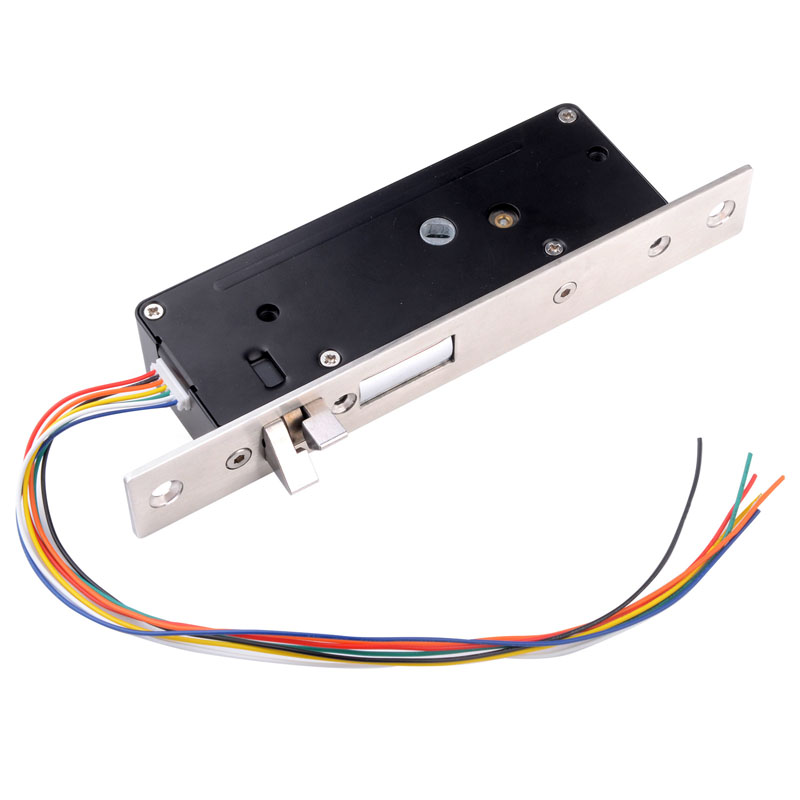

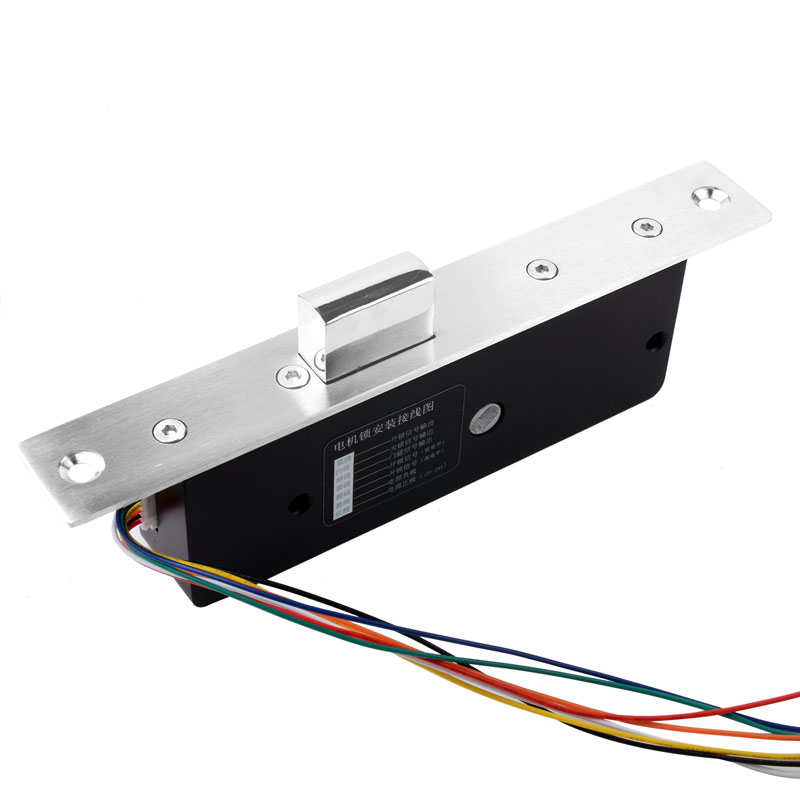

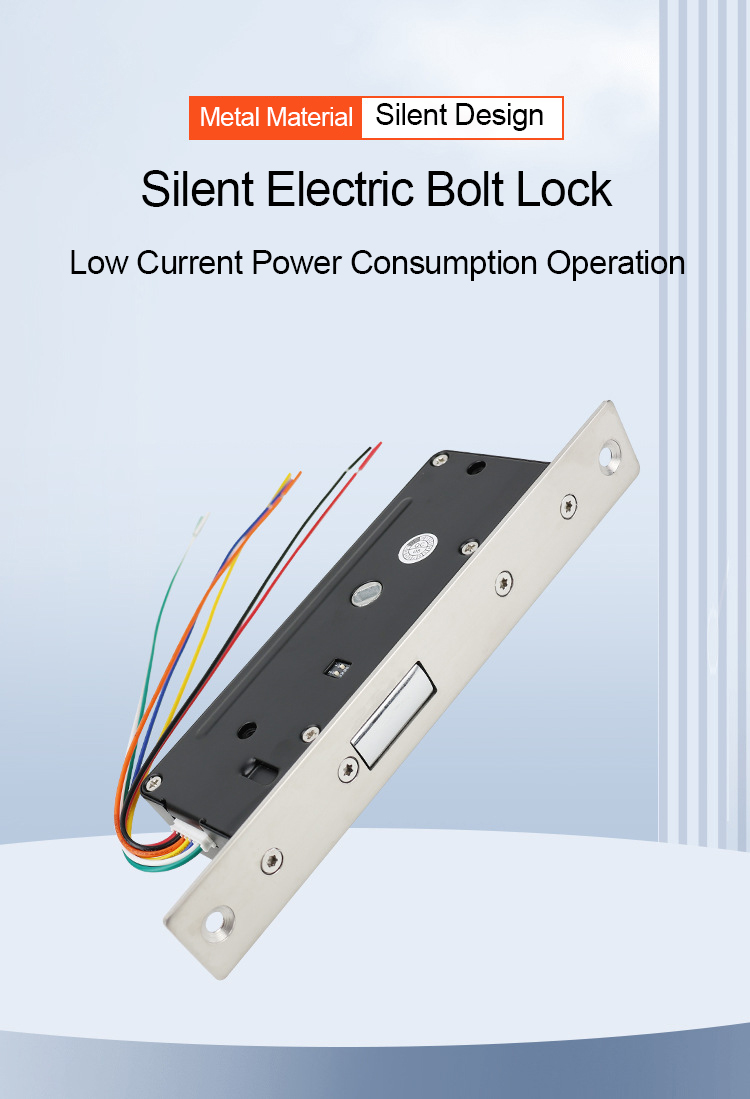

Electric mortise lock with positioning

Model No.: BL-218

feature:

>Power to unlock type

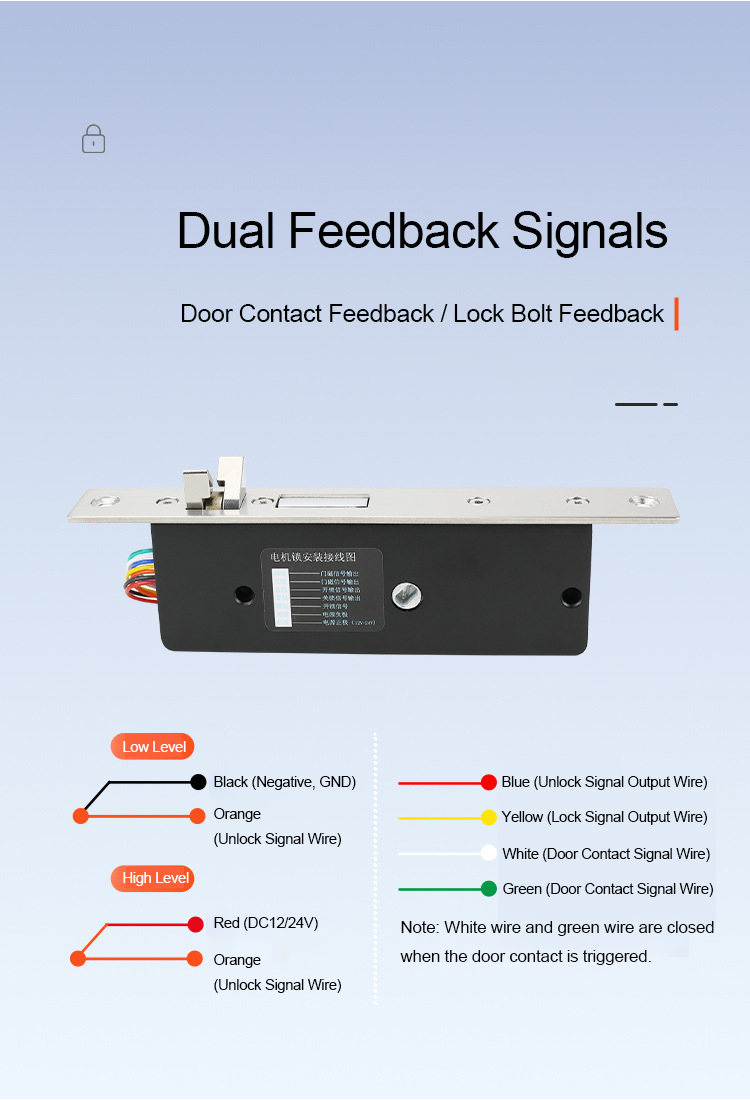

>With door magnetic feedback signal NO/COM

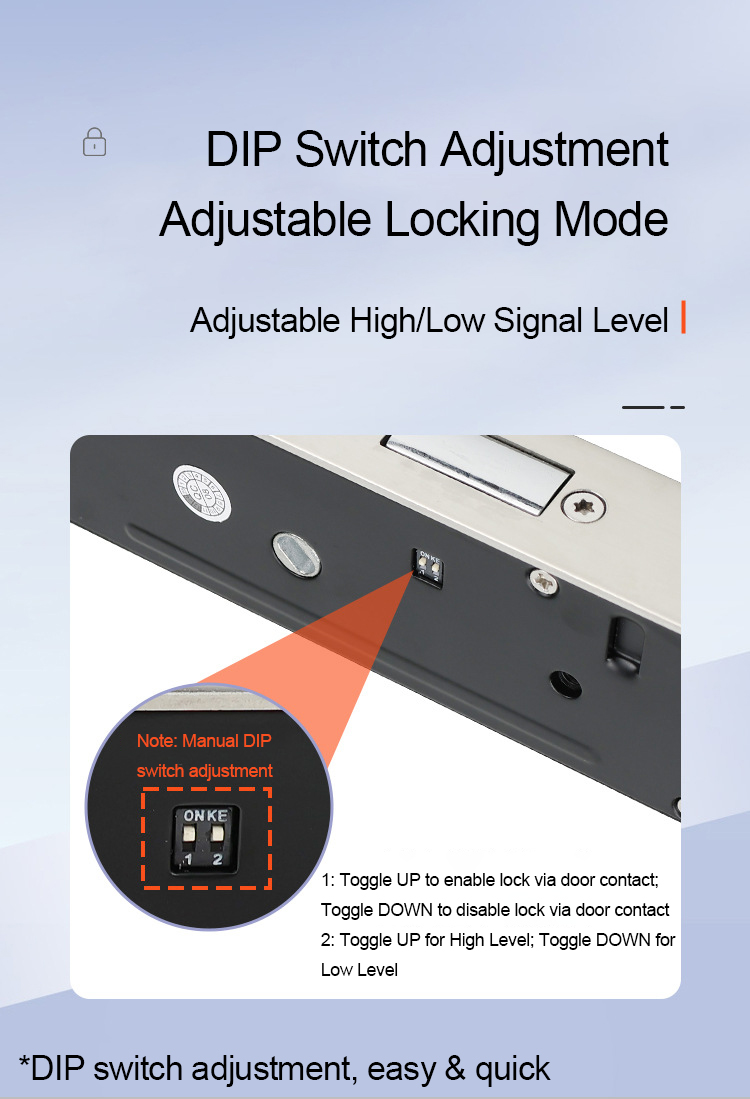

>With clutch motor drive, high level/low level and door magnetic disable/enable can be adjusted by dial switch

>Design with latch locator

>Ultra-low power consumption design, working current <0.3A

>Intelligent control, automatic detection of lock tongue status

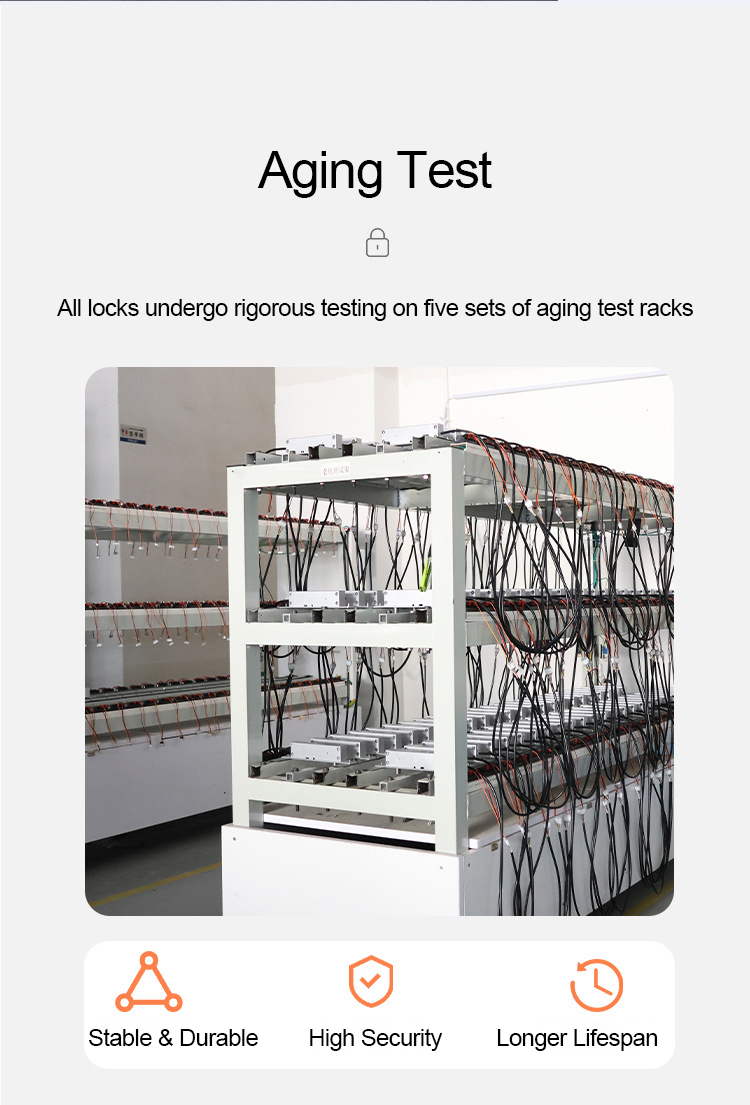

>Ultra-long service life, 200,000 times qualified

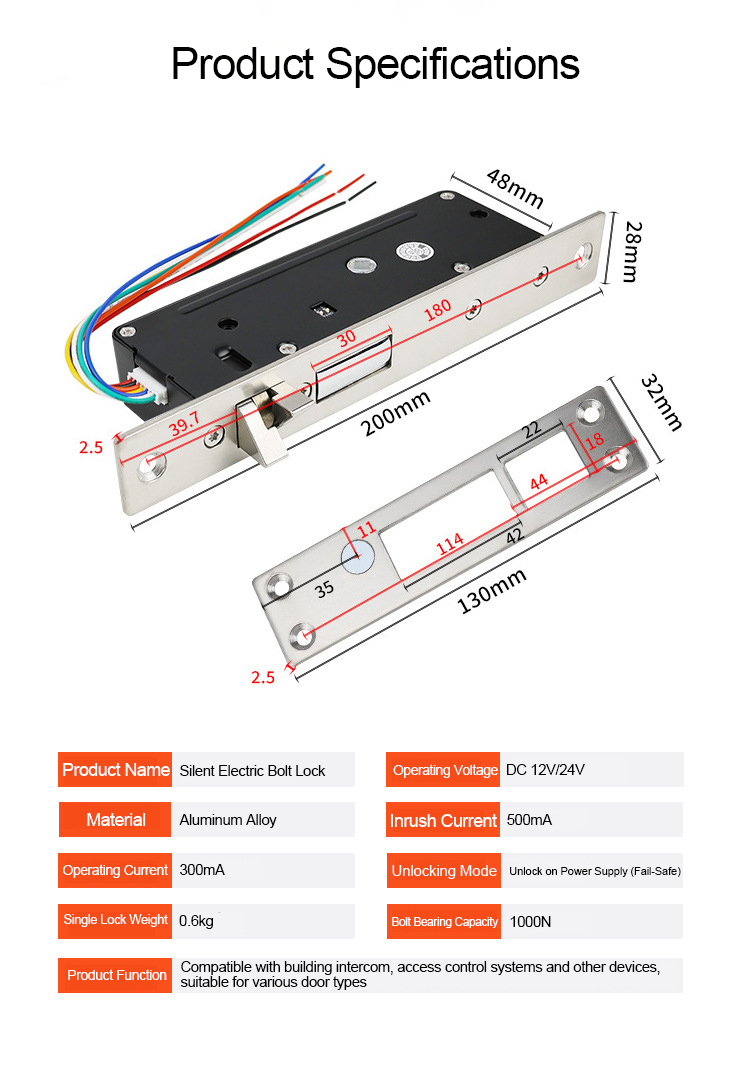

Lock body size	200x28x50.5mm

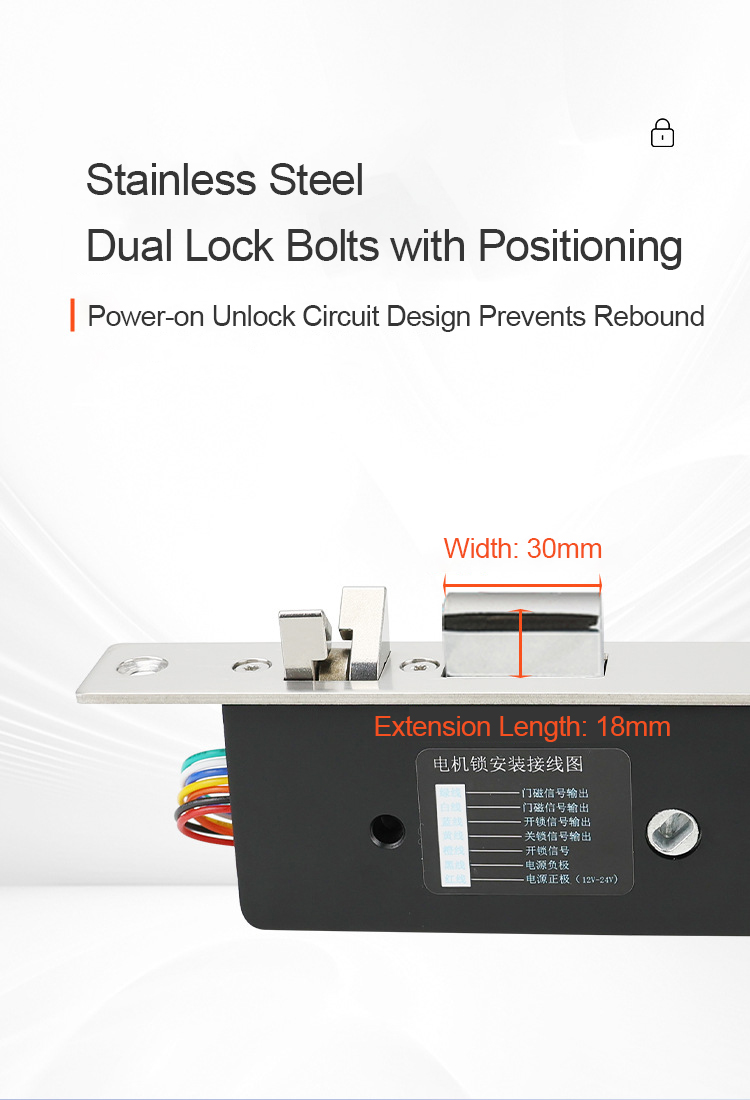

Lock tongue size	protruding length 21mm, width 30mm
Embedded size	145x26.5x48mm
Working voltage	DC12V/24V
Working current	<0.3A

Positioning smart electric mortise lock

S4A Datesheet_Electric Mortise Lock With Positioning

Download

Related Tags : Positioning smart electric mortise lock Electric mortise lock smart Lock Motor Electric Mortise Lock Glass door wooden door iron door smart lock
