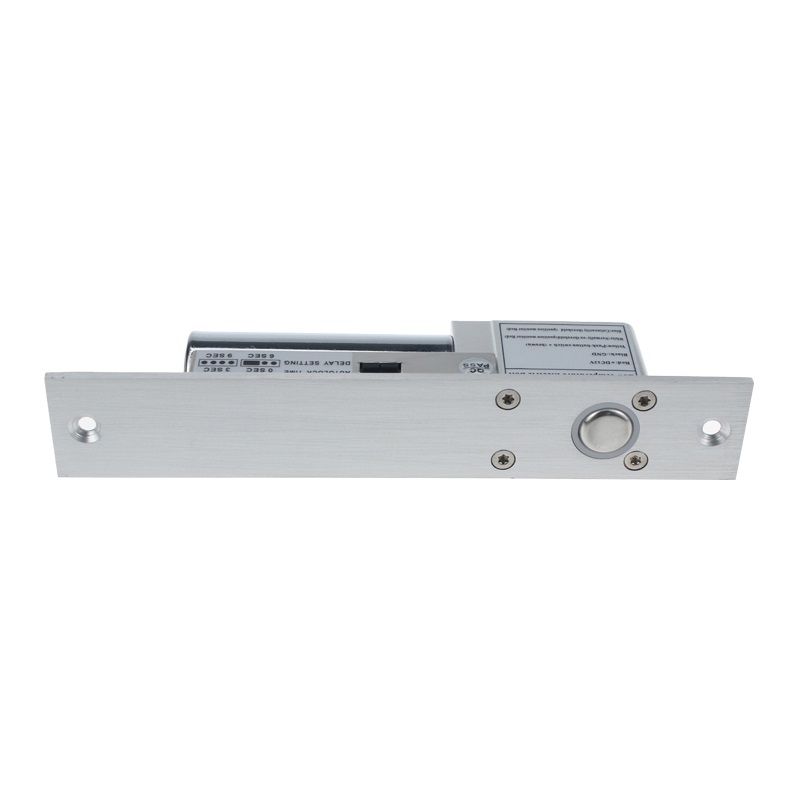

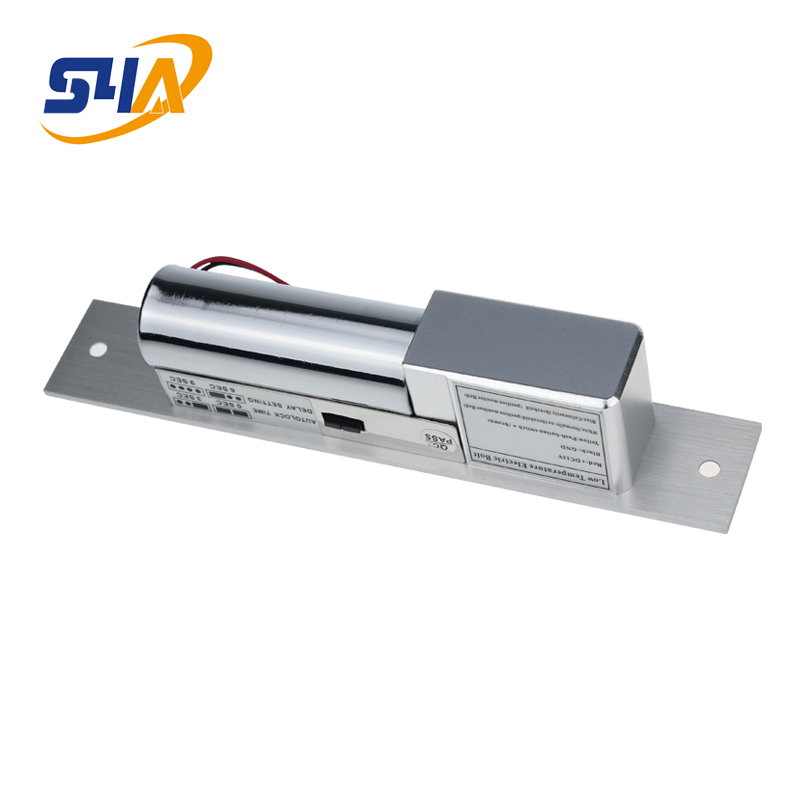

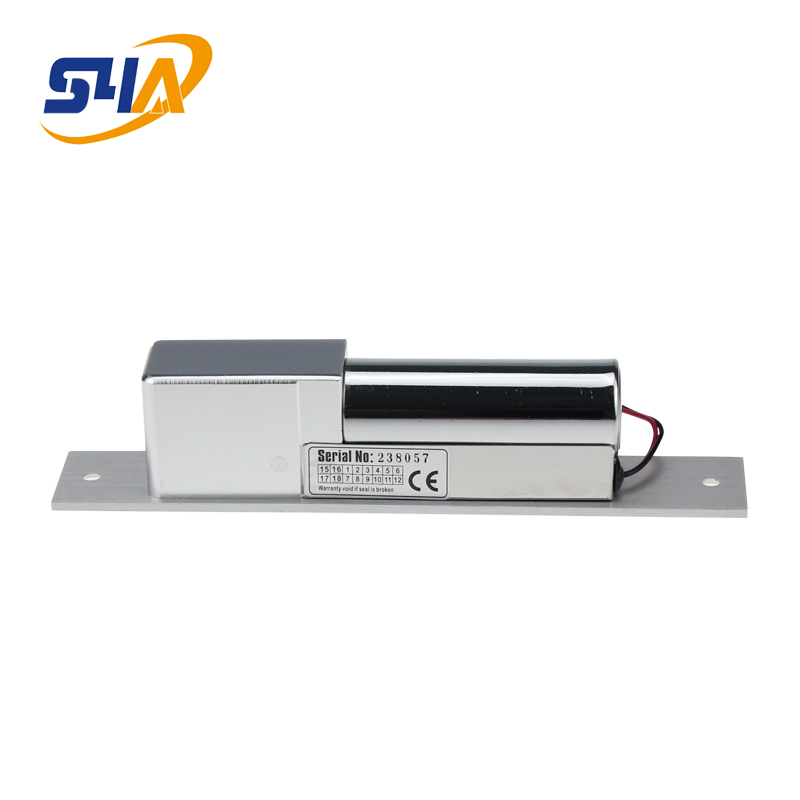

Electric Drop Bolt Lock with Low Temperature and Time Delay Fail Secure Normally Open Dead Bolt

> Face Plate: 205Lx35WX40H(mm)

> Bolt: 16mm(Throw) x 16mm(Diameter)

> Voltage: DC12V



  • Brand:

    S4A

  • Item NO.:

    BL-C2001B
Inquire Now
  • Specifications

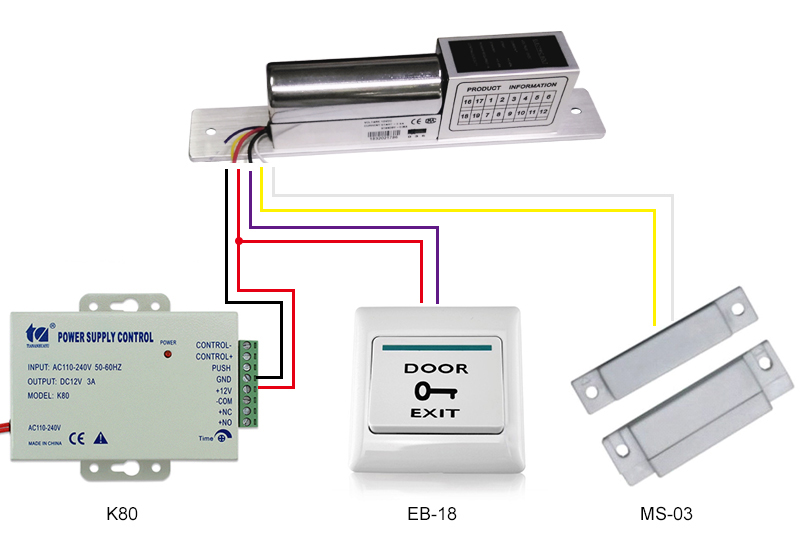

  • Wiring Diagram
  • Package
  • Download

2 Line Electric Bolt Lock with Low Temperature and Timer

Model No.: BL-C2001B


BL-C2001B bolt lock with delay timer

Suitable for

all types of 180° door

Operating temp

-10~+25℃（14-131F）

Operating Humidity

0~90%(non-condensing)

Special Designed

Tested to 500000 cycles

Weight

0.9kg

Standard Packing

30pcs

Lock Bolts

Lock Bolts

Electric Drop Bolt Lock with Low Temperature and Time Delay Fail Secure Normally Open Dead Bolt

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

BL-C2001B

50 PC

9.2 KG

24.25 KG

43x43x25 CM


S4A Datesheet_2 Line Electric Bolt Lock with Low Temperature and Timer

Download
Related Tags : Lock Bolts Bolt Lock Electric Dropbolt lock Timer Lock Bolt Lock Electric
