/Electric Bolt Lock Specially for Automatic Door

New Products

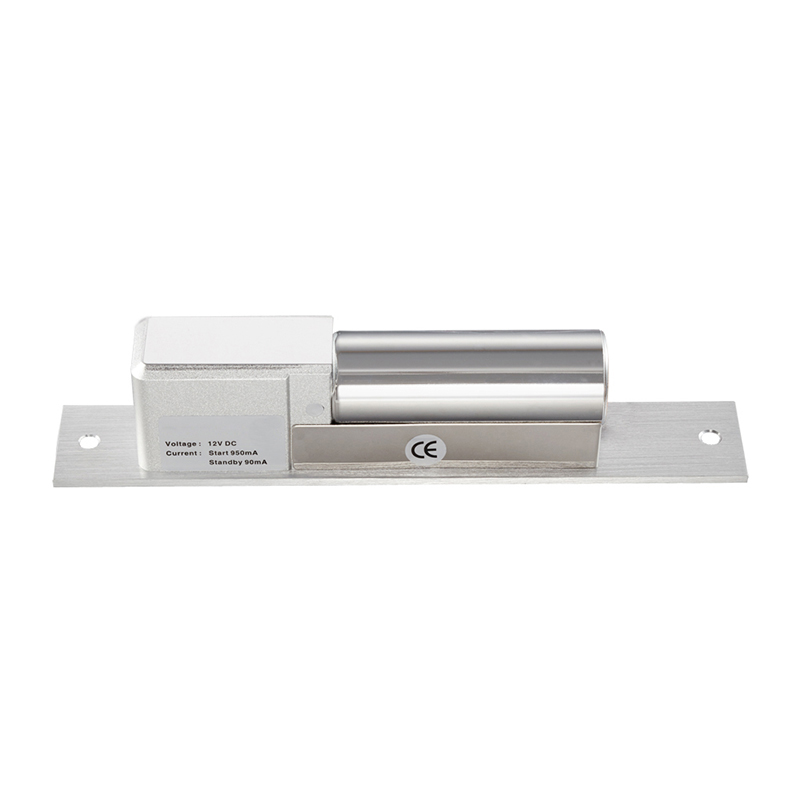

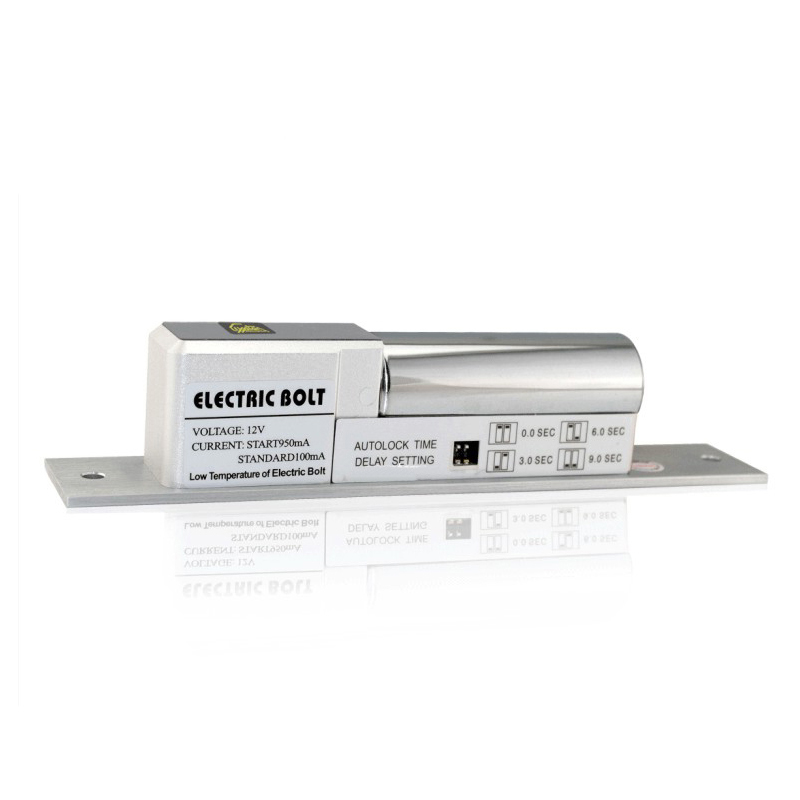

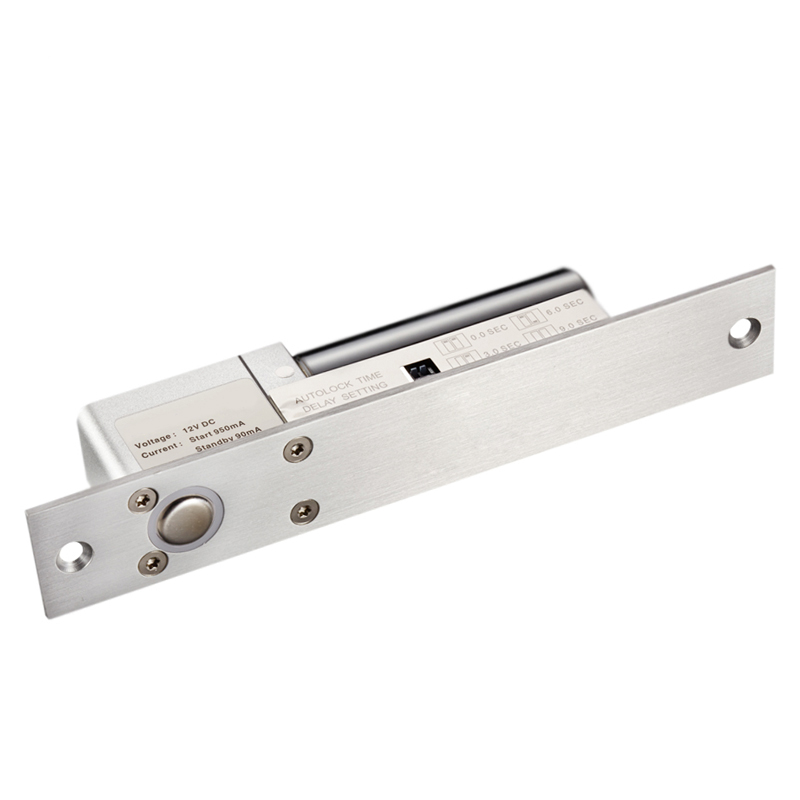

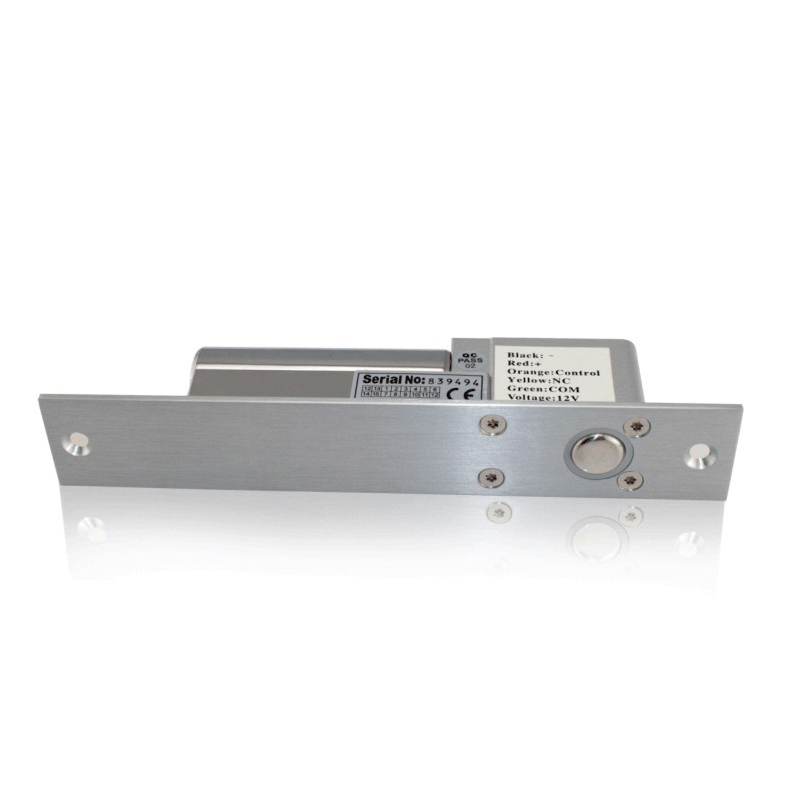

Electric Bolt Lock Specially for Automatic Door

> Voltage: DC12V

> Start Current: 900mA

> Standby Current: 150mA

> Face Plate: 205Lx35WX41H(mm)

> Strike plate: 90Lx25Wx2W(mm)

> Solid Bolt: polishing housing, 800Kg Holding Force

> Signal Output: Door status Output, NC/COM

> Timer: 0/ 3/ 6/ 9 seconds available to set

  • Brand:

    S4A
  • Item NO.:

    BL-2100A
  • Specifications
  • Package

Electric Bolt Lock especially for automatic door

Model No.: BL-2100A


I. Fail-Safe: Adjustable fail-safe (Power to lock)

Adjustable to fail-safe (Power to lock) for public places.

Adjustable to fail-secure (power to open) to achieve long unlock state function.

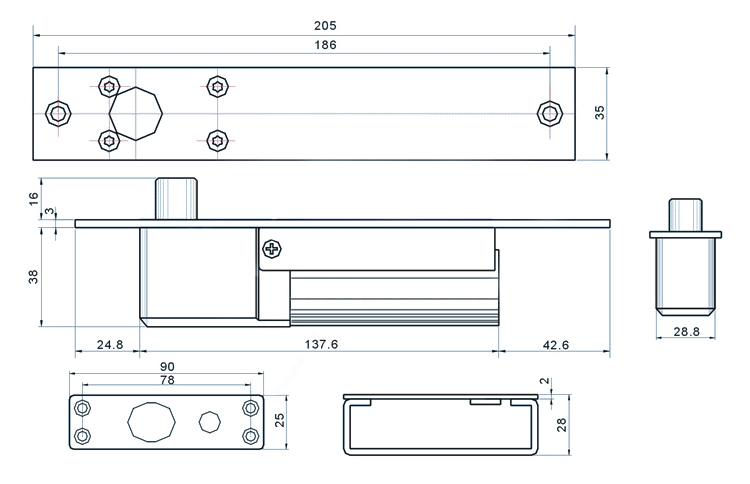

Face Plate

205Lx35WX40H(mm)

Strike plate

90Lx25Wx2H(mm)

Bolt

16mm(Throw) x 16mm(Diameter)


II. Built-in oval cylinder as unlocking the device

Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when door is not open within 9 seconds


III. Bolt lock Suitable For Wooden Door, Glass Door, Metal Door, Glass Door

Fail-Safe

Power to lock

Voltage

DC12V

Start Current

960mA

Standby Current

150mA

Face place material

Stainless steel

Holding force

800kg

Electric Bolt Lock specially for automatic door

Electric Bolt Lock specially for automatic door
