Categories
>DPDT/2NO/2NC/2COM
>Material: Material
>Installation Mode: Surface Mount
Brand:
S4AItem NO.:

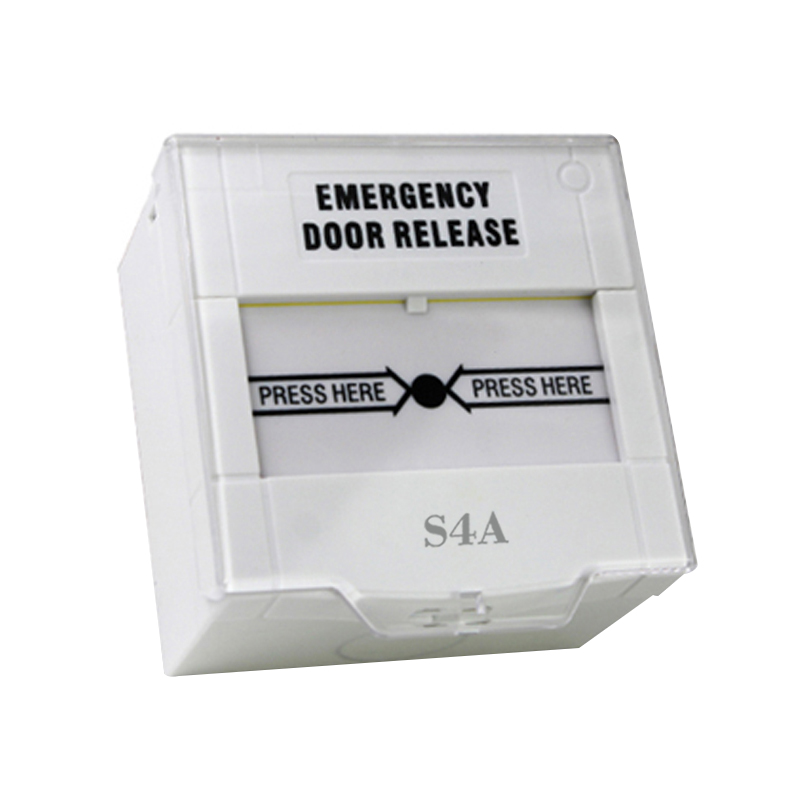

EB-20B(White)EB-20B Resetting Door Release Button (White)
Model No.: EB-20B(White)
Product Parameter | Parameter Description |
S4A Model | EB-20B |
Product Name | Door Release Button(Resetting Function) |
Dimensions | 86Lx86Wx61H(mm) |
Material | Fireproof |
Installation Mode | Surface Mount |
Standard Structure | Fireproof Material, Easy to install |
Current Rating | 3A/125 or 250VAC |
Output contact | DPDT/2NO/2NC/2COM |
LOGO | Customizable |
Feature | Reset automatically, open & close |
Suitable for door | Exit Door, Emergence Door |
Optional Accessories | Glass, Cover |
Operating temp | 10～+55(14-131F) |
Operating humidity | 0-95%(relative humidity) |
Color | Red, White, Green, Yellow, or customized |
Unit Weight | 0.18KG |
Standard Package | 100PCS/carton |
Carton Weight | 18KG |
Carton Size | 51*43*33(cm) |
> Material: Baking Finish> Dimension: 65x15.5x5cm 100x15.5x5cm
Material: Baking Finish or Stainless Steel 304
Dimension: 182x78x60mm
> Material: 304 Stainless Steel> Dimension: 65x15.5x5cm 100x15.5x5cm
Dimension: 86x86x50mm
Dimension: 86x86x50mm
Dimension: 86x86x50mm
Dimensions: 90x93x45mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
