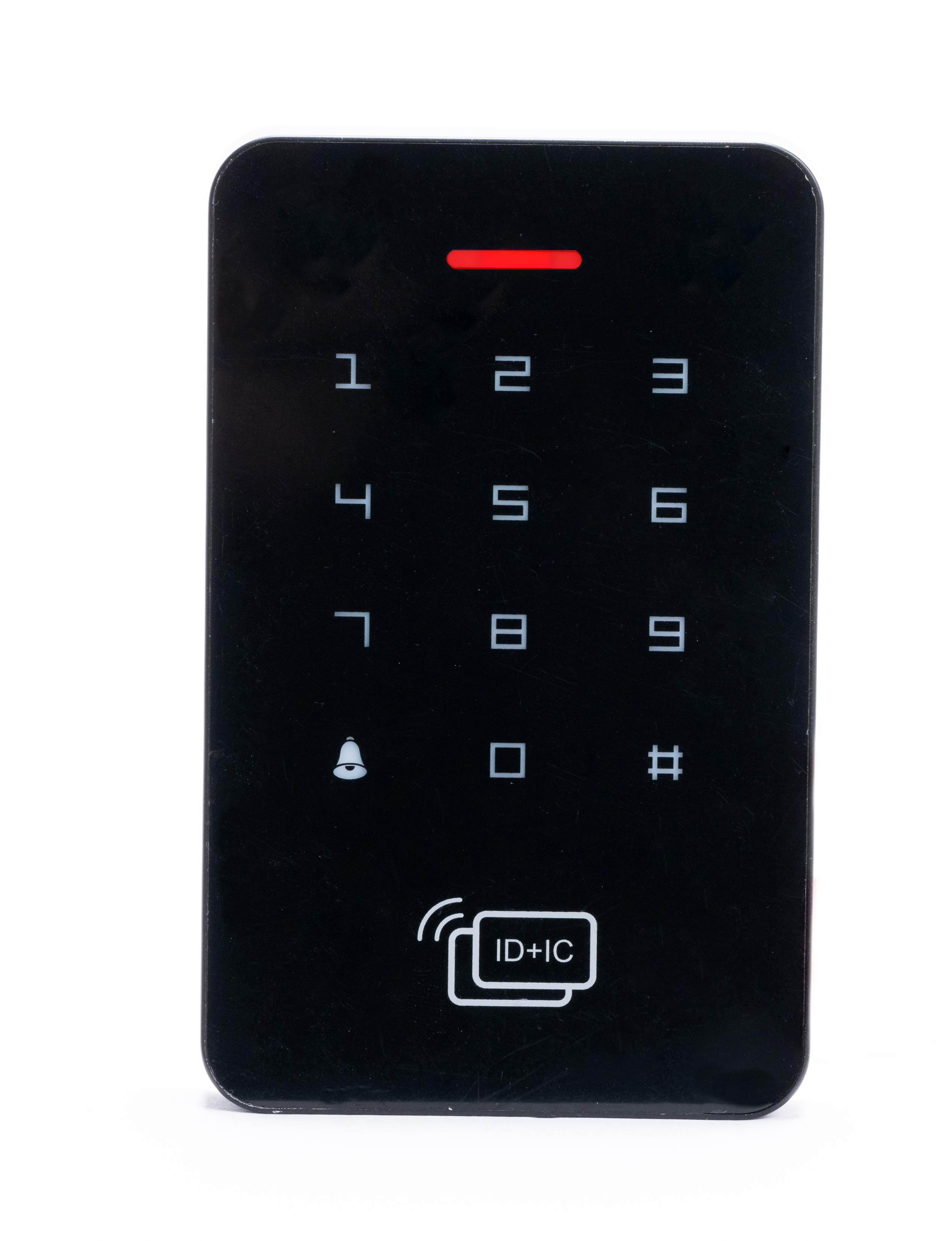

Dual Frequency IP68 Outdoor Touch Access Control Keypad 125KHz IC 13.56MHz Card Reader NFC Door Access Controller System

Dual-Frequency Integration: Multi-credential flexibility supporting 125KHz (ID), 13.56MHz (IC), and NFC access credentials simultaneously.

Brand:
S4A
Item NO.:
A3S
Product Origin:
China

Inquire Now

Specifications

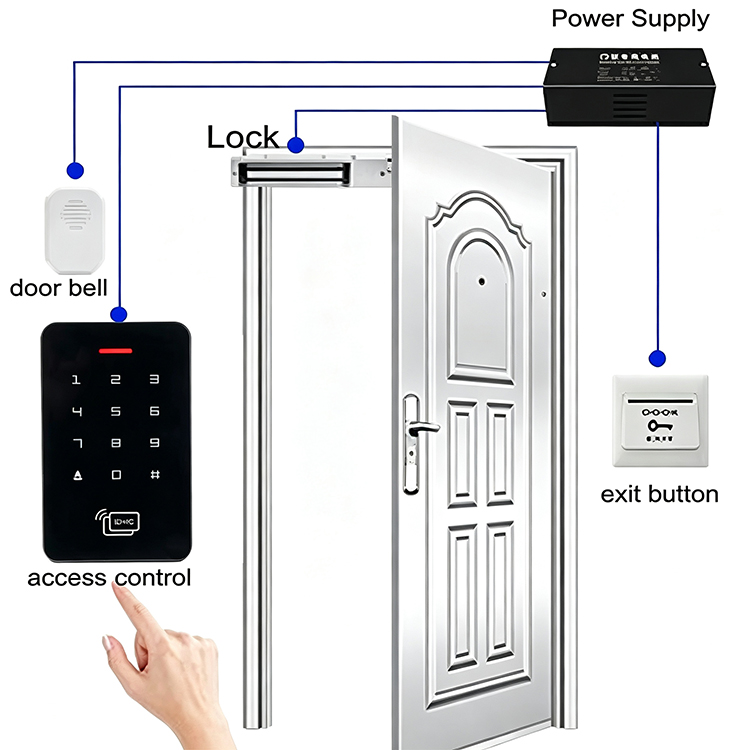

Wiring Diagram

Key Features

Dual-Frequency Integration: Supports 125KHz (ID), 13.56MHz (IC), and NFC access credentials simultaneously for maximum multi-card flexibility.

IP68 Weatherproof Rating: Engineered with a fully potted sealing structure for reliable outdoor performance in rain and harsh elements.

10,000 Users Memory Capacity: High-capacity memory storage supporting up to 10,000 card or PIN users, ideal for large-scale projects.

Modern Sensitive Touch Keypad: High-sensitivity capacitive touch keys featuring low mechanical wear and sleek aesthetics.

Versatile Wiegand Interface: Built-in standard WG26/WG34 input & output protocols for seamless controller or slave reader expansion.

Multiple Unlocking Modes: Flexible entry options including Card, PIN, or Card + PIN combinations.

Product Parameter	Parameter Description
Model	A3S (Dual Frequency)
Working Voltage	DC 12V - 24V
Working Current	< 100mA
Operating Temperature	-20°C to 60°C
Keypad Type	Touch Keypad
Waterproof Method	Glue-poured / Potted Waterproof
User Capacity	10,000 Users
Card Types	ID, IC, NFC (Dual Frequency)
Wiegand Interface	WG26 / WG34 Input & Output
External Connectivity	Supports external card reader connection
Reading Distance	1cm - 10cm 1
Dimensions	113mm * 71mm * 20mm

Related Tags : Dual Frequency Access Control Keypad P68 Waterproof RFID Access Controller 125KHz 13.56MHz NFC RFID Card Reader RFID Access Control Keypad Waterproof Access Control Keypad
