Working current: start 1.2A holding 0.2A
Working Votage:DC12V/24V
Delay function: 0/3/6/9 delay can be selected
Brand:
S4AItem NO.:

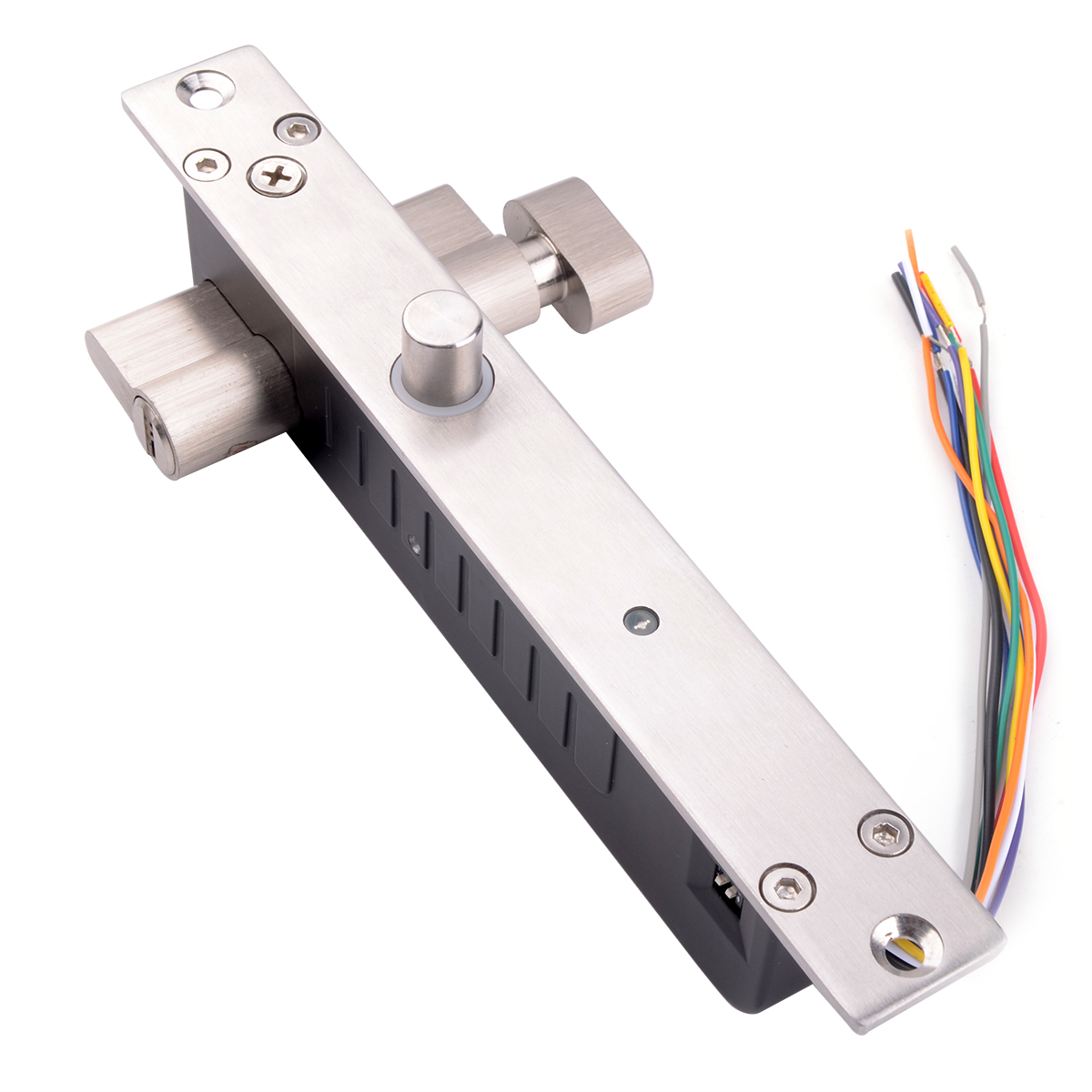

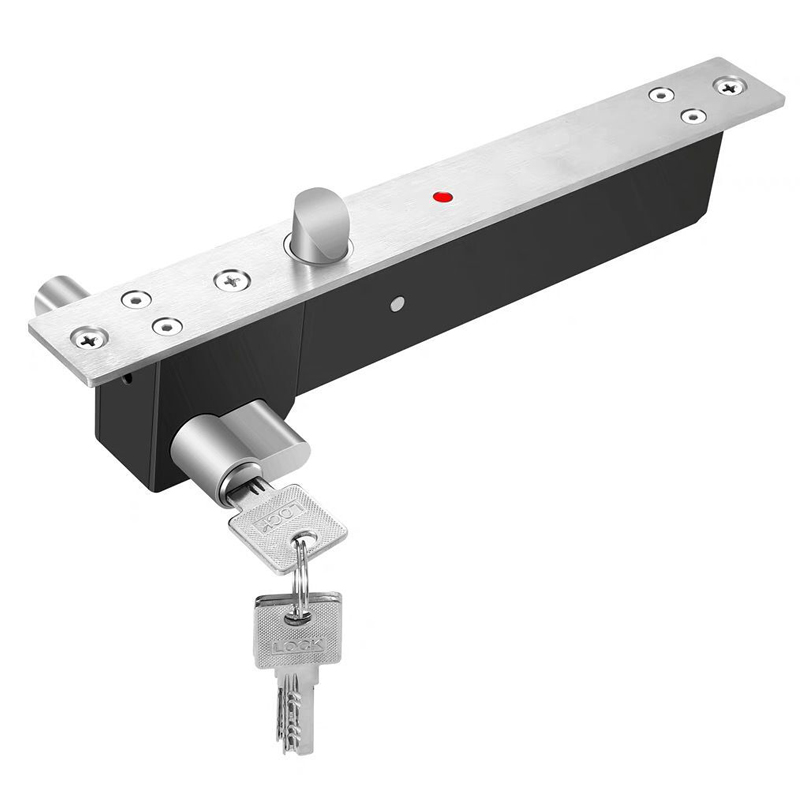

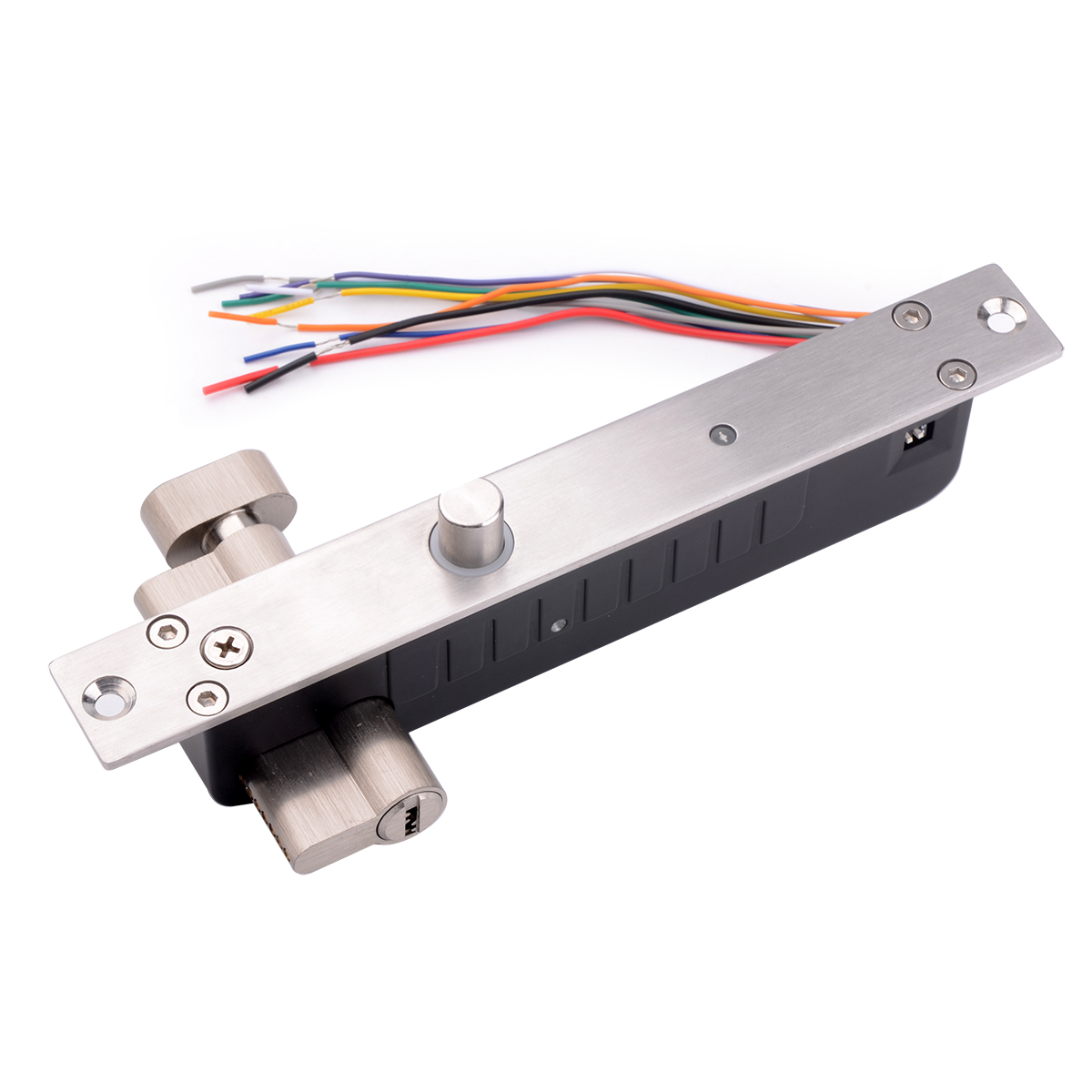

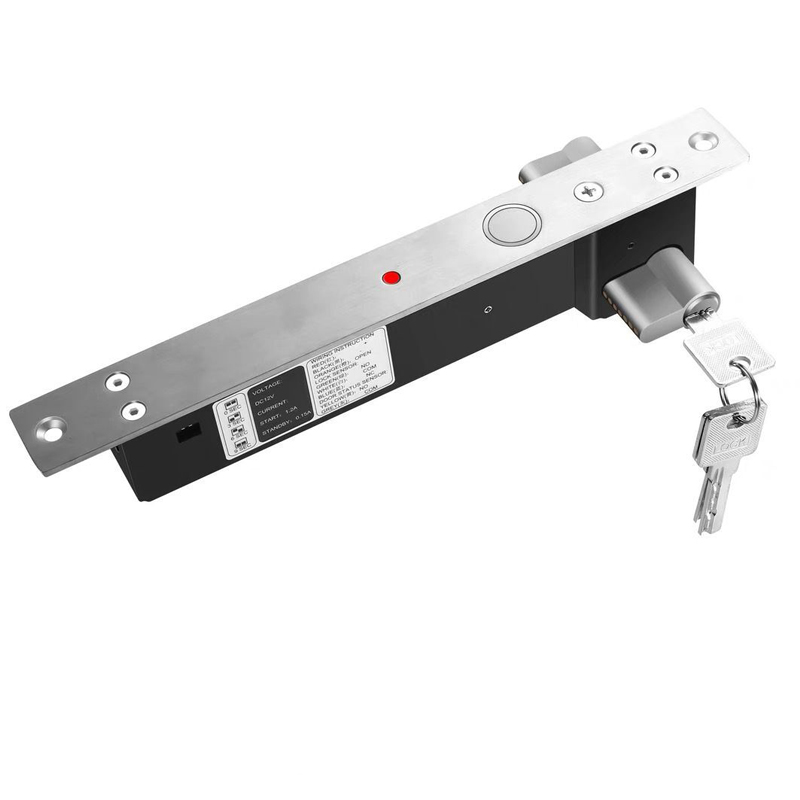

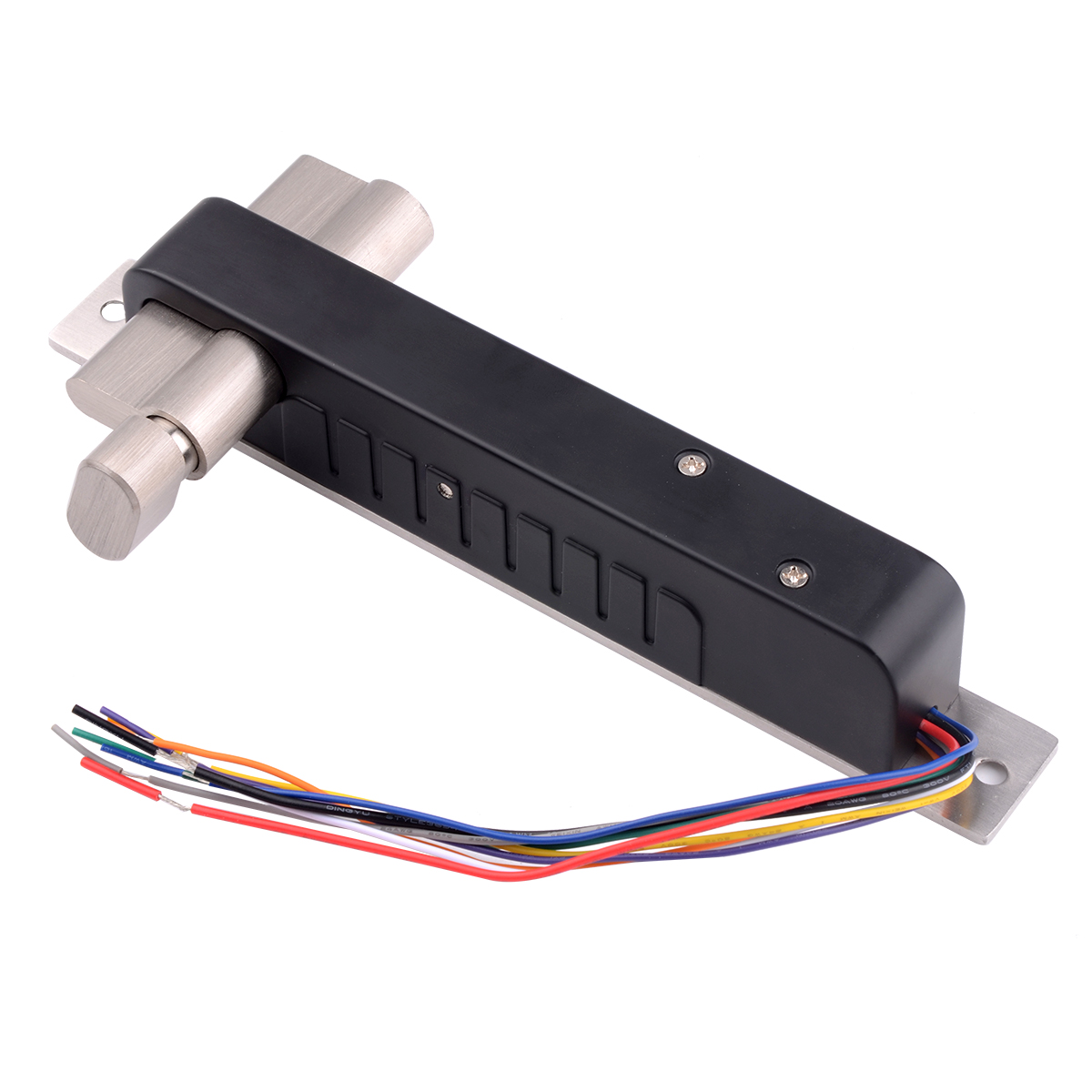

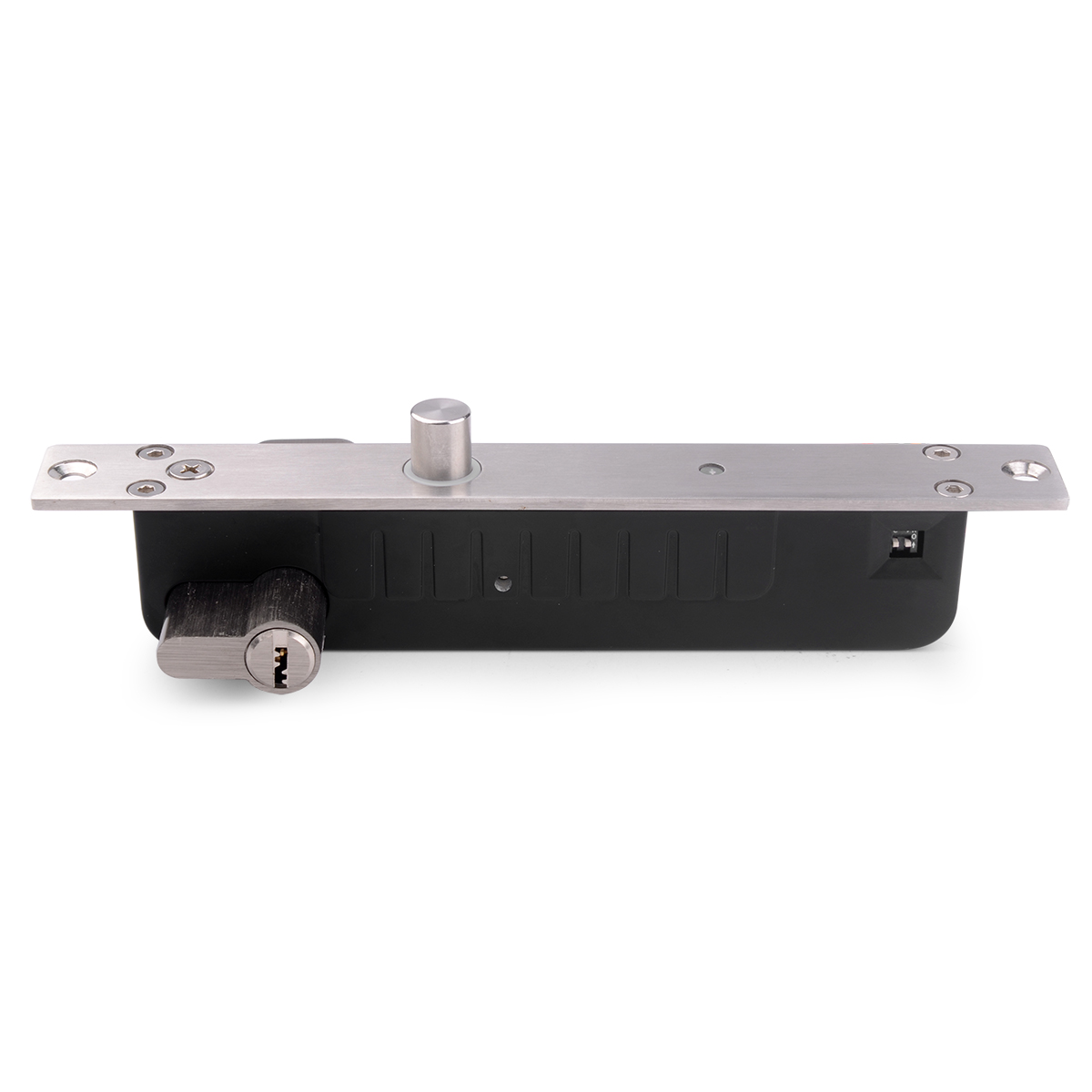

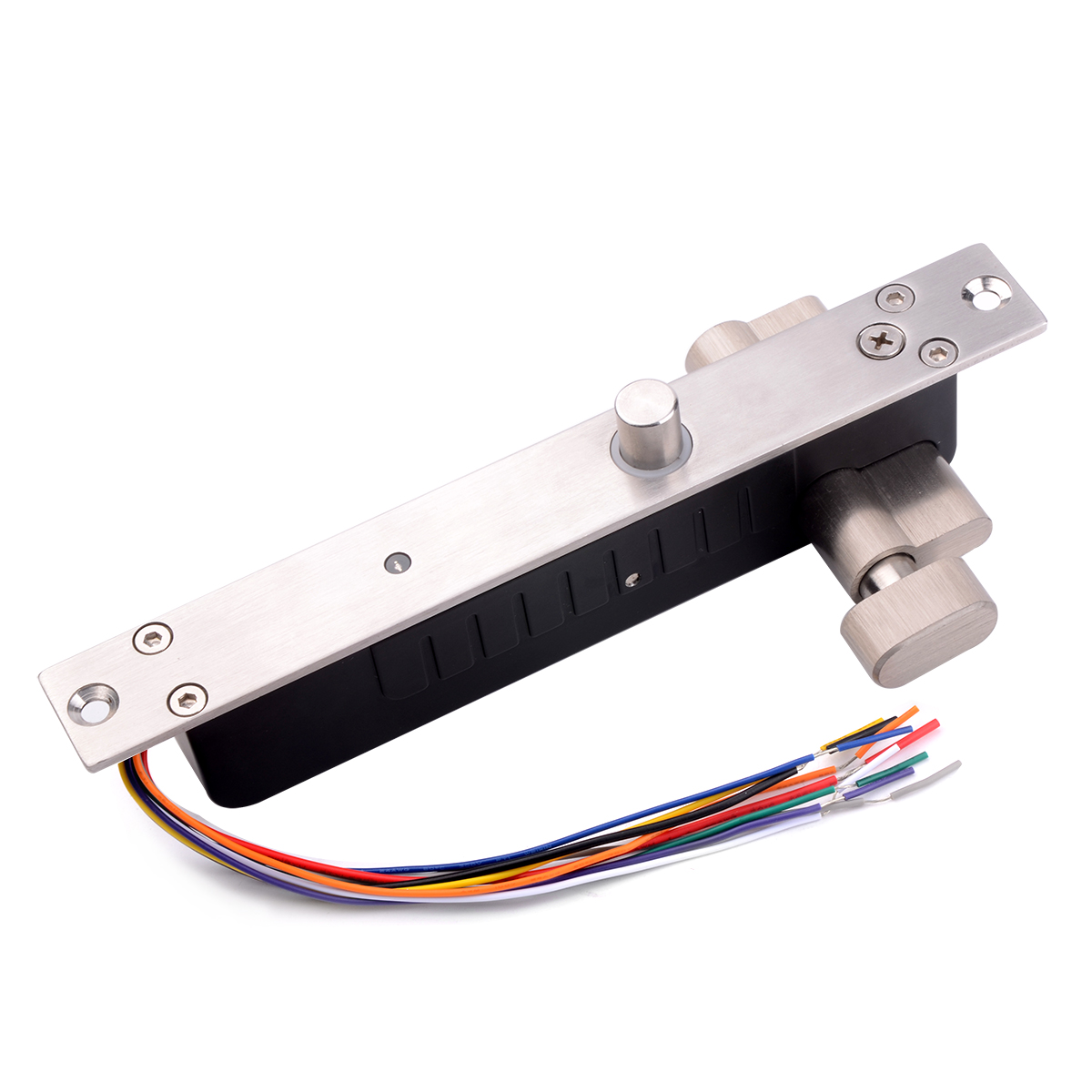

BL-2900Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder with LED indicator
Model No.: BL-2900
Power-on unlocking type.
Door magneict feadback singnal NO/COM.
Unlocking with mechanical keys in design.
Lock core have pick-proof function in design.
Ultra-low power design, and holding current less than 0.2A.
Have LED display when open/close the door ,red for open the door and green for close the door.
Super long working life, pass 200 thousand life test.

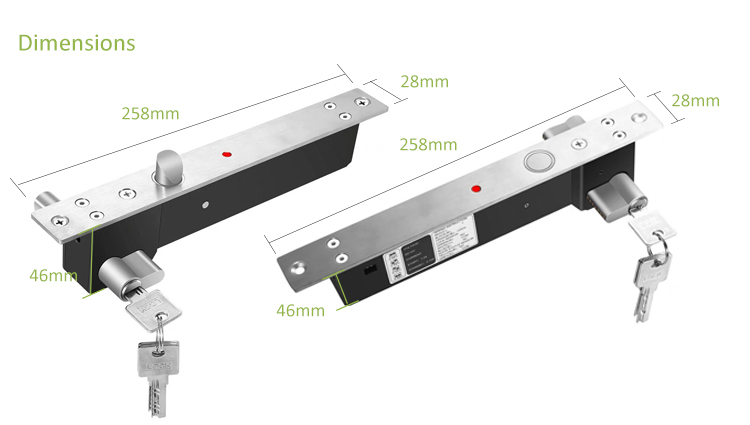

Lock size | L215xW30xH37 mm |
Lock tongue size | protrude length 14mm, dia.12.5mm |
Working current | start 1.2A holding 0.2A |
inbuilt size | L170xW25xH34mm |
Working Votage | DC12V/24V |
Delay function | 0/3/6/9 delay can be selected |
S4A Datesheet_Drop Bolt Lock Key Open Fail Secure Sturdiness Electric Manual Open Cylinder With LED Indicator
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Material: Stainless steel> Voltage: DC12V> Open way: Fail-safe
> Face Plate: 200X34X42mm> Strike Plate: 90X25X3mm> Lock Cylinder: 15mmX15mm> Working Voltage: DC12V> Start working: 450mA
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
Signal Output: door open or door close state detectionwith output point, NC/COM
> Voltage: DC12V> Start Current: 900mA> Standby Current: 150mA> Face Plate: 205Lx35WX41H(mm)> Strike plate: 90Lx25Wx2W(mm)> Solid Bolt: polishing housing, 800Kg Holding Force> Signal Output: Door status Output, NC/COM> Timer: 0/ 3/ 6/ 9 seconds available to set
Fail-Secure (power off, the door is locked) 12V-24V> Low Temperature, safe & Durable> Low Power, Environmental Protection> MOV Provides Reverse Current Protection> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt> Autolock Time Delay: 0,3,6,9sec.> Double protection for loading current> Auto-relock if no Action within 5 secs.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
