Double door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software.
>Quantity of Readers: 2pcs
>Door Controlled: 1door
Brand:
S4AItem NO.:

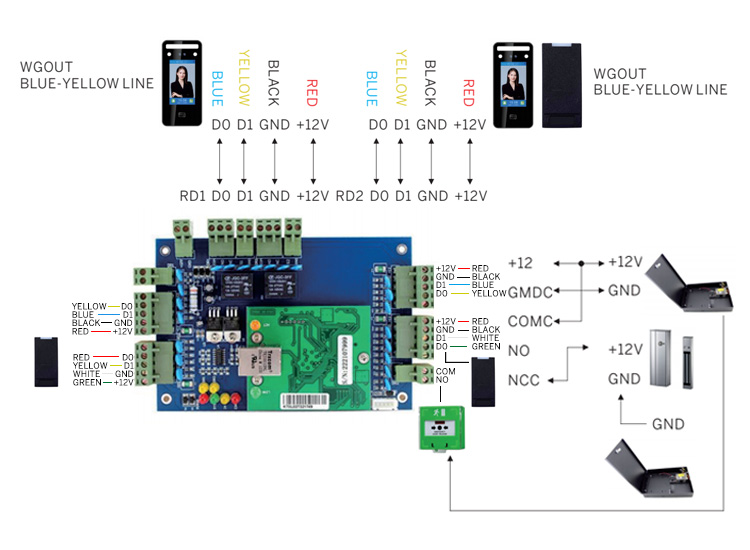

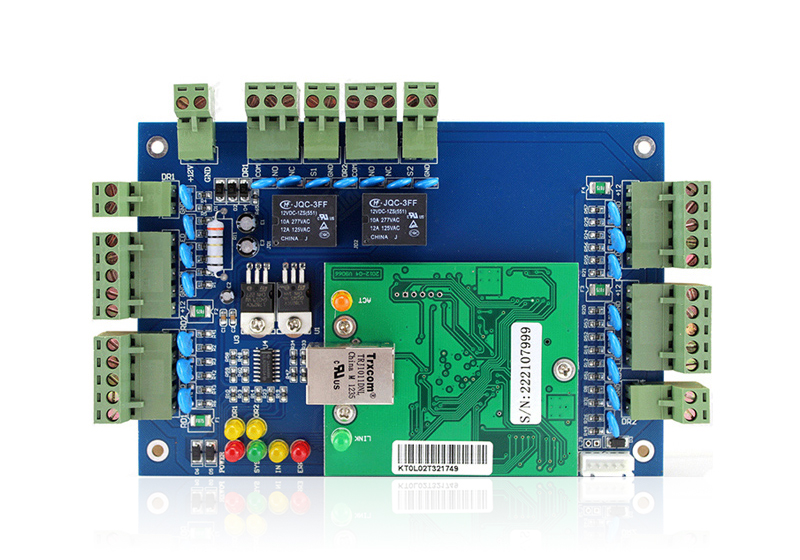

ACB-002Double Door TCP/IP Network Access Control PCB Board Wiegand Gate Panel With SDK
Model No.: ACB-002
What does Network Access Control do?
Network access control is the act of keeping unauthorized users and devices out of a private network...Network access control, or NAC, is one aspect of network security. There are many NAC tools available, and the functions are often performed by a network access server.
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping a card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get out-door by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
S4A Datasheet_Double Door TCP/IP Network Access Control PCB Board Wiegand Gate Panel With SDK
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
