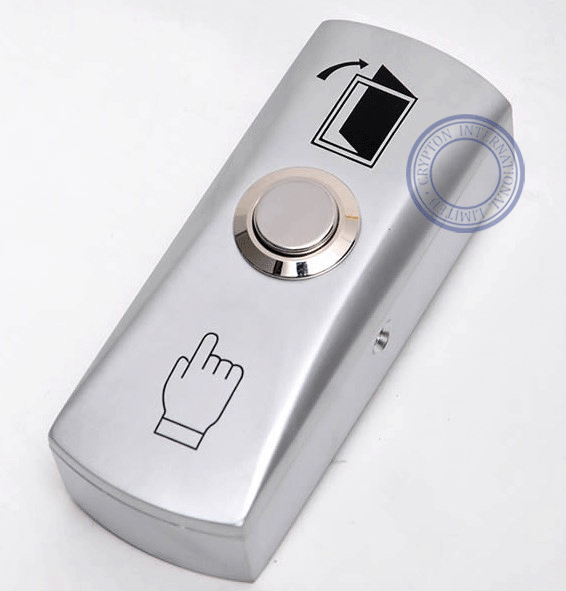

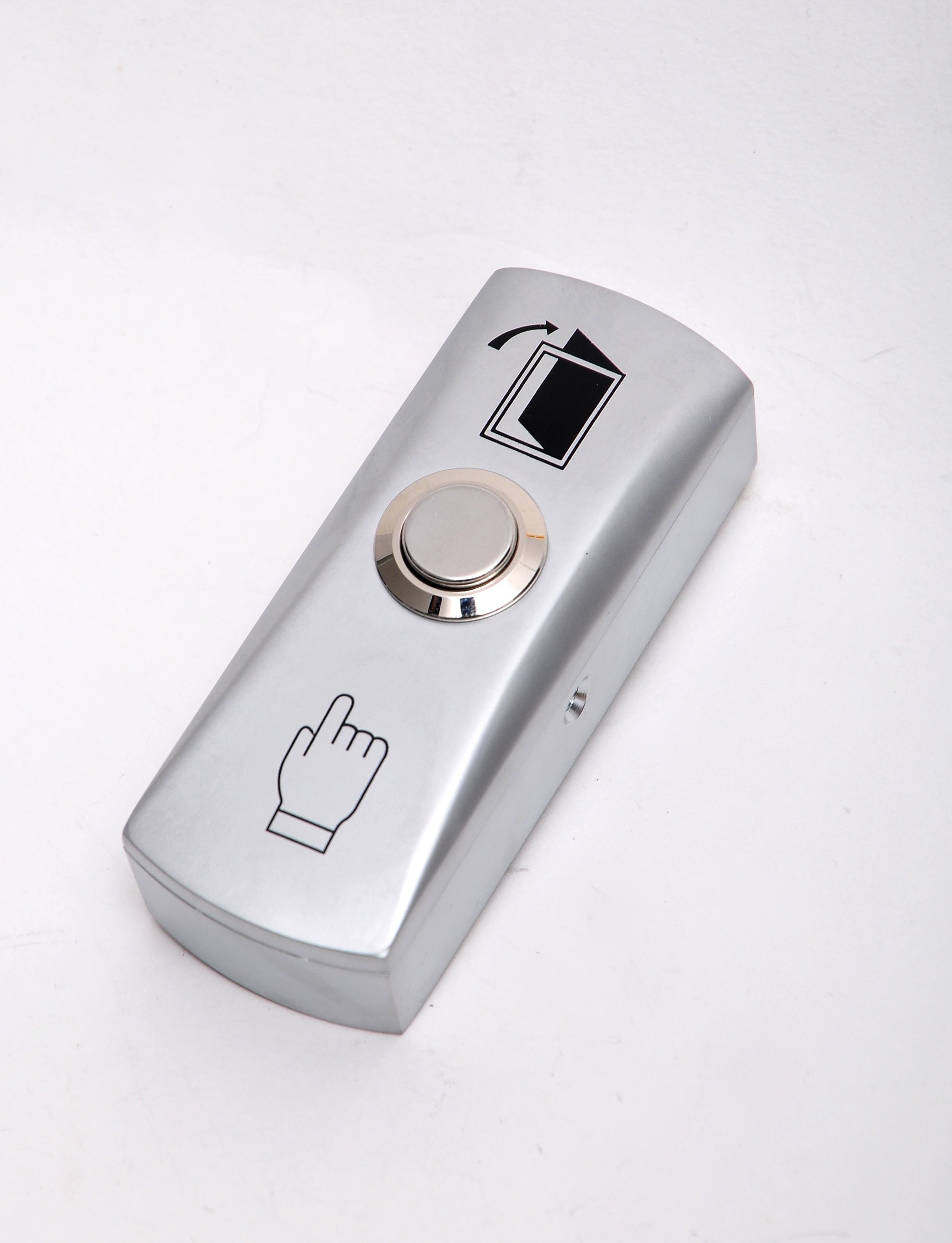

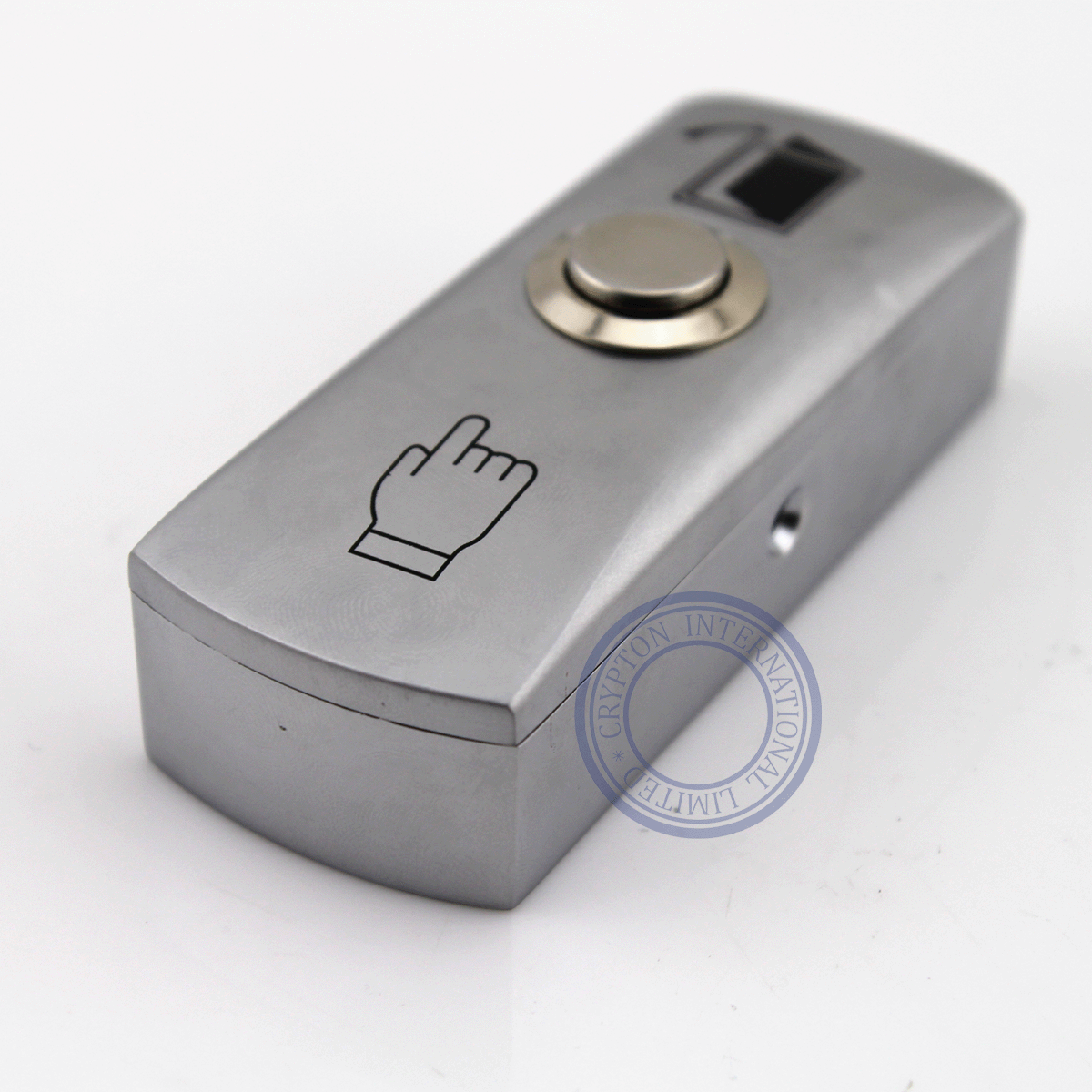

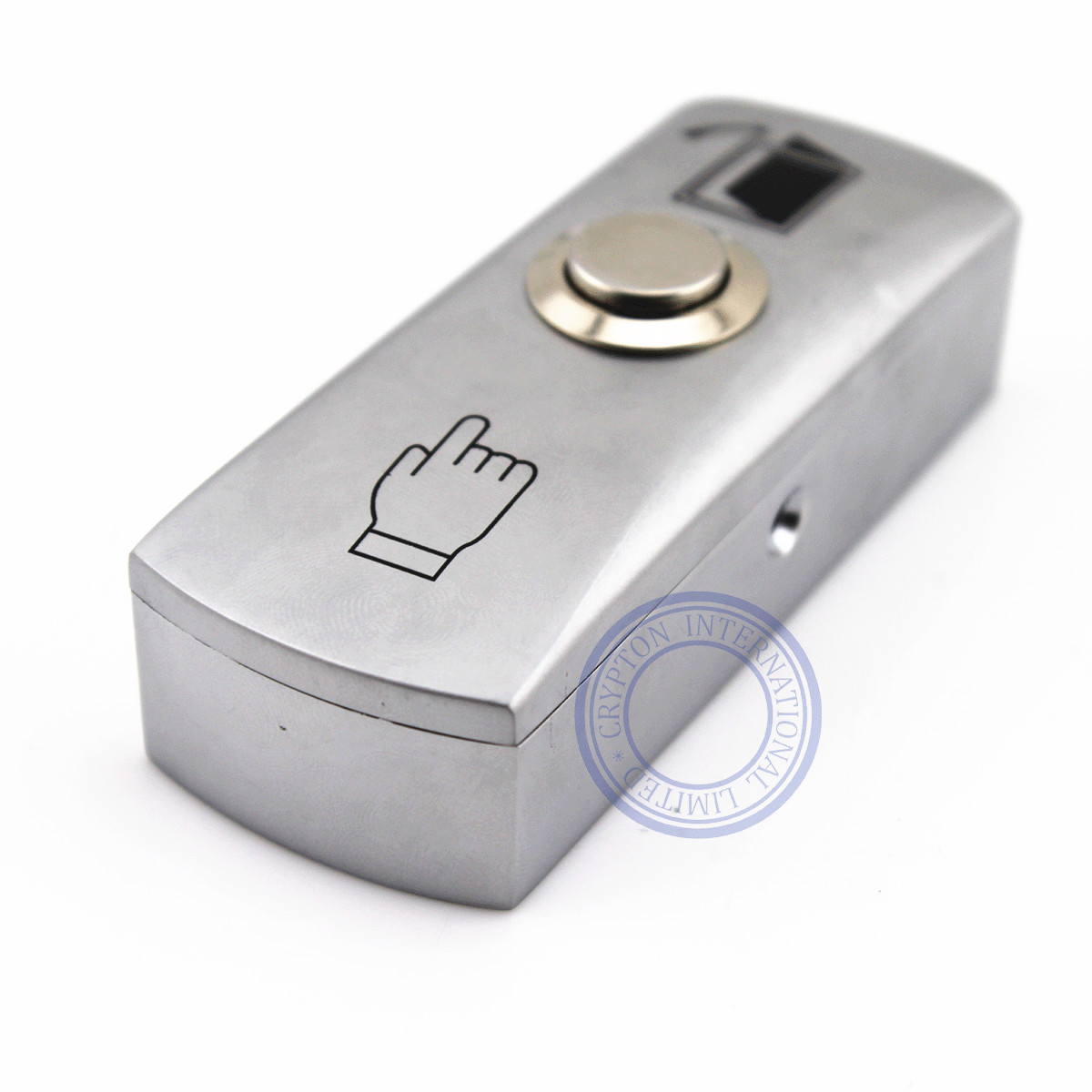

Door Zinc Alloy Release Button Push to Exit Resettable NO/COM

>Dimension: 80x30x23mm
>Current Rating:3A,36VDC Max
>Output Contact:NO\NC\COM

  • Brand:

    S4A
  • Item NO.:

    EB-1405
  • Specifications

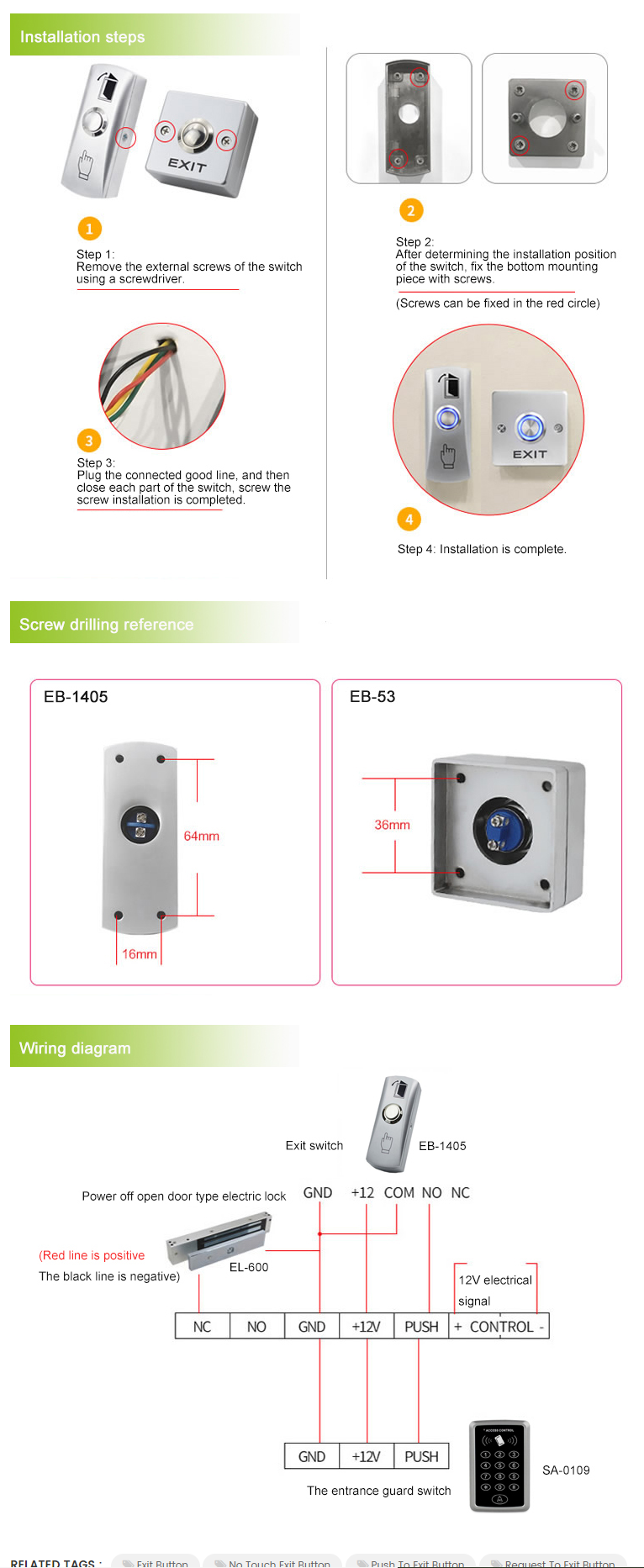

  • Wiring Diagram
  • Package

Zinc Alloy Exit Button with Button Box

Model No: EB-1405


EB-1405

Without LED

EB-1405A

With LED

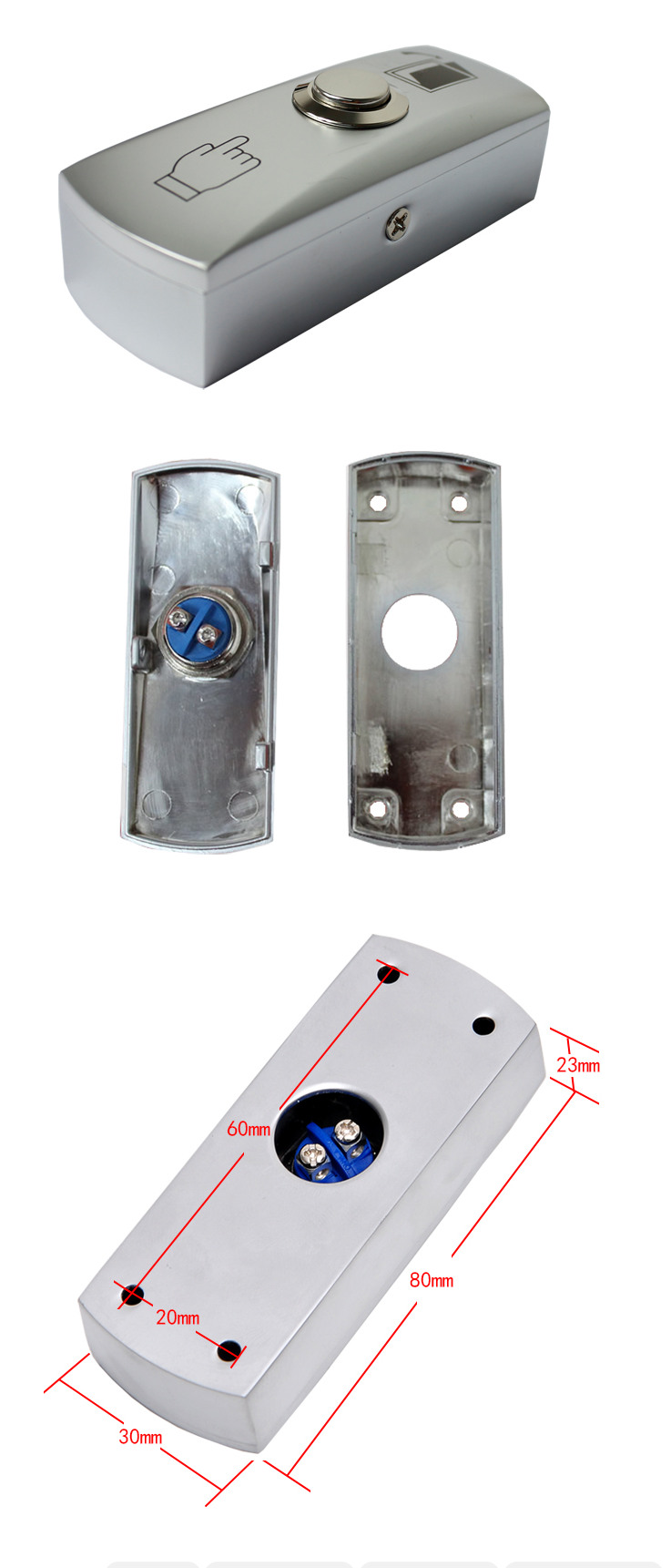

Dimensions

80Lx30Wx23H(mm)

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

NO\NC\COM

Mechanical Life

5000000 Tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non-condensing)

Weight

0.133kg

Standard Packing

100pcs

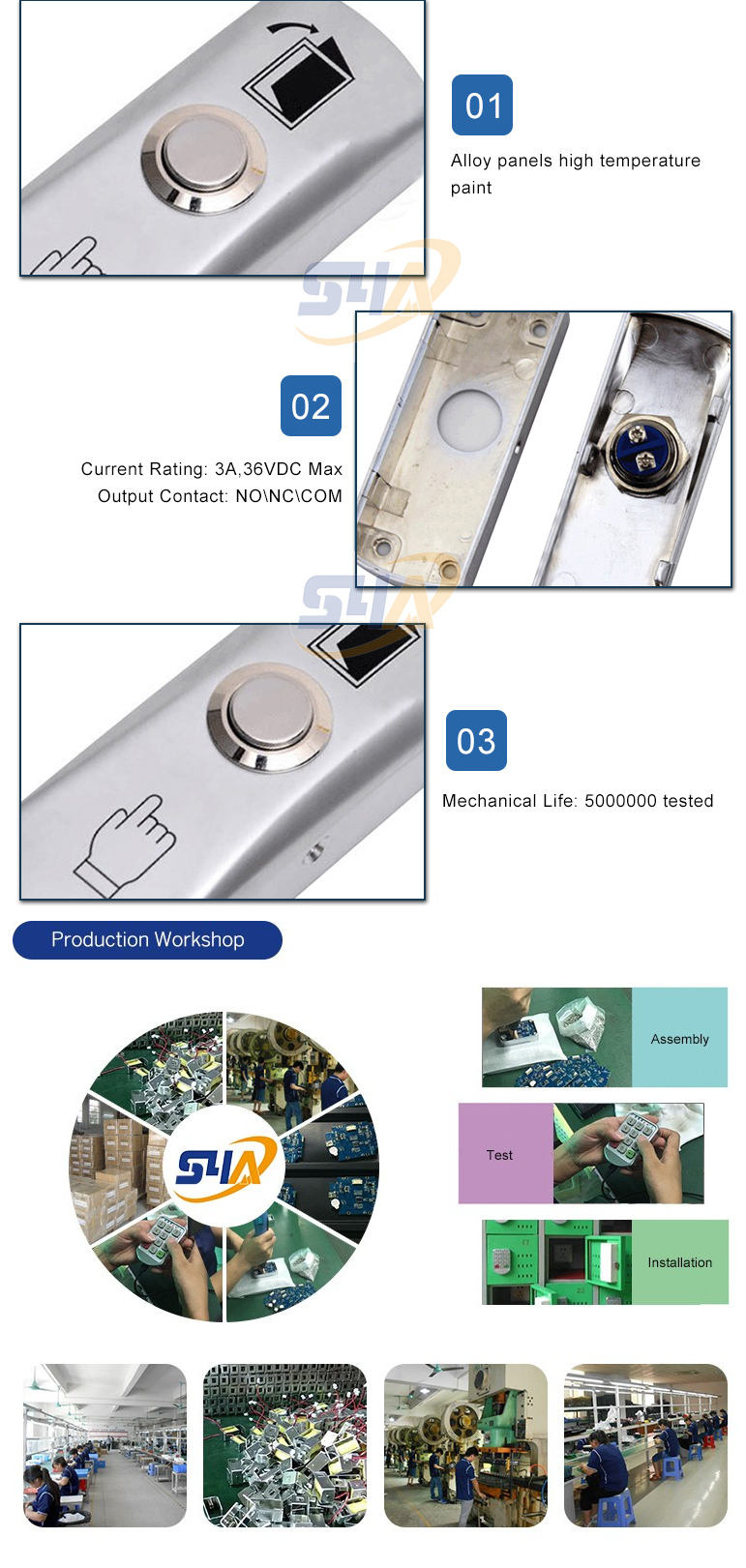

Faceplate

Alloy panels with high-temperature paint

Exit Button

Exit Button

Zinc Alloy Exit Button with Button Box

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

EB-1405

100PCS

12.5KG

12.8KG

40X21X20cm


200PCS

22.5KG

22.95KG

39X39X23cm

Exit Button
