Categories
> Card type: EM Card
> User Capacity: 2000
> Card Reading Distance: 2-5 cm
> Size: 118 x 81 x 21mm
> Waterproof: IP68 (Optional)
Brand:
S4AItem NO.:

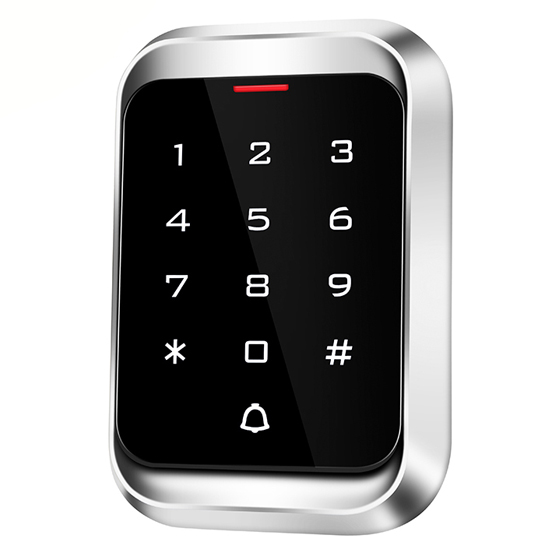

T1302Touch Screen Standalone Access Controller
Model No.: T1302 EM
Card type | EM |
Waterproof | IP68 (Optional) |
Working voltage | DC12V |
Reading Range | 2-5cm |
Humidity | 10%-90% RH |
Door Opening time | 0-99s(Adjustable) |
Sleep electricity | ≤30mA |
Ambient temperature | -45℃~60℃ |
Electric lock output | ≤3A |
Short-circuit protect | ≤100μS |

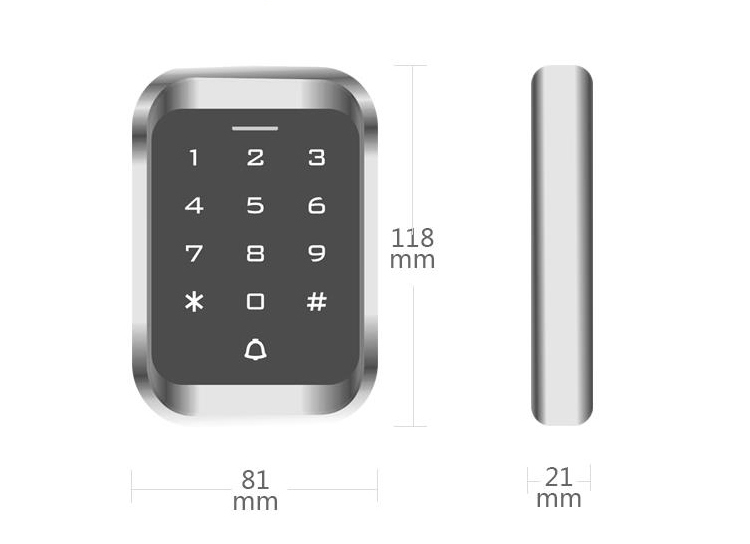

Dimensions | 118 x 81 x 21mm |
S4A User Manual T1302_Door Access Control Keypad with Metal Housing Anti Vandal
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 1000 user> Working frequency: 125KHz or 13.56MHz> Wiegand Input and Output
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 15,000 users> Working frequency: 125KHz or 13.56MHz
> Card Type: MF or MF Card> Operating voltage: DC12V±10% > Capacity: 1000users > Card Type: EM or MF> Wiegand input
> Card Type: MF or MF Card> Support RFID+Pincode> Built-in doorbell> Touch-screen keypad> With WG 26input
> Card Type: MF or MF Card> 1000user capacity (Support RFID+Pincode)> Voltage: DC12V> Touch-screen keypad
> Card Type: MF or MF Card> Voltage: DC12V> User Capacity: 1000users> Wiegand input
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
