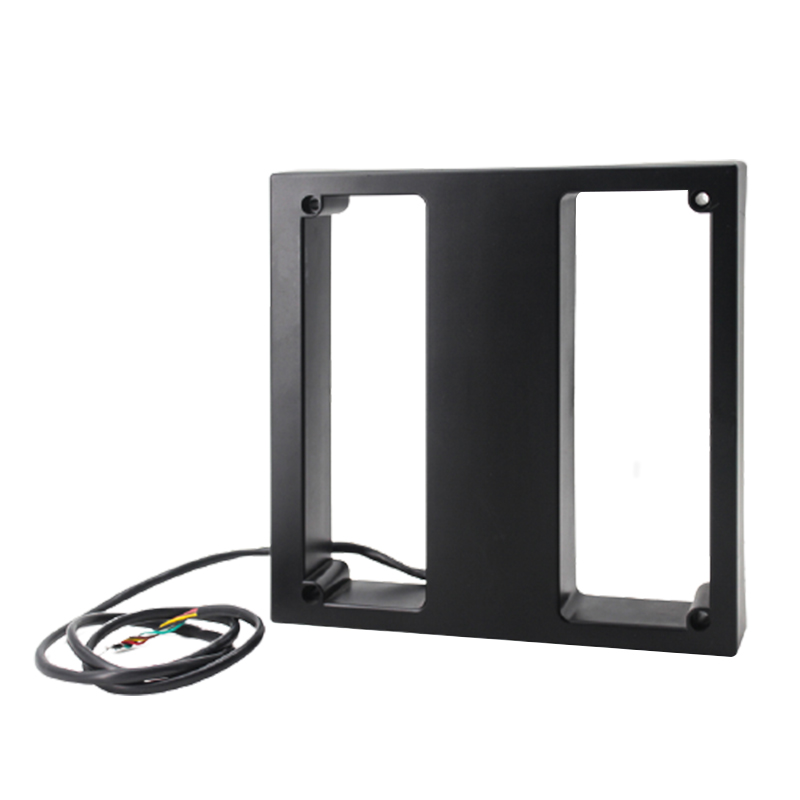

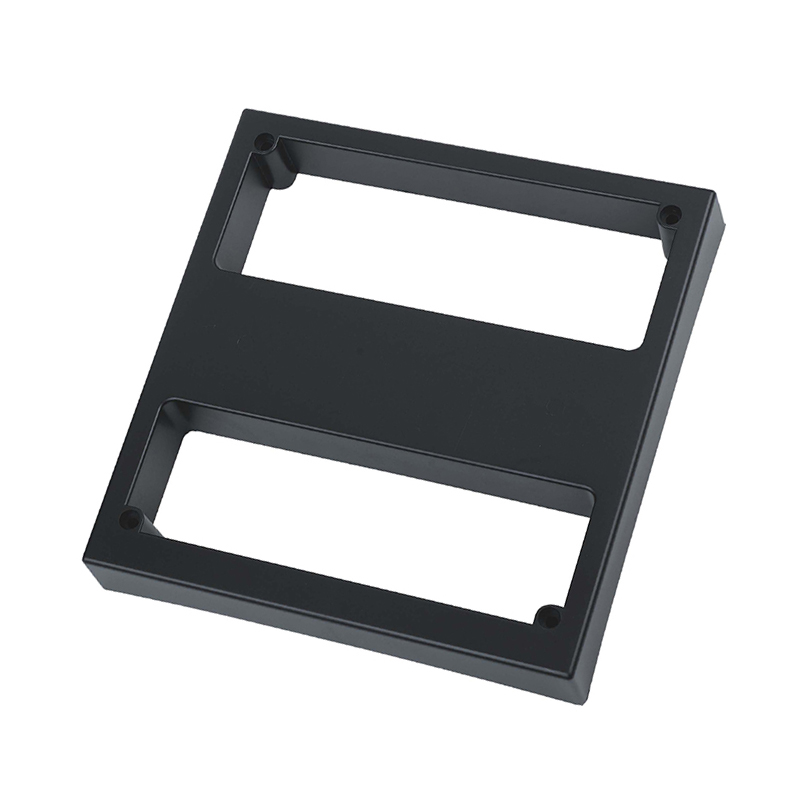

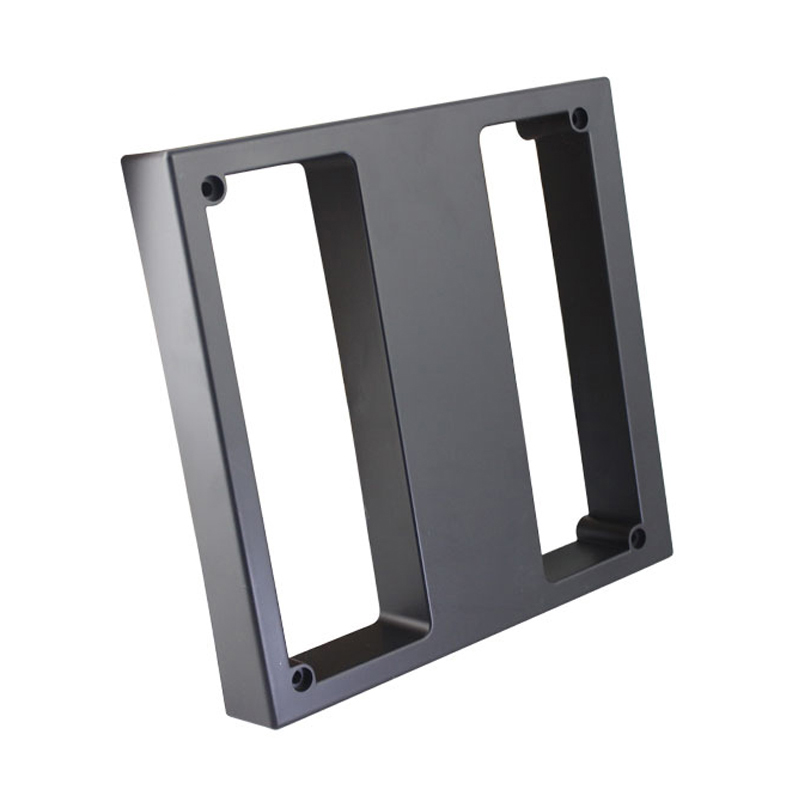

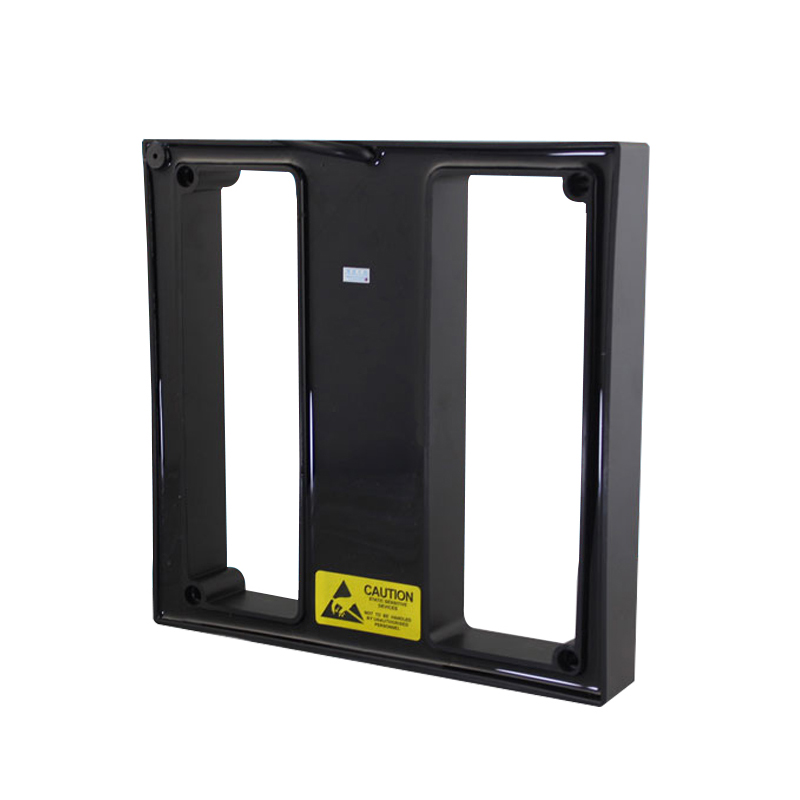

DC9~12V ID Mid-Range Reader Access Control Parking Lot Card Reader

PCD-110 Middle Distance Proximity Card Reader

> Frequency: 125KHz

> Reading distance: 70-100CM


  • Brand:

    S4A
  • Item NO.:

    PCD-110
  • Specifications

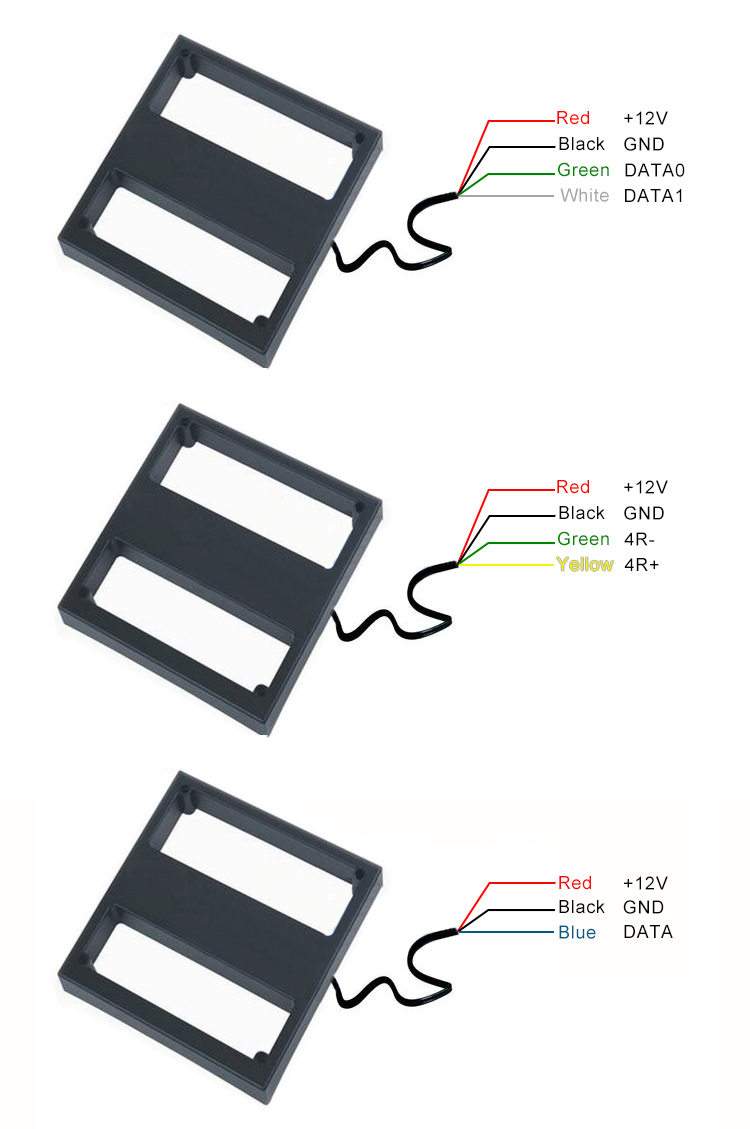

  • Wiring Diagram

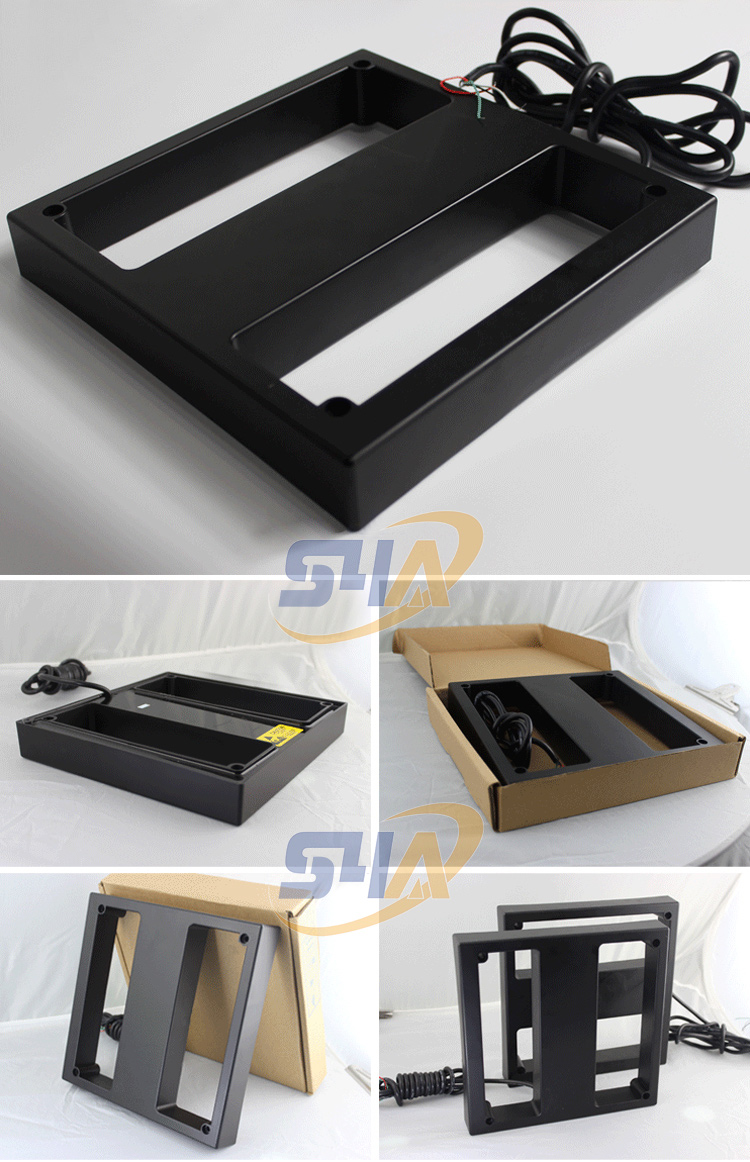

  • Package
  • Download

DC9~12V 70-100cm ID Mid-Range Reader Access Control Parking Lot Card Reader

Model No.: PCD-110


Frequency

125kHz

Supported

125KHz EM ID card or compatible cards

Interface

Wiegand (26 / 34 / 42-bit), Magstripe, clock and data, RS232, RS485,(9600, n, 8, 1), EIA and TTL levels

Communication

Weigand26, Weigand34

Voltage

DC9~12V

Current

<50mA

Temperature

-25'C ~ 85'C Ambient Temperature

Humidity

10%~90%

Punch interval

Less than 0.5sec

Reader speed

Less than 0.2sec

Reading Range

65 ~ 105cm, depending on transponders

Warranty

1 year

Waterproof

IP67

Customization

yes

Built-in

Antenna,speaker,buzzer,red(blue)green color LED

Transmission

Weigand26, Weigand34

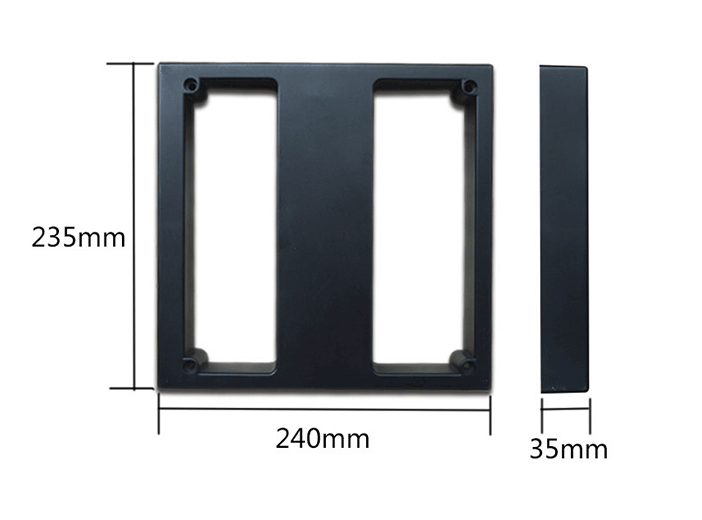

Size

230 x 230 x 35mm

Materials

ABS Case Material (Black Resin for Water-Proof Function)

Color

Black

Application

For access control, attendance, fees, patrol, card, building on say, parking systems, highways, and rfid application.
