DC24V Access Control Kit with Narrow Electric Drop Bolt Lock

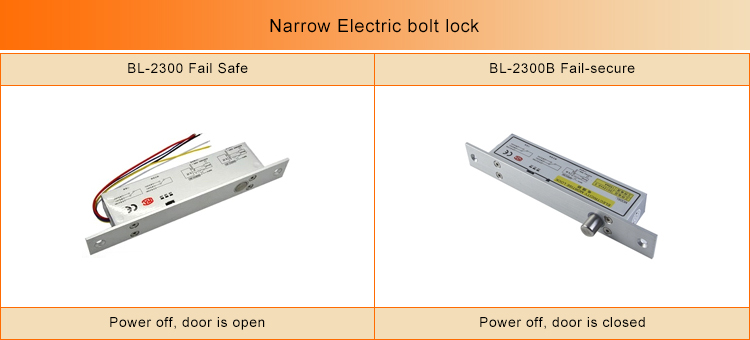

Fail-Secure (power off, the door is locked)
> Low Temperature, safe & Durable
> Low Power, Environmental Protection
> MOV Provides Reverse Current Protection
> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
> Autolock Time Delay: 0,3,6,9sec.
> Double protection for loading current
> Auto-relock if no Action within 5 secs.

Brand:
S4A
Item NO.:
BL-2300B

Inquire Now

Specifications

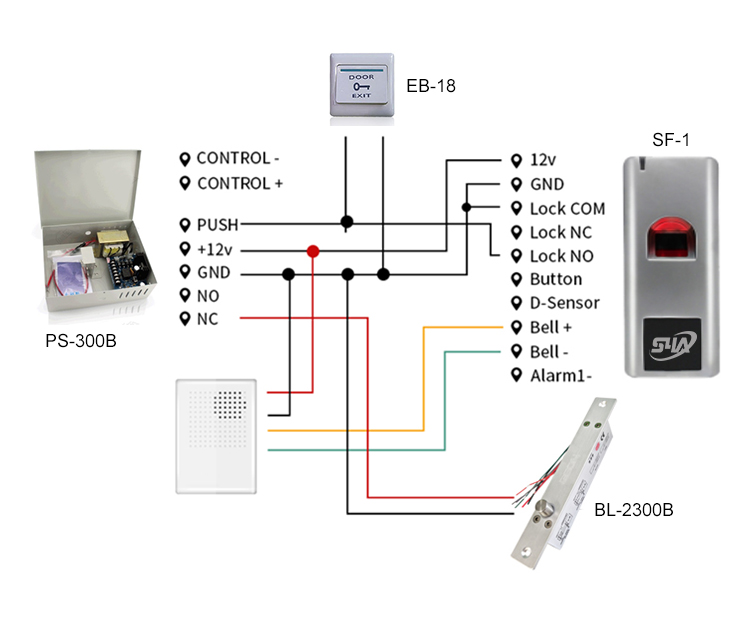

Wiring Diagram
Package
Download

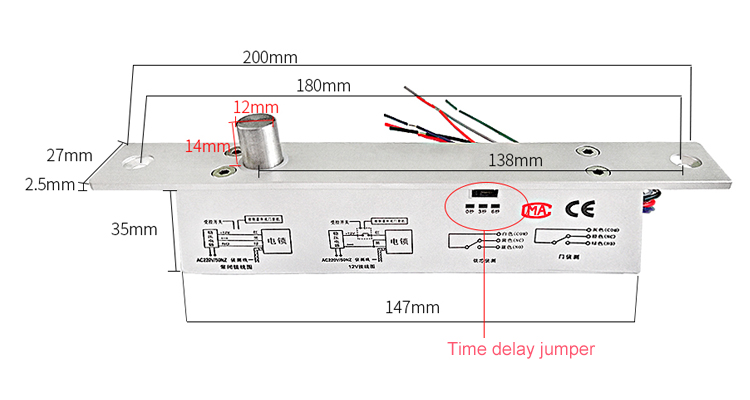

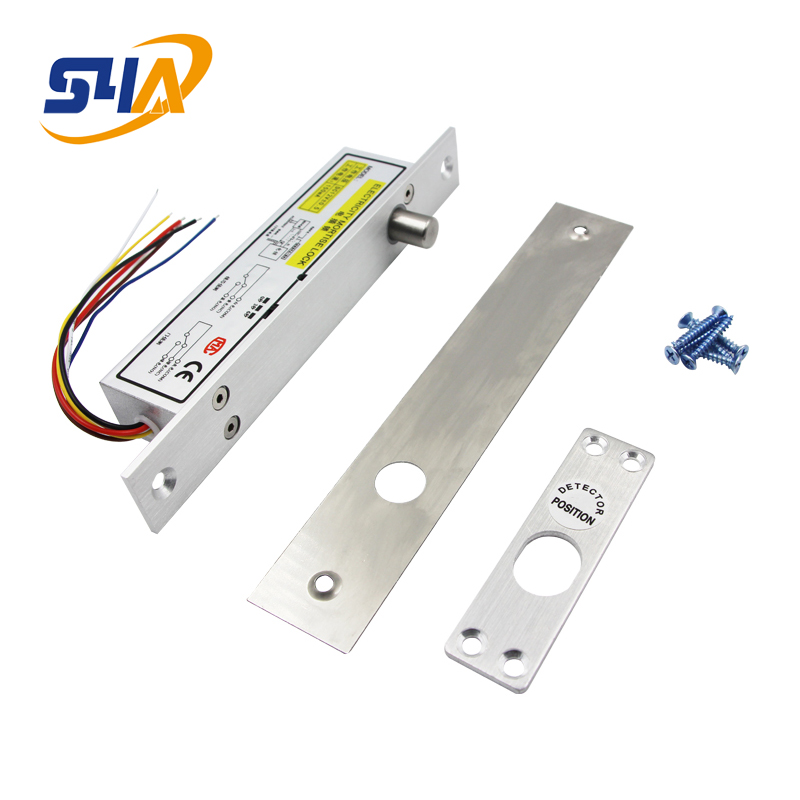

Narrow Electric bolt lock with 5wires

Model No.: BL-2300B Fail-Secure

Electric Bolts

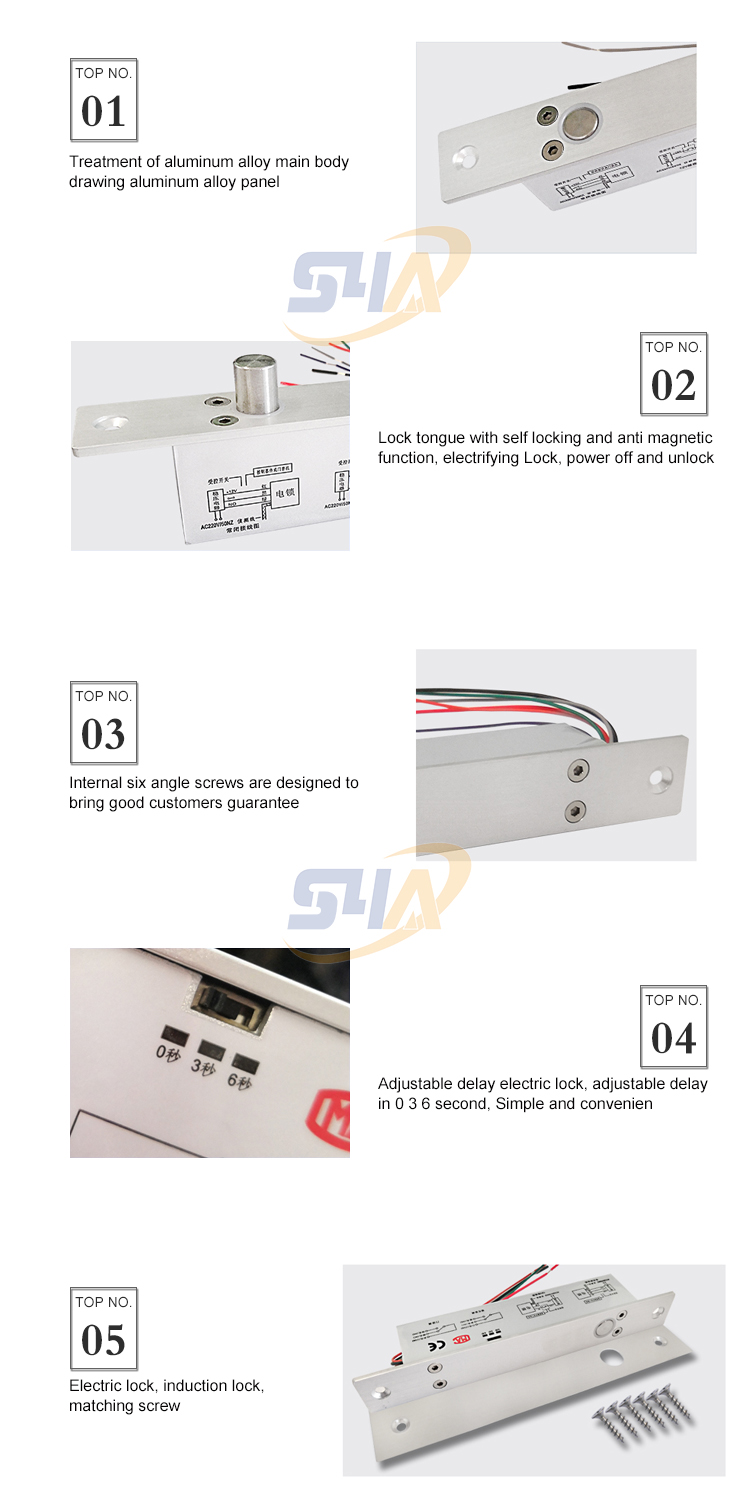

> Low Temperature, safe & Durable

> Low Power, Environmental Protection

> Special photoelectricity control, three steps current application

> Long Life with 500000 Operations

> MOV Provides Reverse Current Protection

> Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt

> Autolock Time Delay: 0,3,6,9sec.

> Door statue signal output contact (NC.COM)

> Double protection for loading current

> Auto-relock if no Action within 5 secs.

Voltage	DC12V(DC24V need order )
Start Current	960mA
Standby Current	180mA
Solid Bolt	polishing housing, 1000Kg Holding Force
Suitable For	Wooden Door, Glass Door, Metal Door, PVC Door
Signal Output	Door Status Output, NO/NC/COM
Surface Temp	Low Temperature
Induction Distance	8mm
Operating temp	-10~+55 degree (14-131F)
Operating Humidity	0~90%(non-condensing)
Special Designed	Tested to 500000 operations
Face place material	Stainless Steel
Weight	0.676kg

Electric Bolts

S4A Datesheet_Narrow Electric Bolt Lock With 5wires

Download
