ES-140A: Fail-secure type (Power to unlock)
ES-140B: Fail-safe type (Power to lock)
Brand:
S4AItem NO.:

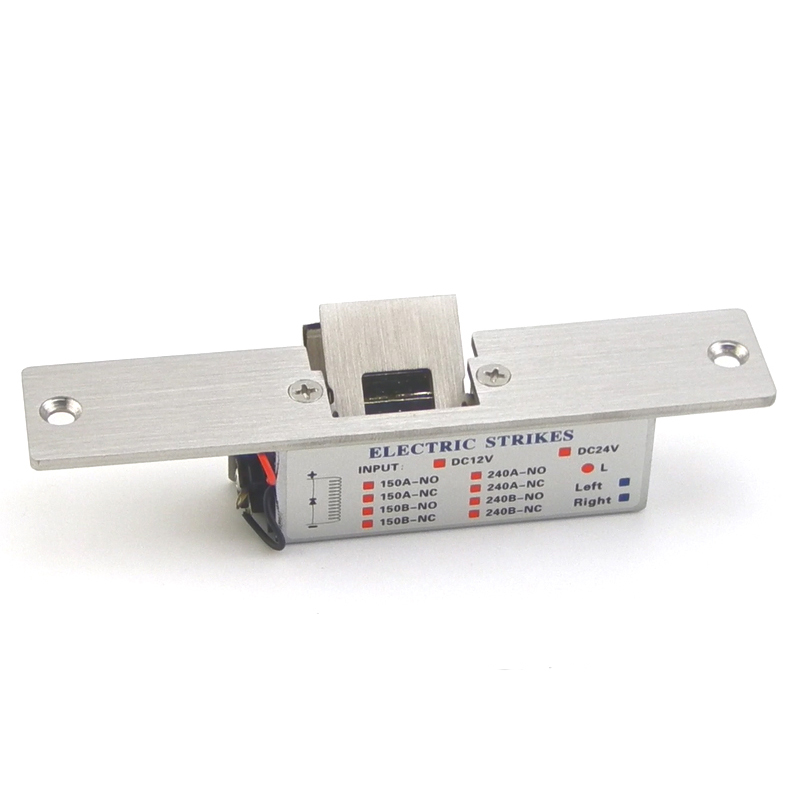

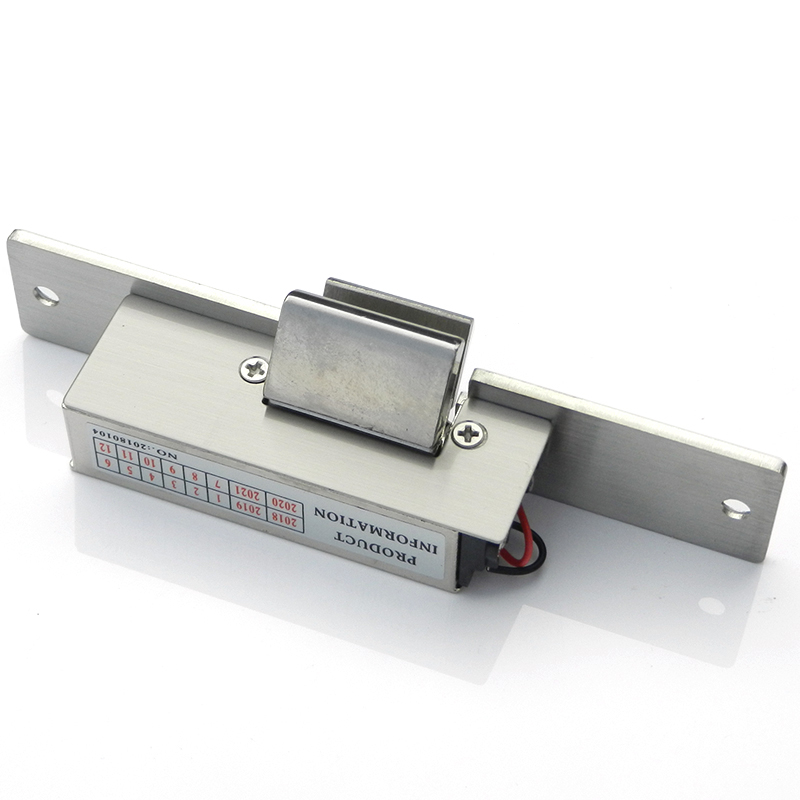

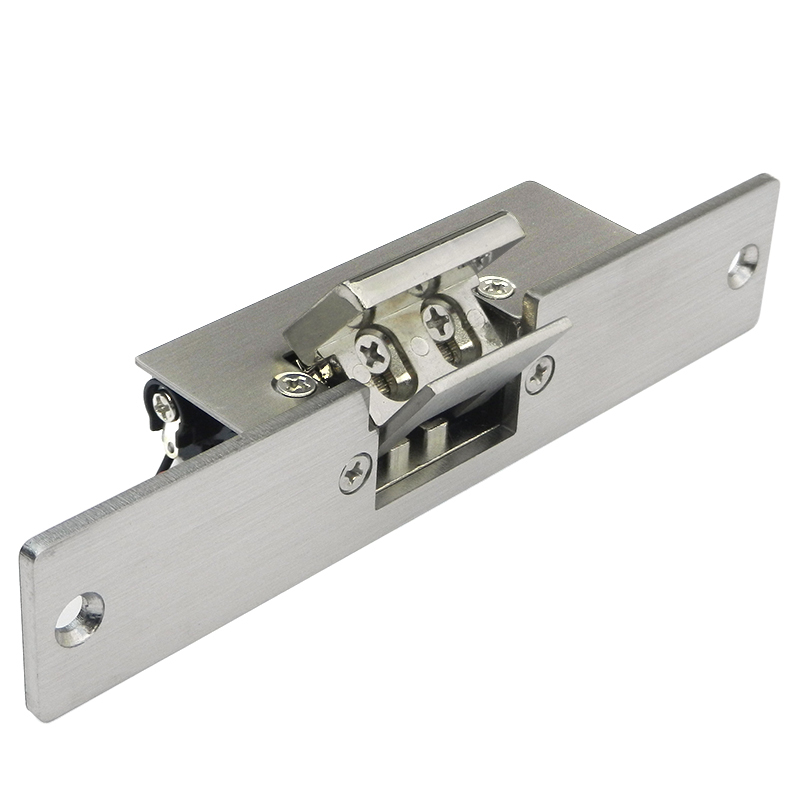

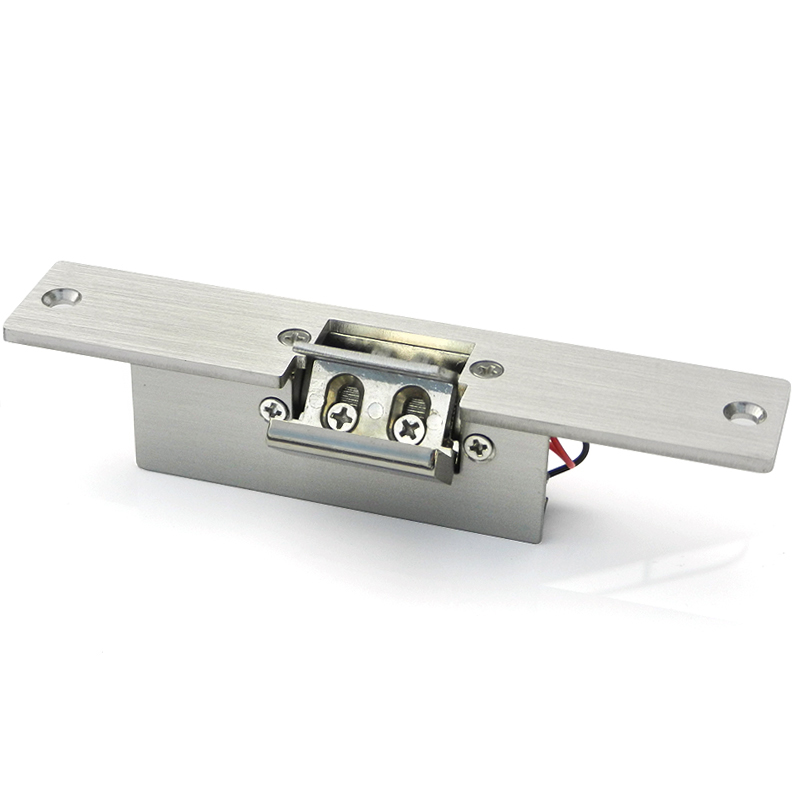

ES-140DC12V Electric Strike Door Lock with Fail Safe or Fail Secure For Doors Security
Model No.: ES-140A, ES-140B
ES-140A: Fail-secure type (Power to unlock)
ES-140B: Fail-safe type (Power to lock)
Lock Size | 149x28Wx31H(mm) |
Strike Structure | Stainless Steel |
Holding Force | 250kg |
Voltage | DC12V |
Current | 240mA(ES-140A), 120mA(ES-140B) |
Feature | Locked when energized |
Surface Temperature | Within +20°C |
Suitable Temperature | -10°C~25°C(14°F-131°F) |
Faceplate Housing | Painted Steel |
Function | Built-out MOV |
Glass Thickness | 8-12mm |
Suitable For | Glass Door |
Opening Model | 90 Degree Swinging Door |
Weight | 0.4kg |
Standard Packing | 60pcs/box |
S4A Datasheet_DC12V Electric Strike Door Lock with Fail Safe or Fail Secure For Doors Security
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
