> Voltage: AC/DC12V~24V
> Detection mode: Movement
> Dimensions: 115x73mm
Brand:
S4AItem NO.:

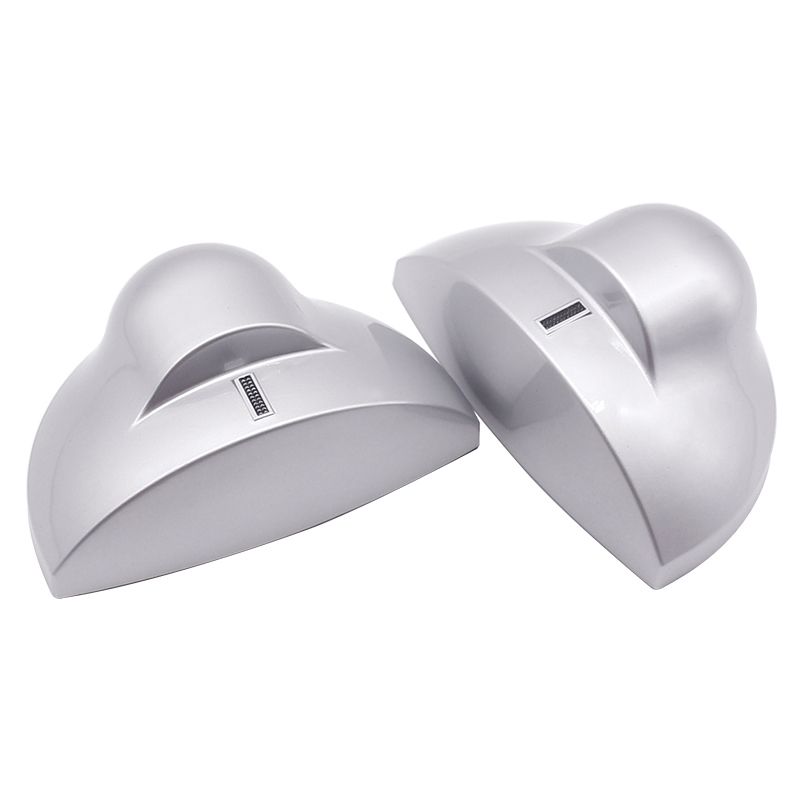

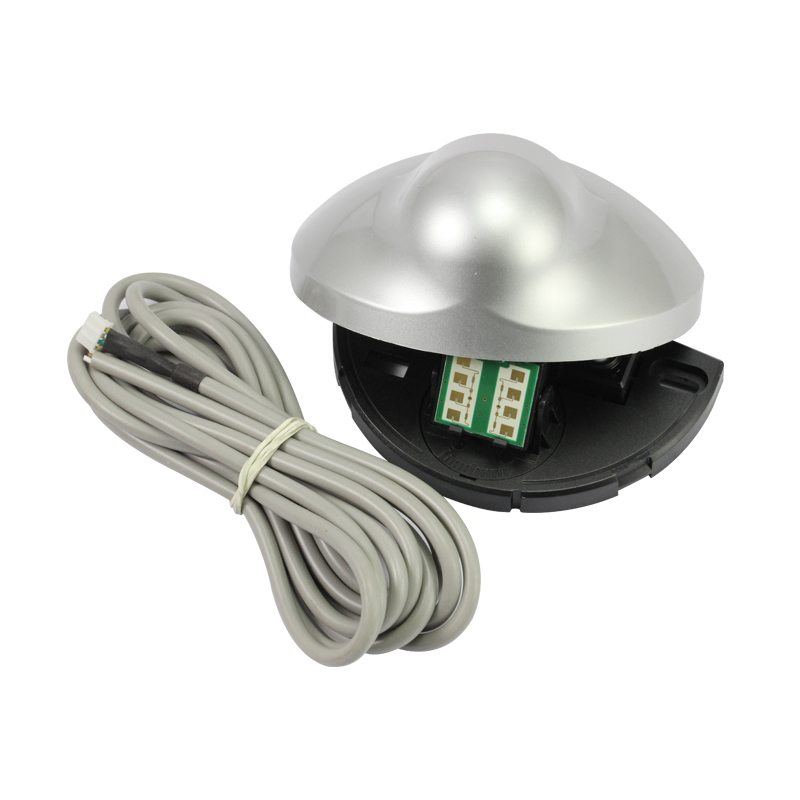

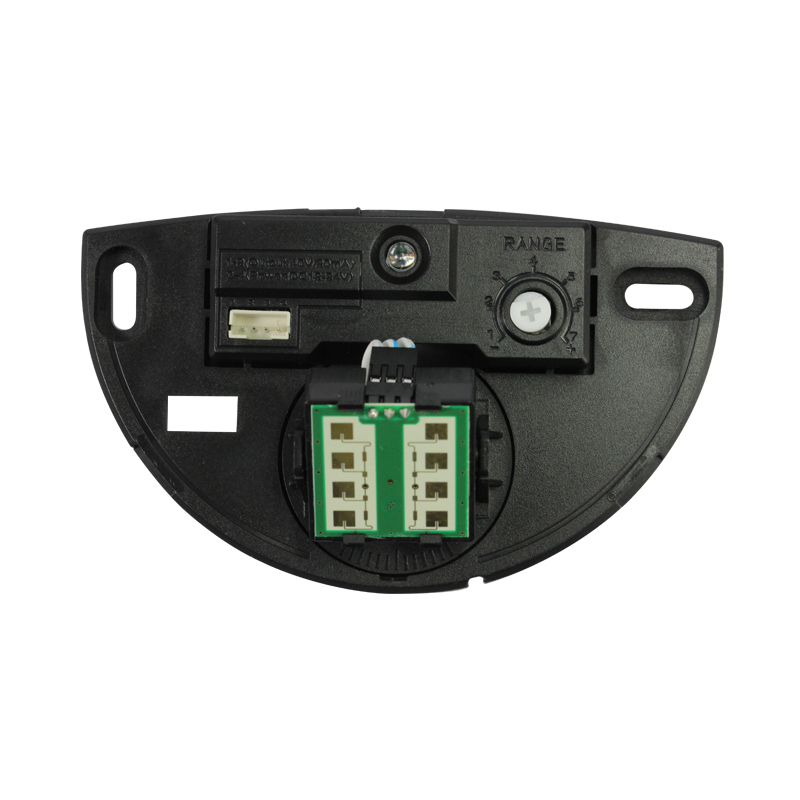

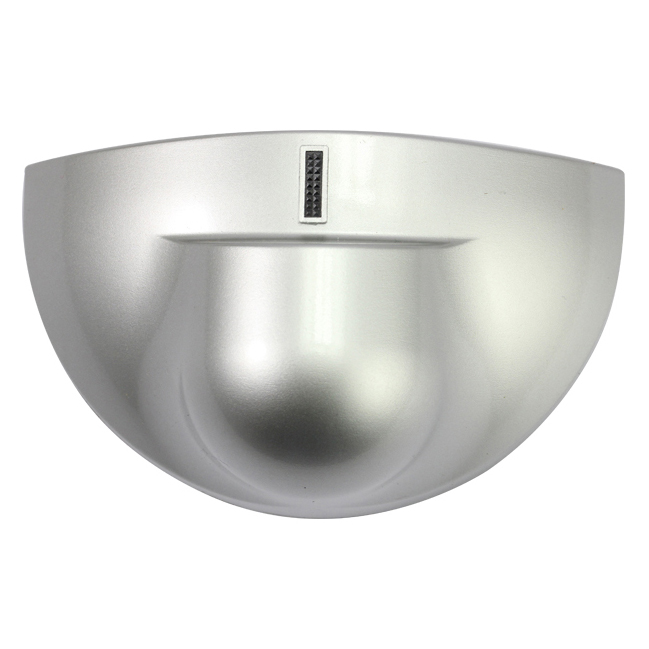

M-204TMicrowave Motion Sensor for Automatic Door Opener
Model No.: M-204T
What is microwave motion？
A microwave motion sensor uses electromagnetic radiation. It emits waves which are then reflected back to the receiver. The receiver analyzes the waves that are bounced back. If there is an object moving in the room, these waves are going to be altered.
voltage | AC/DC12V~24V ±10% (50~60Hz) |
Power dissipation | <2W (VA) |
Launch power | <20 dBm EIRP |
Launch frequency density | < 5mW/cm² |
Installation height | 3~4M |
Assemble a dip angle | 15°, 30°, 45°, 60° |
Detection mode | Movement |
The maximum checks range | 4x2m (WxH)(while assembling 2.2 meters of altitude) |
Detection speed | 5cm/s (Along the longitudinal axis of air wire |
Dimensions | 115x73mm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
