Categories

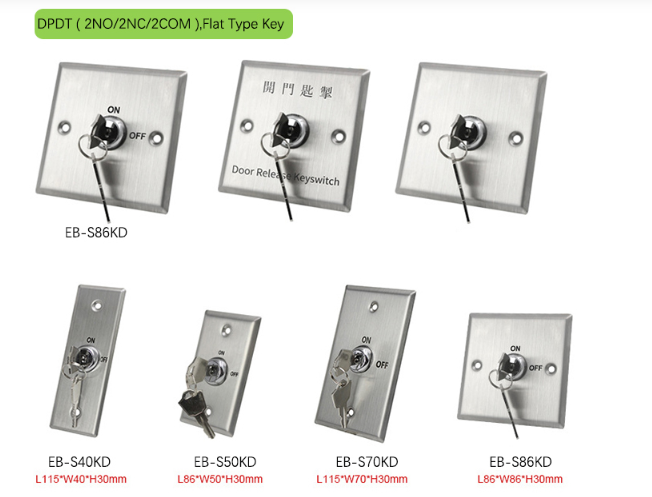

>DPDT ( 2NO/2NC/2COM ),Flat Type Key
>Input: DC12V
>Material: Material
>Contact Rating: 3A/125-250VAC
Brand:
S4AItem NO.:

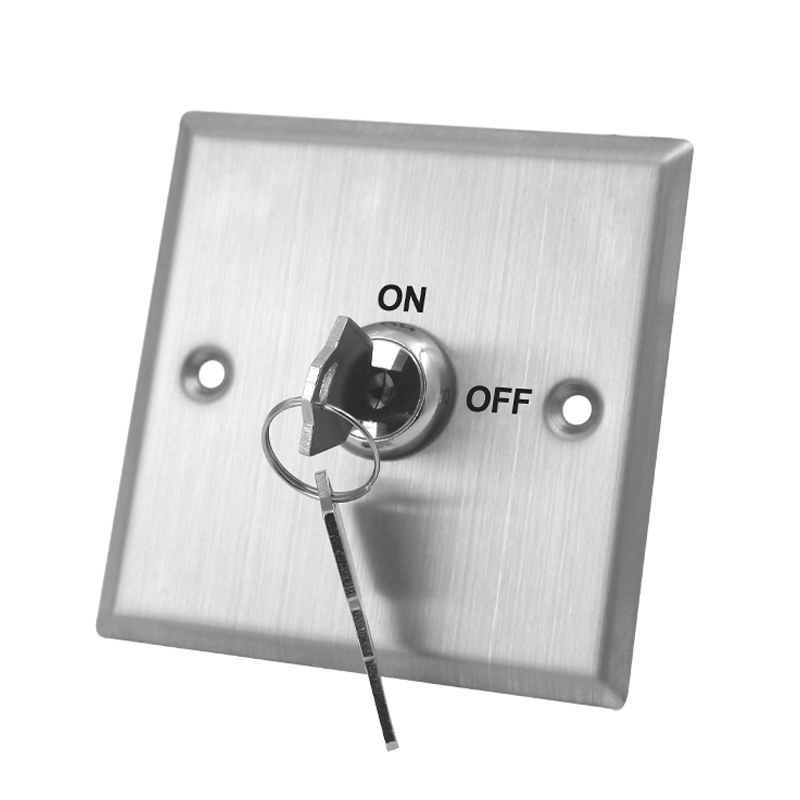

EB-S86KDDC 12V Key Switch Lock On/Off Exit Door Lock Emergency Door Release With 2 Keys
Model No.: EB-S86KD
Product Parameter | Parameter Description |
S4A Model | EB-S86KD |
Product Name | Key Switch |

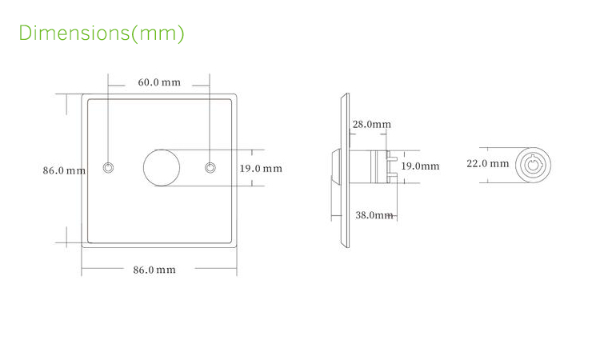

Dimensions | 86Lx86W(mm) |
Material | Stainless Steel |
Output Contact | DPDT ( 2NO/2NC/2COM ) |
Key | Flat Type Key |
Installation Diameter | 19mm |
Input | DC12V |
Contact Rating | 3A/125-250VAC |
Mechanical Life | 500000 tests |
Operating temp | -20℃～+55℃(14-131F) |
Suitable Humidity | 0-95% (relative humidity) |
Unit Weight | 0.126KG |
Standard Package | 100PCS/carton |
Carton Weight | 13.5KG |
Carton Size | 50*45*28(cm) |
Dimensions: 91x28x20mm
Dimensions: 115x70x25mm
Dimensions: 86x86x38mm
Dimensions: 86x86x38mm
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating: 3A/125-250VAC
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating:3A/125-250VAC
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V> Contact Rating: 3A/125-250VAC
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating: 3A/125-250VAC
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
