Brand:
S4AItem NO.:

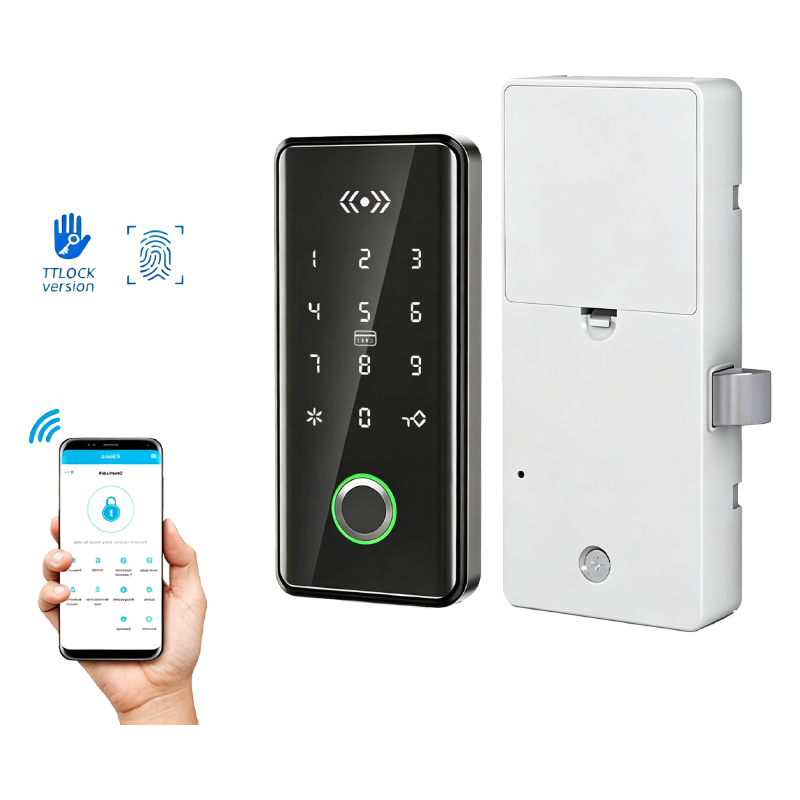

CB-179CB-179 TTLock Smart Cabinet Lock

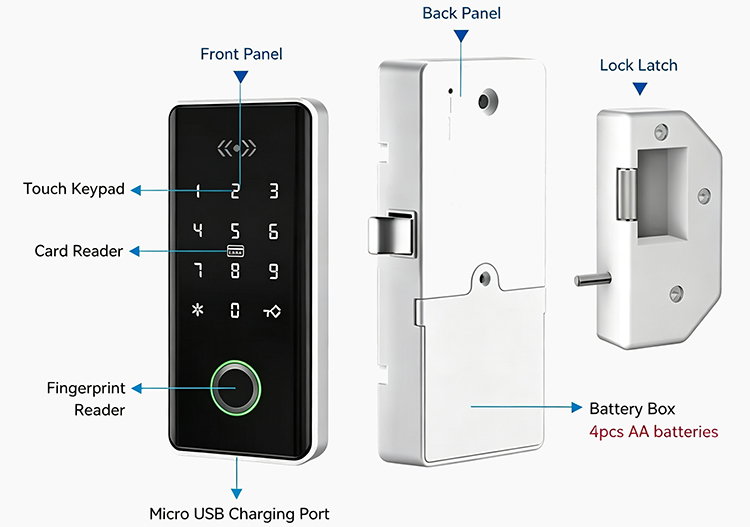

The CB-179 is an advanced aluminum alloy smart lock designed for intelligent lockers, cabinets, and modern office furniture. It offers flexible 4-in-1 access methods including TTLock Bluetooth app management, fingerprint recognition, Mifare M1 IC card, and PIN code password. Featuring a ultra-slim profile, built-in low-voltage alert (≤4.8V), and optional WiFi gateway integration for remote control, the CB-179 delivers robust, reliable access control in stylish silver and black finishes.
Parameter
Specification
Model Number
CB-179
Unlocking Methods
TTLock App, Fingerprint, Mifare M1 Card, Password / PIN Code
App Support
Free TTLock App
Card Type
M1 Card (13.56MHz)
Network & Connectivity
BLE (Bluetooth Low Energy), WiFi (Requires Gateway for Remote Control)
Main Material
Aluminum Alloy

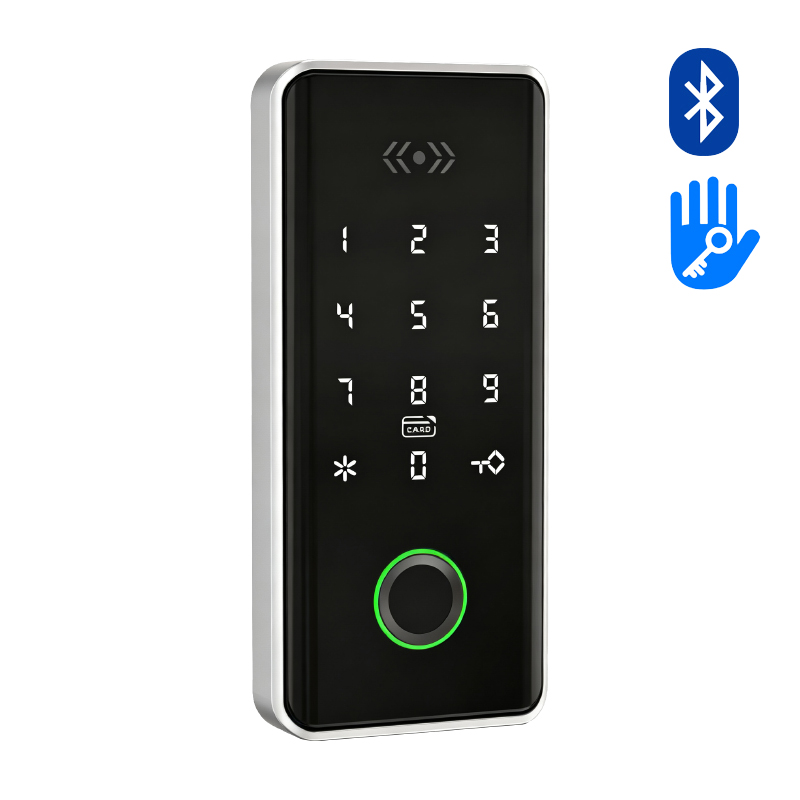

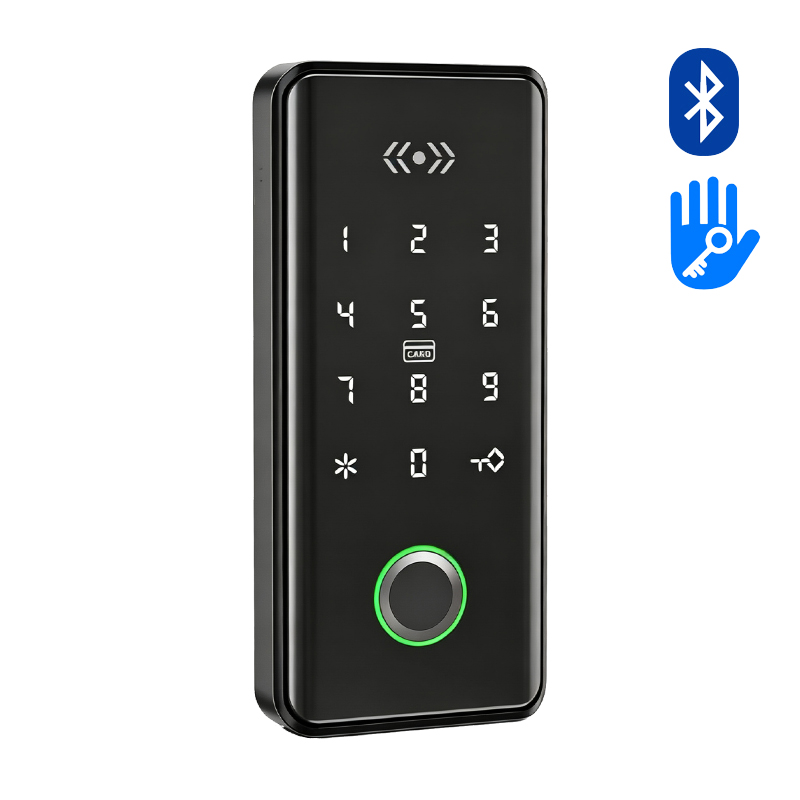

Color Options
Silver / Black

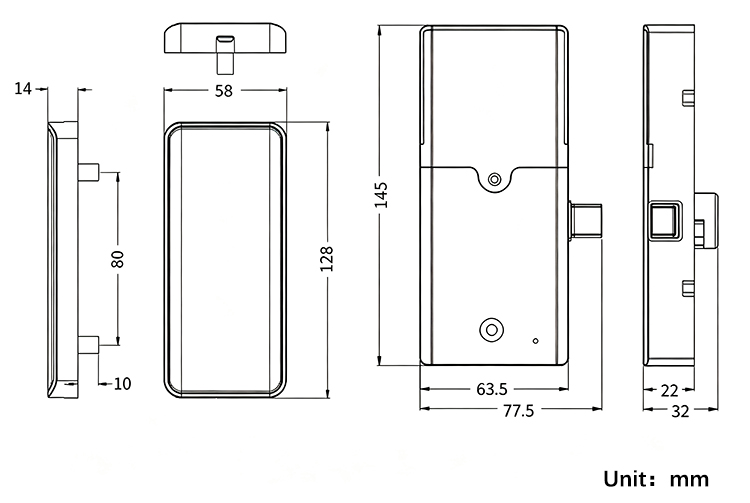

Panel Dimensions
128 * 58 * 14.1 mm
Lock Mortise Dimensions
145 * 63.5 * 22 mm
Power Supply
4pcs 6V AA Alkaline Batteries
Emergency Power
External Power Supply Connector
Low Voltage Alarm
≤ 4.8V
Single Set Weight
279.2 g
Application
Smart Lockers, Storage Cabinets, Office Furniture
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
