Brand:
S4AItem NO.:

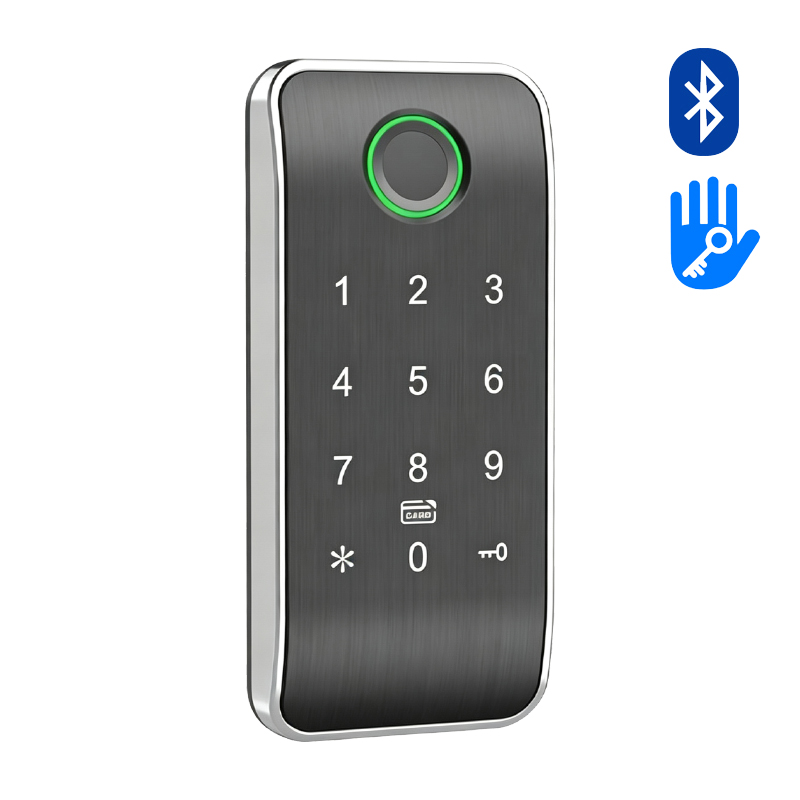

CB-167CB-167 TTLock Smart Cabinet Lock
The CB-167 is a versatile aluminum alloy smart lock tailored for lockers, cabinets, and office furniture. Powered by TTLock Bluetooth integration, it supports 4-in-1 entry methods including fingerprint recognition, Mifare IC card, PIN code password, and app control. With dual Public and Home operating modes, quick response speeds (<1.5s), and premium metallic finishes in gold, silver, and black, the CB-167 offers secure and convenient access control for personal and shared storage.
Parameter
Specification
Model Number
CB-167
Unlocking Methods
TTLock App, Fingerprint, Mifare IC Card, PIN Code Password
App / Network Support
TTLock App, Bluetooth (BLE)
Operating Modes
Public Mode & Home Mode
Main Material
Aluminum Alloy

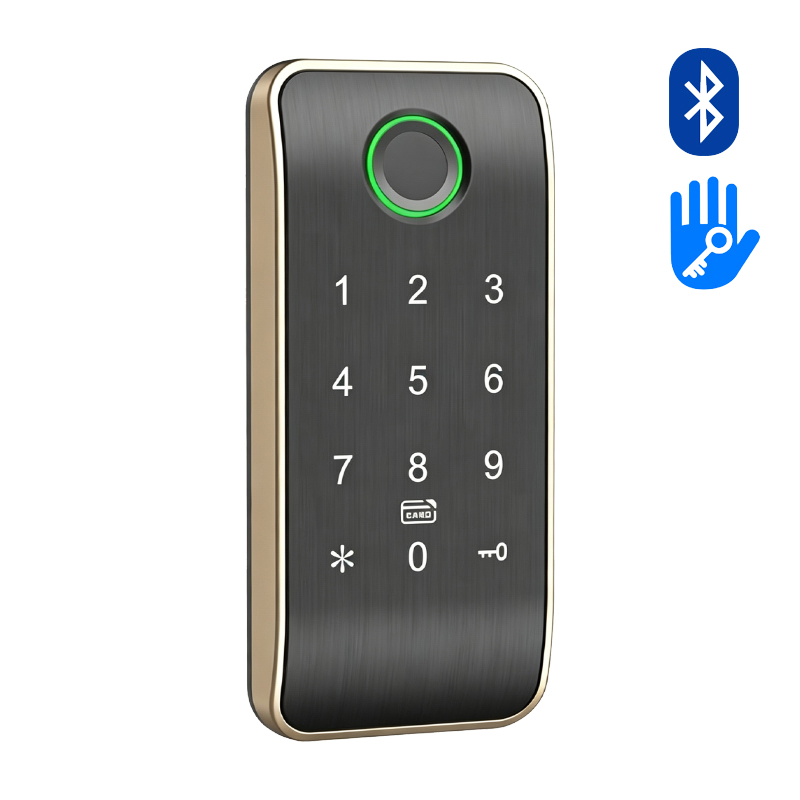

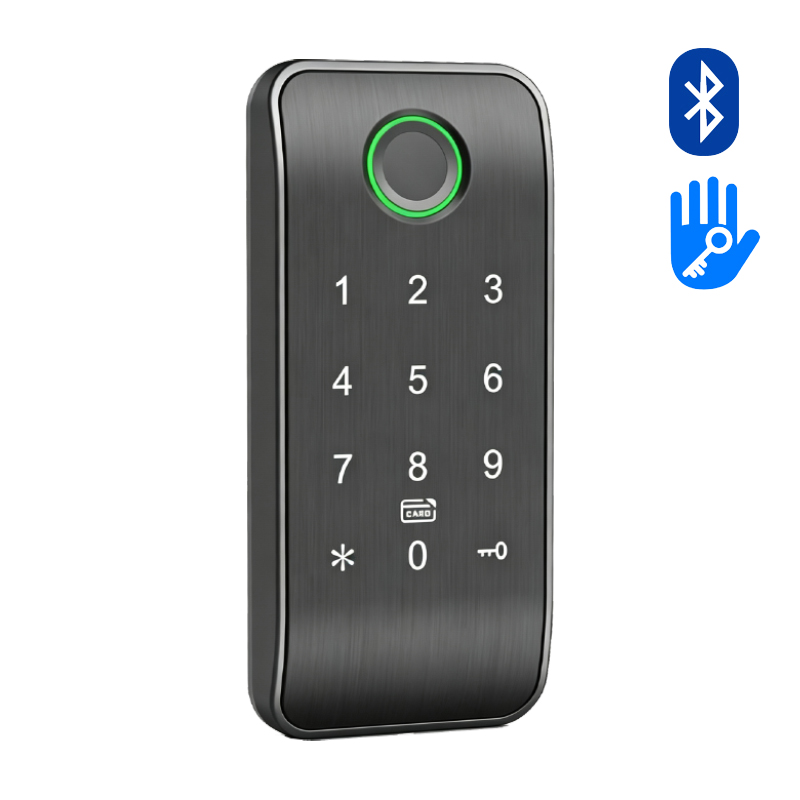

Color Options
Gold / Silver / Black

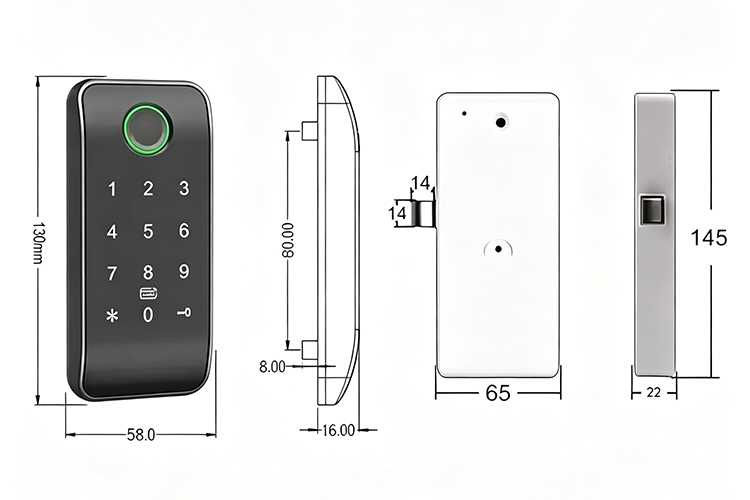

Panel Dimensions
130 * 58 * 16 mm
Mortise Dimensions
145 * 64 * 22 mm
Power Supply
4pcs AA Batteries
Emergency Power
External Power Box
Capacity
Password: 200 sets | Card: 200 pieces
Unlocking Speed
< 1.5 seconds
Sensing Distance
< 3 cm
Low Voltage Alarm
< 4.8V
Power Consumption
Static: < 40μA | Dynamic: < 300 mA
Operating Environment
Temperature: -10°C to 55°C | Humidity: 10% to 80%
Single Set Weight
261.9 g
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
